Toyota COROLLA Ventilation Hose — Figure 1201

Toyota COROLLA EPC diagram 1201, Ventilation Hose, with 3 images and 5 PNC and OE references.

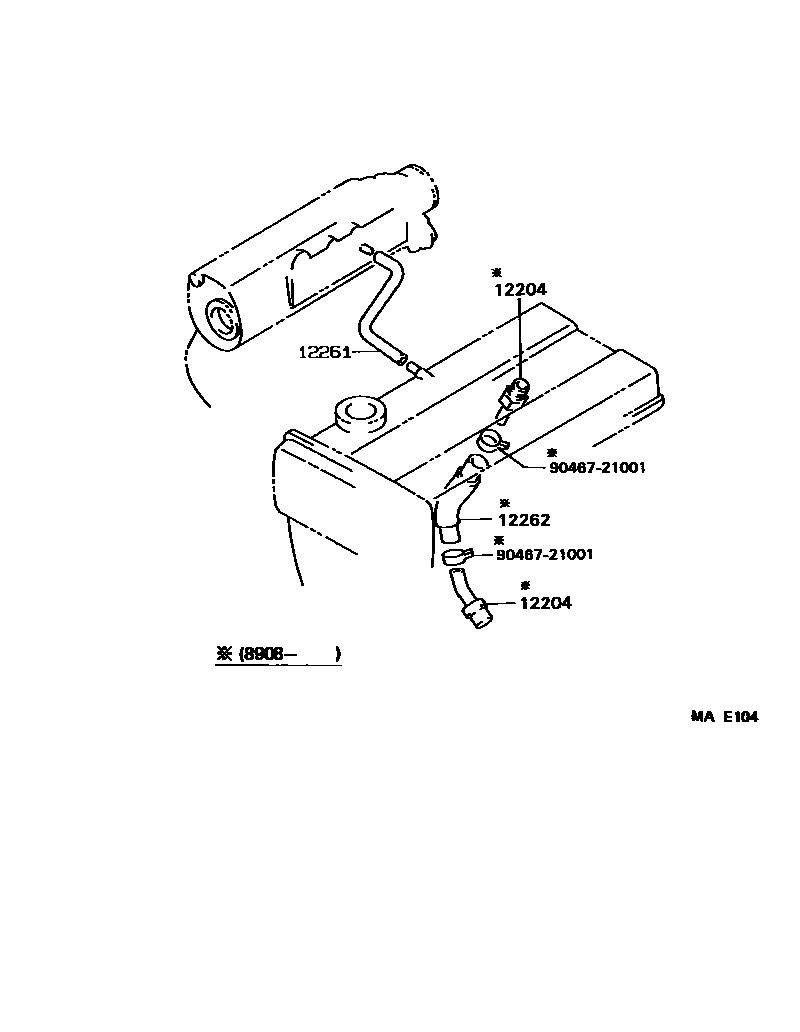

Toyota COROLLA Ventilation Hose EPC diagram — MAE104
Ventilation Hose — MAE104 (198708 – 999999)

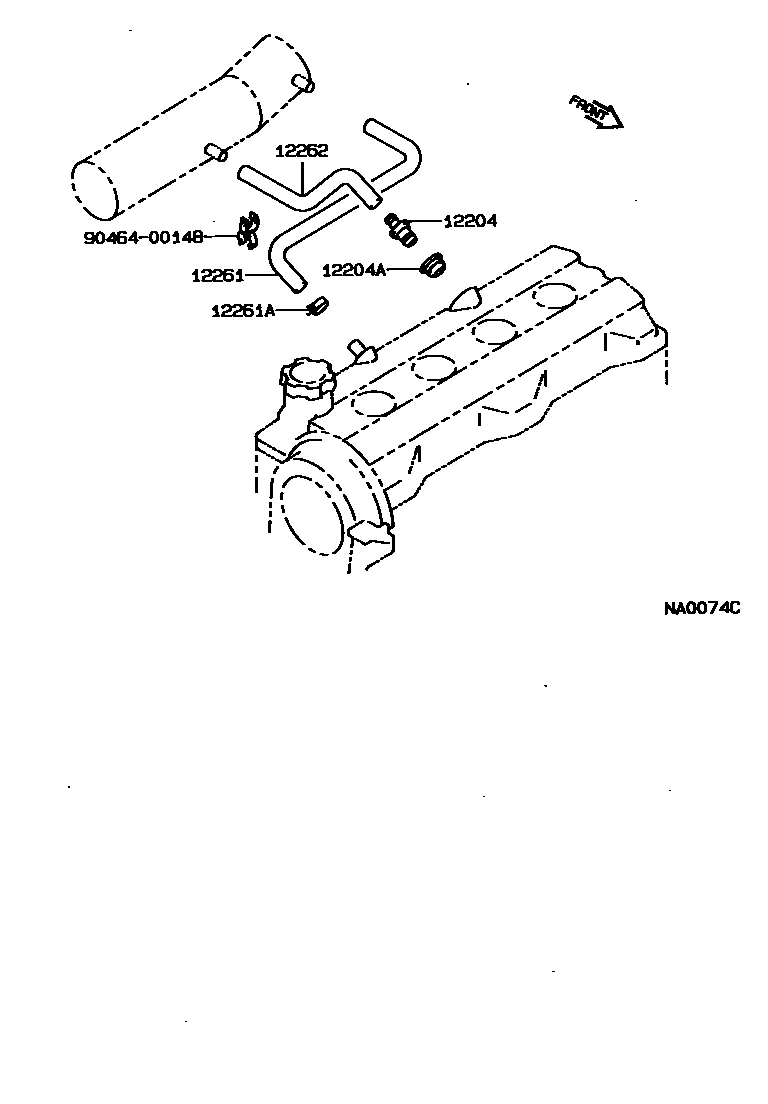

Toyota COROLLA Ventilation Hose EPC diagram — NA0074C
Ventilation Hose — NA0074C (198908 – 999999)

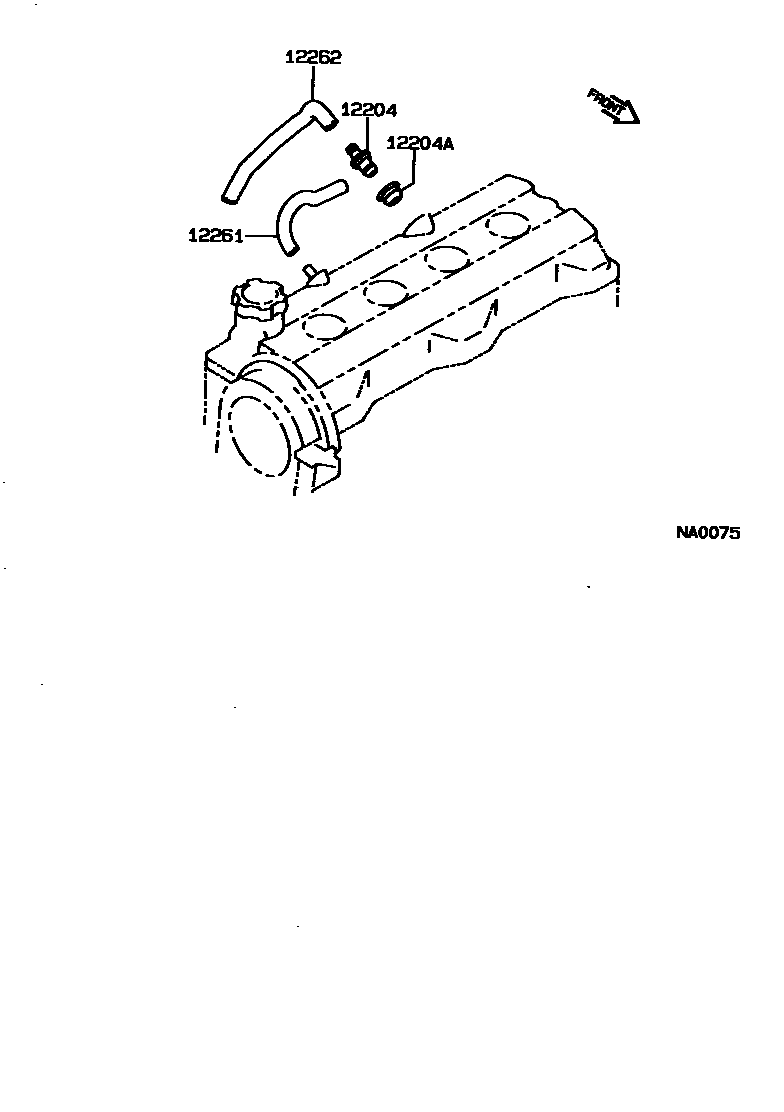

Toyota COROLLA Ventilation Hose EPC diagram — NA0075
Ventilation Hose — NA0075 (198708 – 198908)

PNC and OE references

PNCPart nameOE numbers
12204Ventilation valve sub-assembly12204-15030 · 90404-54038 · 90406-17006
12204AGasket (for ventilation system)90480-18001
12261Ventilation Hose12261-15090 · 12261-16031 · 90445-10013
12261AClip or clip (for vent hose)96132-30400
12262Ventilation hose No. 212262-15040 · 12262-16040 · 90445-15037
