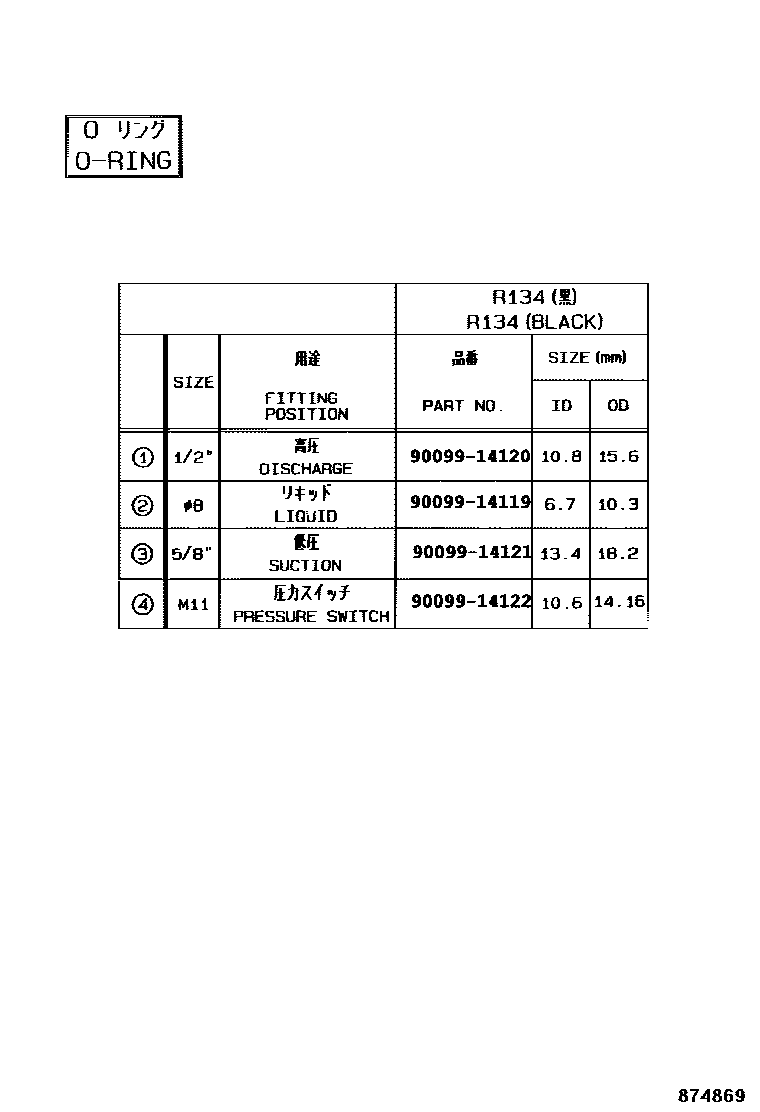

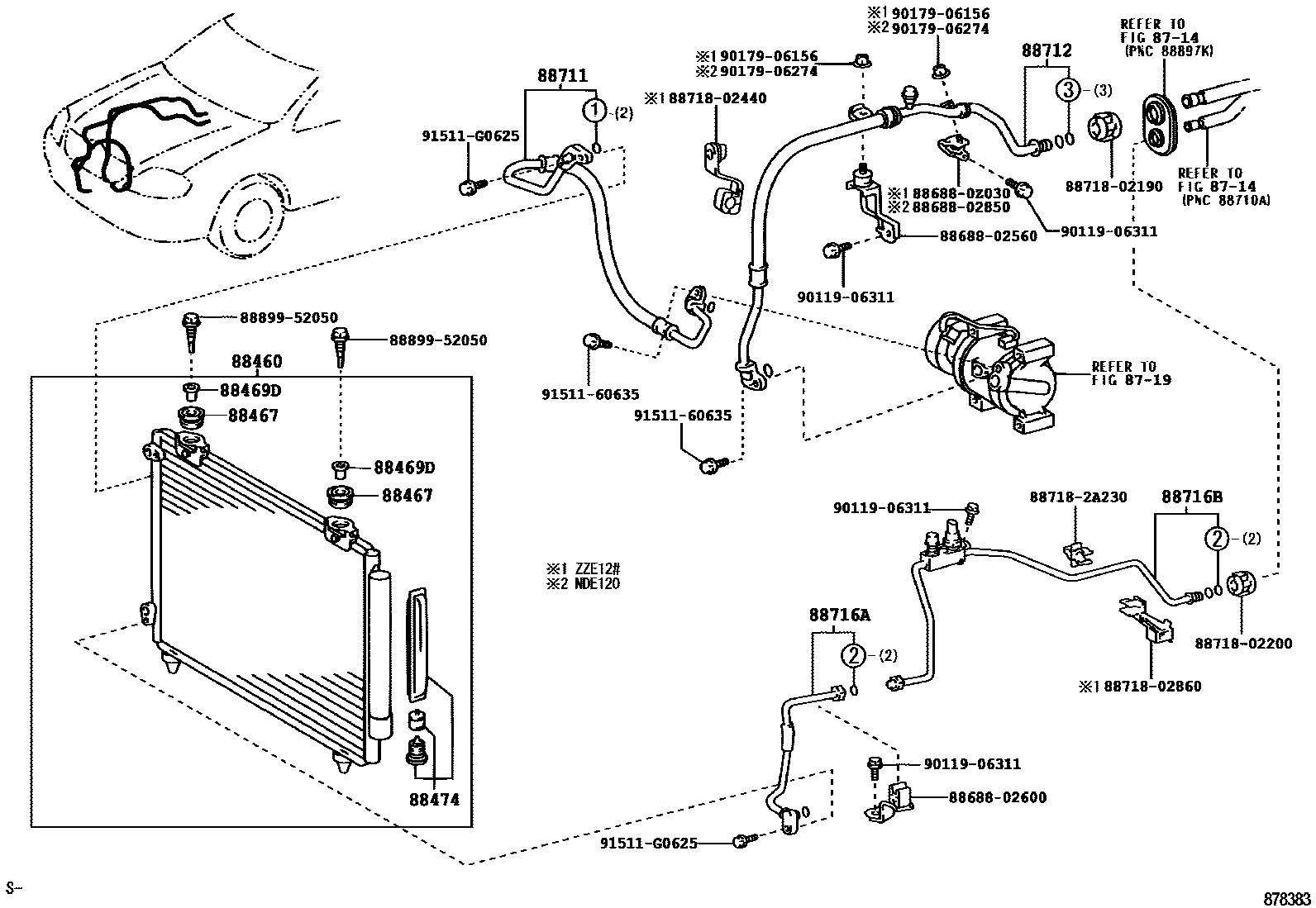

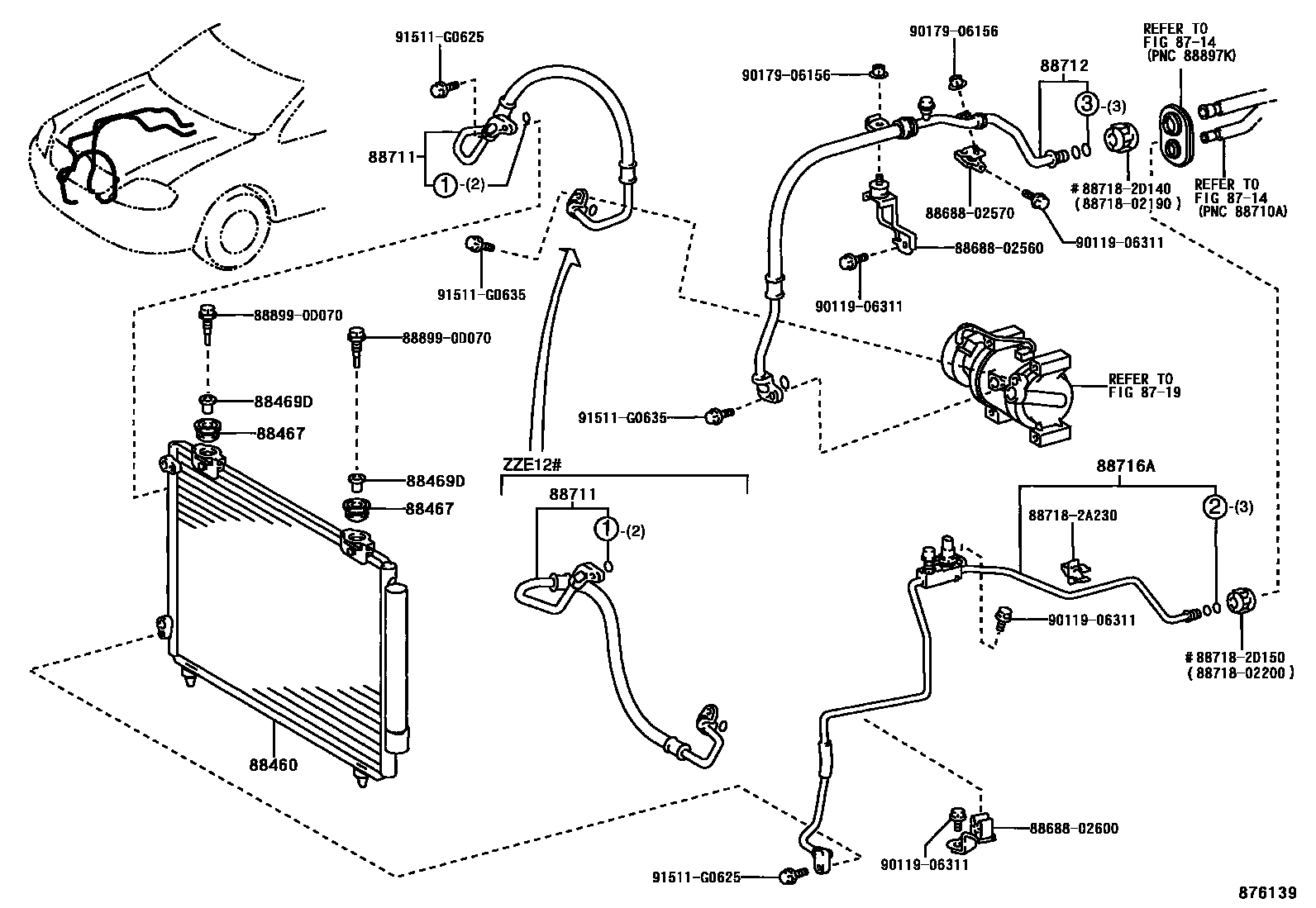

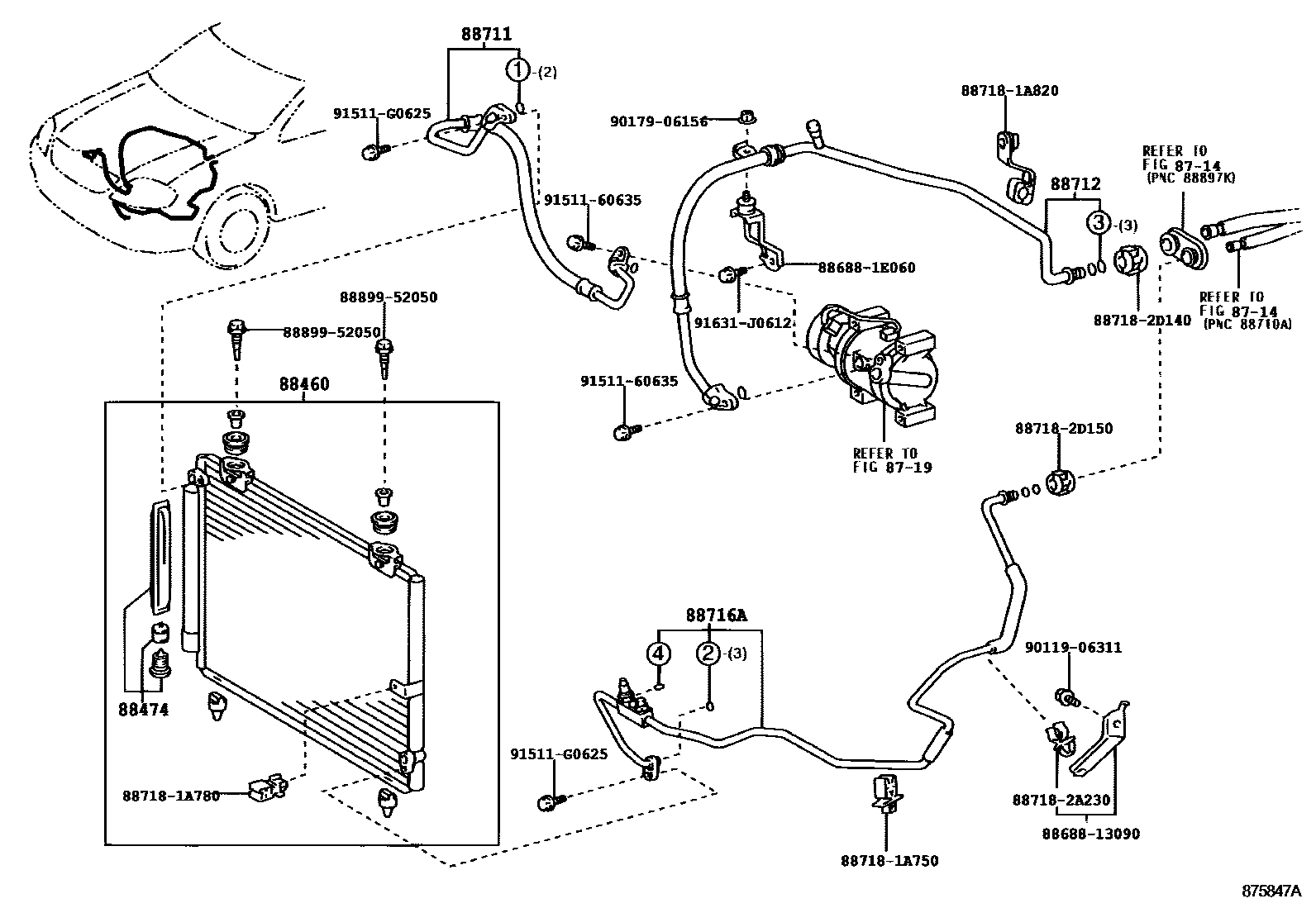

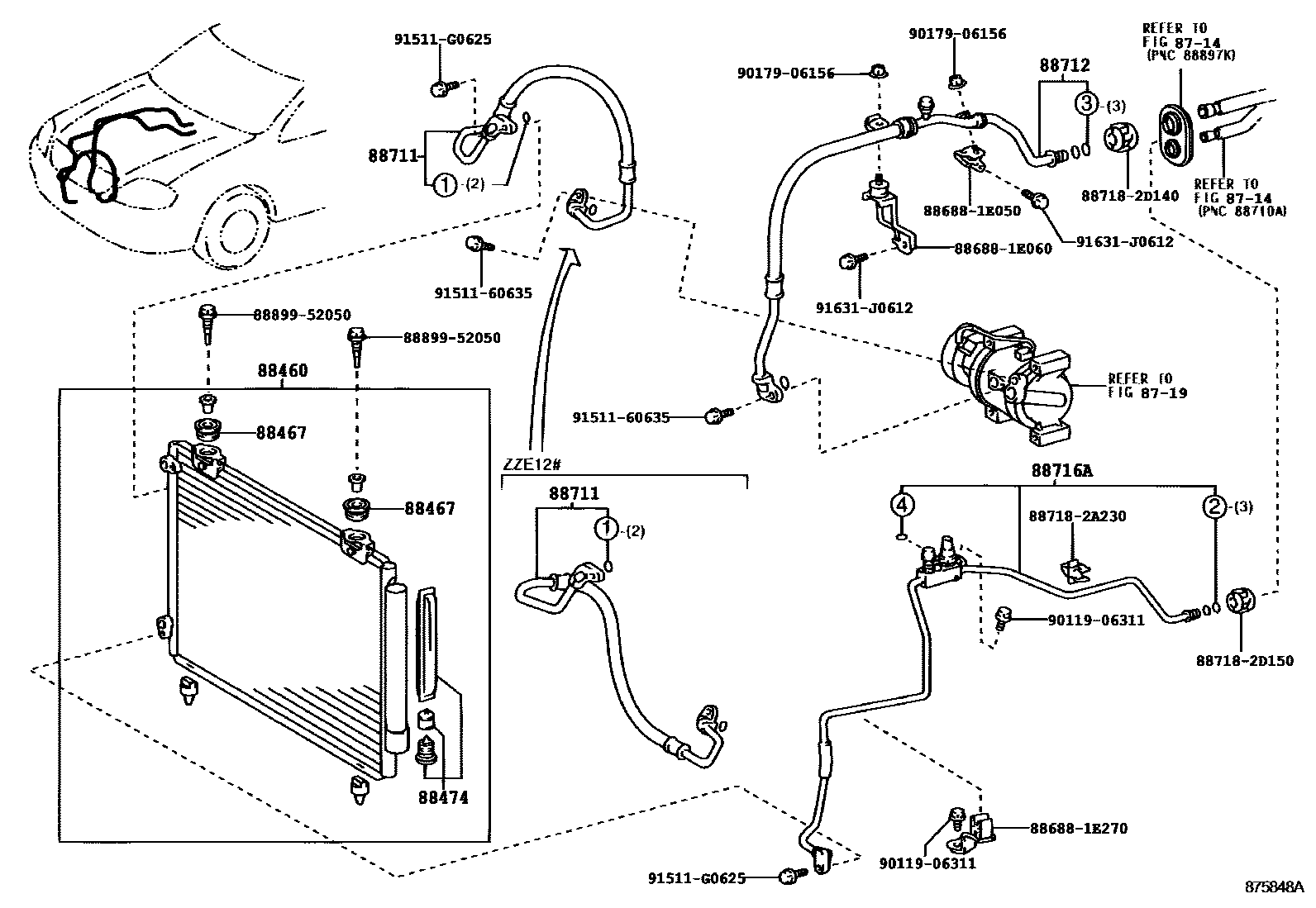

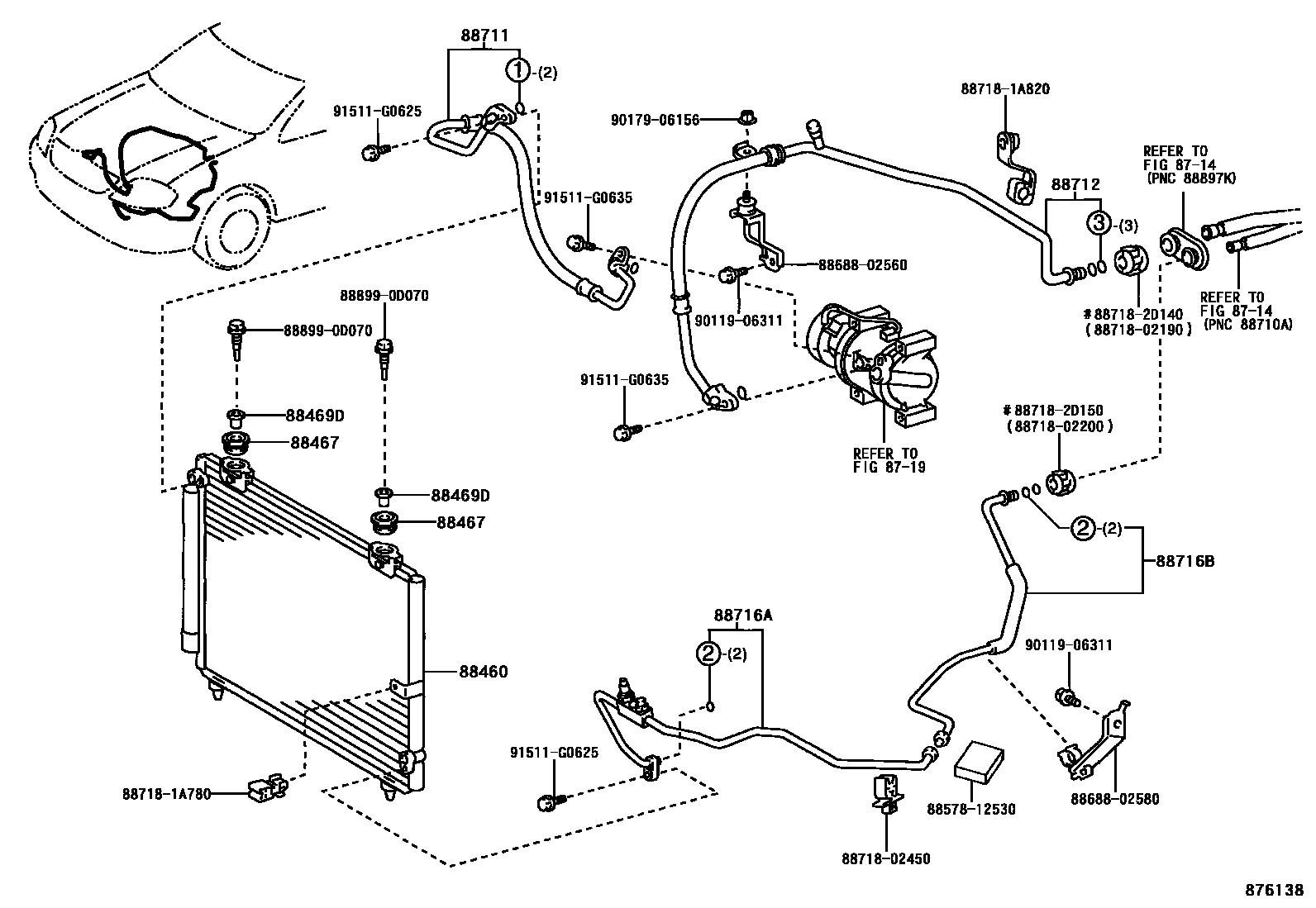

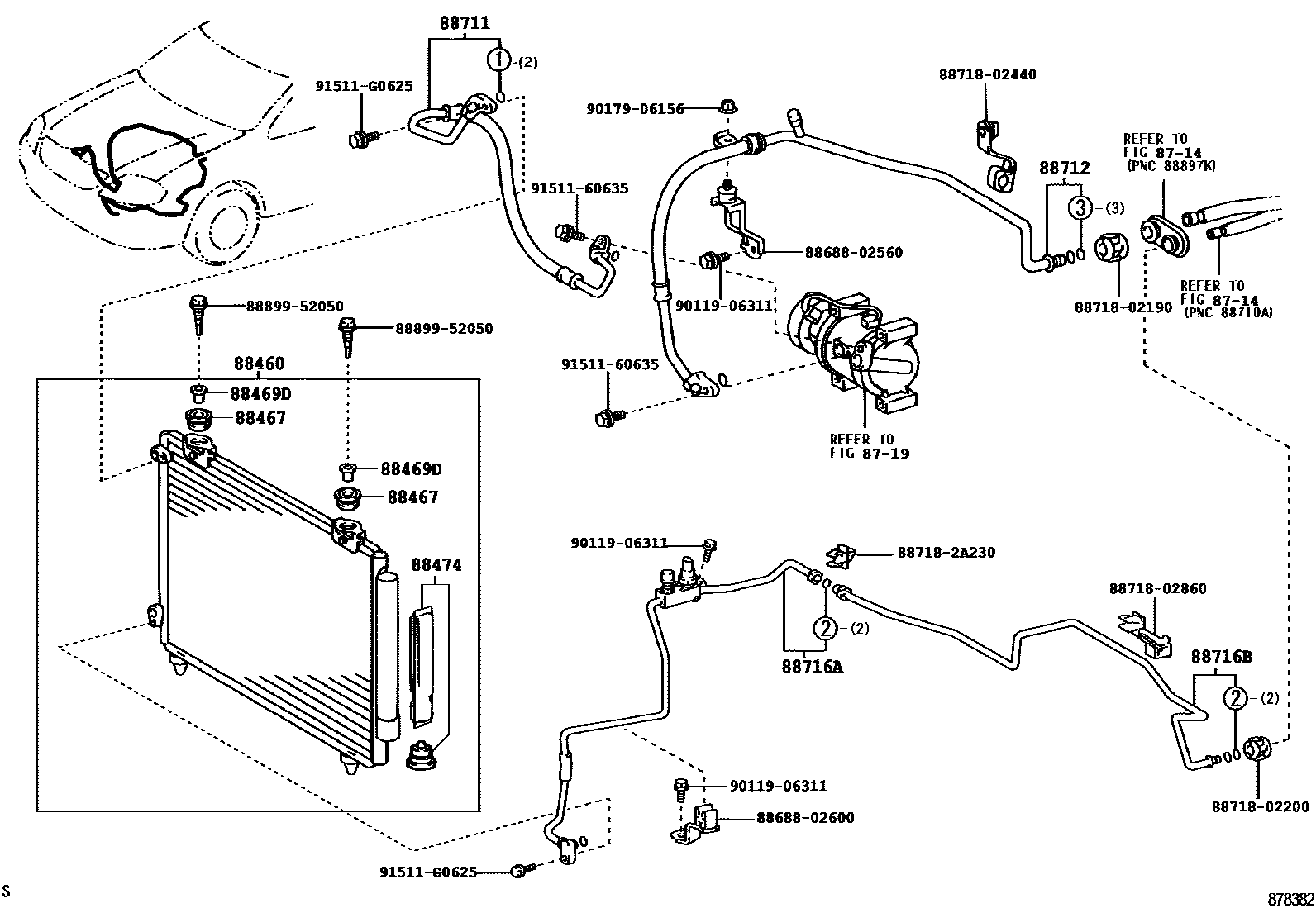

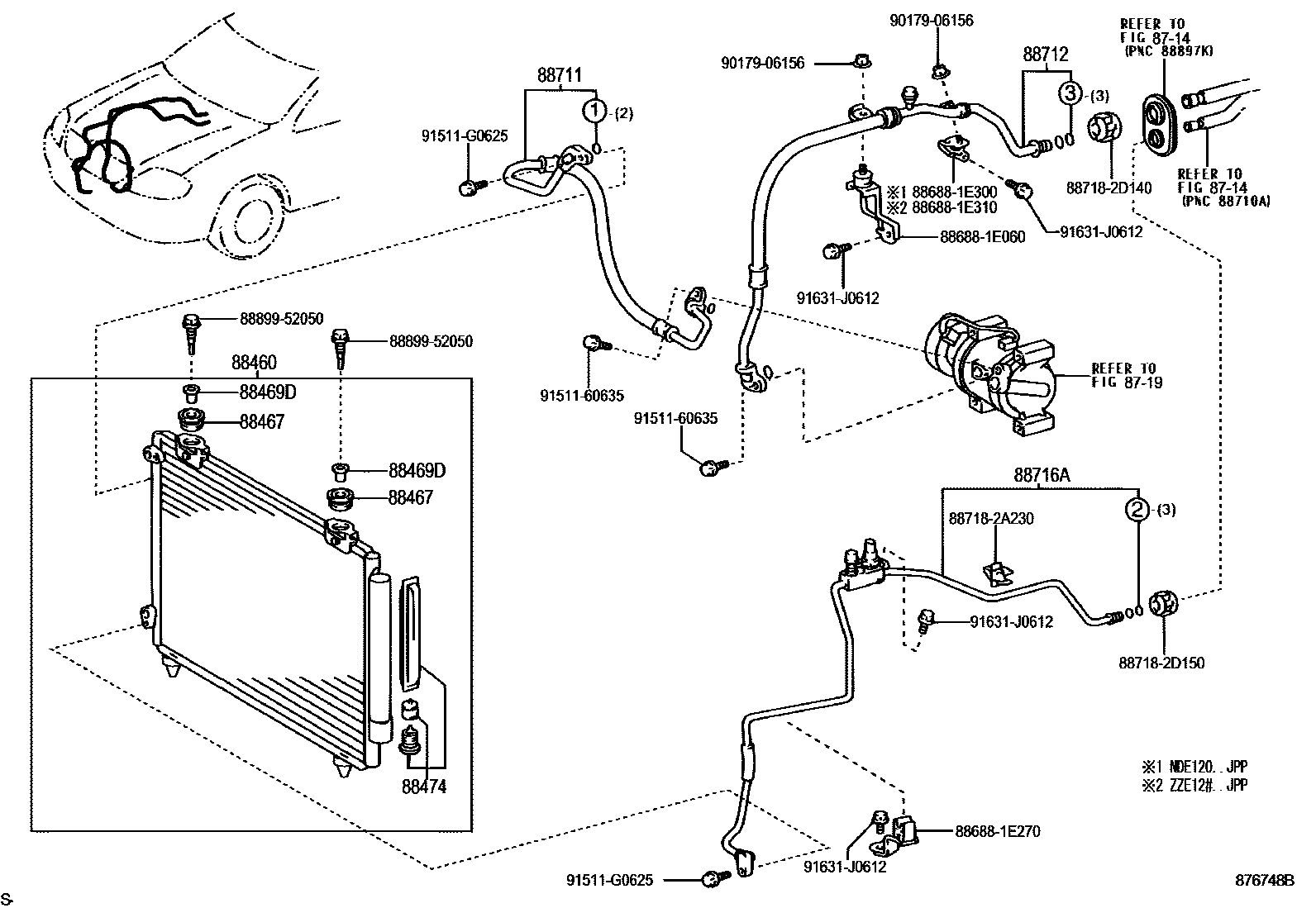

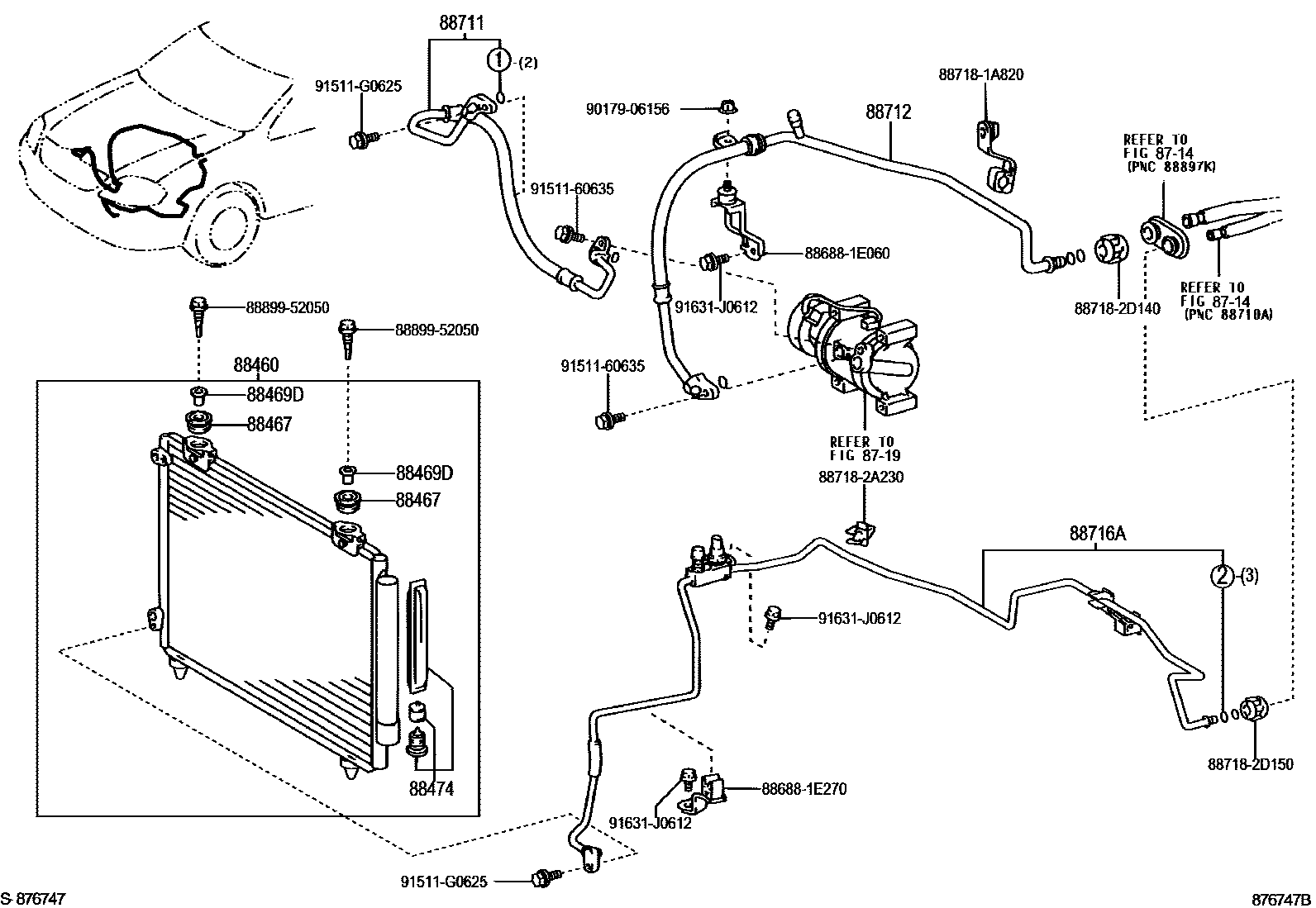

Toyota COROLLA Heating & Air Conditioning - Cooler Piping — Figure 8718
Toyota COROLLA EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 9 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88460 | Air conditioning condenser assembly | 88450-02240 · 88450-12260 · 88450-13031 · 88450-13051 |
| 88467 | No. 1 air conditioning condenser buffer pad | 88467-12180 |
| 88469D | No. 1 condenser bracket collar | 88469-52010 |
| 88474 | cooler dryer | 88474-17010 · 88474-47010 |
| 88711 | Cooler No. 1 refrigerant drain hose | 88703-02190 · 88703-02240 · 88703-12600 · 88703-12610 · 88703-12710 · 88703-12720 |
| 88712 | Cooler No. 1 refrigerant suction hose | 88704-02390 · 88704-02420 · 88704-02531 · 88704-1A040 · 88704-1A050 · 88704-1A060 · 88704-1A070 · 88704-1A090 · 88704-1A100 |
| 88716A | Cooler refrigerant liquid pipe A | 88710-02730 · 88710-12630 · 88710-12650 · 88710-12690 · 88710-12700 · 88716-02710 |
| 88716B | Cooler refrigerant liquid pipe B | 88710-02760 · 88716-02500 · 88716-02680 |
