Toyota COROLLA 暖风和空调系统 - 水管 — Figure 8716

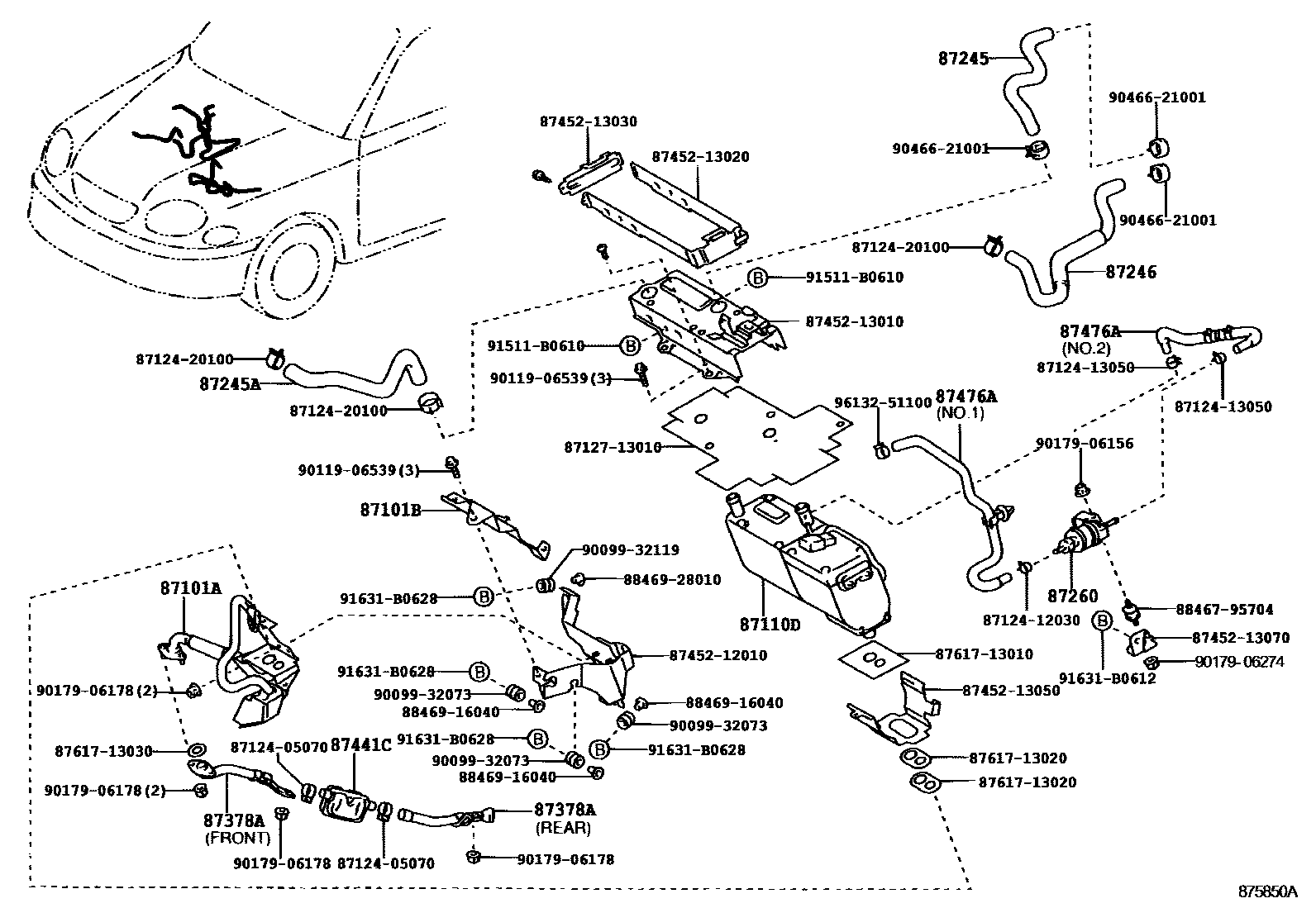

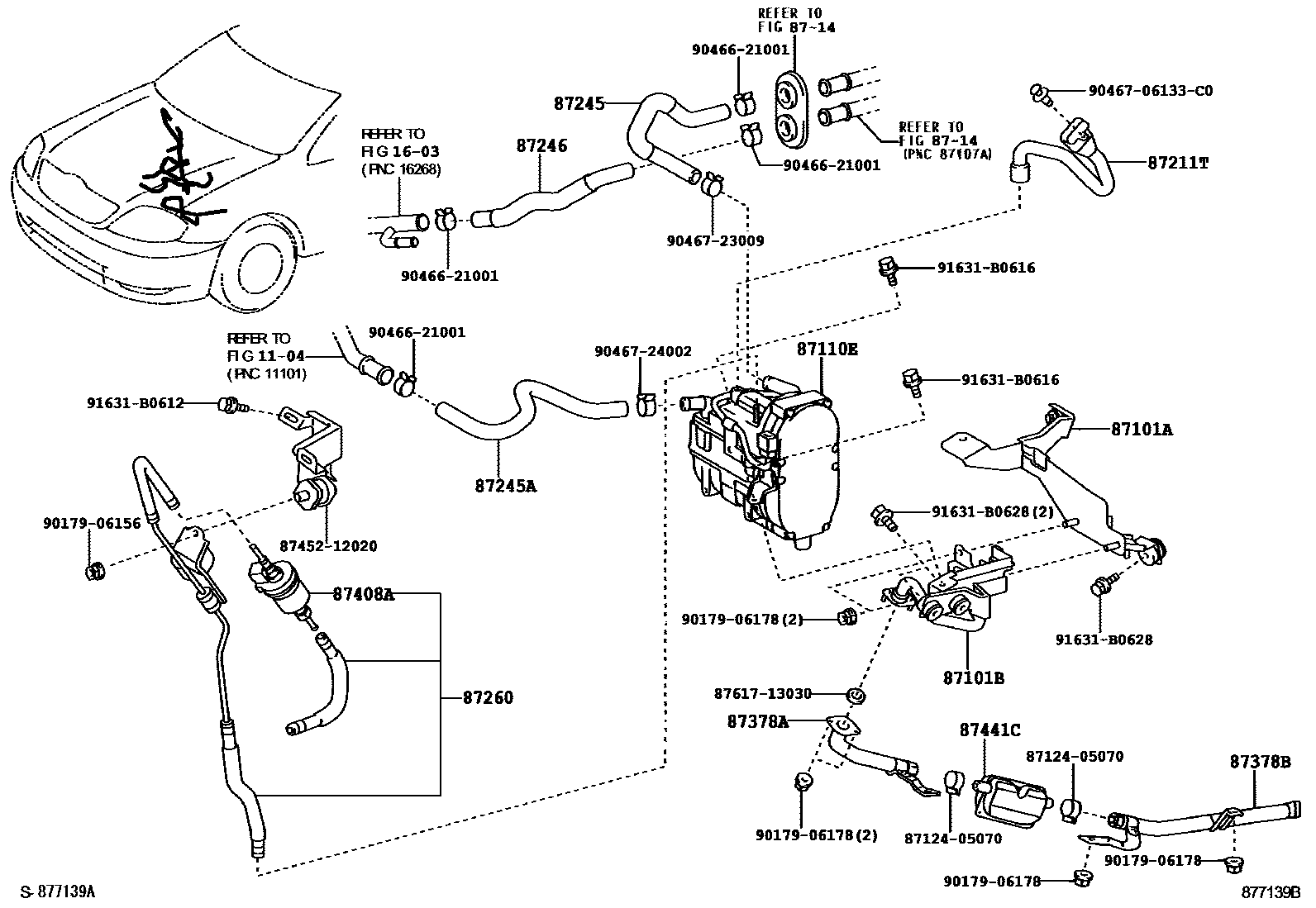

Toyota COROLLA EPC diagram 8716, 暖风和空调系统 - 水管, with 6 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87101A | No. 1 heater bracket sub-assembly | 87101-12060 · 87101-13020 |
| 87101B | No. 2 heater bracket sub-assembly | 87101-12070 · 87101-13030 |

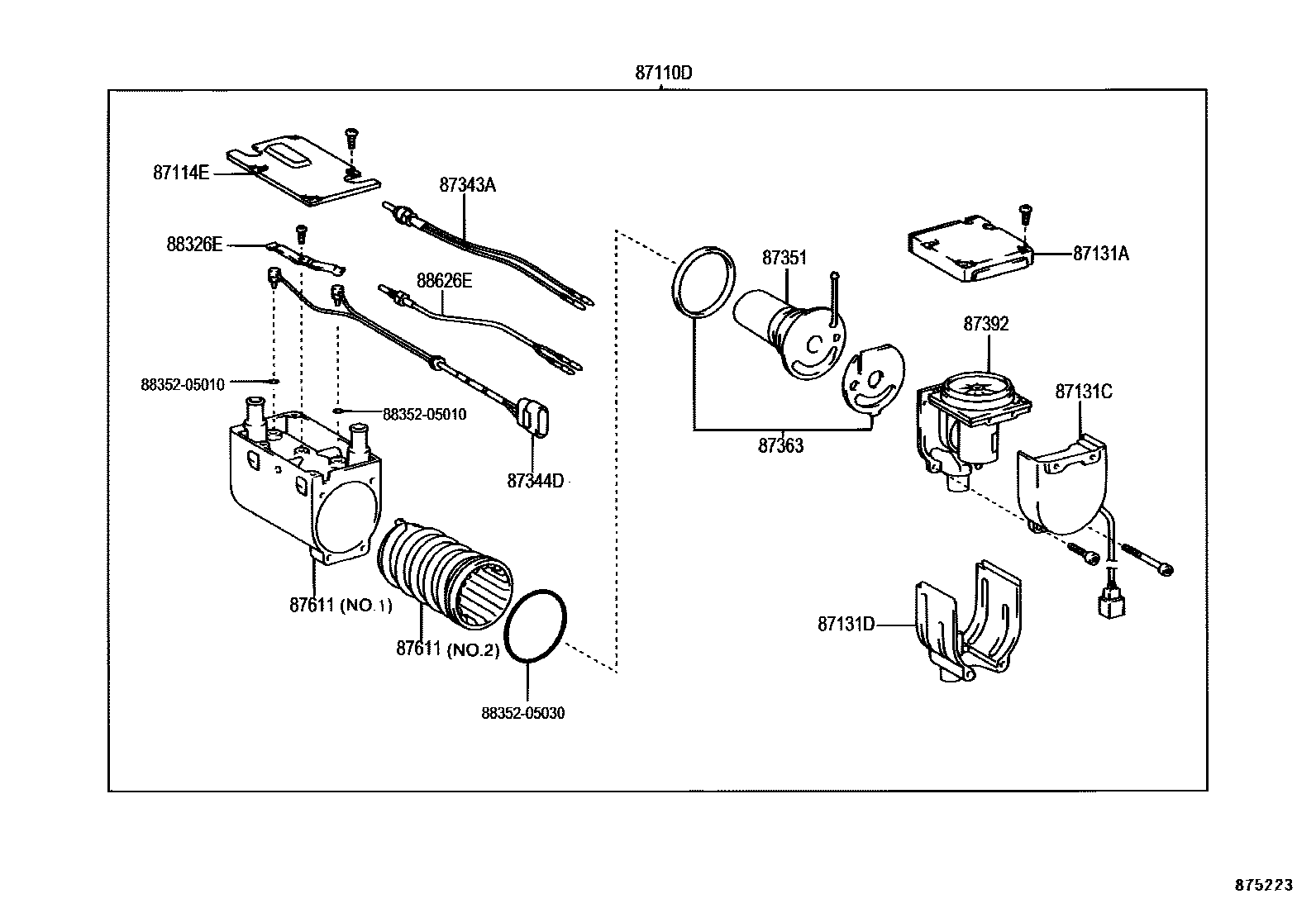

| 87110D | heater assembly | 87110-05030 |
| 87110E | heater assembly | 87110-02010 · 87110-02011 · 87110-02012 |
| 87114E | Heater cover No. 1 | 87114-05050 |
| 87131A | heater blower housing | 87131-05040 |
| 87131C | No. 2 heater blower housing | 87131-05050 |
| 87131D | No. 3 heater blower housing | 87131-05060 |
| 87211T | air duct | 87211-12310 |

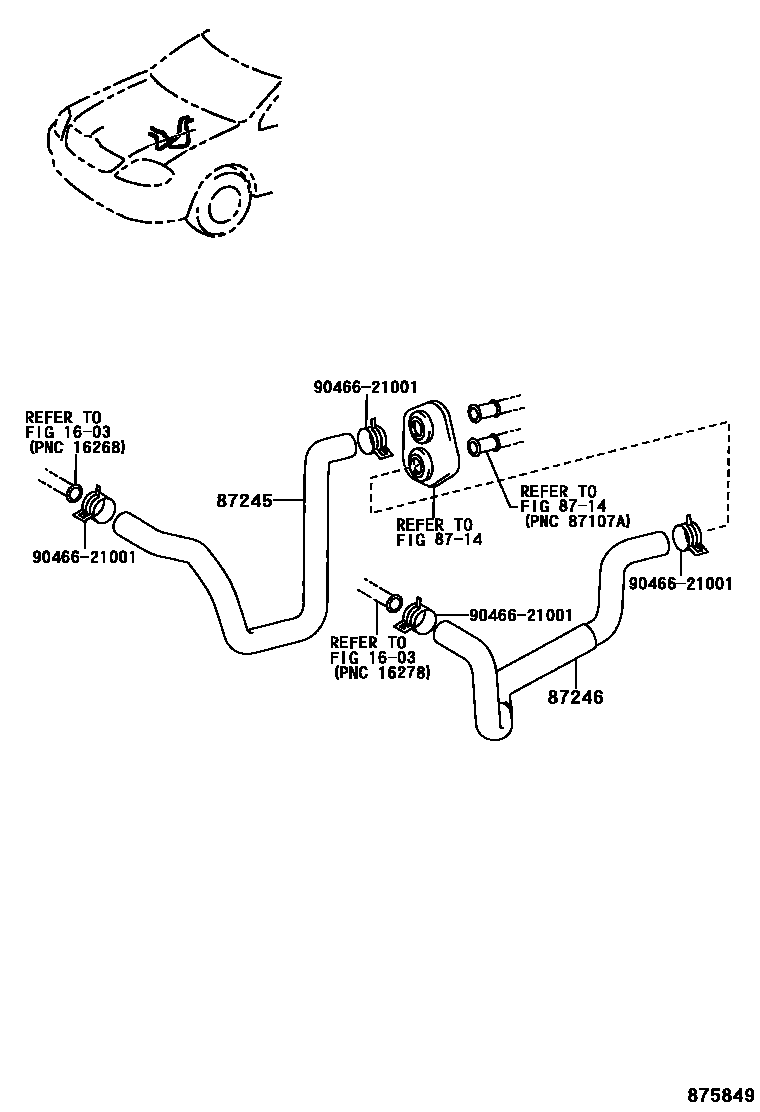

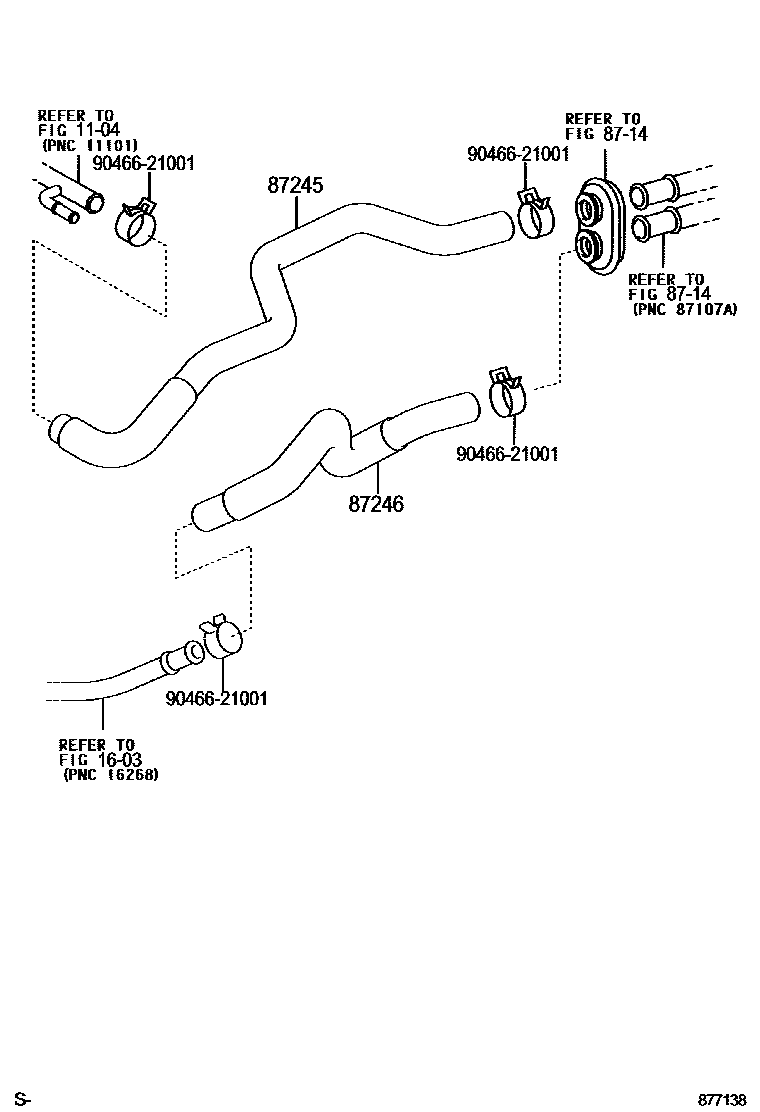

| 87245 | Heater water inlet hose | 87245-12A20 · 87245-12A40 · 87245-1E190 · 87245-1E310 · 87245-1E330 · 87245-1E350 |
| 87245A | Heater water inlet hose A | 87245-12A50 · 87245-13070 |

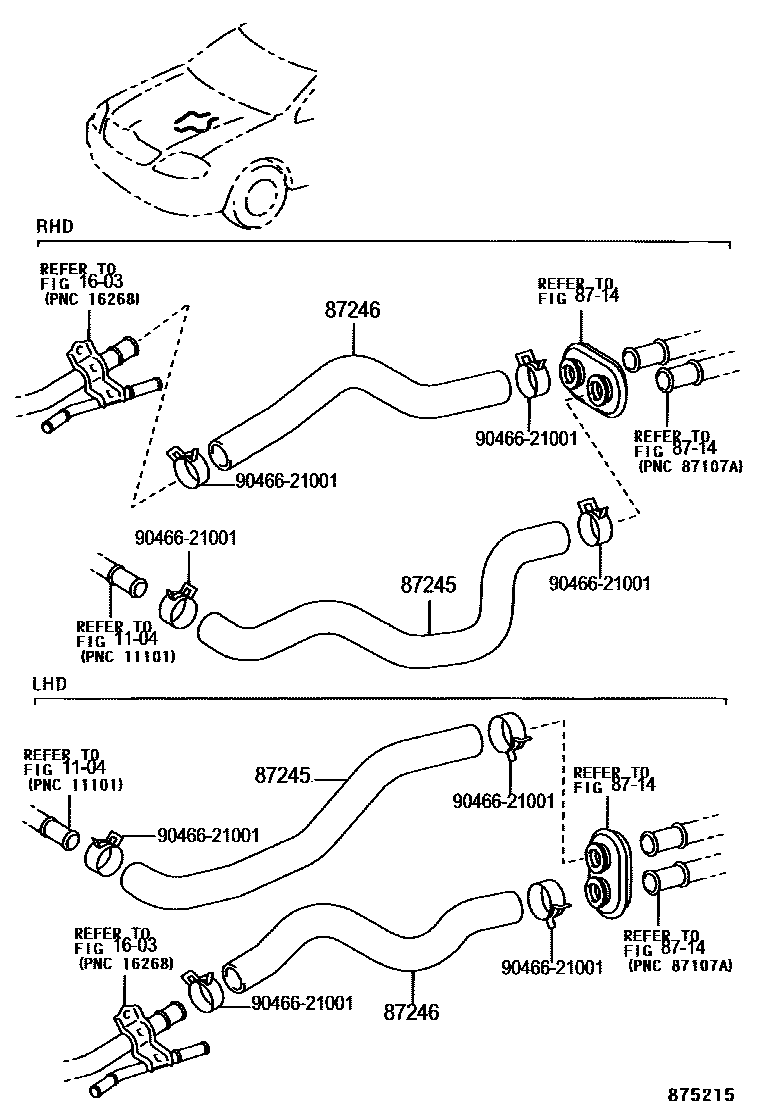

| 87246 | Heater outlet hose | 87245-12A30 · 87245-1E200 · 87245-1E320 · 87245-1E340 |
| 87260 | Heater pump assembly | 87260-12020 · 87260-12021 · 87260-13010 |
| 87343A | Combustion heater glow plug | 87343-05010 |
| 87344D | heating wire | 87344-05010 |
| 87351 | fuel regulator chamber | 87351-05010 |
| 87363 | fuel regulator cover gasket | 87363-05010 |
| 87378A | Exhaust Pipe | 87378-12050 · 87378-13010 |
| 87378B | Exhaust pipe No. 2 | 87378-12050 |
| 87392 | Motor housing | 87392-05020 |
| 87408A | Fuel pump sub-assembly | 87408-0D011 |
| 87441C | Silencer | 87441-05010 |
| 87476A | Heater No. 1 fuel hose | 87476-13010 · 87476-13020 |
| 87611 | heat exchanger box | 87611-05010 · 87611-05020 |
| 88326E | Cover plate | 88326-05040 |
| 88626E | water temperature sensor | 88626-05020 |
