Toyota COROLLA 后视镜 — Figure 8701

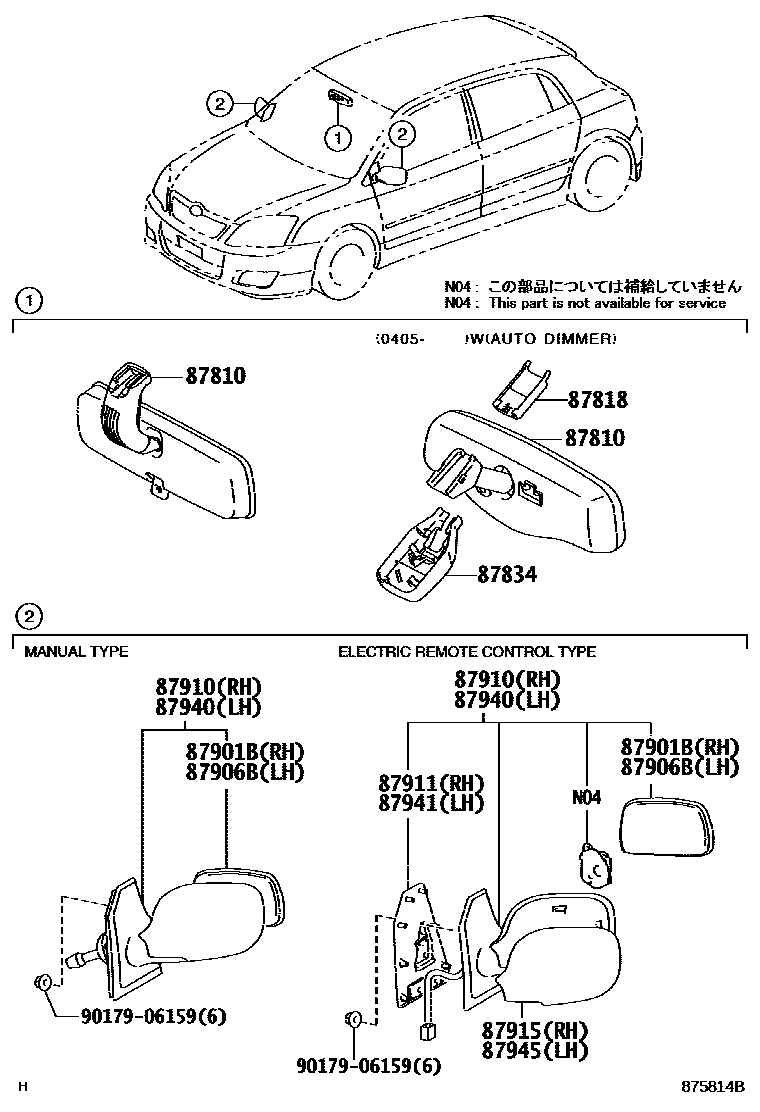

Toyota COROLLA EPC diagram 8701, 后视镜, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87810 | Interior rearview mirror assembly | 87810-05040 · 87810-05042 · 87810-0D010 · 87810-0D011 |
| 87818 | Interior rearview mirror cover | 87818-12010 |
| 87834 | Interior rearview mirror stay fixing cover | 87834-12040 |
| 87901B | Right exterior rearview mirror sub-assembly | 87931-12A50 · 87931-1E260 · 87931-1E700 · 87931-1E860 · 87931-1H040 · 87931-1H050 · 87931-1H060 · 87931-1H070 · 87931-47110 · 87931-47120 |
| 87906B | Left exterior rearview mirror sub-assembly | 87961-12A60 · 87961-12A70 · 87961-1E660 · 87961-1E671 · 87961-1H020 · 87961-1H030 · 87961-1H130 · 87961-1H140 · 87961-47110 · 87961-47120 |
| 87910 | Right exterior rearview mirror assembly | 87910-12A40 · 87910-12A50 · 87910-12A60 · 87910-1E260 · 87910-1E861 · 87910-1E870 · 87910-1H040 · 87910-1H051 · 87910-1H061 · 87910-1H071 |
| 87911 | Right exterior mirror pad | 87911-12320 |
| 87940 | Left exterior rearview mirror assembly | 87940-12A00 · 87940-12A60 · 87940-12A70 · 87940-12A80 · 87940-1E671 · 87940-1E690 · 87940-1H020 · 87940-1H031 · 87940-1H131 · 87940-1H141 |
| 87941 | Left exterior mirror pad | 87941-12300 |
