Toyota COROLLA 挡风玻璃清洗器 — Figure 8503

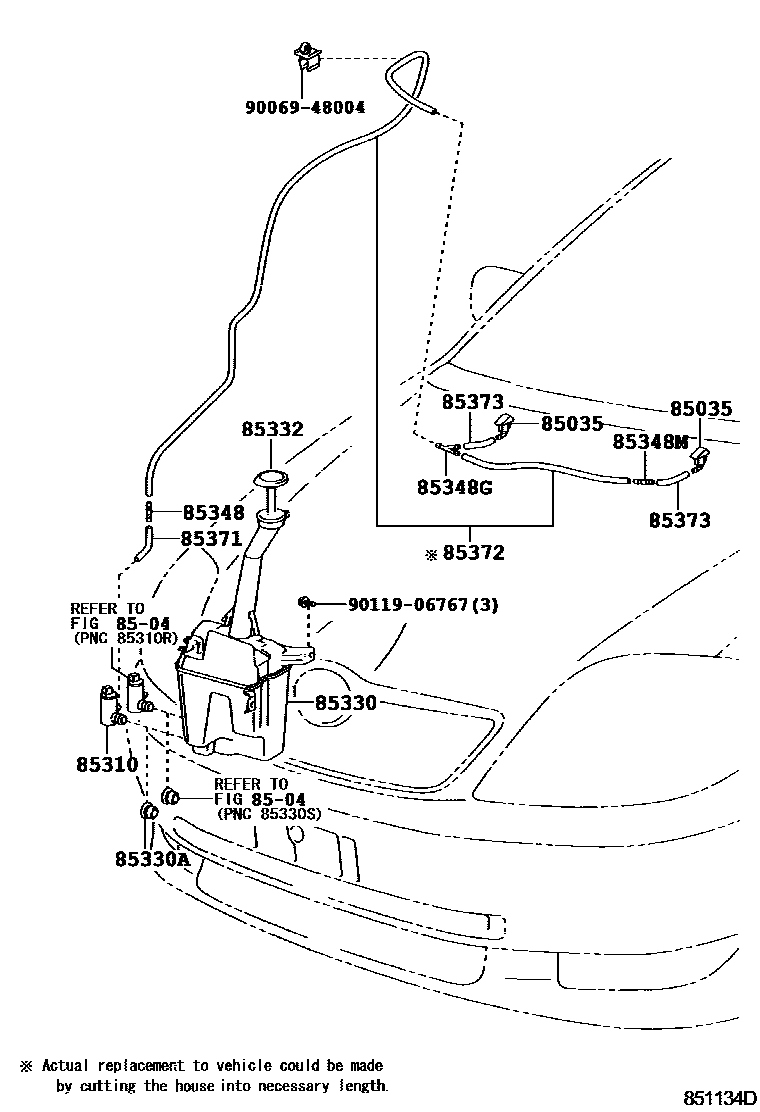

Toyota COROLLA EPC diagram 8503, 挡风玻璃清洗器, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85035 | Cleaner nozzle sub-assembly | 85381-02080 · 85381-02081 · 85381-02090 · 85381-02091 |
| 85310 | Windshield washer motor and pump assembly | 85330-05030 · 85330-05031 |
| 85330 | Windshield washer fluid tank assembly | 85315-02090 · 85315-02100 |
| 85330A | Windshield washer fluid tank bushing | 85336-05070 · 90069-20005 |
| 85332 | Windshield washer fluid tank cap | 85316-02090 |
| 85348 | Windshield washer hose connector No. 1 | 85375-05050 |
| 85348G | Windshield washer hose connector No. 2 | 85378-05030 |
| 85348M | No. 3 windshield washer hose connector | 85375-05050 |
| 85372 | Windshield washer hose No. 1 (from connector to connector) | 90069-46011 · 90069-46012 |
| 85373 | Windshield washer hose (from connector to nozzle) | 90069-16009 |
