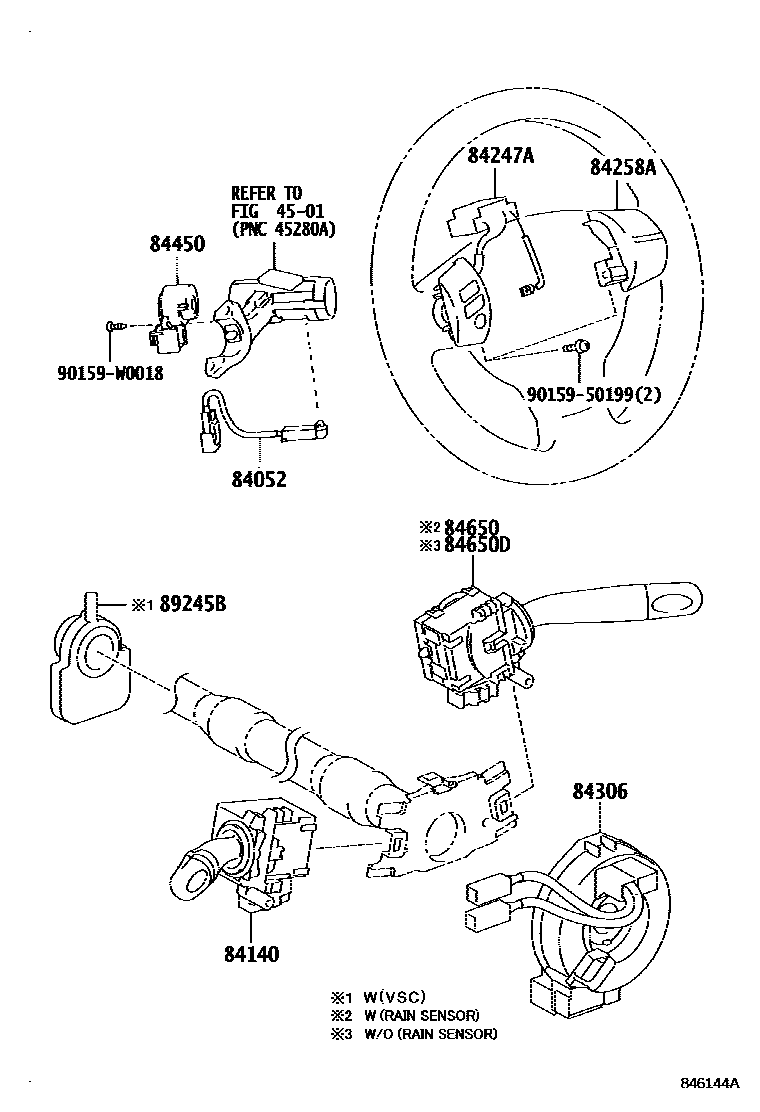

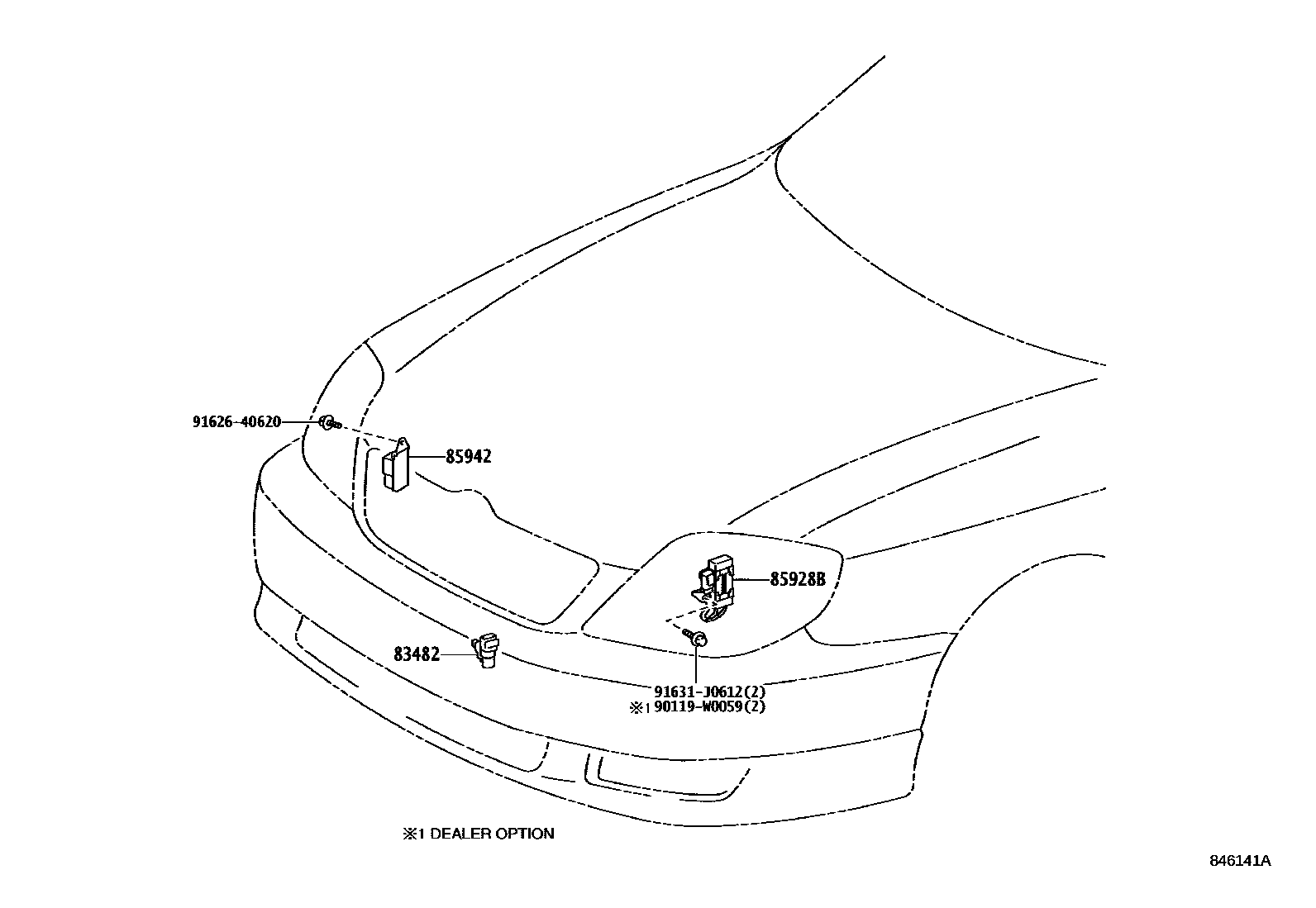

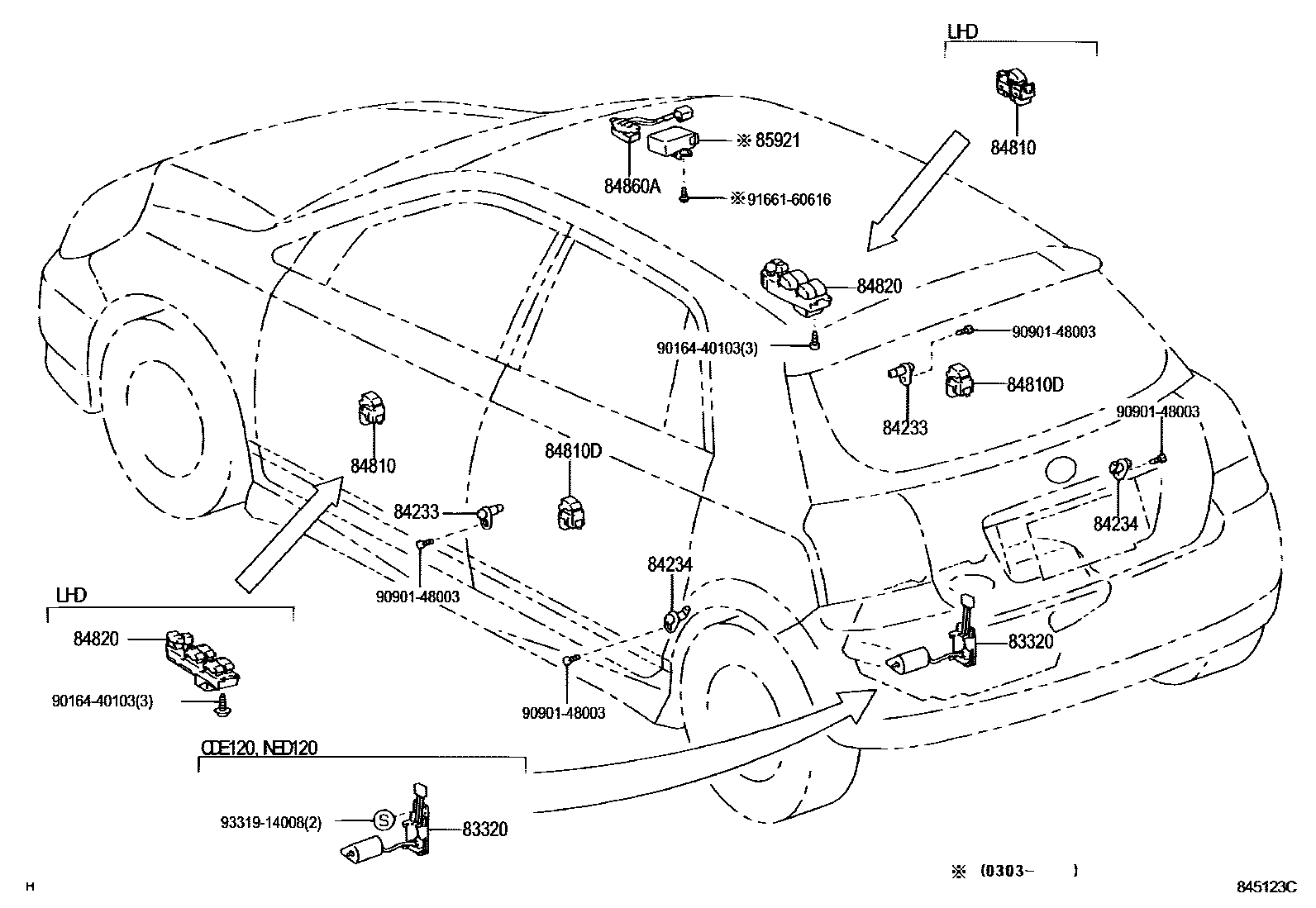

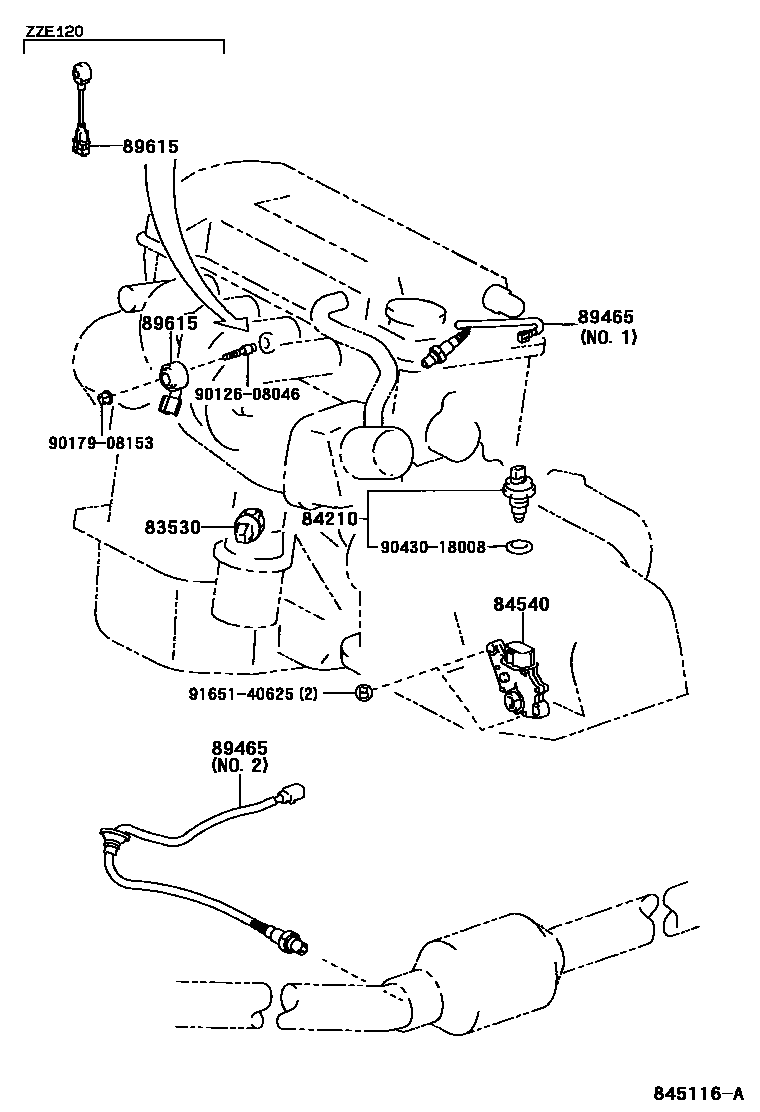

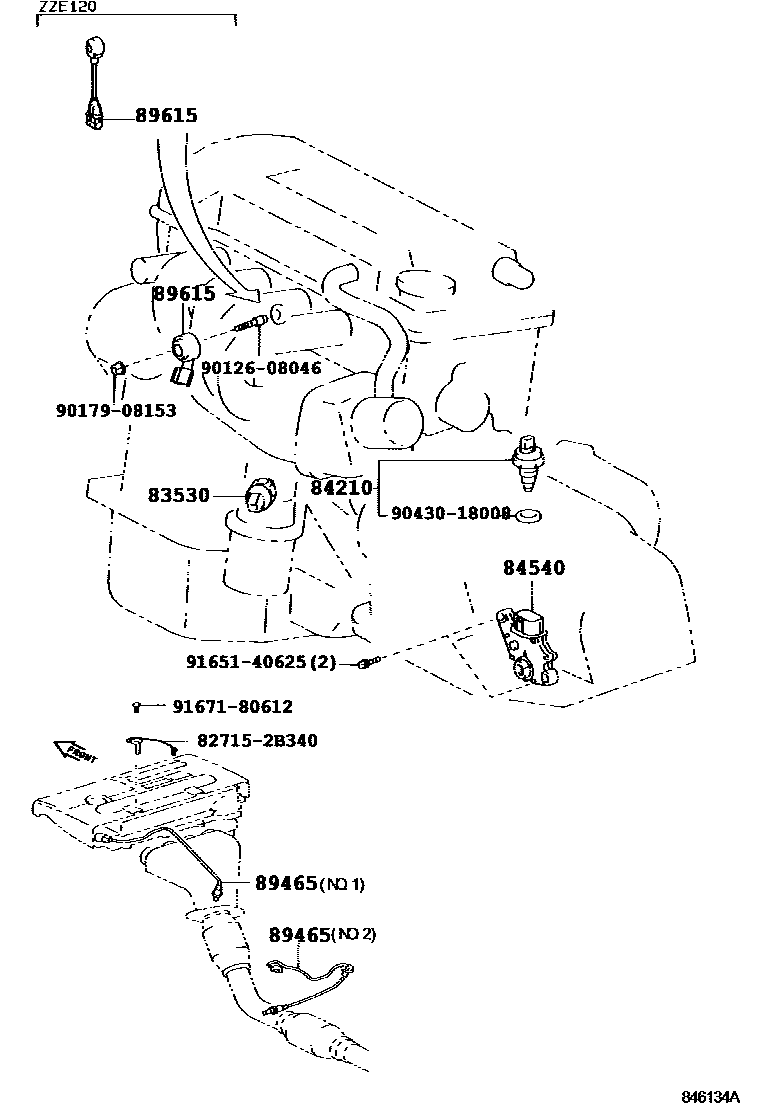

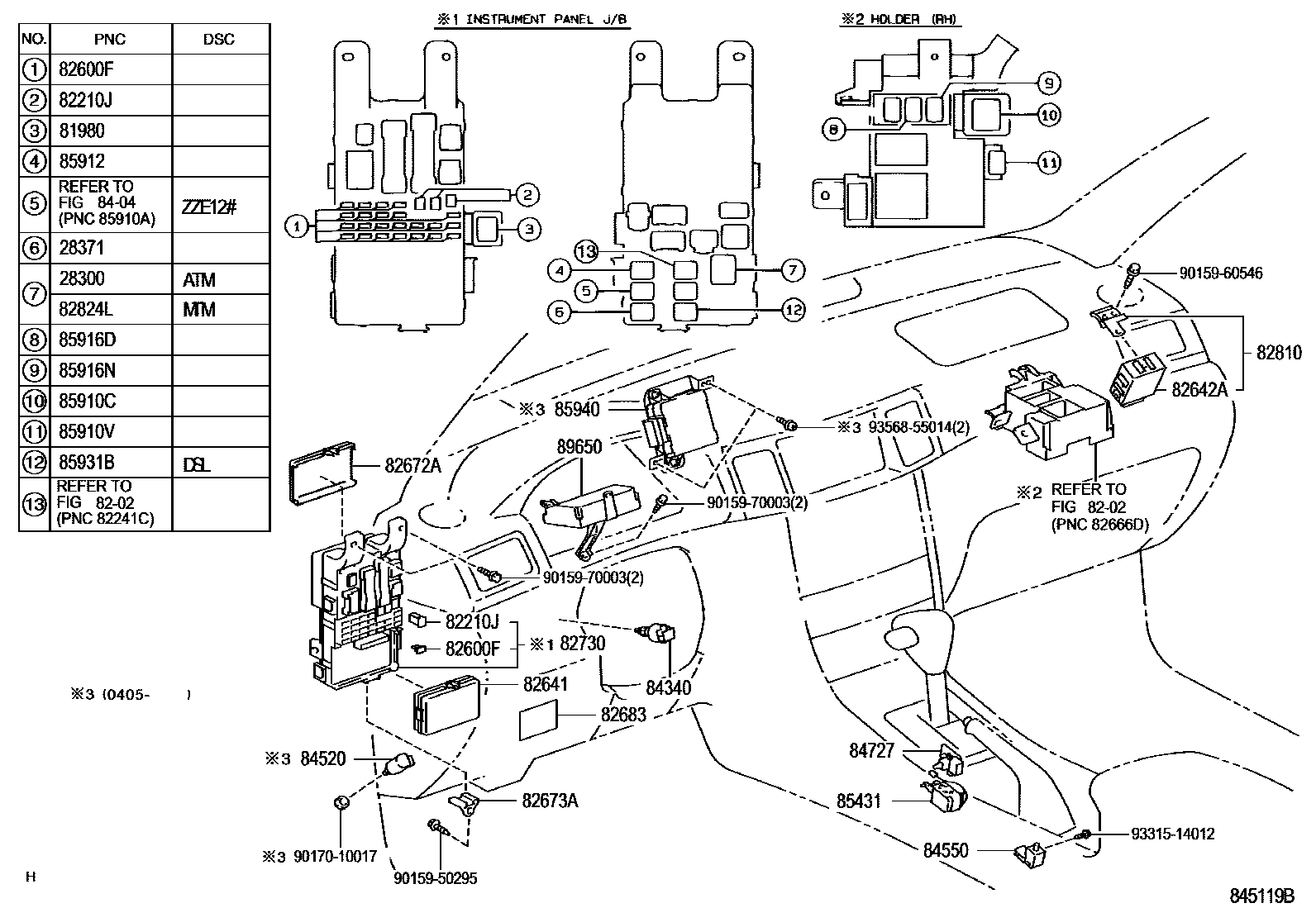

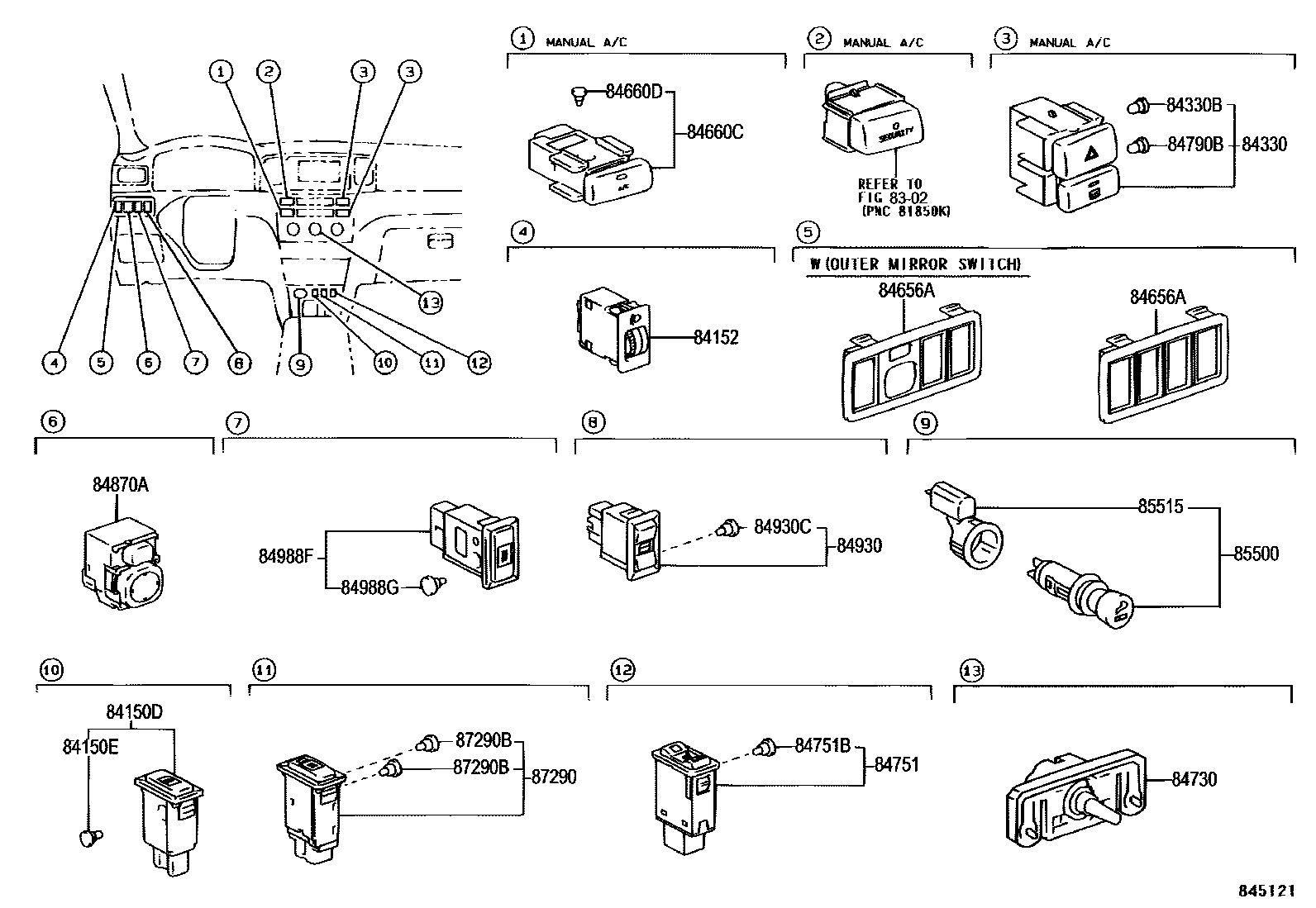

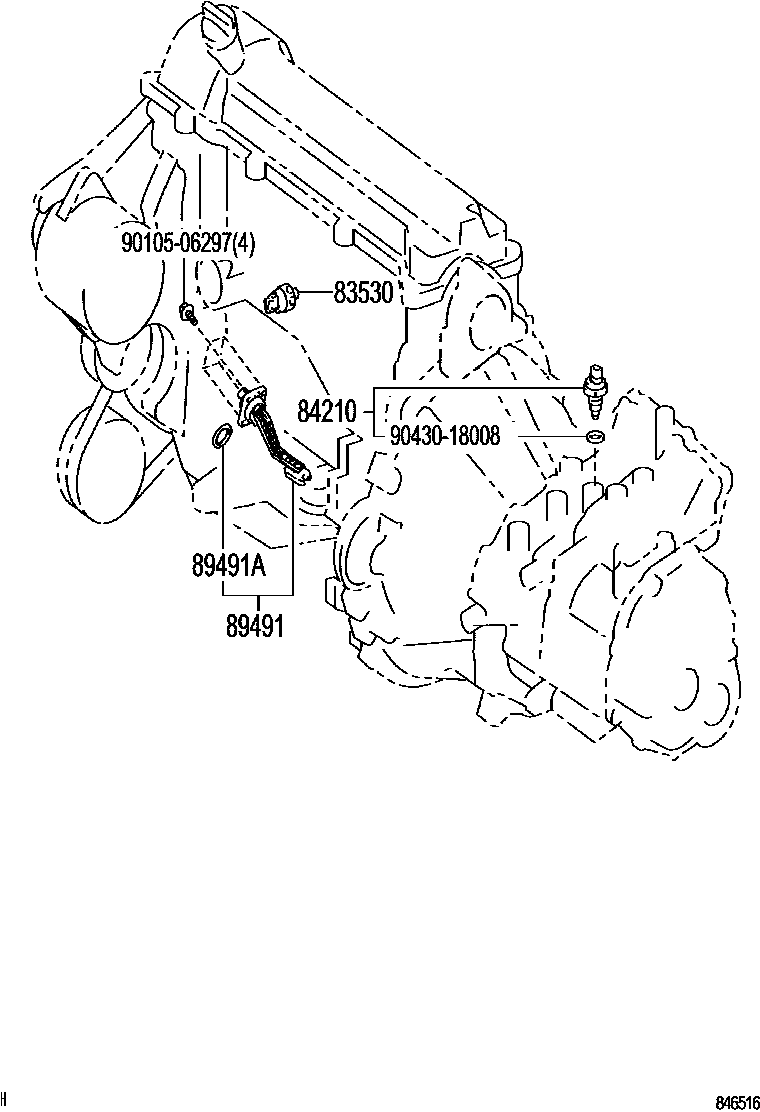

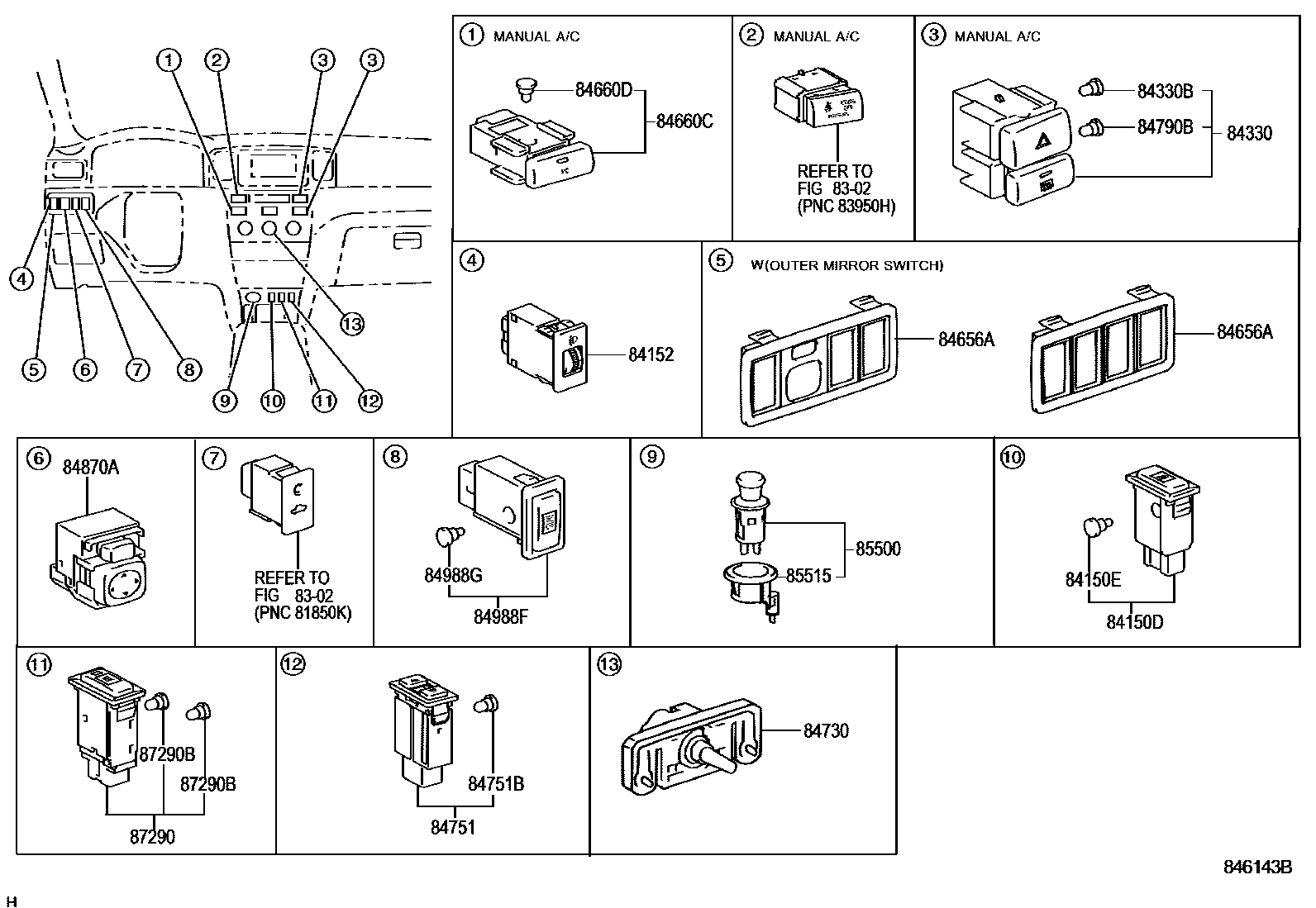

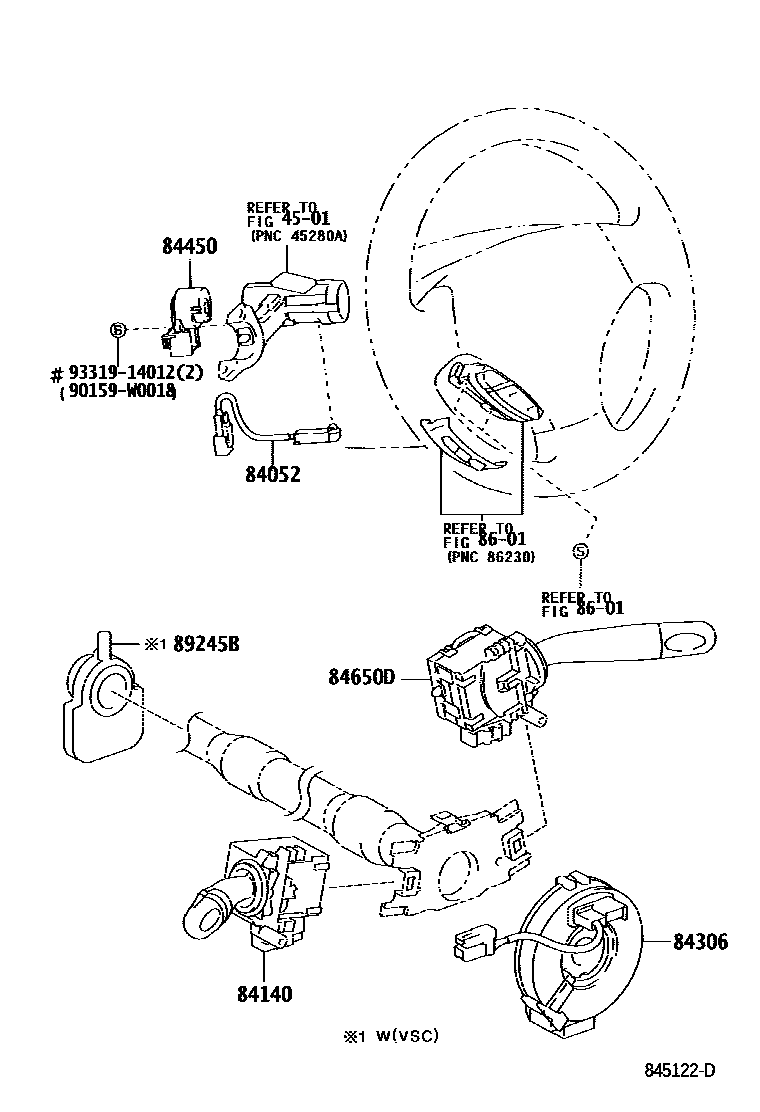

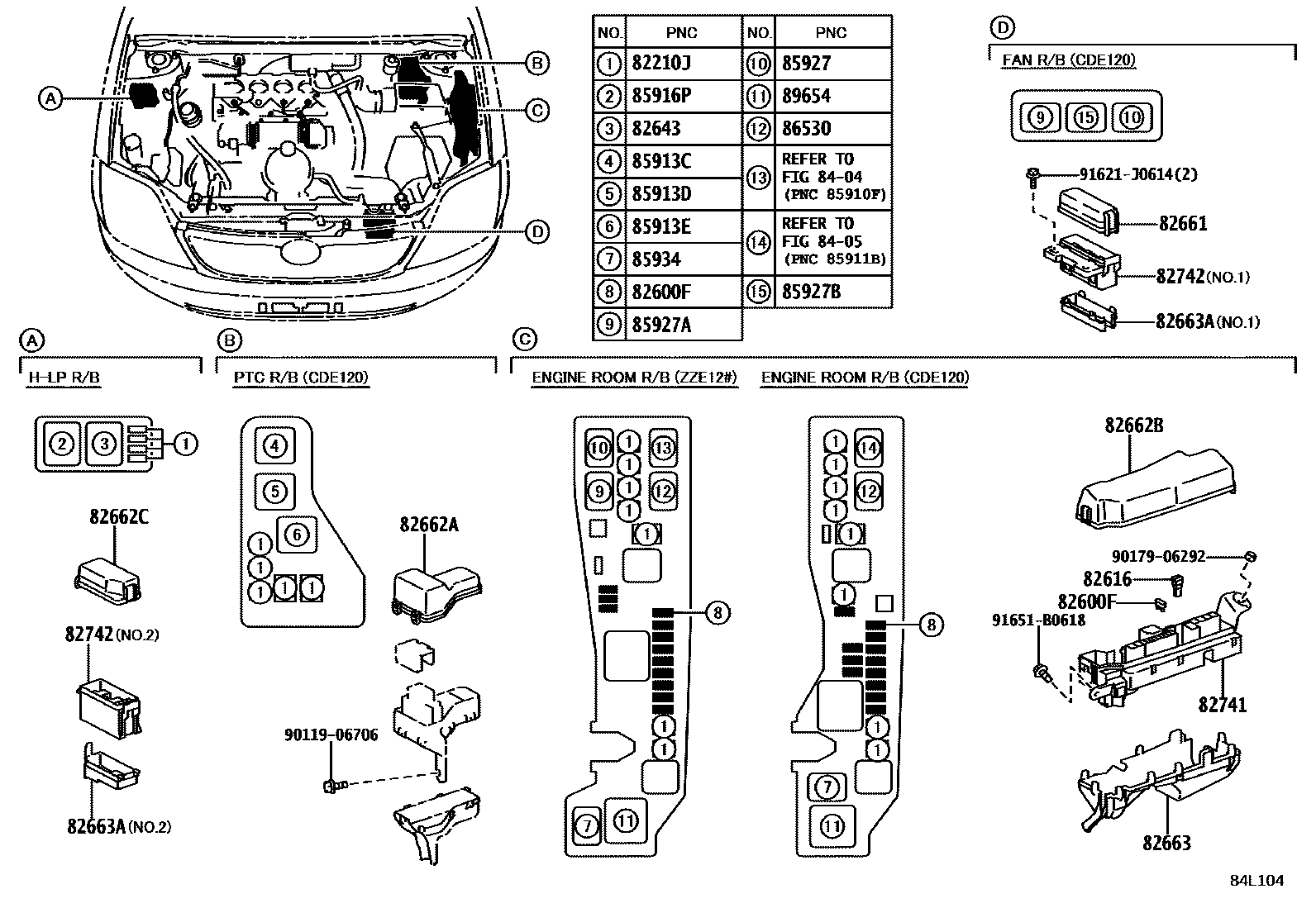

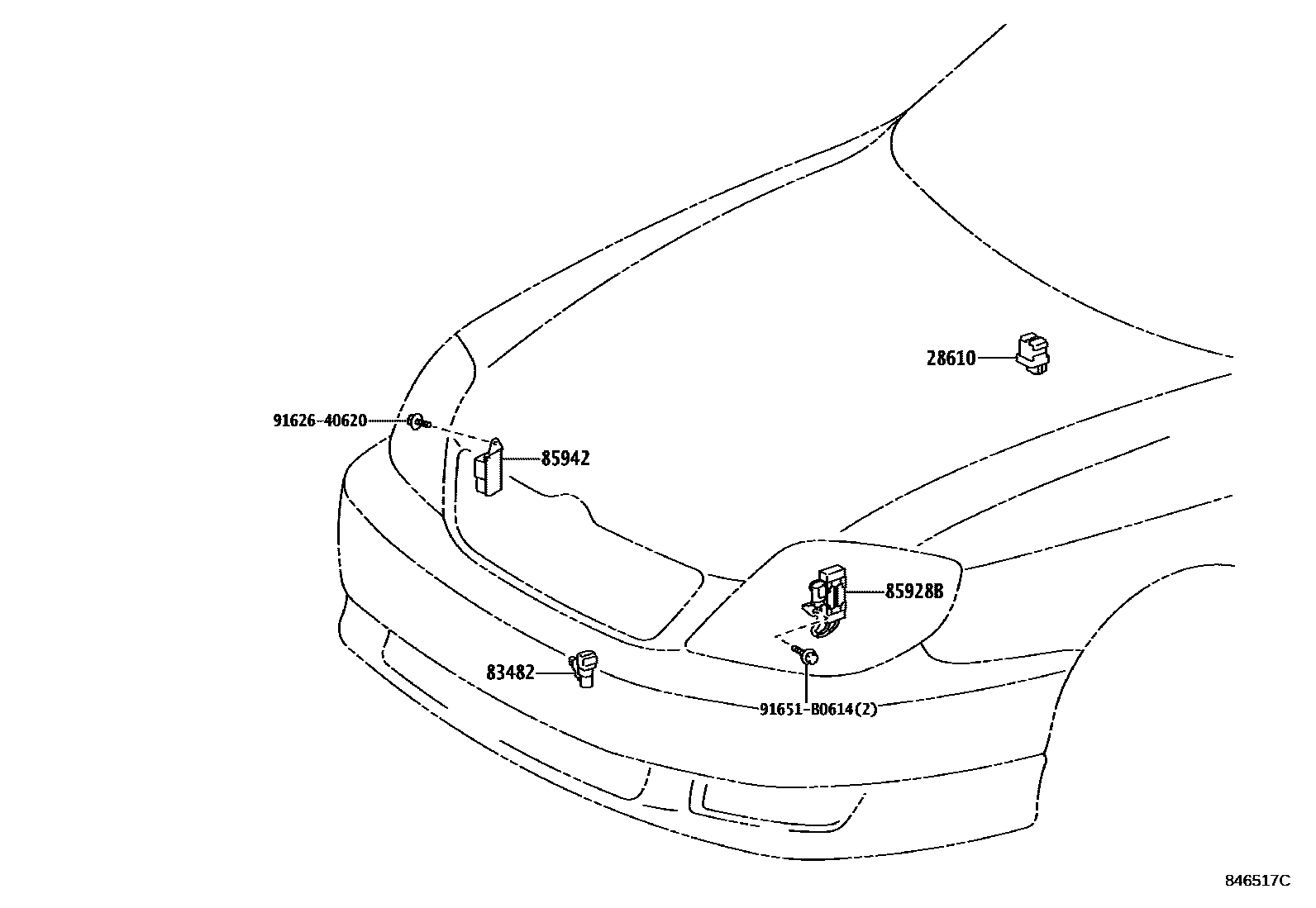

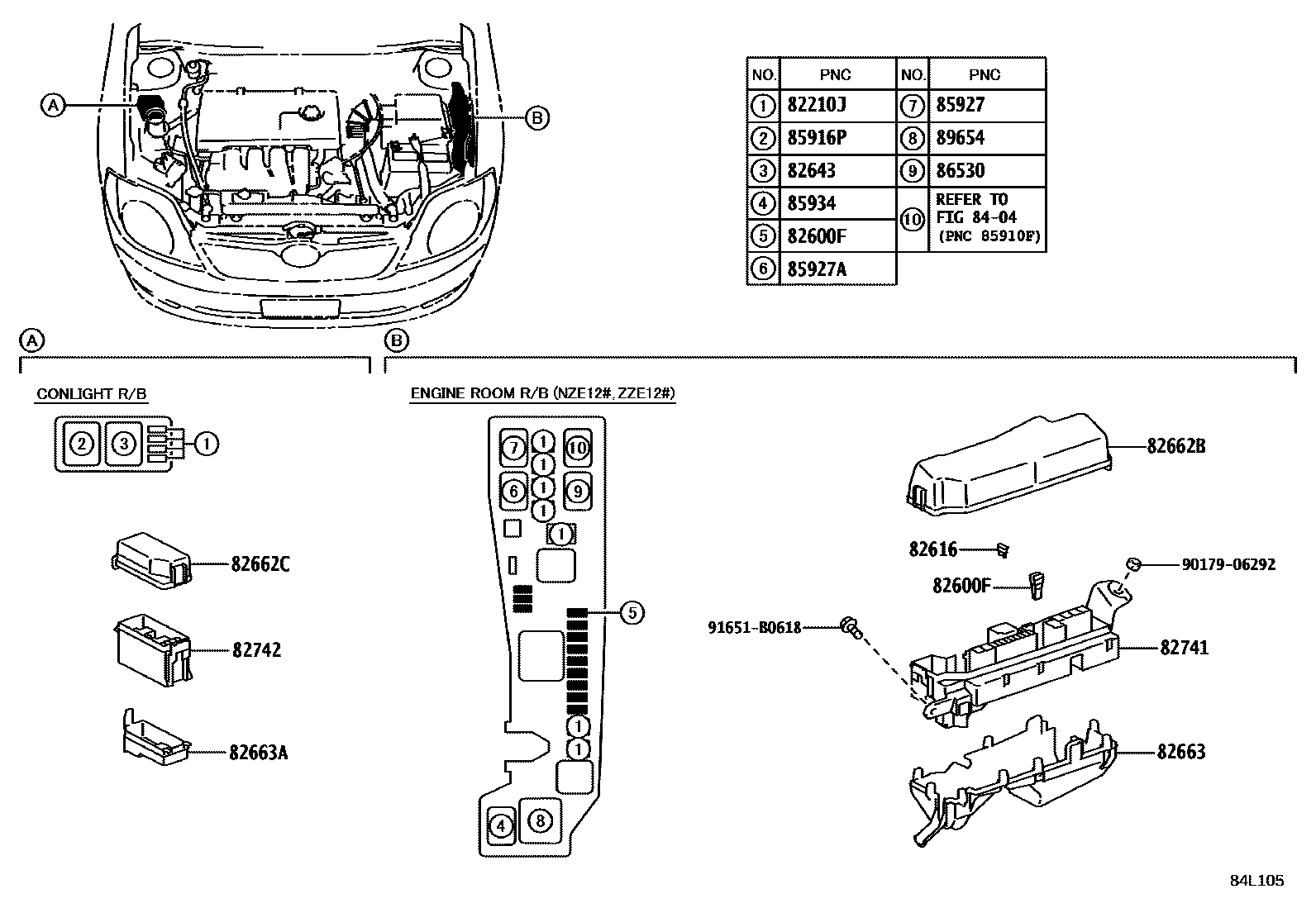

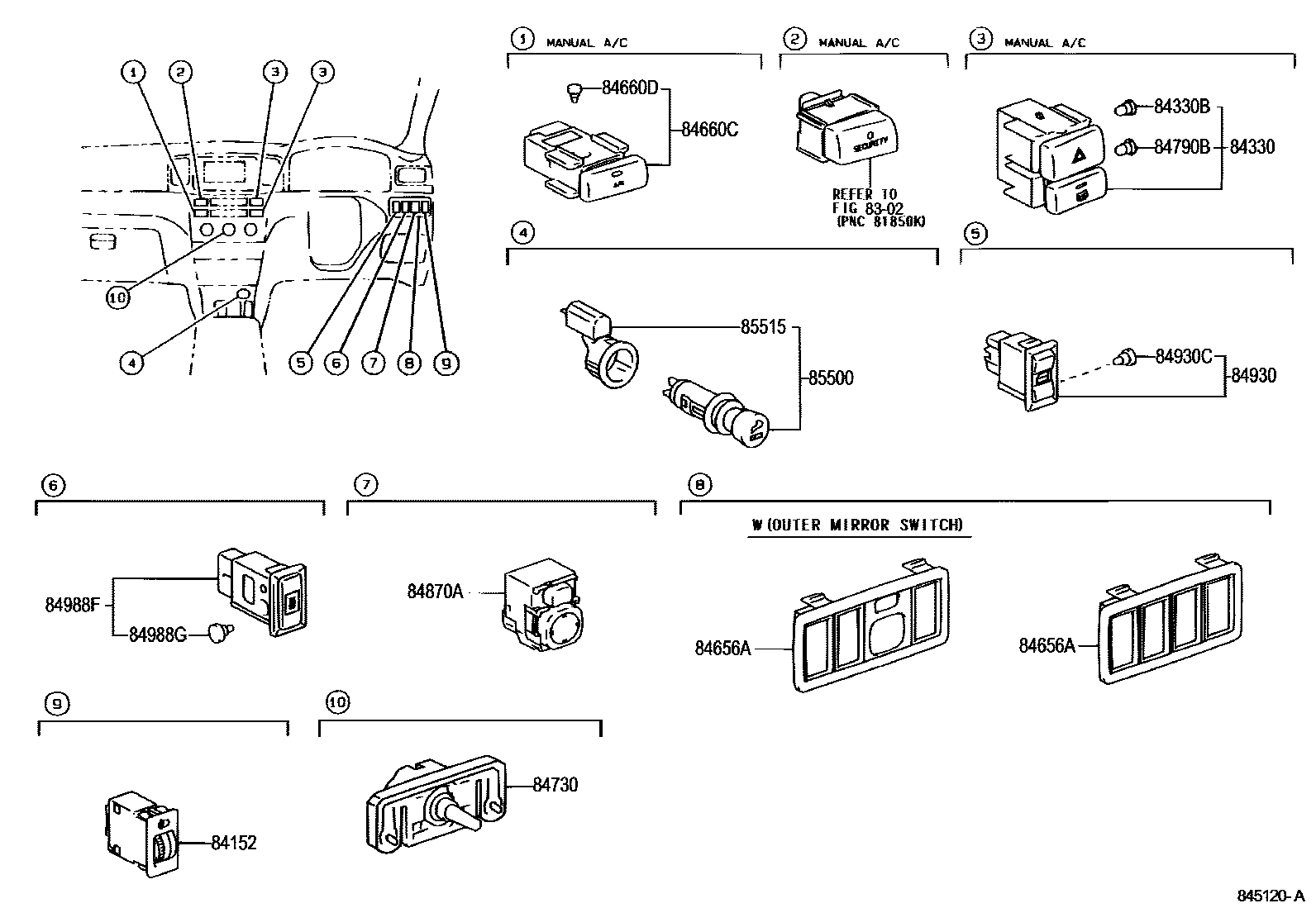

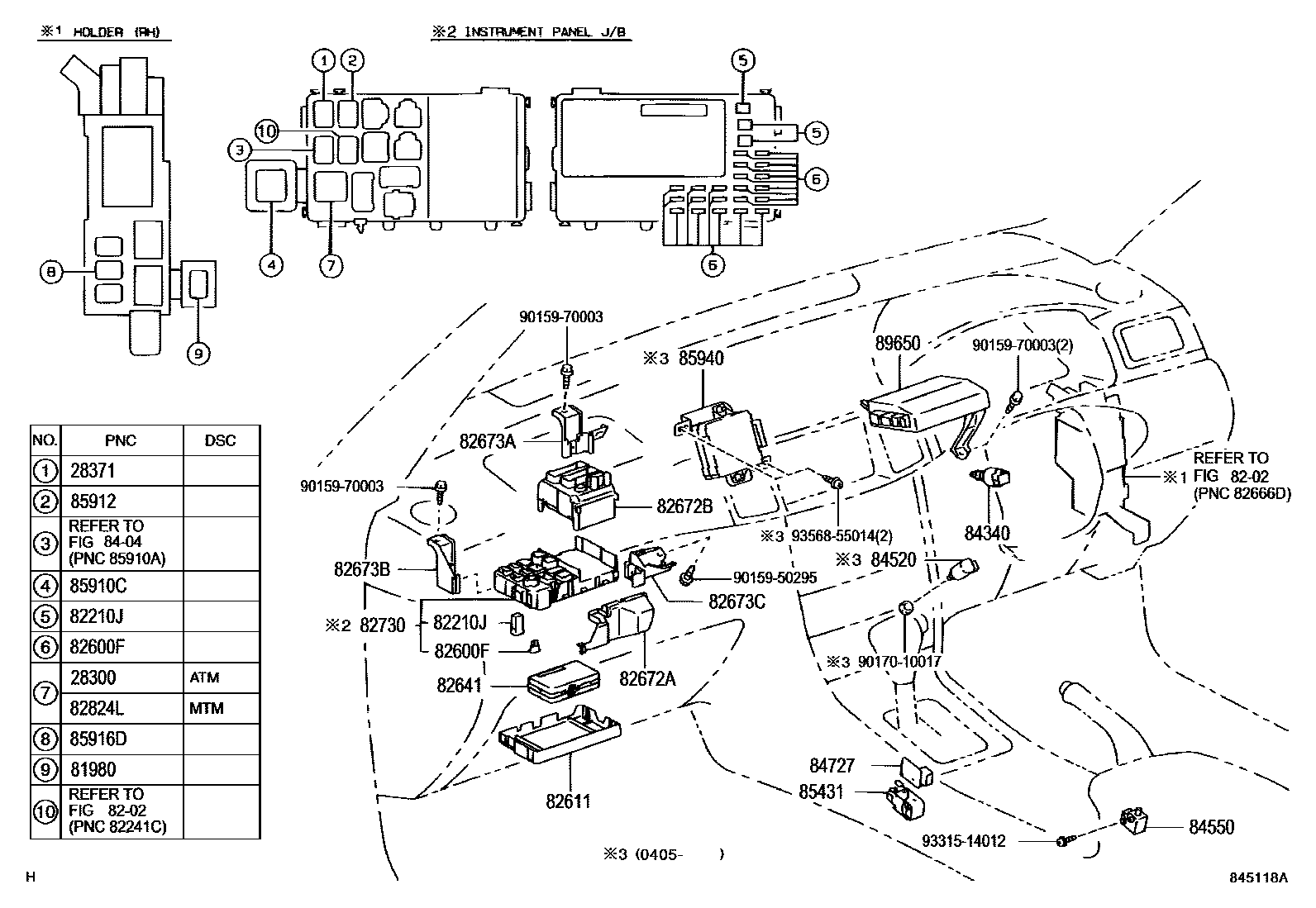

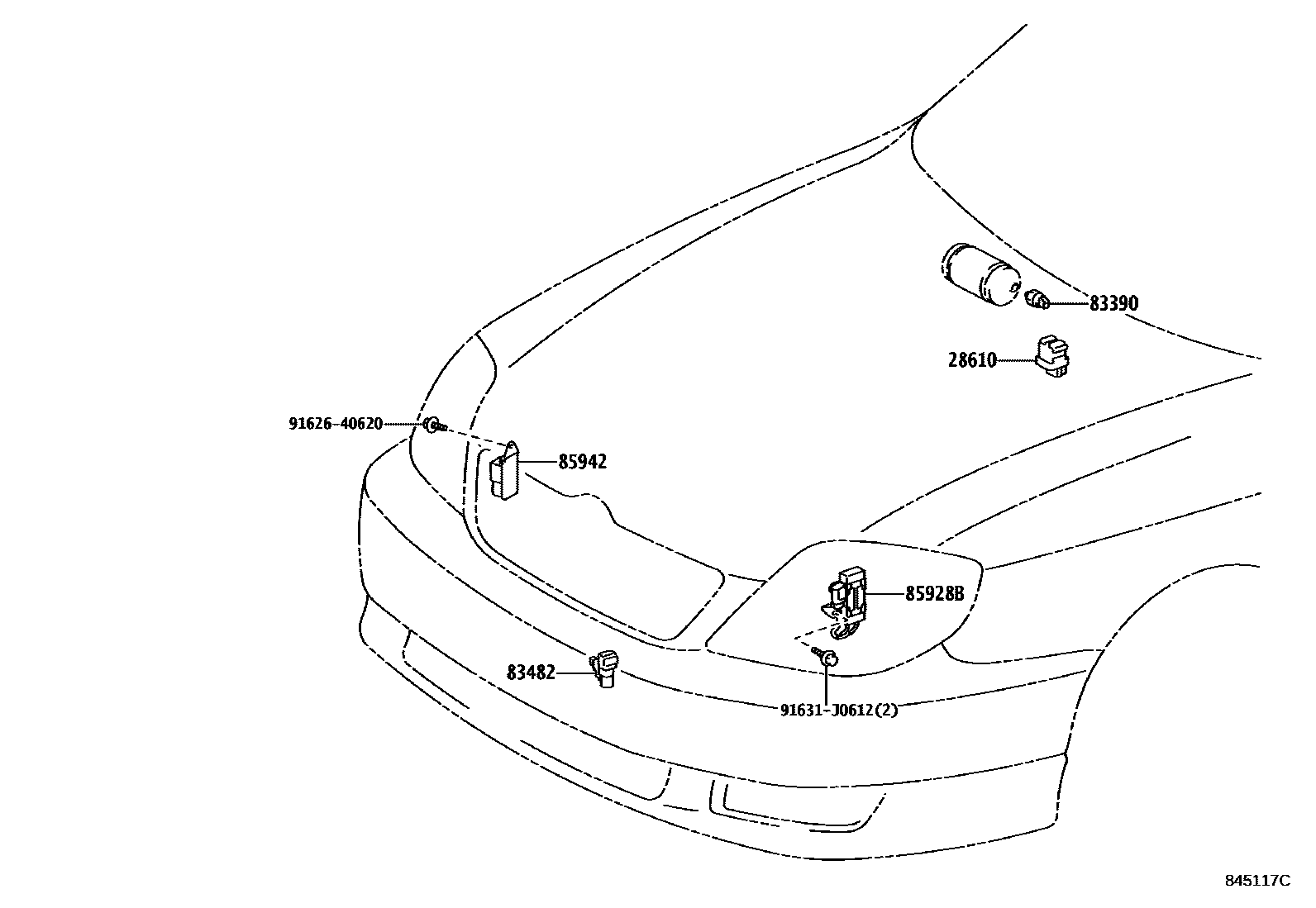

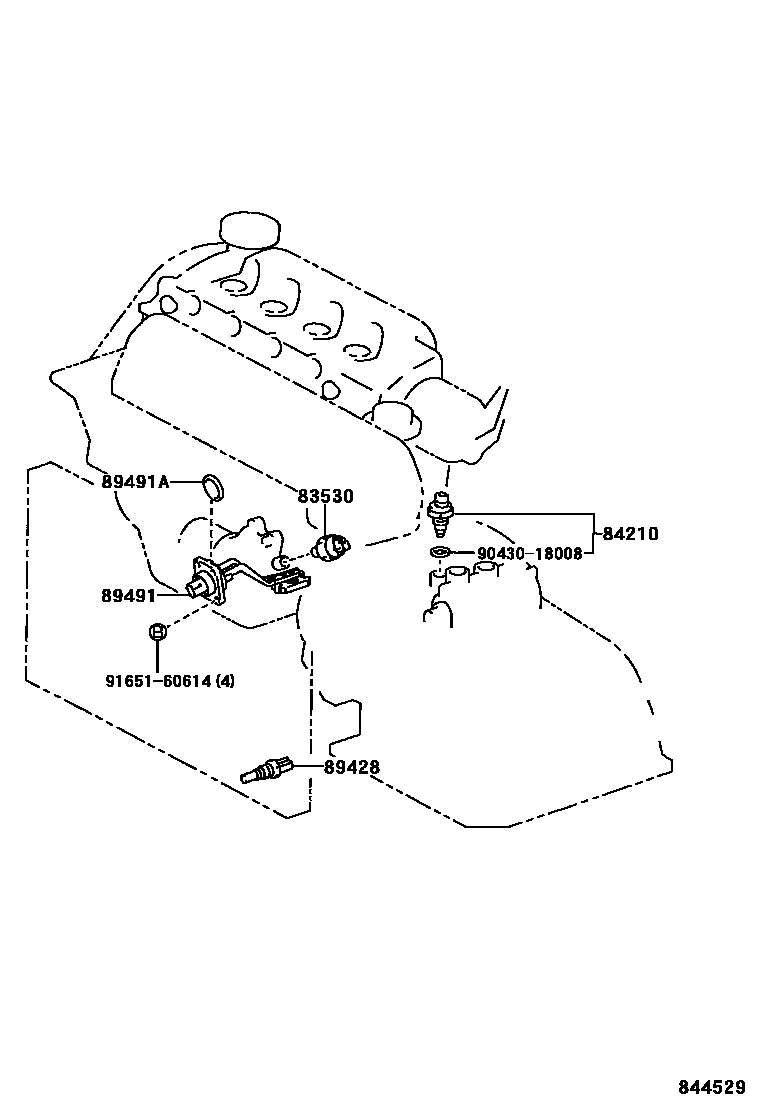

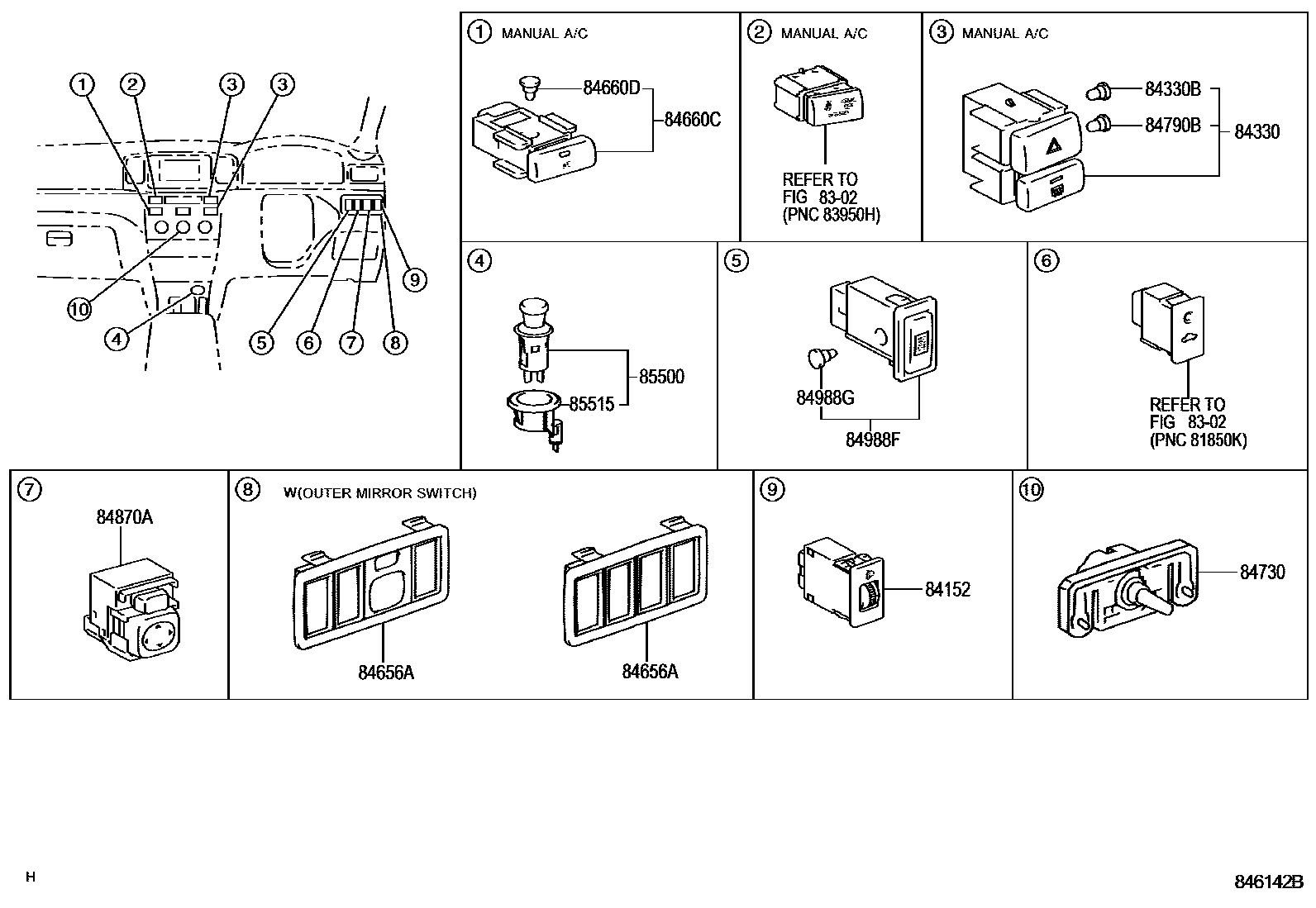

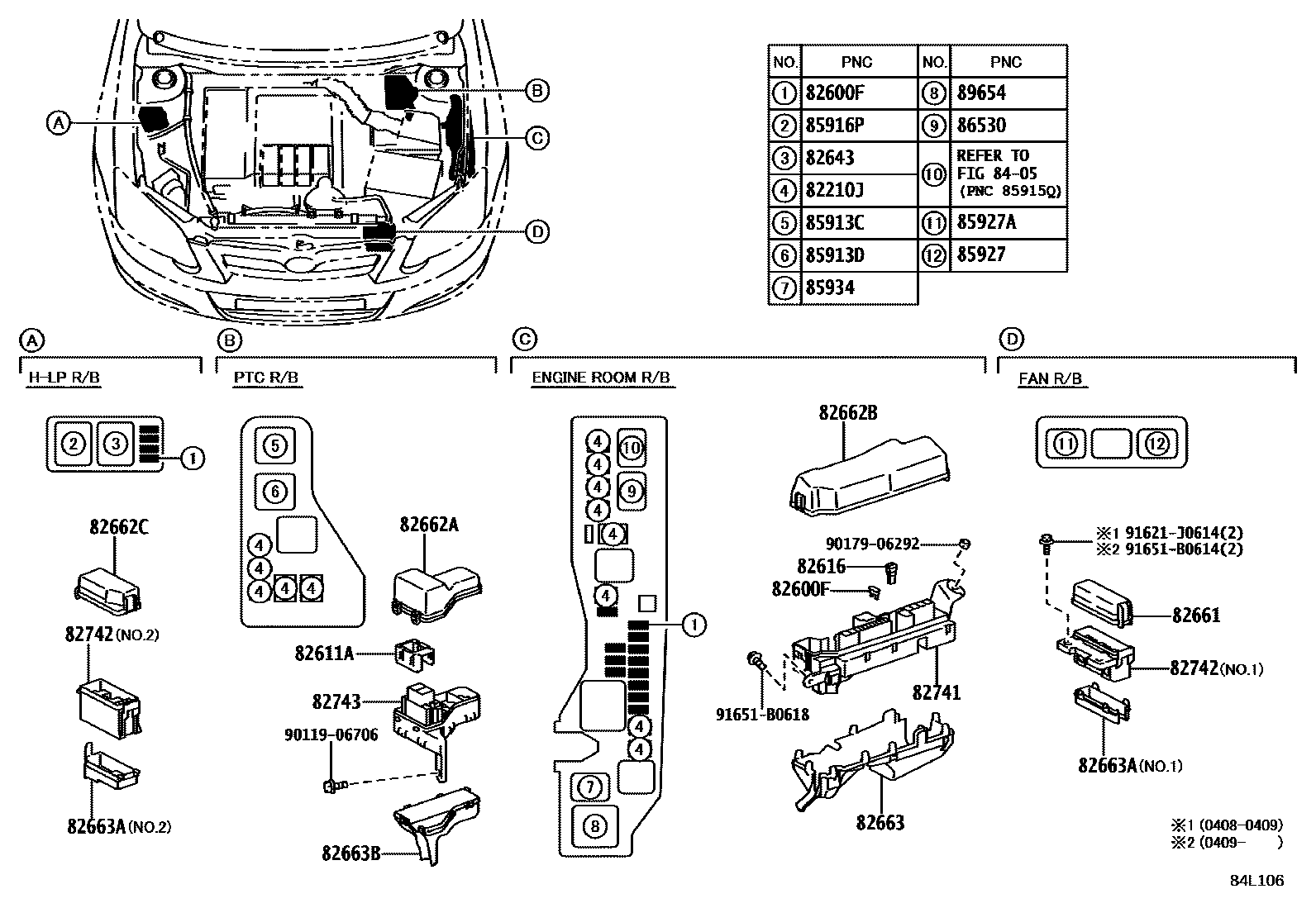

Toyota COROLLA 开关和继电器和ECU — Figure 8401
Toyota COROLLA EPC diagram 8401, 开关和继电器和ECU, with 19 images and 100 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28300 | Starter relay assembly | 28300-10020 |
| 28371 | No. 1 ignition relay | 90987-02020 |
| 28610 | Glow plug relay assembly | 28610-67010 |
| 81980 | Turn signal flasher relay assembly | 81980-50030 |
| 82210J | fuse | 90982-08203 · 90982-08246 · 90982-08274 · 90982-08280 · 90982-08281 · 90982-08283 · 90982-08284 · 90982-08285 · 90982-08286 |
| 82600F | Spare fuse | 90080-82020 · 90080-82021 · 90080-82022 · 90080-82023 · 90080-82024 · 90080-82031 · 90080-82033 · 90982-09008 · 90982-09009 · 90982-09010 · 90982-09012 · 90982-09013 |
| 82611 | fuse box cover | 82611-12120 |
| 82611A | No. 2 fuse box cover | 82611-13010 |
| 82616 | fuse puller | 82616-20010 |
| 82641 | Integrated relay No. 1 | 82641-12200 · 82641-13040 · 82641-13050 |
| 82642A | driving light relay | 82642-12050 |
| 82643 | low beam relay | 90987-04006 · 90987-04010 |
| 82661 | No. 1 relay box cover | 82662-12040 |
| 82662A | No. 1 relay box upper cover | 82662-12100 · 82662-12190 |
| 82662B | No. 2 relay box upper cover | 82662-12170 · 82662-12180 · 82662-12200 · 82662-12210 |
| 82662C | No. 3 relay box upper cover | 82662-12020 |
| 82663 | Relay box lower cover | 82663-02010 · 82663-02030 · 82663-12050 |
| 82663A | No. 2 relay box lower cover | 82663-12030 · 82663-12040 |
| 82663B | No. 3 relay box lower cover | 82663-13020 |
| 82672A | Junction box cover | 82672-02070 · 82672-12400 |
| 82672B | Junction box cover | 82672-12410 |
| 82673A | Junction box bracket | 82673-02010 · 82673-12010 |
| 82673B | Junction box bracket | 82673-12040 |
| 82673C | Junction box bracket | 82673-12070 |
| 82683 | Fuse box warning nameplate | 82683-12260 · 82683-13020 |
| 82730 | Instrument panel junction box assembly | 82730-02040 · 82730-02060 · 82730-12160 |
| 82741 | Engine room relay box | 82741-02030 · 82741-12020 · 82741-12030 · 82741-20060 |
| 82742 | Engine room No. 2 relay box | 82741-12040 · 82741-12050 |
| 82743 | Engine room No. 3 relay box | 82741-13020 |
| 82810 | Driving light relay assembly | 82810-13060 |
| 82824L | Shorting pin | 82824-30140 |
| 83320 | Fuel gauge sensor assembly | 83320-13170 · 83320-13180 |
| 83390 | Vacuum warning switch assembly | 83390-12350 |
| 83482 | Outside car ambient temperature sensor | 88790-22131 |
| 83530 | Oil pressure switch assembly (for engine) | 83530-28020 · 83530-60010 · 83530-60020 |
| 84052 | Unlock warning switch assembly | 84052-05020 |
| 84140 | Headlight dimmer switch assembly | 84140-13010 · 84140-13020 |
| 84150D | Headlight washer switch assembly | 84150-12030 |
| 84150E | Headlight washer switch bulb | 84999-10320 |
| 84152 | Headlight beam height adjustment switch | 84152-02020 · 84152-02021 |
| 84210 | Reversing light switch assembly | 84210-12040 |
| 84233 | Door control light switch assembly (for front door) | 84231-60070 |
| 84234 | Door control light switch assembly (for rear door) | 84231-53010 |
| 84306 | Spiral cable sub-assembly | 84306-05050 · 84306-52041 · 84306-52050 · 84306-64010 |
| 84330 | Hazard warning signal switch assembly | 84332-12480 · 84332-12490 |
| 84330B | Hazard warning signal switch light bulb | 84999-10310 |
| 84340 | brake light switch assembly | 84340-20060 · 84340-32050 · 84340-47010 · 84340-47020 |
| 84450 | Ignition or starter switch assembly | 84450-0D010 |
| 84520 | Clutch start switch assembly | 84520-42010 |
| 84540 | Neutral start switch assembly | 84540-12230 · 84540-48010 |
| 84550 | Parking brake switch assembly | 84550-16060 · 84550-33010 |
| 84650 | Windshield wiper switch assembly | 84652-02380 |
| 84650D | ENS. COMM, ESS-GL PARE-BRISE AV RELAIS, COMM ESS-GL | 84652-1A830 |
| 84660C | Cooler switch | 84660-02040 · 84660-12210 |
| 84660D | Light bulb (for cooler switch) | 90010-03059 |
| 84727 | Shift lock control switch | 84727-12080 · 84727-12090 |
| 84730 | Heater blower switch assembly | 84732-02040 |
| 84751 | Seat heater switch | 84751-12060 · 84751-12070 |
| 84751B | Seat heater switch light bulb | 84999-10330 · 90011-01002 |
| 84790B | Bulb (for rear window defogger switch) | 90010-01079 |
| 84810 | Electric window lift switch assembly | 84810-02040 · 84810-02041 |
| 84810D | Rear electric window lift switch assembly | 84810-02040 · 84810-02041 |
| 84820 | Electric window lift main switch assembly | 84820-02080 · 84820-02081 · 84820-02090 · 84820-02091 · 84820-02100 · 84820-02101 · 84820-02110 · 84820-02111 · 84820-0F010 · 84820-0F020 · 84820-0F030 · 84820-0F040 |
| 84870A | Exterior rearview mirror switch assembly | 84872-52030 |
| 84930 | Door control switch assembly | 84930-12180 |
| 84930C | Light bulb (for door control switch) | 84999-10310 |
| 84988F | traction control switch | 84988-13010 |
| 84988G | Traction control switch light bulb | 84999-10320 |
| 85431 | Shift lock solenoid valve | 85431-12060 |
| 85500 | Cigarette lighter assembly | 85500-09010 · 85500-09040 |
| 85515 | Cigarette lighter frame bracket | 85515-05010 |
| 85910C | Relay assembly (for heater blower motor) | 90987-04010 |
| 85910V | seat heater relay | 90987-02020 |
| 85912 | defogger relay | 90987-02020 |
| 85913C | Heater relay No. 1 | 90987-02016 · 90987-02025 |
| 85913D | Heater relay No. 2 | 90987-02016 · 90987-02025 |
| 85913E | No. 3 heater relay | 90987-02016 |
| 85916D | fog light relay | 90987-02020 · 90987-02027 |
| 85916N | Tail light relay | 90987-02020 · 90987-02027 |
| 85916P | headlight relay | 90987-02016 · 90987-02025 |
| 85921 | Sliding sunroof control relay | 85921-12090 |
| 85927 | cooling fan relay | 90987-02012 · 90987-02020 |
| 85927A | Cooling fan relay No. 2 | 90080-87012 · 90987-04004 |
| 85927B | Cooling fan relay No. 3 | 90080-87013 · 90987-02012 |
| 85928B | Cooling fan resistor | 85928-12010 · 85928-12020 |
| 85931B | Fuel heater relay | 90987-02020 |
| 85934 | Electromagnetic clutch relay | 90987-02022 · 90987-02028 |
| 85940 | Windshield wiper relay assembly | 85940-02010 · 85940-02020 |
| 85942 | Headlight washer control relay | 85942-02020 |
| 86530 | Speaker relay assembly | 90987-02020 |
| 87290 | Heater switch assembly | 87290-12010 |
| 87290B | Light bulb (for heater switch) | 84999-10310 · 90010-01049 |
| 89245B | steering sensor | 89245-02010 · 89245-02020 |
| 89428 | No. 2 temperature detection switch | 89428-20110 |
| 89465 | oxygen sensor | 89465-02060 · 89465-02070 · 89465-02140 · 89465-02180 · 89465-12750 · 89465-12760 · 89465-13030 · 89465-13040 |
| 89491 | Engine oil level sensor | 89491-12030 · 89491-44020 |
| 89491A | Engine oil level sensor gasket | 89493-60010 |
| 89615 | knock control sensor | 89615-02010 · 89615-20090 |
| 89650 | Power steering ECU assembly | 89650-02030 · 89650-02040 · 89650-02070 · 89650-02170 · 89650-02180 |
| 89654 | power steering relay | 90987-02016 · 90987-02025 |
