Toyota COROLLA 蓄电池和蓄电池电缆 — Figure 8201

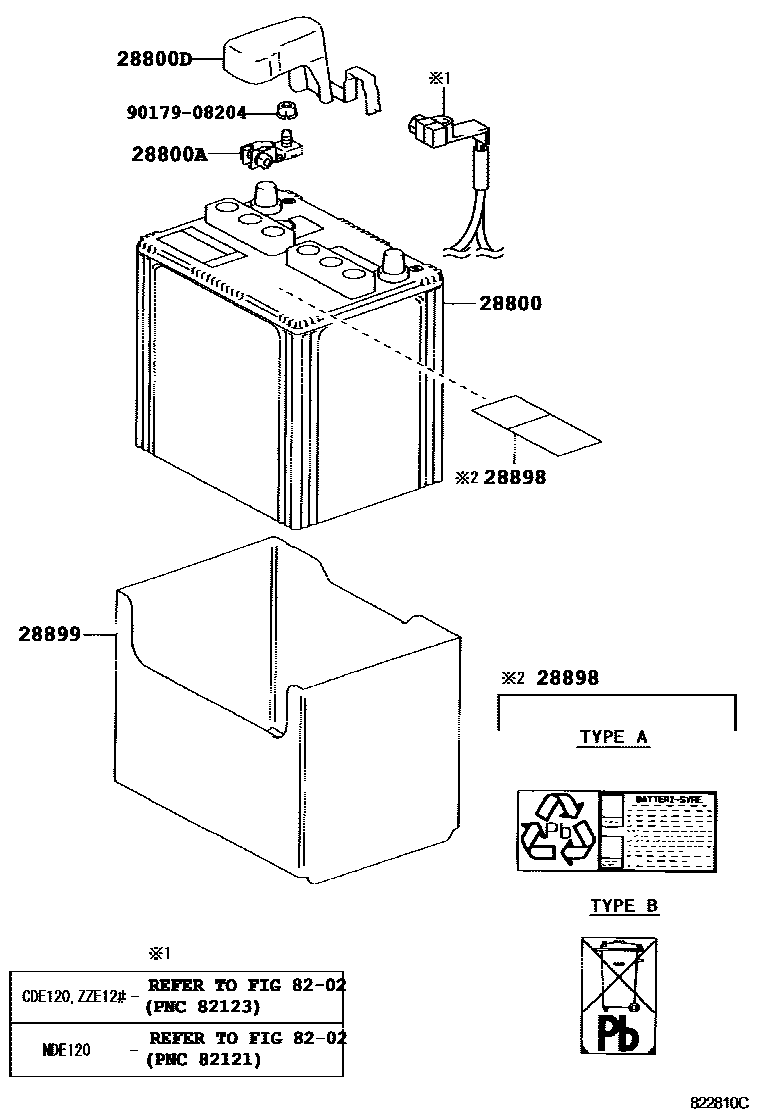

Toyota COROLLA EPC diagram 8201, 蓄电池和蓄电池电缆, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28800 | battery | 28800-16160 · 28800-17121 · 28800-42042 · 28800-42061 · 28800-54020 · 28800-54370 · 28800-70070 · 28800-70091 · 28800-70101 · 28800-74261 |
| 28800A | battery positive terminal | 90982-05056 |
| 28800D | Connector cover (for battery terminals) | 82821-12500 · 82821-52060 |
| 28898 | battery plates | 28898-16020 · 28898-46010 · 28898-46020 |
| 28899 | Battery insulation cover | 28899-27040 · 28899-54050 · 28899-64110 |
