Toyota COROLLA Fog Lamp — Figure 8102

Toyota COROLLA EPC diagram 8102, Fog Lamp, with 2 images and 3 PNC and OE references.

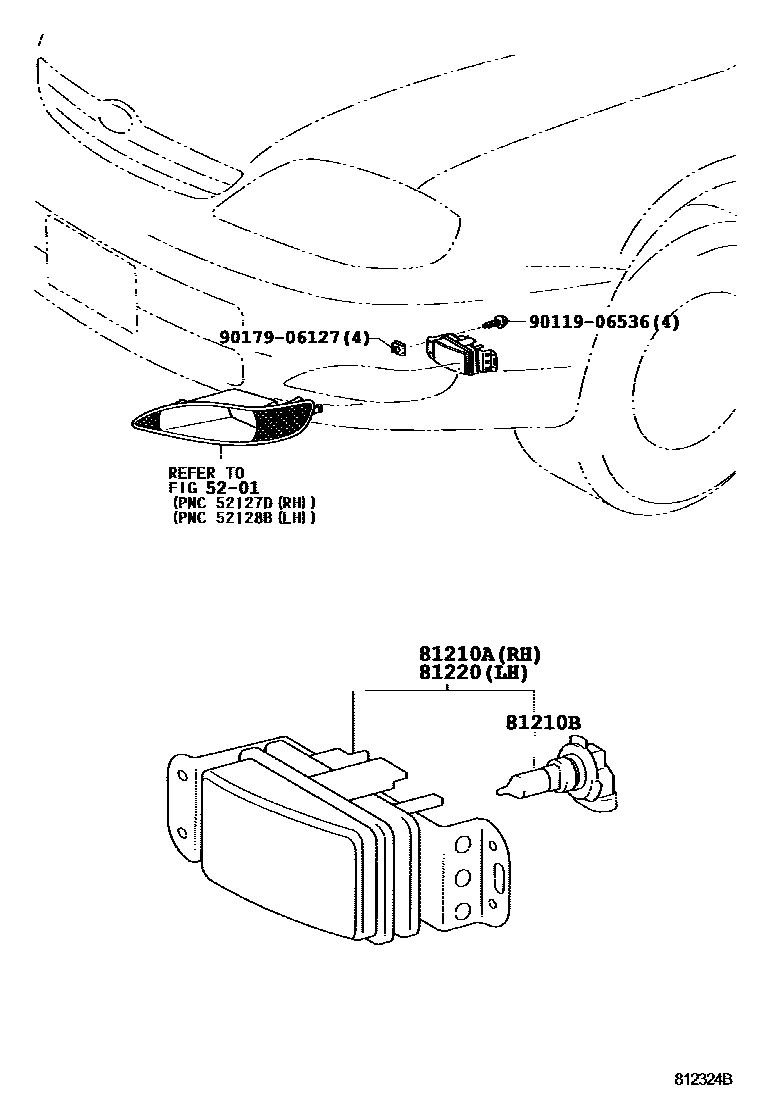

Toyota COROLLA Fog Lamp EPC diagram — 812324B
Fog Lamp — 812324B (200209 – 200405)

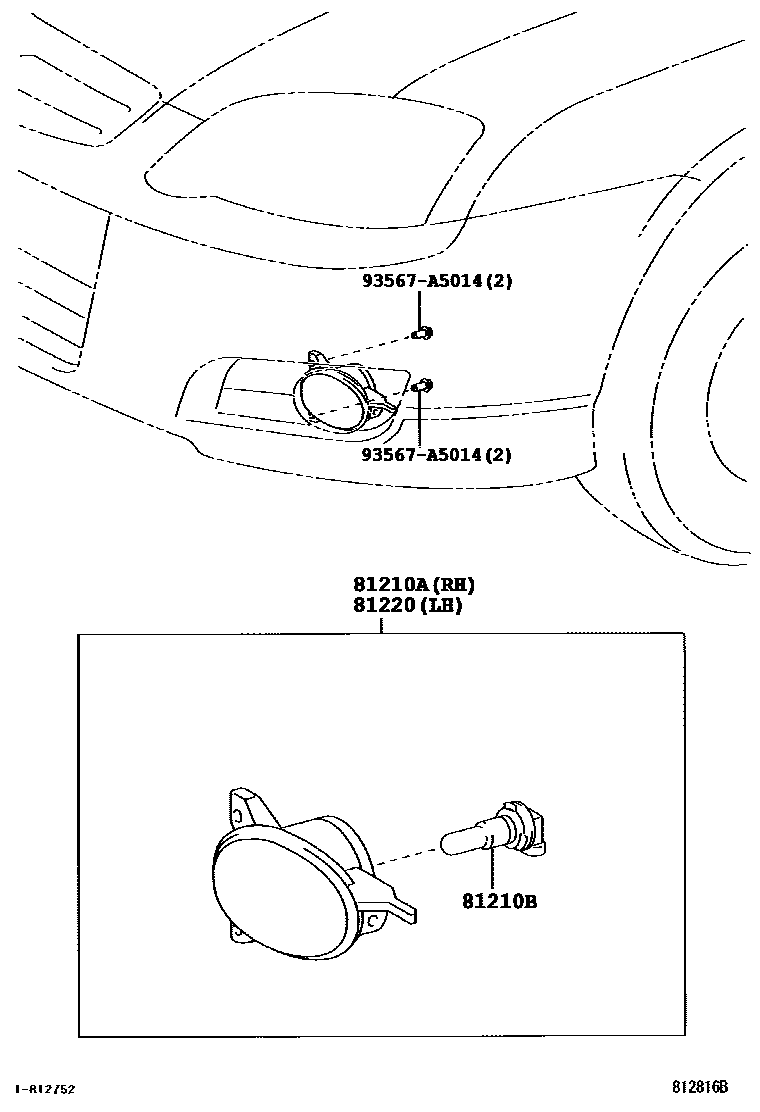

Toyota COROLLA Fog Lamp EPC diagram — 812816B
Fog Lamp — 812816B (200405 – 999999)

PNC and OE references

PNCPart nameOE numbers
81210ARight fog light assembly81210-02051 · 81210-02090
81210Bfog light bulb90080-81100 · 90981-13075 · 90981-13081 · 90981-WD011 · 90981-WD012
81220Left fog light assembly81220-02051 · 81220-02090
