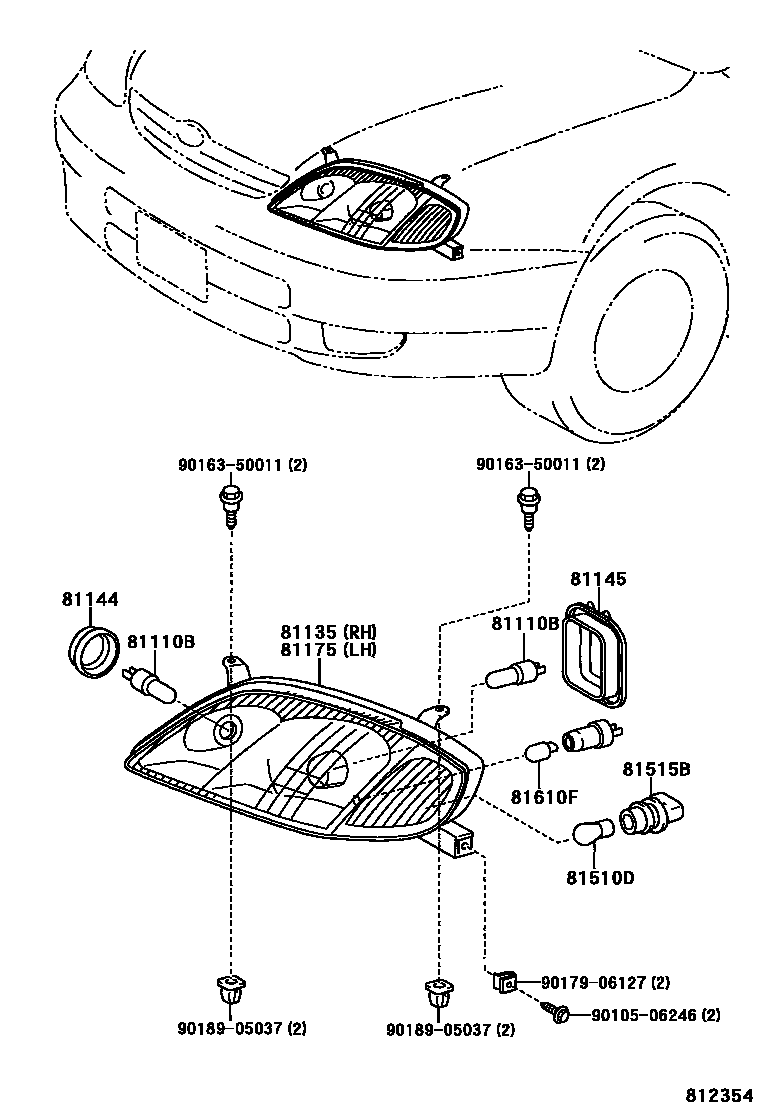

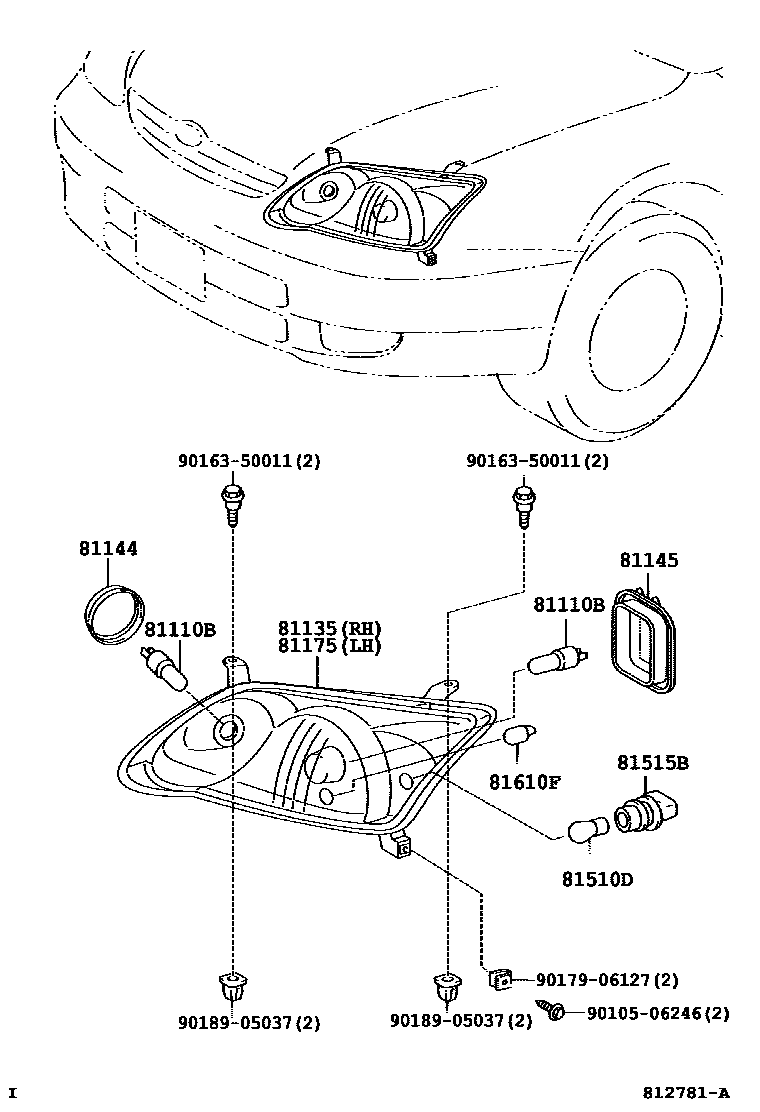

Toyota COROLLA Headlamp — Figure 8101
Toyota COROLLA EPC diagram 8101, Headlamp, with 3 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81110B | Bulb (for headlight No. 1) | 90981-13079 |
| 81135 | Right headlight assembly | 81130-13300 · 81130-13310 · 81130-13330 · 81130-13340 |
| 81144 | No. 1 headlight cover | 81135-13290 · 81139-13330 |
| 81145 | No. 2 headlight cover | 81135-13300 |
| 81175 | Left headlight assembly | 81170-13300 · 81170-13310 · 81170-13330 · 81170-13340 |

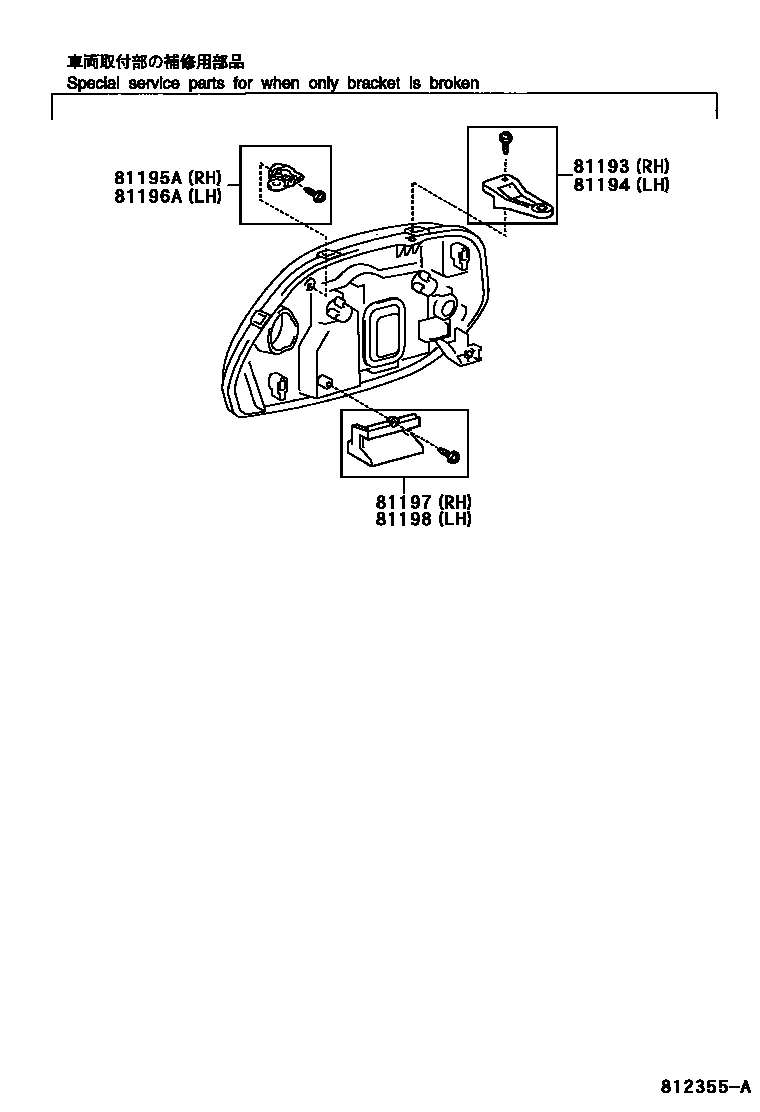

| 81193 | Right headlight upper protective ring | 81193-02020 |
| 81194 | Left headlight upper protective ring | 81194-02040 |
| 81195A | Right headlight lower protection ring | 81195-02030 |
| 81196A | Left headlight lower protection ring | 81196-02020 |
| 81197 | Right headlight lower bracket | 81197-02020 |
| 81198 | Left headlight lower bracket | 81197-02020 |
| 81510D | front turn signal light bulb | 90981-15020 |
| 81515B | Front turn signal lamp holder | 90069-81027 |
| 81610F | Light bulb (for width indicator light) | 99132-12050 |
