Toyota COROLLA 挡泥板和扰流板 — Figure 7601

Toyota COROLLA EPC diagram 7601, 挡泥板和扰流板, with 2 images and 17 PNC and OE references.

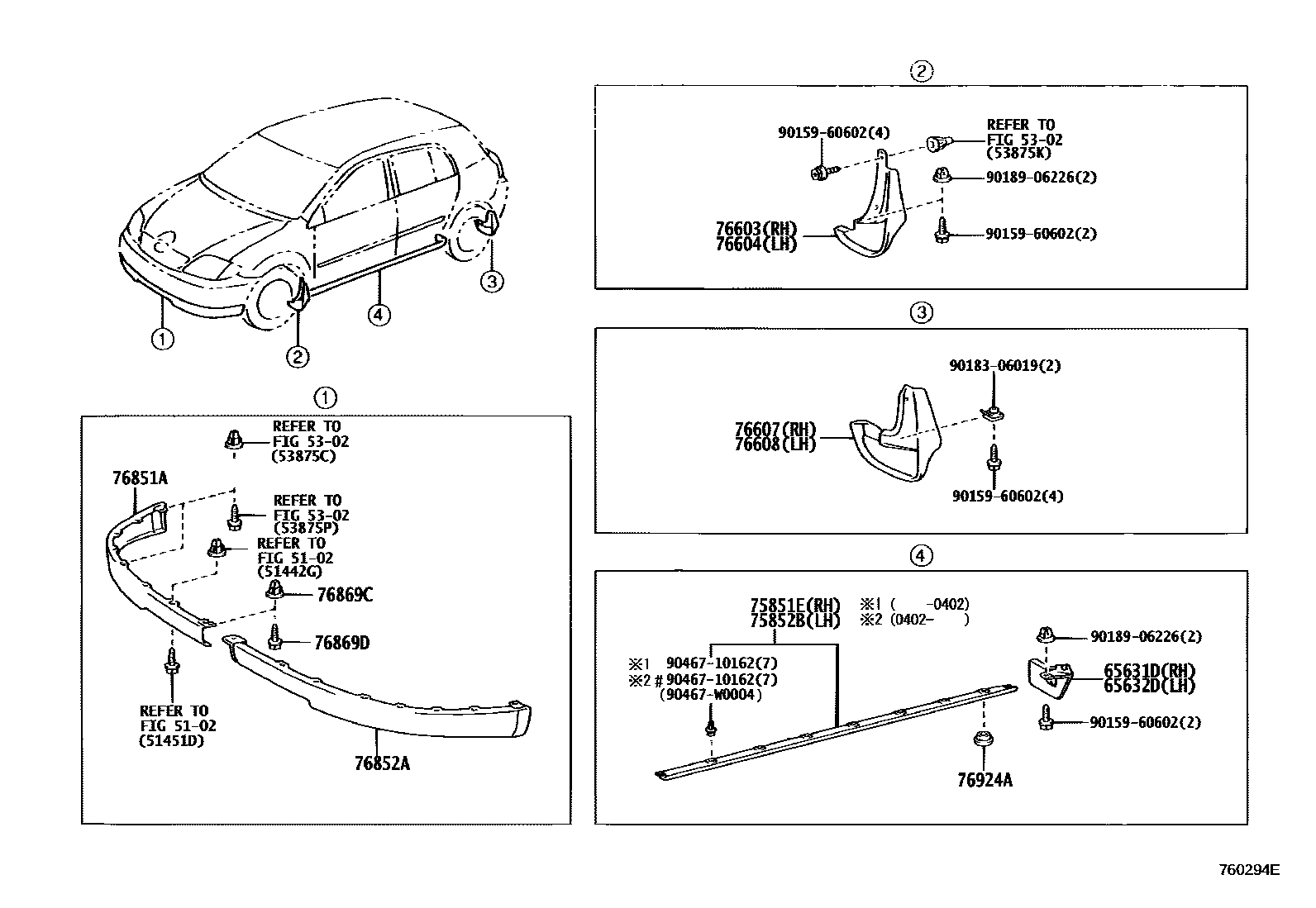

Toyota COROLLA 挡泥板和扰流板 EPC diagram — 760294E
挡泥板和扰流板 — 760294E (200209 – 999999)

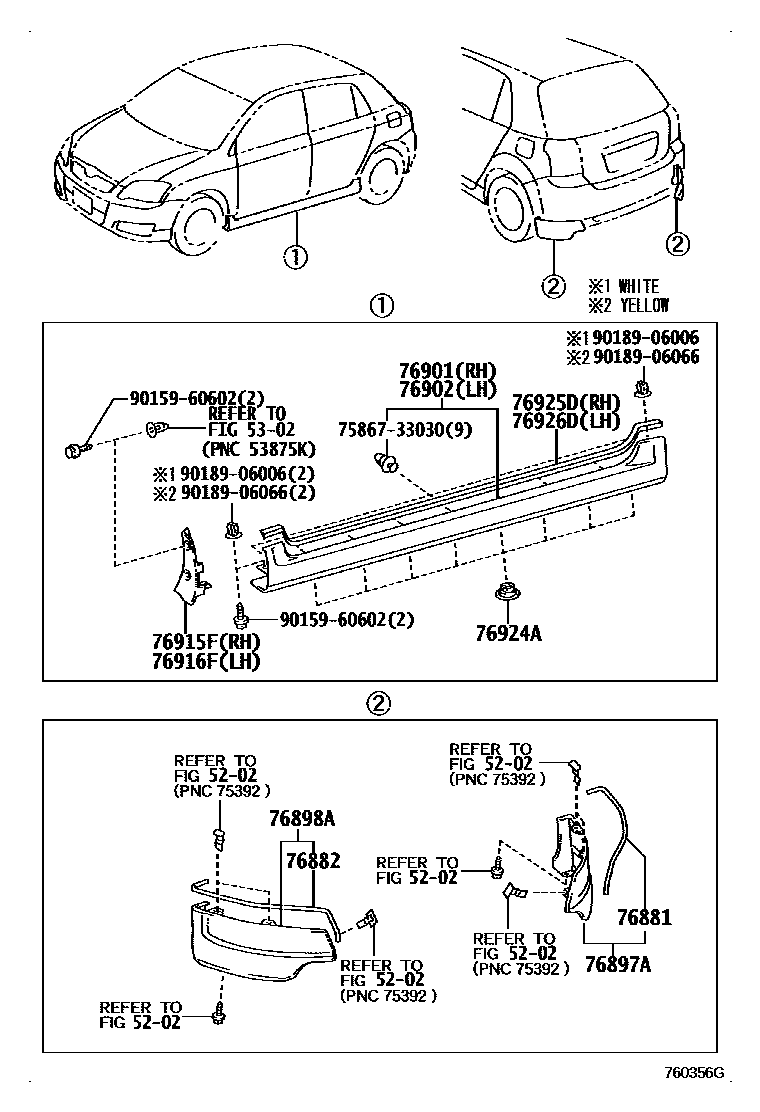

Toyota COROLLA 挡泥板和扰流板 EPC diagram — 760356G
挡泥板和扰流板 — 760356G (200405 – 999999)

PNC and OE references

PNCPart nameOE numbers
65631DRight rear wheel house front panel65631-02020
65632DLeft rear wheel house front panel65632-02020
75851ERight body door sill panel protection strip75851-02050
75852BLeft body door sill panel protection strip75852-02050
76603Right front fender fender sub-assembly76621-02120
76604Left front fender fender sub-assembly76622-02130
76607Right rear side fender sub-assembly76625-02130 · 76625-02160
76608Left rear side fender sub-assembly76626-02130 · 76626-02160
76851ARight front spoiler cover76851-02020 · 76851-02090
76852ALeft front spoiler cover76852-02020 · 76852-02080
76869CRONDELLE, VIS, NO.190189-05144
76869DVIS, NO.290159-60488
76901Right fender sub-assembly76901-02903
76902Left fender sub-assembly76902-02903
76915FRight front fender76915-02020
76916FLeft front fender76916-02020
76924ANo. 2 side fender fixings76924-52021
