Toyota COROLLA 安全带和儿童保护座椅 — Figure 7104

Toyota COROLLA EPC diagram 7104, 安全带和儿童保护座椅, with 2 images and 3 PNC and OE references.

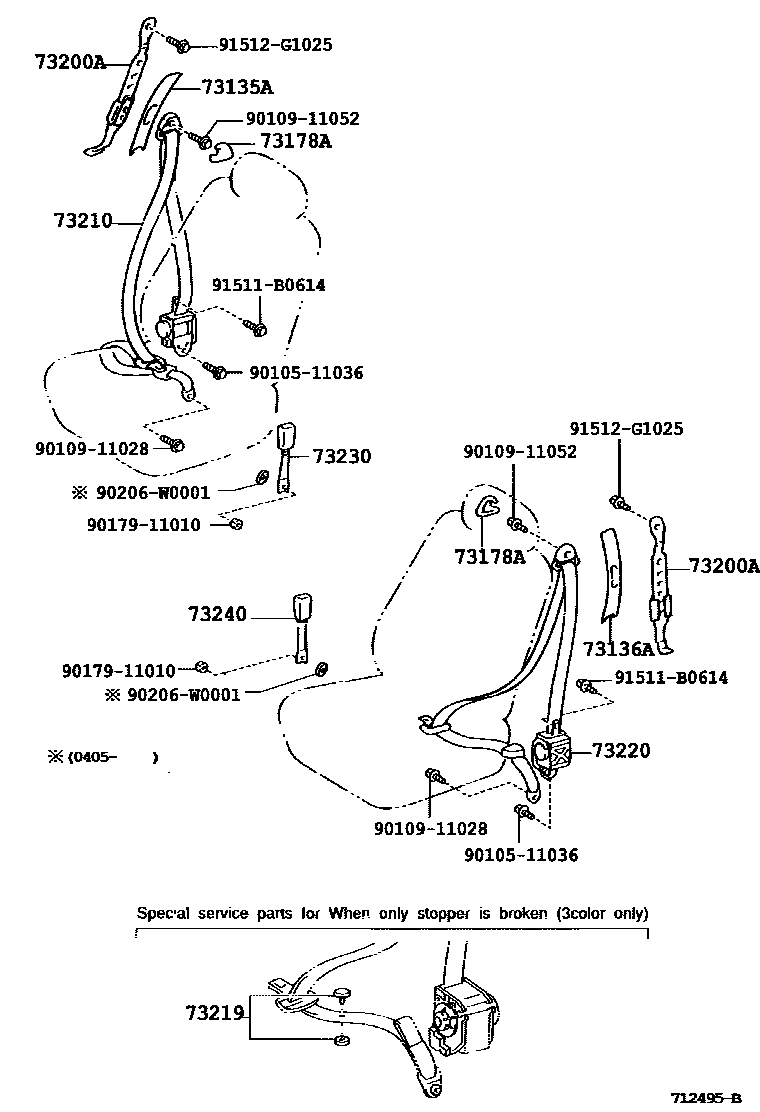

Toyota COROLLA 安全带和儿童保护座椅 EPC diagram — 712495B
安全带和儿童保护座椅 — 712495B (200209 – 999999)

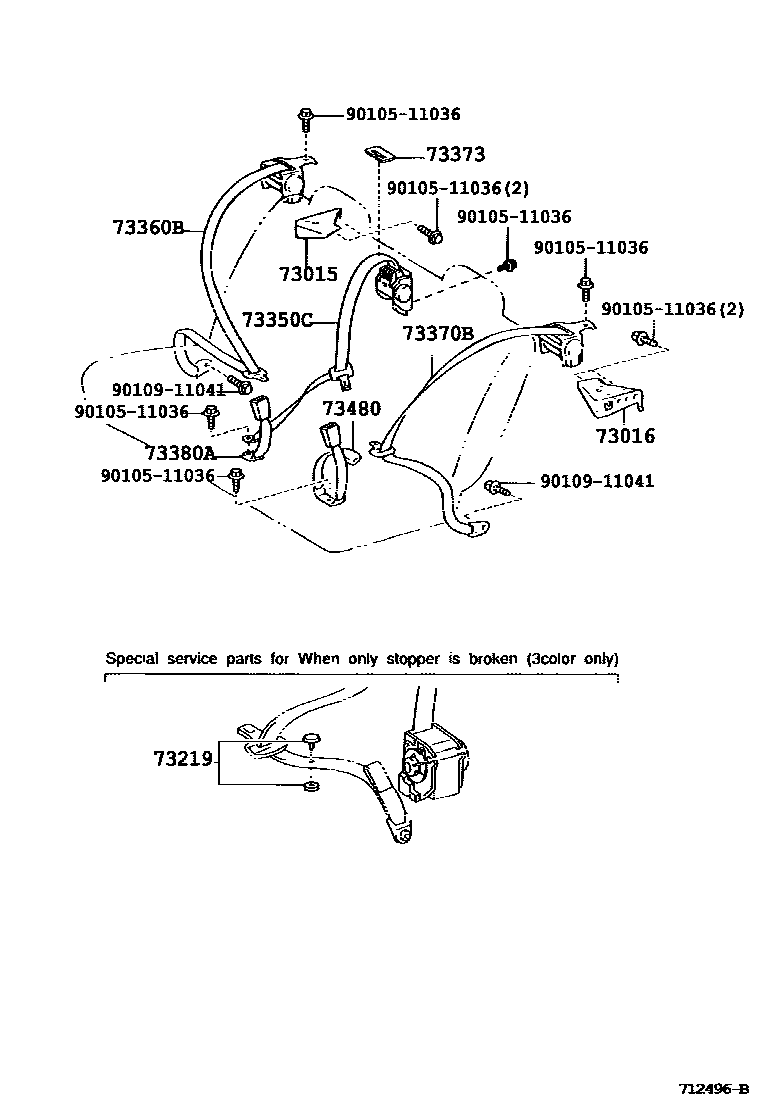

Toyota COROLLA 安全带和儿童保护座椅 EPC diagram — 712496B
安全带和儿童保护座椅 — 712496B (200209 – 999999)

PNC and OE references

PNCPart nameOE numbers
73015Right seat belt outer anchor bracket sub-assembly73015-12020
73016Left side seat belt outer anchor bracket sub-assembly73016-12010
73219Tongue plate stop73219-33010 · 73219-33020 · 73219-33030
