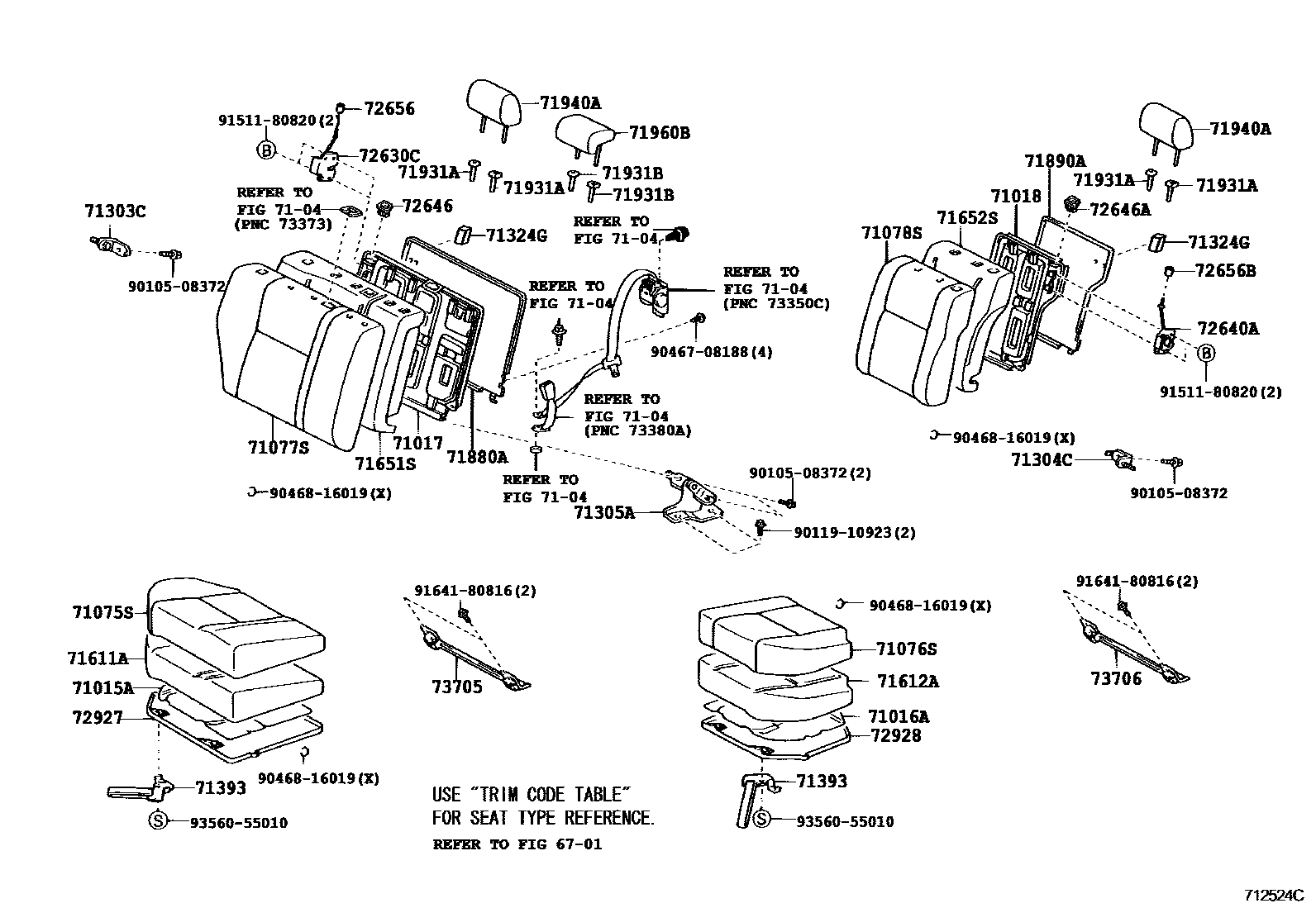

Toyota COROLLA 后排座椅和座椅滑轨 — Figure 7102
Toyota COROLLA EPC diagram 7102, 后排座椅和座椅滑轨, with 1 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71015A | Rear right seat cushion frame sub-assembly | 71015-13070 |
| 71016A | Rear left seat cushion frame sub-assembly | 71016-13040 |
| 71017 | Right rear seat back frame sub-assembly | 71017-02150 |
| 71018 | Rear left seat back frame sub-assembly | 71018-02080 |
| 71303C | Rear right seat backrest hinge sub-assembly | 71303-02030 |
| 71304C | Rear left seat back hinge sub-assembly | 71303-02030 |
| 71305A | Rear center seat backrest hinge sub-assembly | 71305-02060 |
| 71324G | Rear seat 2 seat cushion | 71324-12040 |
| 71611A | Rear right seat cushion | 71611-12660 |
| 71612A | Rear left seat cushion | 71612-12310 |
| 71651S | Rear right seat back cushion (for split seats) | 71651-12820 |
| 71652S | Rear left seat back cushion (for split seats) | 71652-12700 |
| 72630C | Rear right seat back lock assembly | 72630-13140 |
| 72640A | Rear left seat back lock assembly | 72640-13130 |
| 72927 | Rear right seat cushion lower cover | 72927-13040 |
| 72928 | Rear left seat cushion lower cover | 72928-13030 |
| 73705 | Child restraint seat anchor right side bracket sub-assembly | 73705-02050 |
| 73706 | Child restraint seat anchor left bracket sub-assembly | 73706-02040 |
