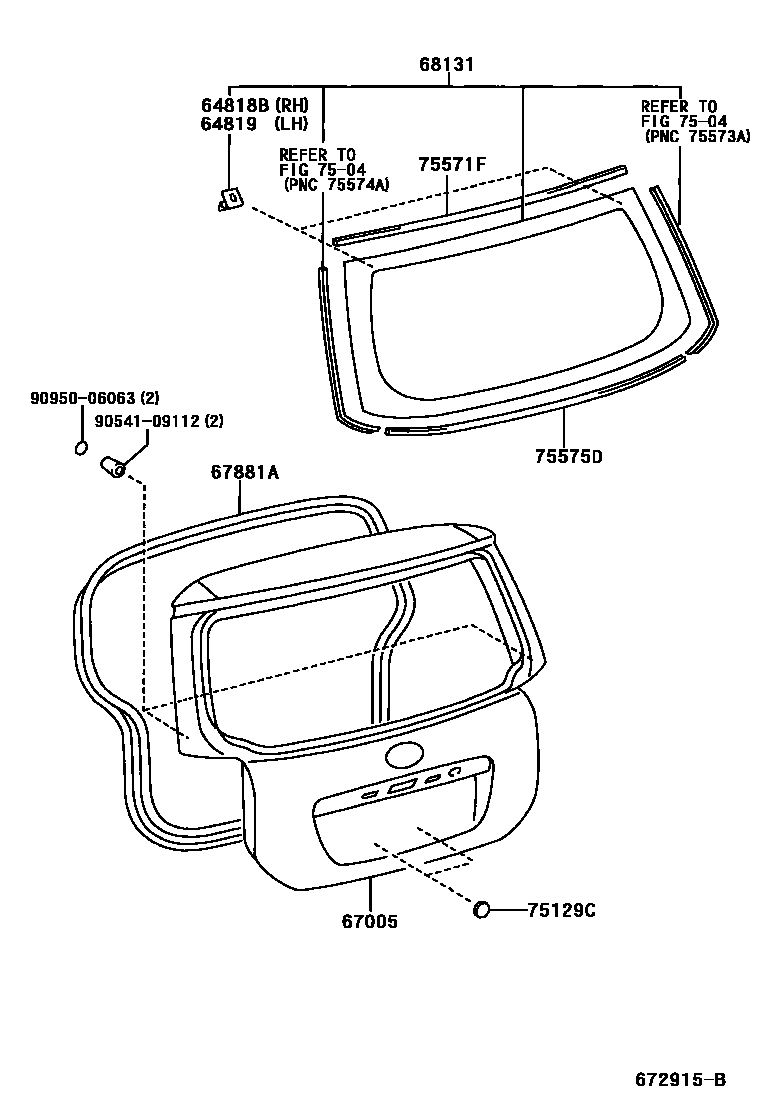

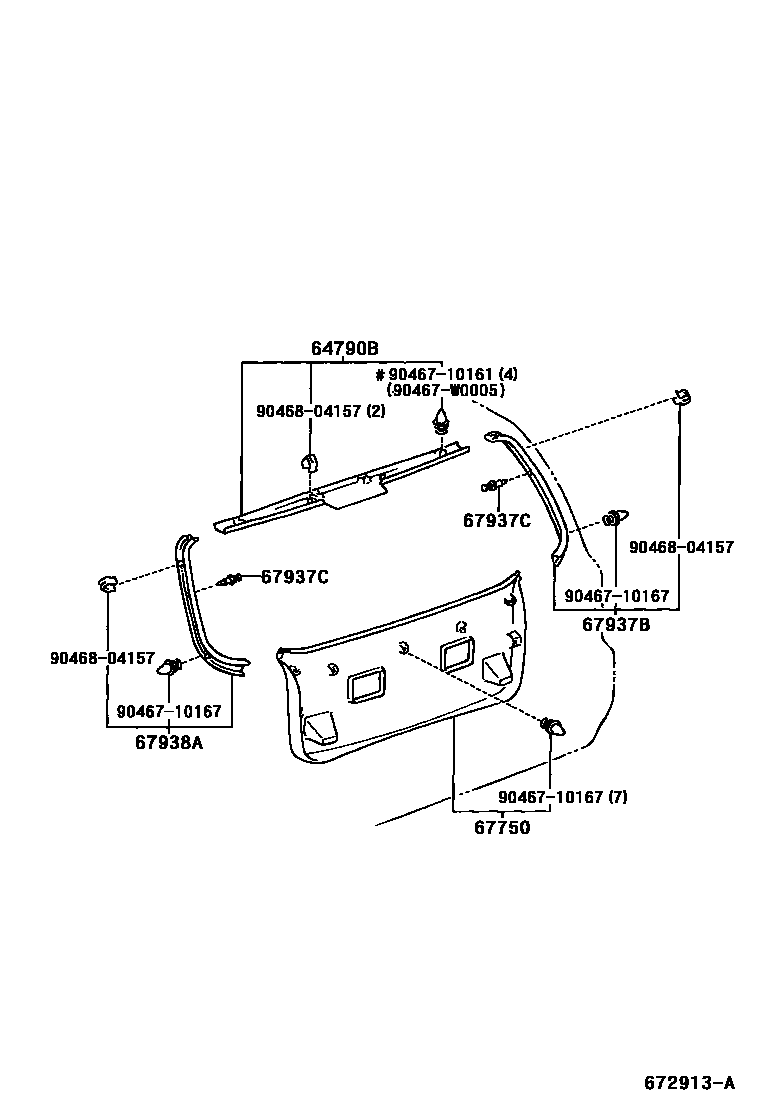

Toyota COROLLA 背门板和背门玻璃 — Figure 6708
Toyota COROLLA EPC diagram 6708, 背门板和背门玻璃, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 64818B | No. 1 back door glass spacer | 64818-13060 |
| 64819 | No. 2 back window glass spacer | 64819-13040 |
| 67005 | Rear door panel sub-assembly | 67005-1F890 |
| 67881A | Back door seal | 67881-13240 · 67881-13241 |
| 67937C | Clip (for rear door side decorative strip) | 64338-13010 |
| 68131 | back door glass | 68105-13120 · 68105-13121 · 68105-13240 · 68105-13241 |
| 75129C | rear license plate cushion | 75129-40010 |
| 75571F | Back door and window protection strip | 64813-52010 · 75571-13160 |
| 75575D | Protective strip under rear window | 75575-13050 |
