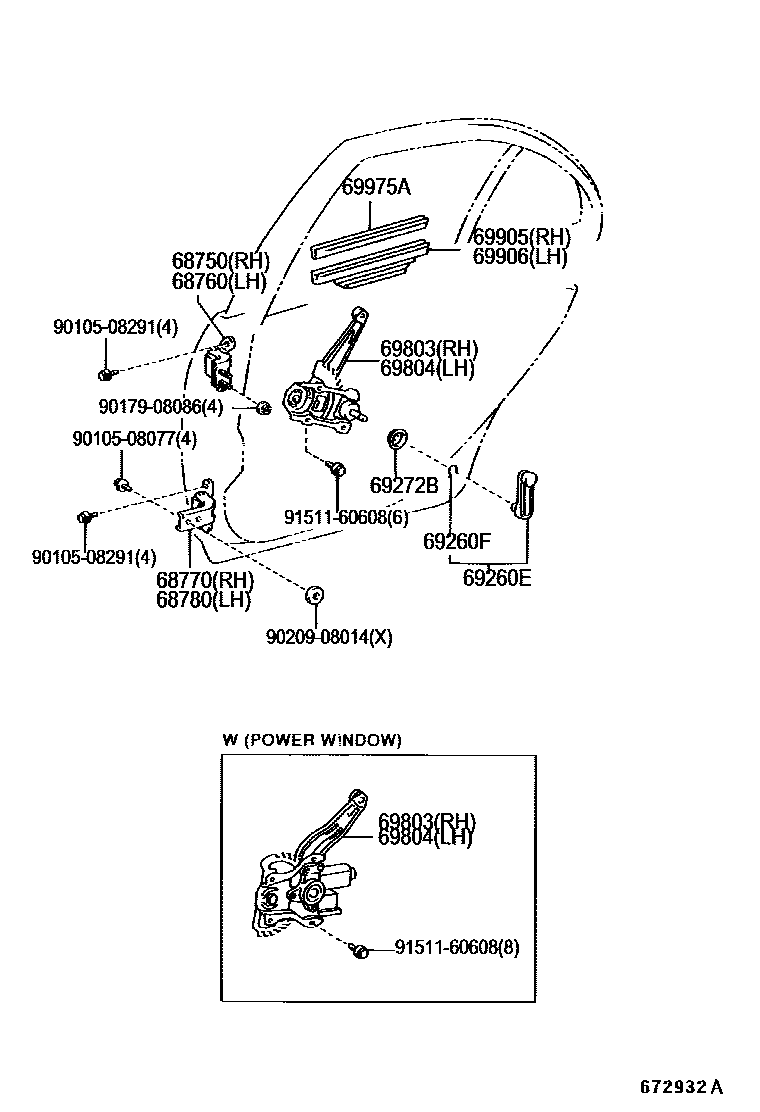

Toyota COROLLA 后门车窗升降器和合页 — Figure 6707
Toyota COROLLA EPC diagram 6707, 后门车窗升降器和合页, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 68750 | Right rear door upper hinge assembly | 68750-52011 |
| 68760 | Left rear door upper hinge assembly | 68760-52011 |
| 68770 | Right rear door lower hinge assembly | 68770-52030 · 68770-52031 |
| 68780 | Left rear door lower hinge assembly | 68780-52030 · 68780-52031 |
| 69260F | Shaft snap ring (for rear door window regulator handle) | 90080-52100 |
| 69272B | Rear door window regulator inner handle plate | 69268-02022 |
| 69803 | Right rear door window lifter sub-assembly | 69830-02090 · 69830-02100 |
| 69804 | Left rear door window lifter sub-assembly | 69840-02090 · 69840-02100 |
| 69905 | Right rear door glass bracket sub-assembly | 69905-02030 |
| 69906 | Left rear door glass bracket sub-assembly | 69906-02030 |
| 69975A | Rear door glass channel filler | 69975-02020 |
