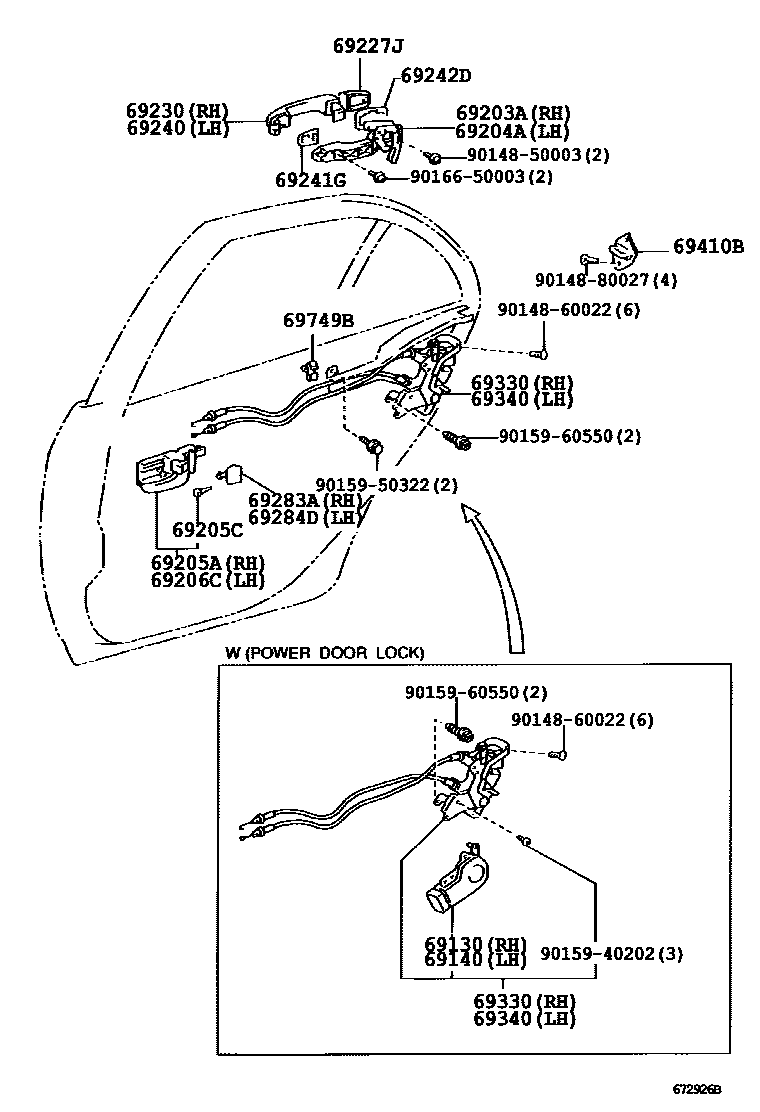

Toyota COROLLA 后门锁和后门把手 — Figure 6706
Toyota COROLLA EPC diagram 6706, 后门锁和后门把手, with 1 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69130 | Right rear door lock actuator assembly | 69130-12040 · 69130-12050 |
| 69140 | Left rear door lock actuator assembly | 69140-12040 · 69140-12050 |
| 69203A | Right rear door outer handle frame sub-assembly | 69203-12030 · 69203-12090 |
| 69204A | Left rear door outer handle frame sub-assembly | 69204-12030 · 69204-12090 |
| 69205C | Cushion pad (for rear door inner handle) | 90541-04027 |
| 69241G | Rear door front exterior handle pad | 69241-42020 |
| 69242D | Left rear door outer handle pad | 69242-42010 |
| 69283A | Right rear door inner handle frame plug | 69283-12040 |
| 69284D | Left rear door inner handle frame plug | 69283-12040 |
| 69330 | Right rear door door lock assembly | 69050-12350 · 69050-12400 · 69330-12380 |
| 69340 | Left rear door lock assembly | 69060-12350 · 69060-12400 · 69340-12380 |
| 69410B | Rear door lock plate assembly | 69410-20110 |
| 69749B | Rear door lock link clamp | 69749-32040 |
