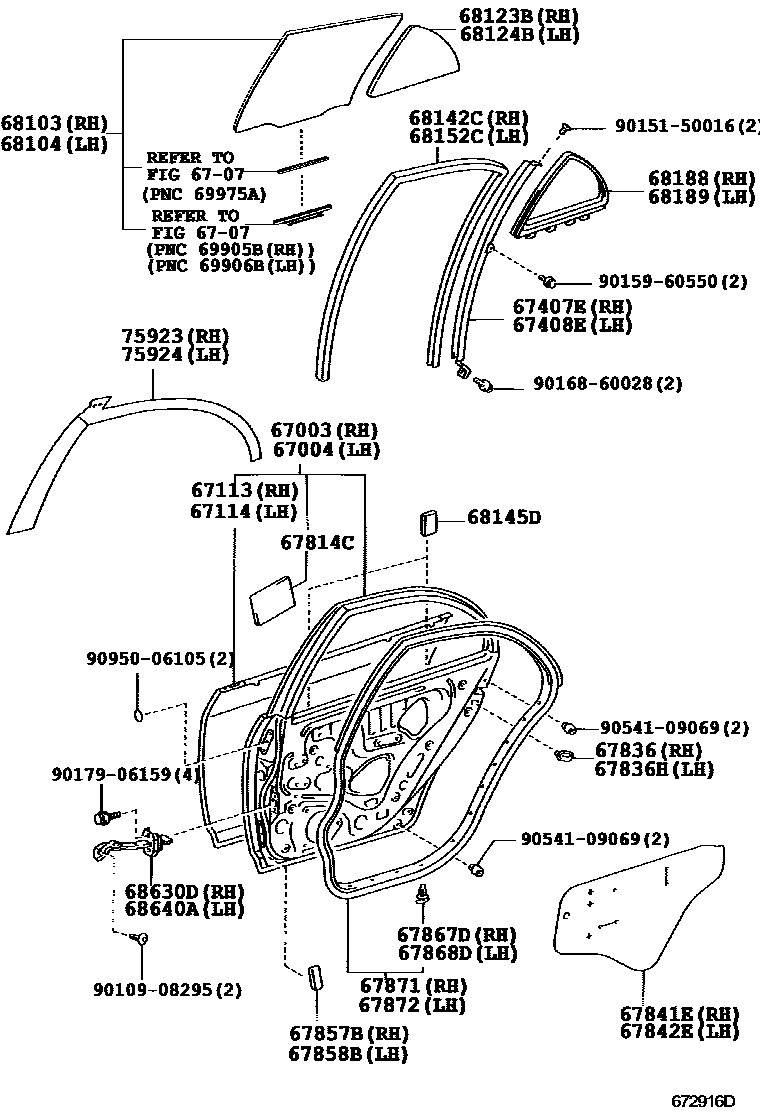

Toyota COROLLA 后门板和后门玻璃 — Figure 6705
Toyota COROLLA EPC diagram 6705, 后门板和后门玻璃, with 2 images and 33 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67003 | Right rear door panel sub-assembly | 67003-13330 |
| 67004 | Left rear door panel sub-assembly | 67004-13330 |
| 67113 | Right rear door outer panel | 67113-12270 |
| 67114 | Left rear door outer panel | 67114-12270 |
| 67407E | Right rear door window divider sub-assembly | 67407-13070 |
| 67408E | Left rear door window divider sub-assembly | 67408-13070 |
| 67603A | Fixings (for rear door trim) | 90467-10161 |
| 67814C | door guard seals | 67817-47010 |
| 67836 | Right rear door lock child restraint cover | 67836-12040 |
| 67836H | Left rear door lock child restraint cover | 67836-12040 |
| 67841E | Right rear door access hole cover | 67841-12340 |
| 67842E | Left rear door access hole cover | 67842-12150 |
| 67857B | Right rear door panel protector | 67857-12090 |
| 67858B | Left rear door panel protector | 67858-12080 |
| 67867D | Right rear door seal strip fixing | 67867-12150 |
| 67868D | Left rear door seal strip fixing | 67867-12150 |
| 67871 | Right rear door sealing strip | 67871-13150 |
| 67872 | Left rear door sealing strip | 67872-13140 |
| 68103 | Right rear door glass sub-assembly | 68103-13340 |
| 68104 | Left rear door glass sub-assembly | 68104-13330 |
| 68123B | Right rear door corner window glass | 68123-13230 |
| 68124B | Left rear door corner window glass | 68124-13220 |
| 68142C | Right rear door glass lift slot | 68142-13140 |
| 68145D | Rear door window cushion | 69759-12110 |
| 68152C | Left rear door glass lift slot | 68152-13100 |
| 68173B | Right rear door glass inner sealing strip | 68173-12290 |
| 68174A | Left rear door glass inner sealing strip | 68174-12150 |
| 68188 | Right rear door corner window seal | 68188-13110 |
| 68189 | Left rear door corner window seal | 68189-13110 |
| 68630D | Right rear door opening limiter assembly | 68630-12090 |
| 68640A | Left rear door opening limiter assembly | 68640-12050 |
| 75923 | No. 2 right side light-shielding film | 75923-13021 · 75923-13022 |
| 75924 | No. 2 left shading film | 75924-13021 · 75924-13022 |
