Toyota COROLLA 车顶内衬和消声垫 — Figure 6402

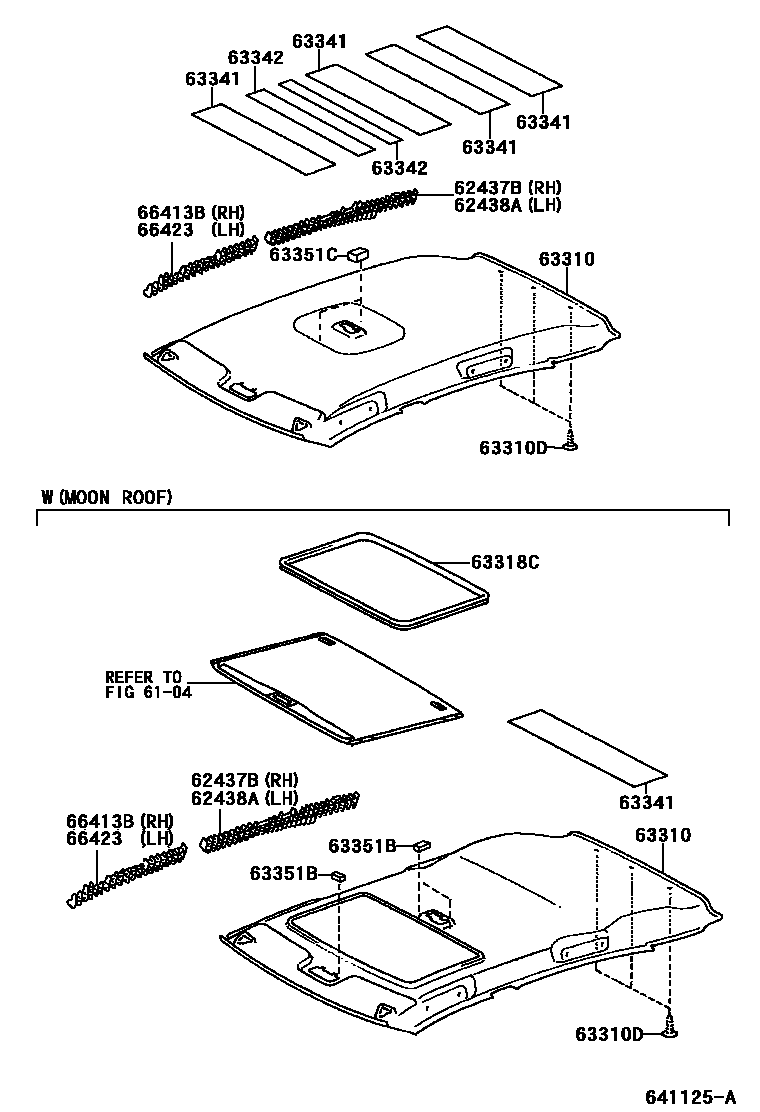

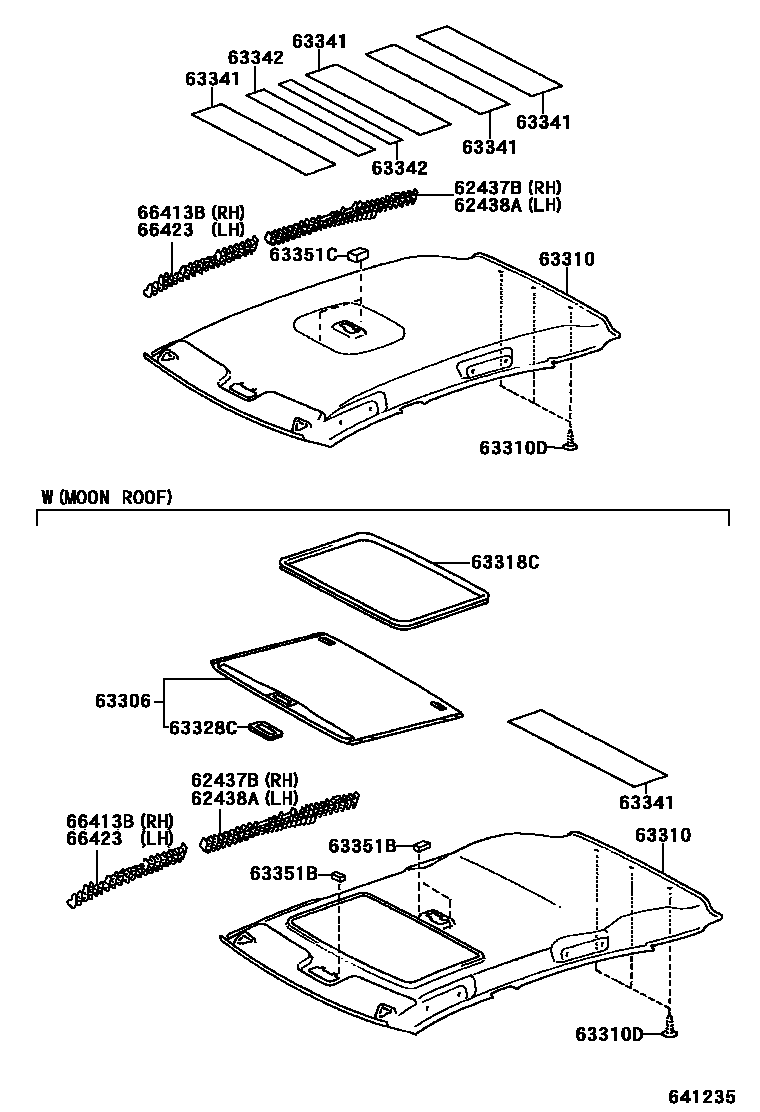

Toyota COROLLA EPC diagram 6402, 车顶内衬和消声垫, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62437B | Right rear roof rail pad | 62437-13010 |
| 62438A | Left rear roof rail pad | 62438-13010 |
| 63341 | No. 1 roof silencer mat | 63341-13130 |
| 63342 | No. 2 roof muffler pad | 63342-13190 |
| 63351B | roof lining pads | 63351-02100 · 63351-13030 |
| 63351C | roof lining pads | 63351-13020 |
| 66413B | Right front longitudinal member spacer | 66413-12010 |
| 66423 | Left front longitudinal member spacer | 66423-12010 |
