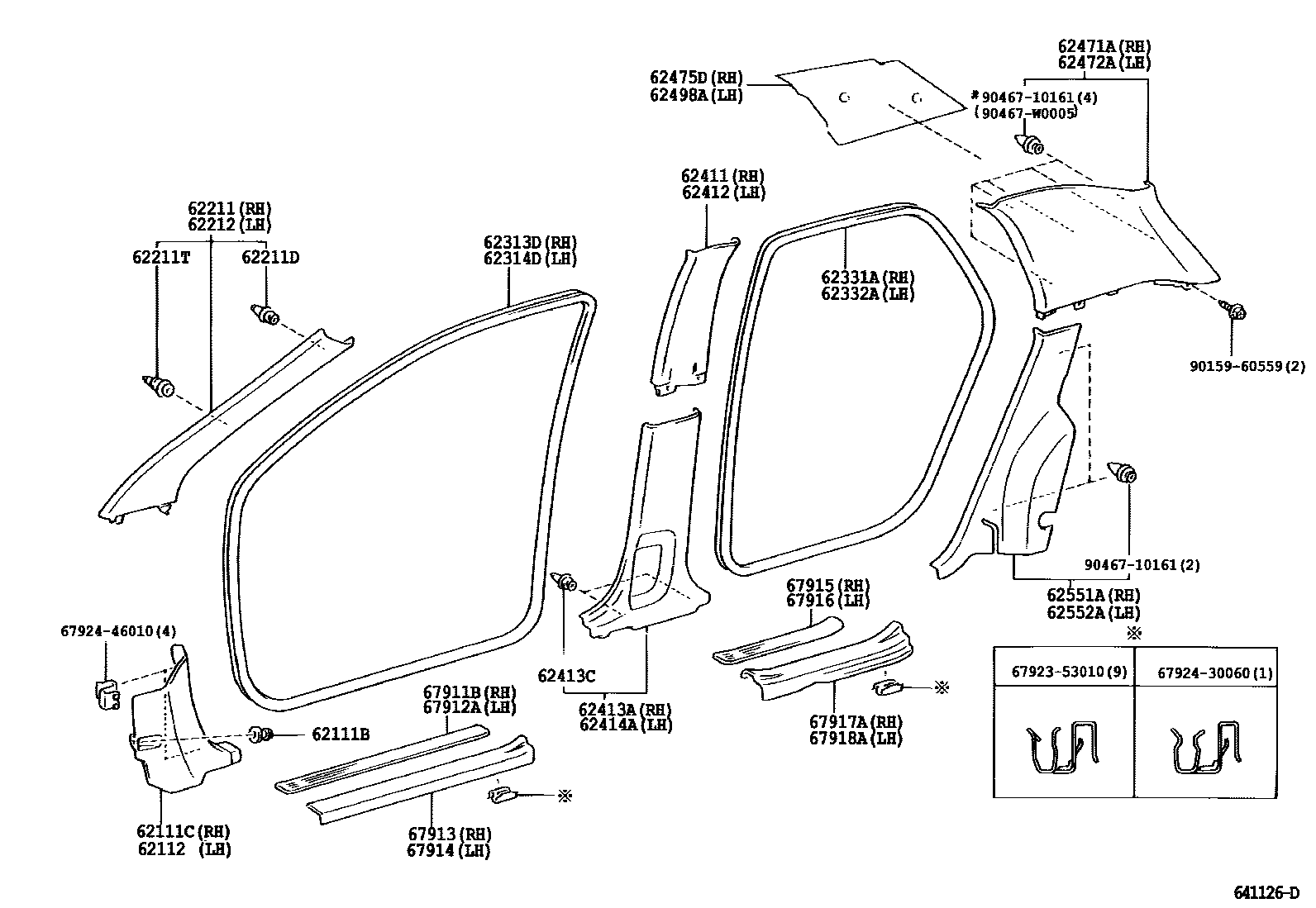

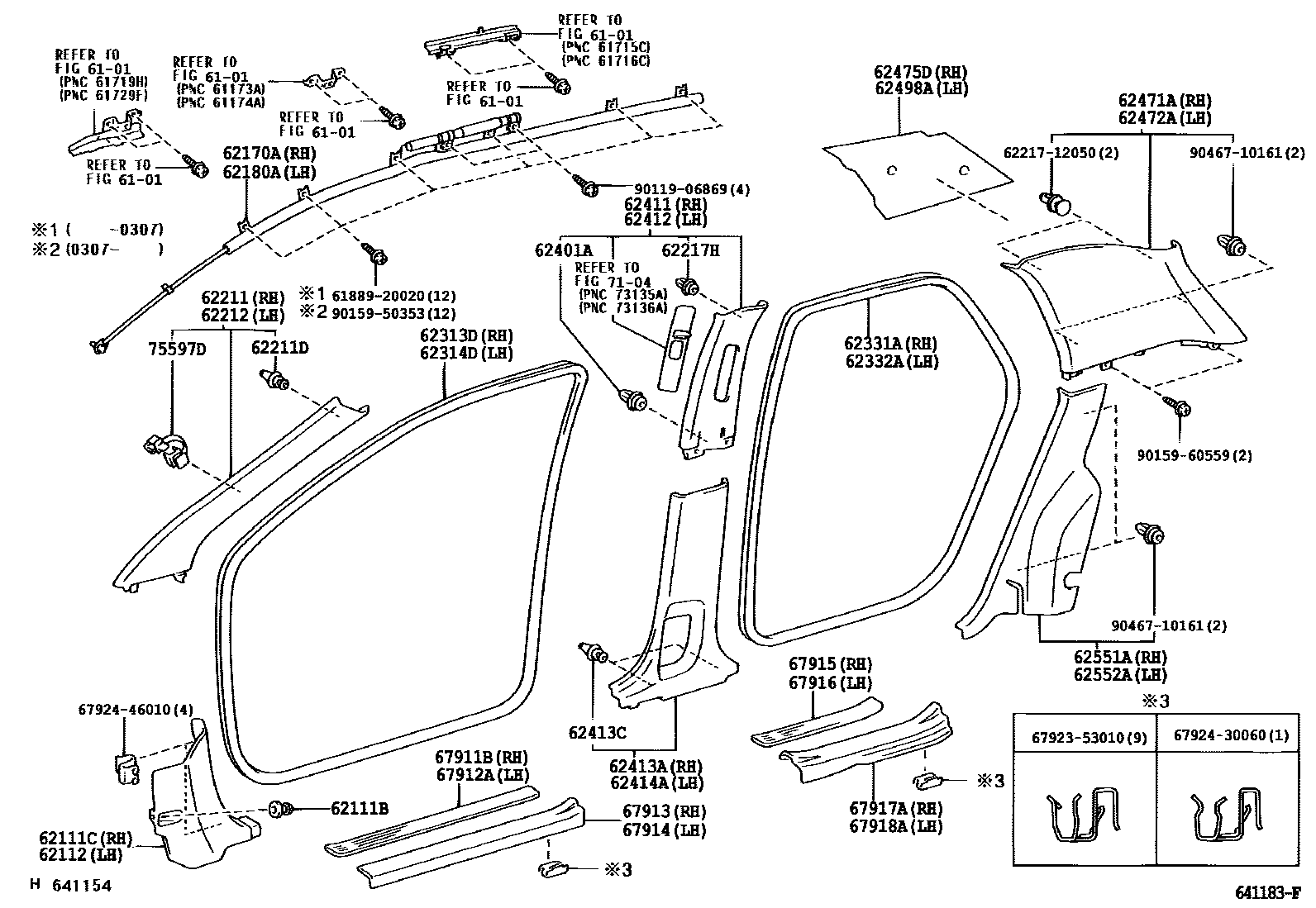

Toyota COROLLA 内饰板和车门防水胶条 — Figure 6401
Toyota COROLLA EPC diagram 6401, 内饰板和车门防水胶条, with 2 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62111B | Clip (for cowl side trim panel) | 90467-06120 |
| 62170A | Right curtain air bag assembly | 62170-13010 · 62170-13011 · 62170-13020 · 62170-13021 |
| 62180A | Left curtain air bag assembly | 62180-13010 · 62180-13011 · 62180-13020 · 62180-13021 |
| 62211D | Clip (for body front pillar decorative panel) | 90467-10161 · 90467-W0005 |
| 62211T | Clip (for front pillar decorative panel) | 62217-13010 |
| 62217H | Center pillar decorative plate clip | 62217-13010 |
| 62401A | Clips (for decorative panels on center pillars) | 90467-10161 |
| 62413C | Clip (for the decorative panel under the center pillar) | 90467-10161 · 90467-W0005 |
| 62475D | Roof right interior trim panel lining | 62475-13080 |
| 62498A | Roof left interior panel lining | 62475-13080 |
| 67911B | Right front door outer wear plate | 67911-12100 · 67911-13010 |
| 67912A | Left front door outer wear plate | 67912-12070 · 67912-13010 |
| 67915 | Right rear door outer wear plate | 67915-13010 |
| 67916 | Left rear door outer wear plate | 67916-13010 |
| 75597D | Roof side trim clips | 75597-05010 · 75597-0F010 |
