Toyota COROLLA 天窗板和背窗玻璃 — Figure 6104

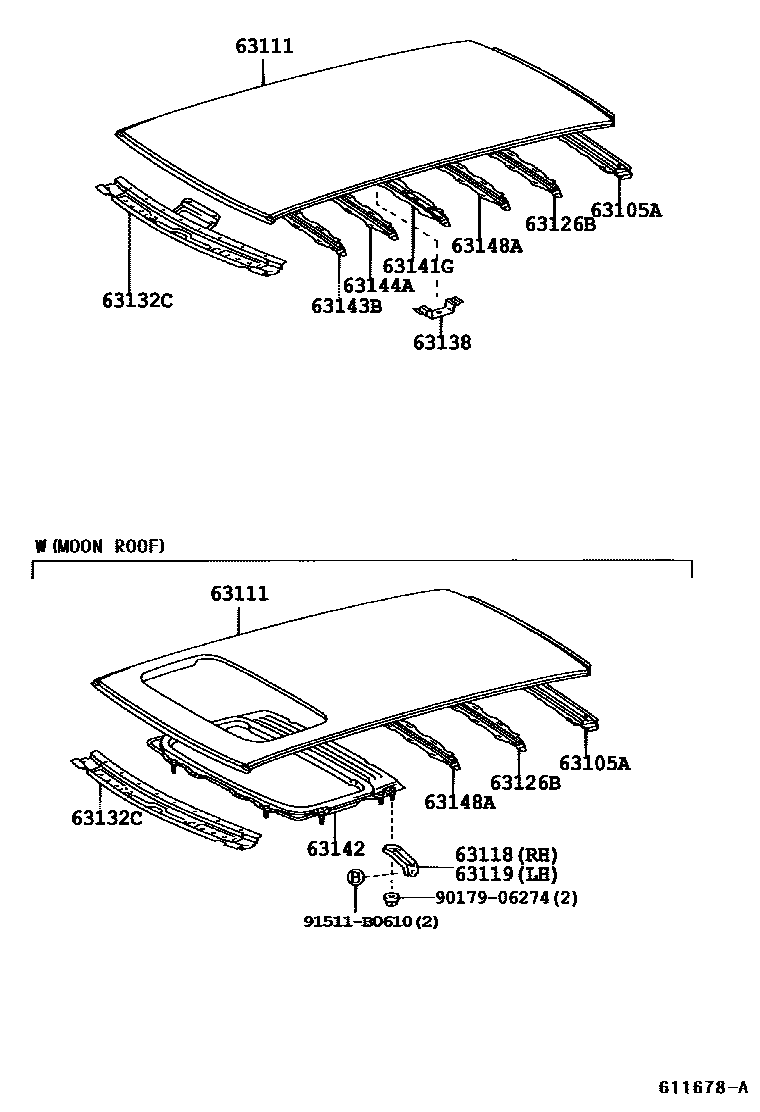

Toyota COROLLA EPC diagram 6104, 天窗板和背窗玻璃, with 3 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 63105A | Back door opening frame sub-assembly | 63105-13170 |
| 63111 | roof panel | 63111-13300 · 63111-13310 |
| 63118 | Right roof panel bracket | 63118-12100 |
| 63119 | Left roof panel bracket | 63118-12100 |
| 63126B | No. 2 rear roof panel reinforcement | 63126-13010 |
| 63132C | Windshield inner roof panel | 63102-13100 · 63102-13110 |
| 63138 | No. 2 ceiling light bracket | 63138-12011 |
| 63141G | No. 1 roof panel reinforcement | 63141-13080 |
| 63142 | No. 2 roof panel reinforcement | 63142-12100 |
| 63143B | No. 3 roof panel reinforcement | 63143-12100 |
| 63144A | No. 4 roof panel reinforcement | 63144-13030 |
| 63148A | No. 7 roof panel reinforcement | 63148-13030 |
| 63201G | Sliding sunroof glass sub-assembly | 63201-02040 · 63201-12261 · 63201-12262 |
| 63203F | Sliding sunroof frame sub-assembly | 63203-13030 |
| 63205A | Sliding sunroof transmission cable sub-assembly | 63205-12150 |
| 63214F | Roof rear drain channel | 63214-02040 |
| 63218H | Sliding skylight drain hose | 63249-12330 · 63249-12331 · 63249-13060 · 63249-13061 |
| 63239 | Sliding roof panel stop | 63239-12030 |
| 63241B | Sliding sunroof frame bracket No. 1 | 63241-02040 · 63241-12110 |
| 63251H | Sliding skylight seal | 63251-02040 · 63251-12160 · 63251-12161 |
| 63260A | Sliding sunroof driving gear sub-assembly | 63260-02020 · 63260-12110 · 63260-12120 |
