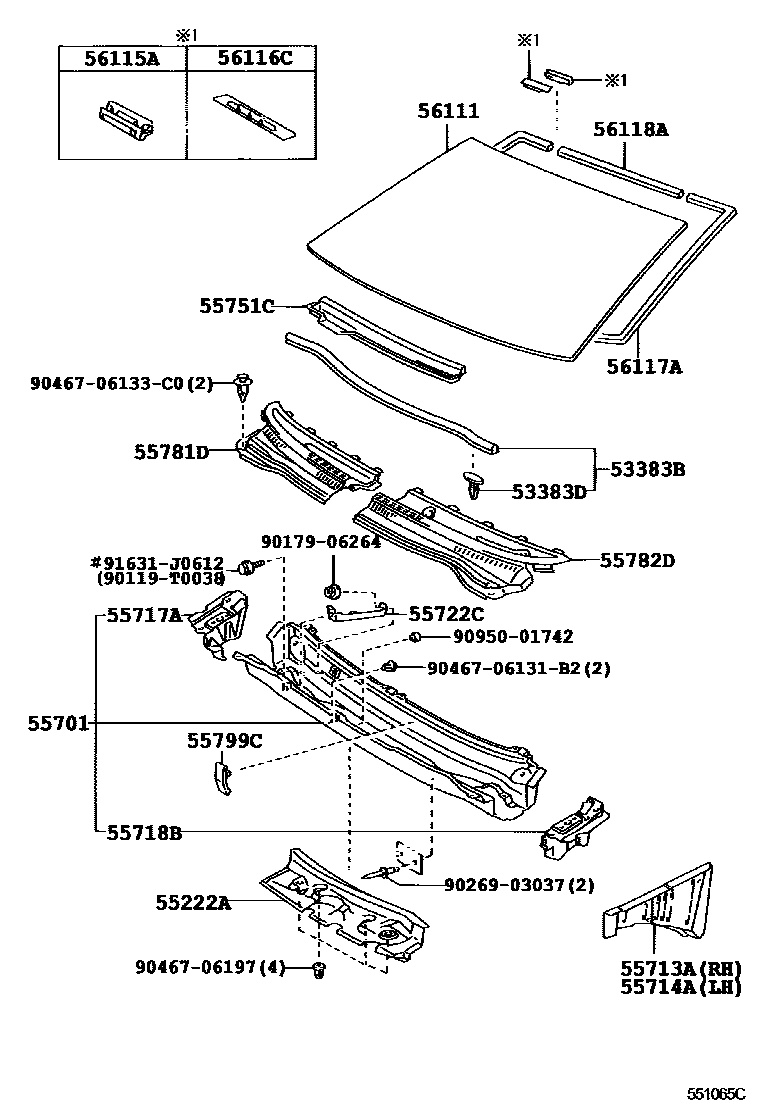

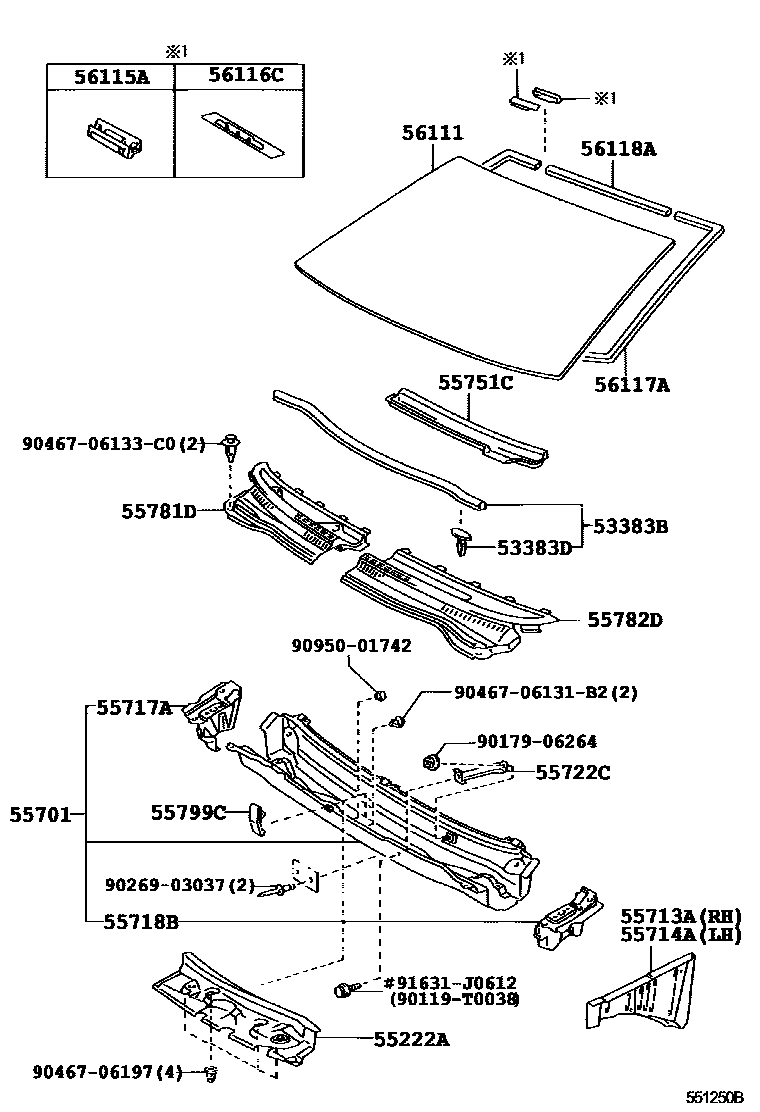

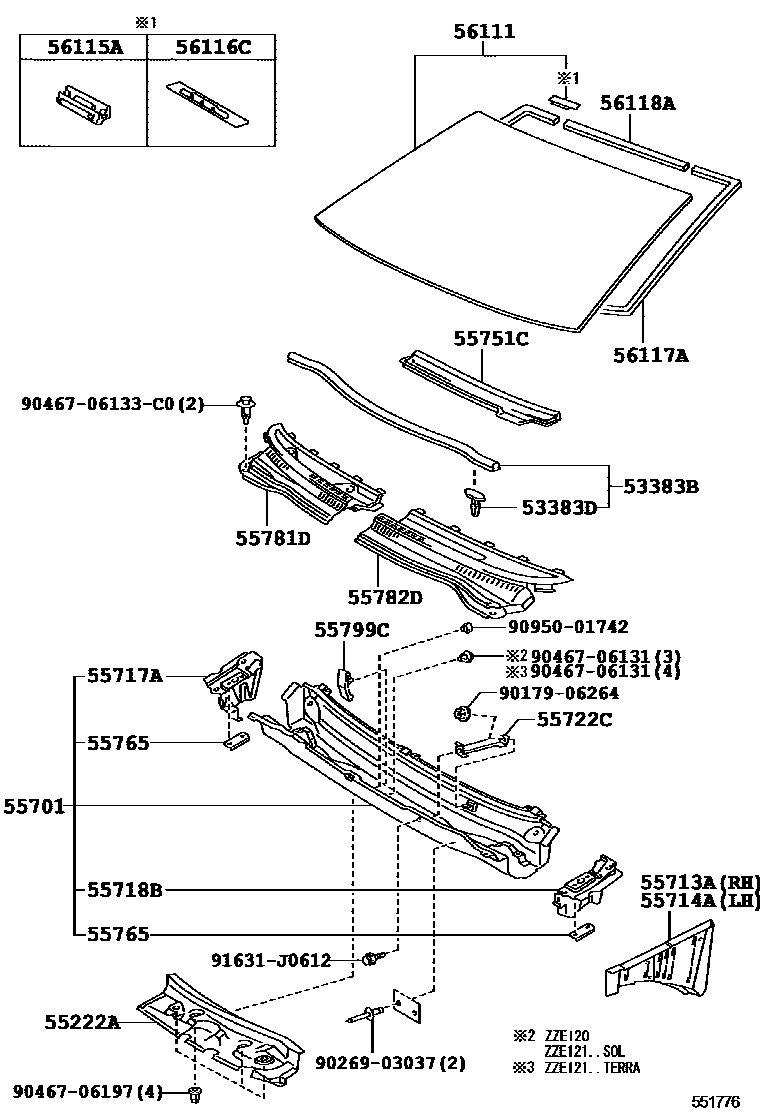

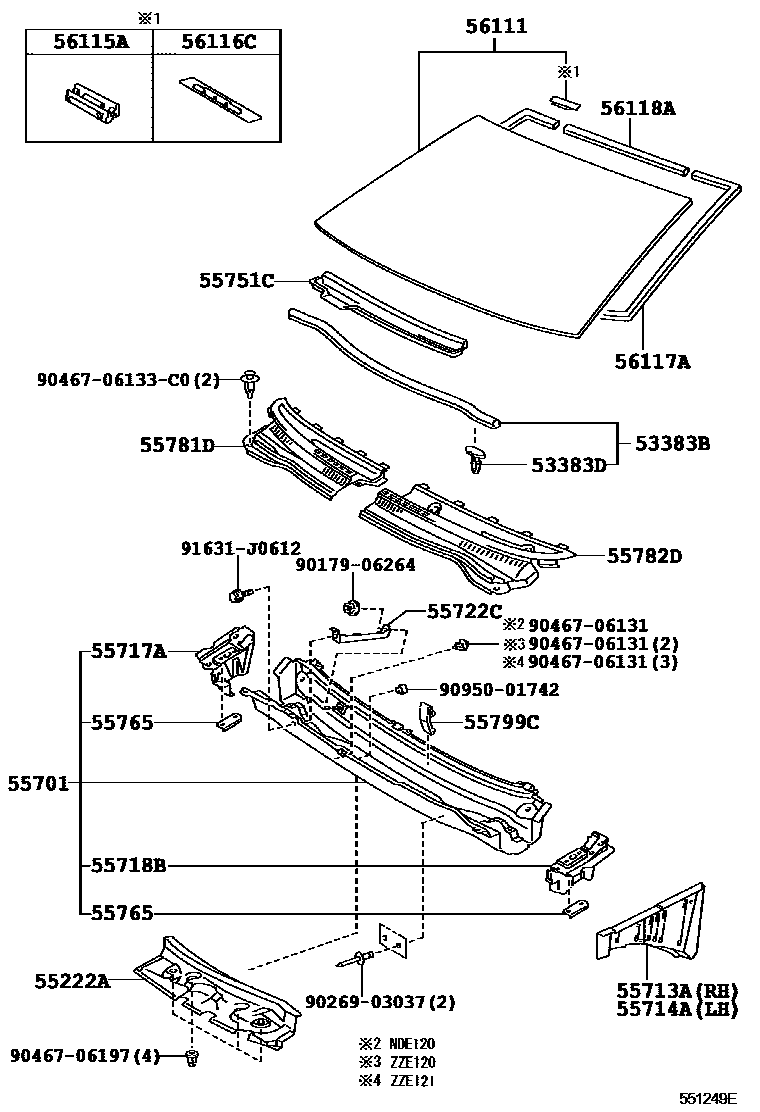

Toyota COROLLA 前围板和挡风玻璃 — Figure 5503
Toyota COROLLA EPC diagram 5503, 前围板和挡风玻璃, with 4 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53383B | Engine cover to cowl upper cover seal | 53383-12140 |
| 53383D | Clamp (for engine cover to cowl upper cover seal) | 90467-08108 |
| 55222A | Center heat insulation pad on outer side of front cowl | 55224-02010 · 55224-02011 |
| 55701 | Front apron sub-assembly | 55700-13040 · 55700-13041 · 55700-13050 · 55700-13051 |
| 55713A | Right front wall upper side panel | 55713-12110 |
| 55714A | Left front wall upper side panel | 55714-12110 |
| 55717A | Upper right inner panel of cowl | 55717-12170 |
| 55718B | Upper left inner panel of front wall | 55718-12120 |
| 55722C | From the cowl upper cover to the cowl inner bracket | 55722-13020 · 55722-13021 · 55722-13030 |
| 55751C | Front ventilator splash guard | 55751-12061 · 55751-12071 |
| 55765 | Engine cover bumper mounting bracket | 55765-44010 |
| 55781D | Ventilation grille on right front apron | 55708-12230 · 55708-12250 · 55708-12260 · 55708-12270 · 55708-12280 |
| 55782D | Ventilation grille on left front apron | 55709-12020 · 55709-12040 · 55709-12050 |
| 55799C | Ventilation grille clips on front apron | 55799-13020 |
| 56111 | windshield | 56101-12010 · 56101-12040 · 56101-12050 · 56101-12390 · 56101-12400 · 56101-12410 · 56101-13020 · 56101-13040 |
| 56115A | Windshield block No. 1 | 56115-30100 |
| 56116C | Windshield block 2 | 56116-22050 |
| 56117A | Window glass adhesive seals | 56117-12240 |
