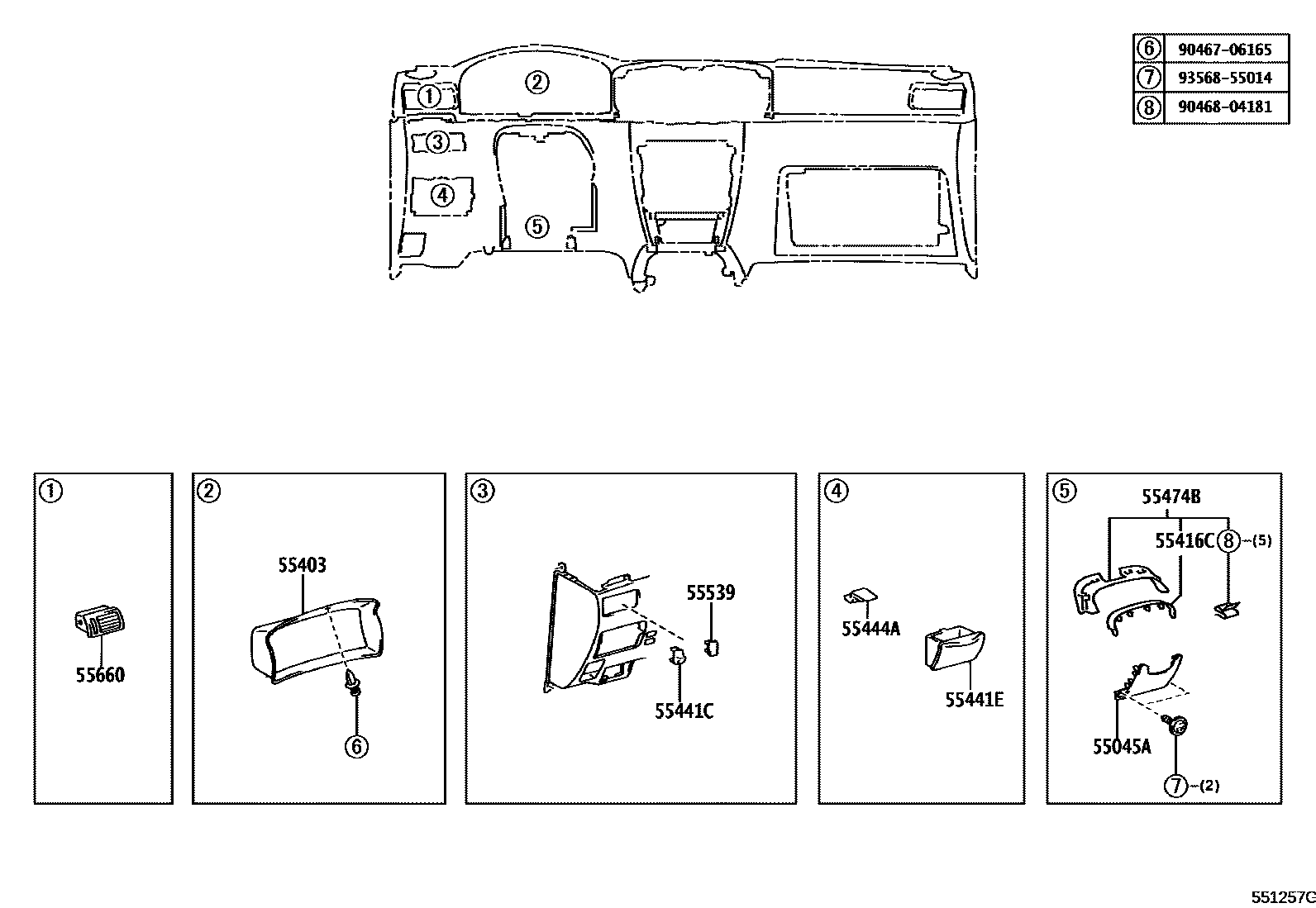

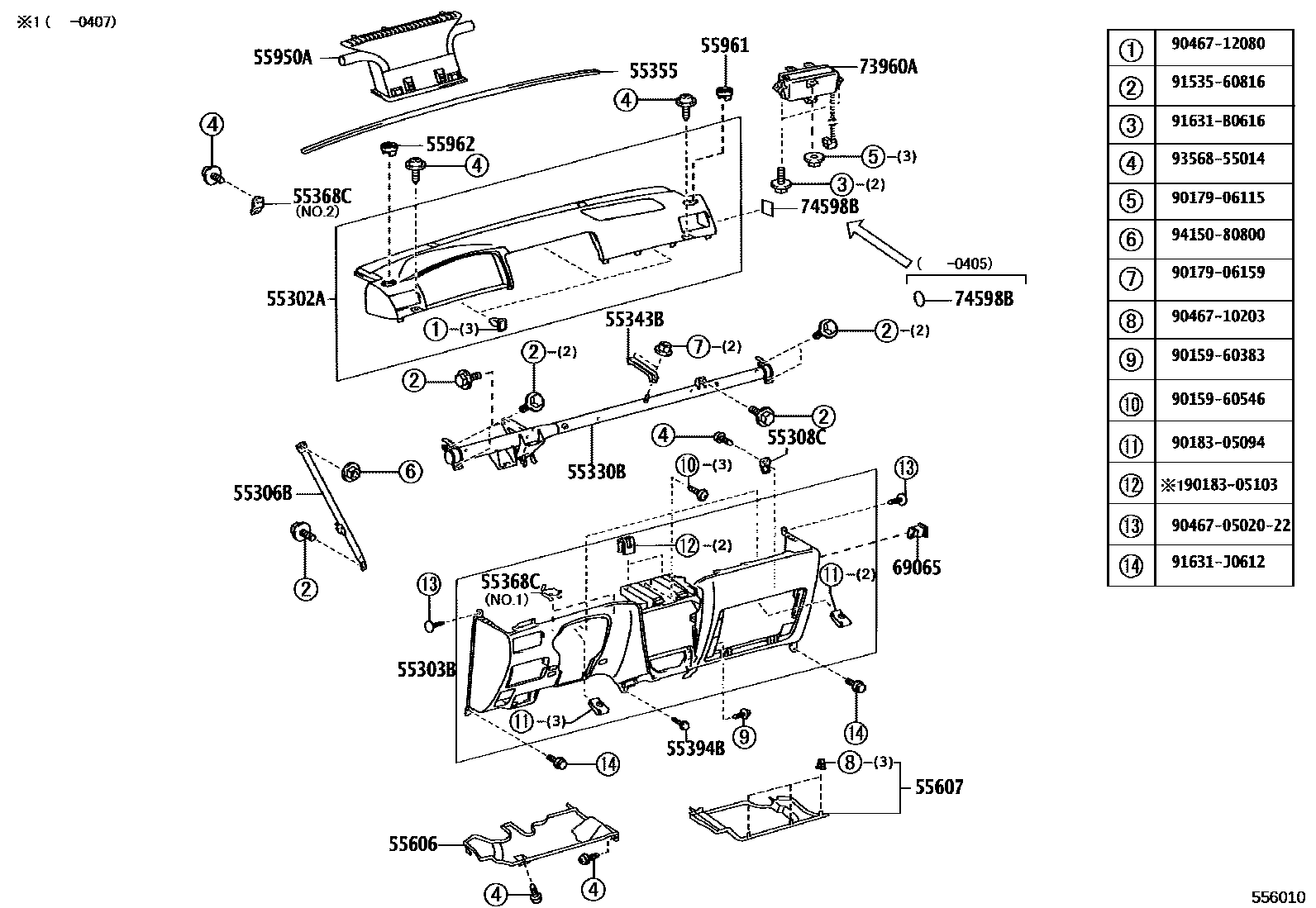

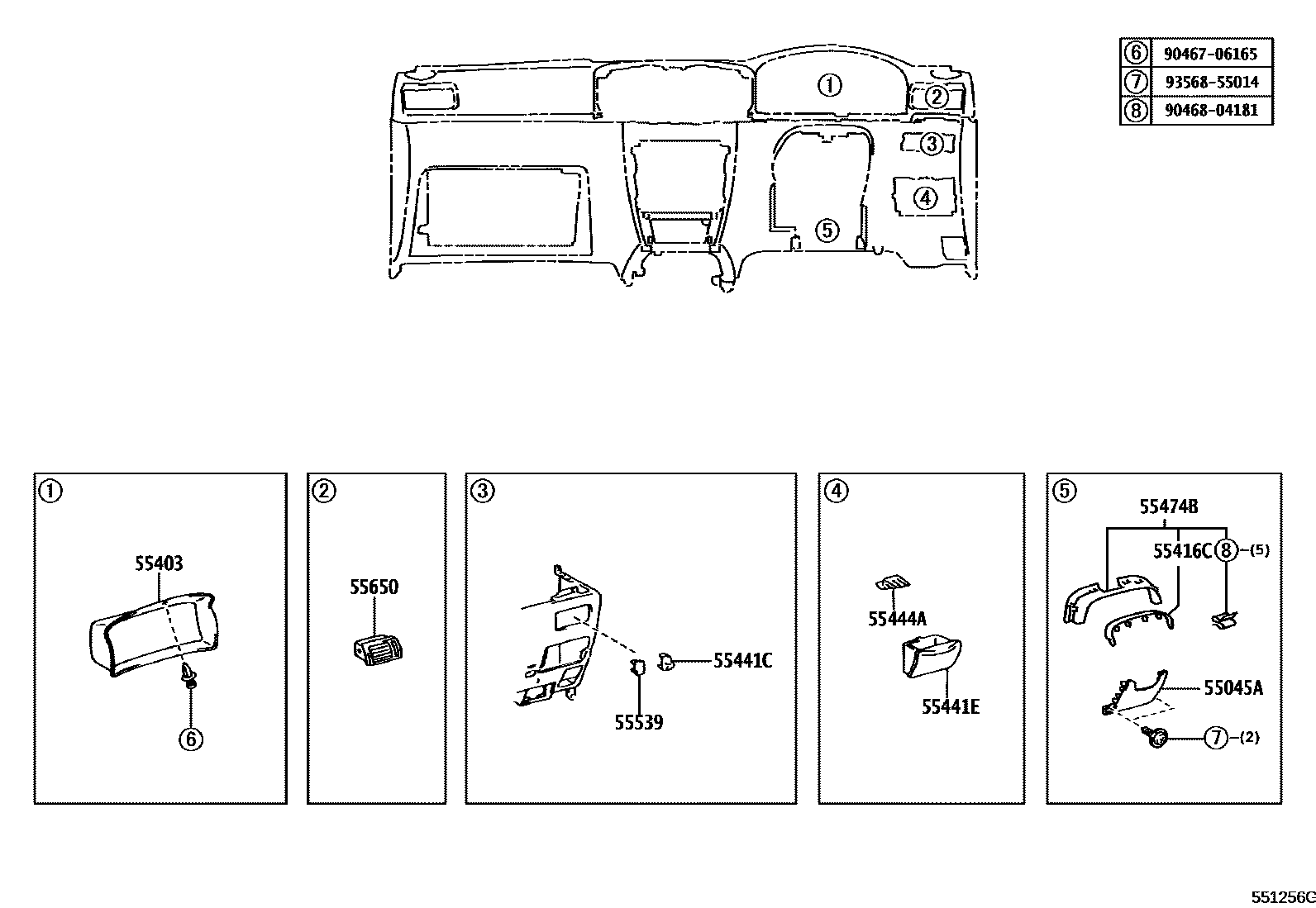

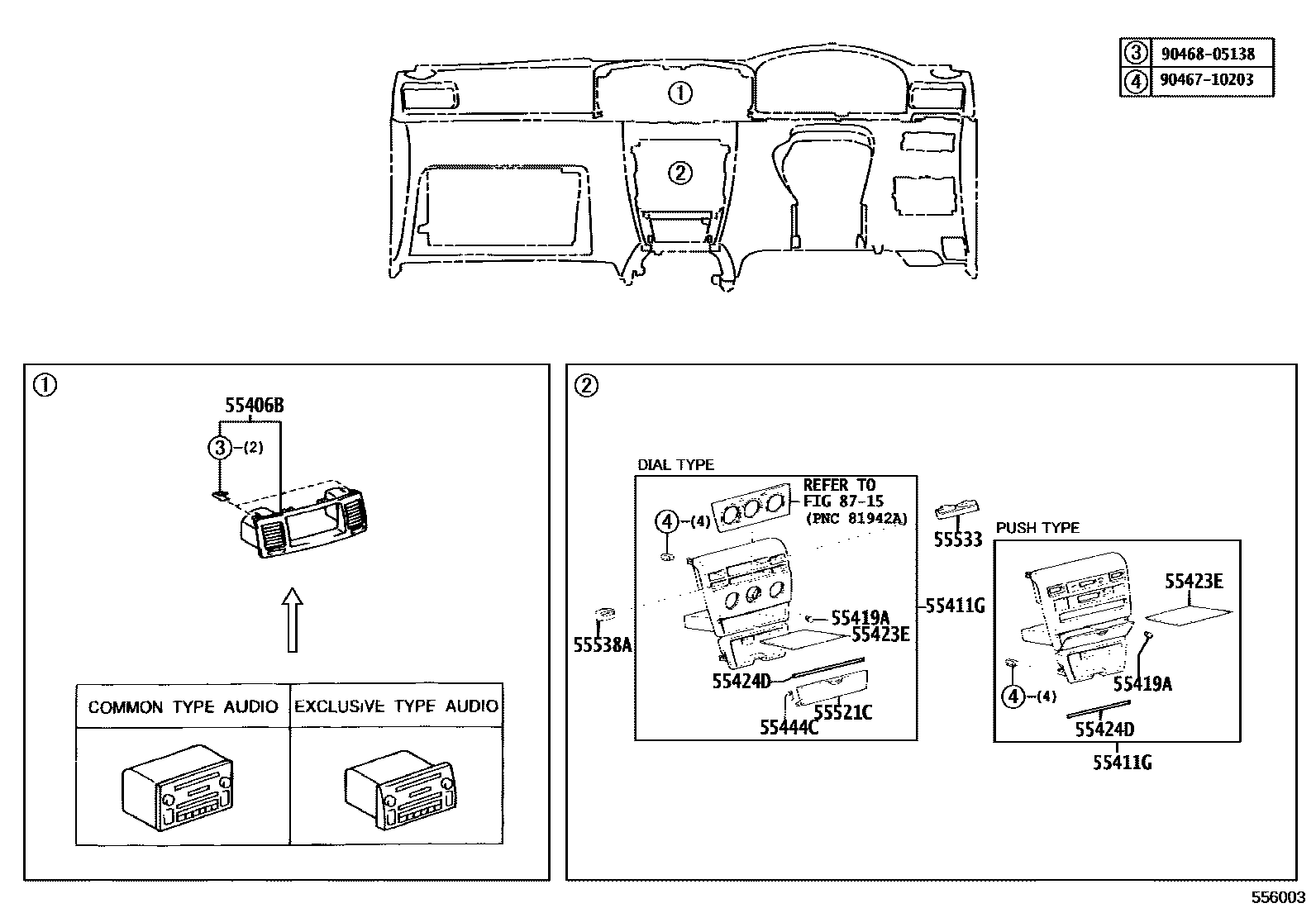

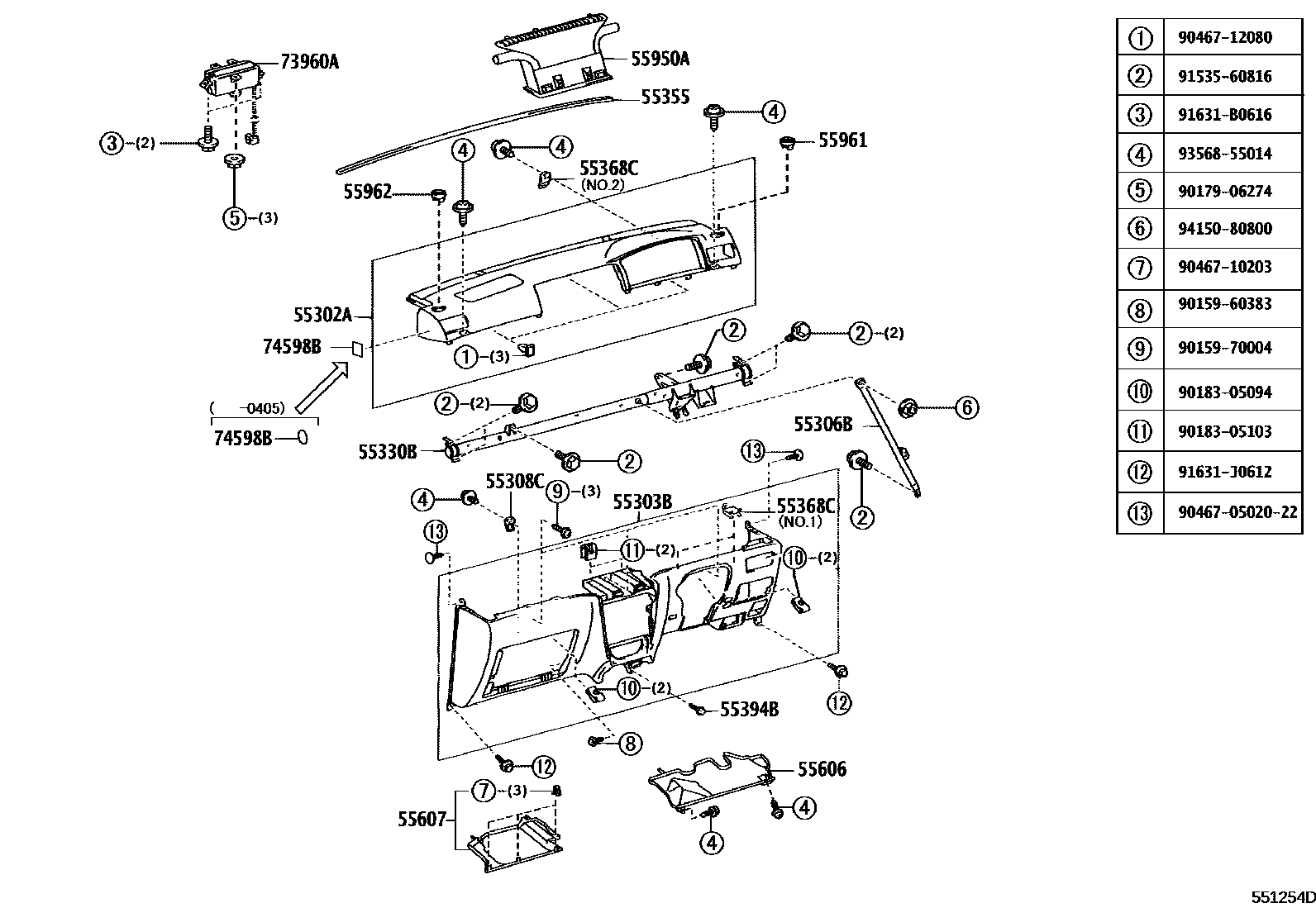

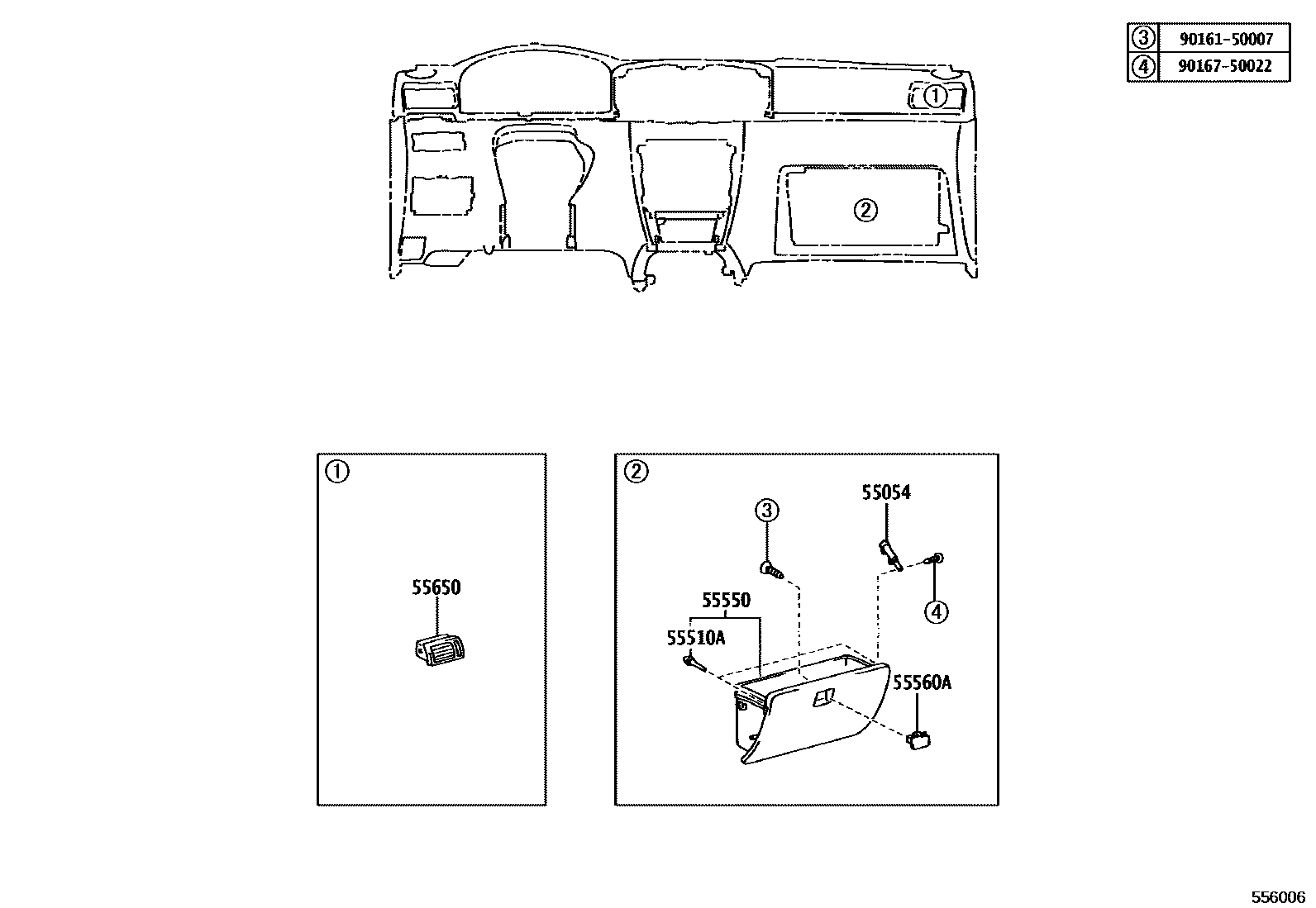

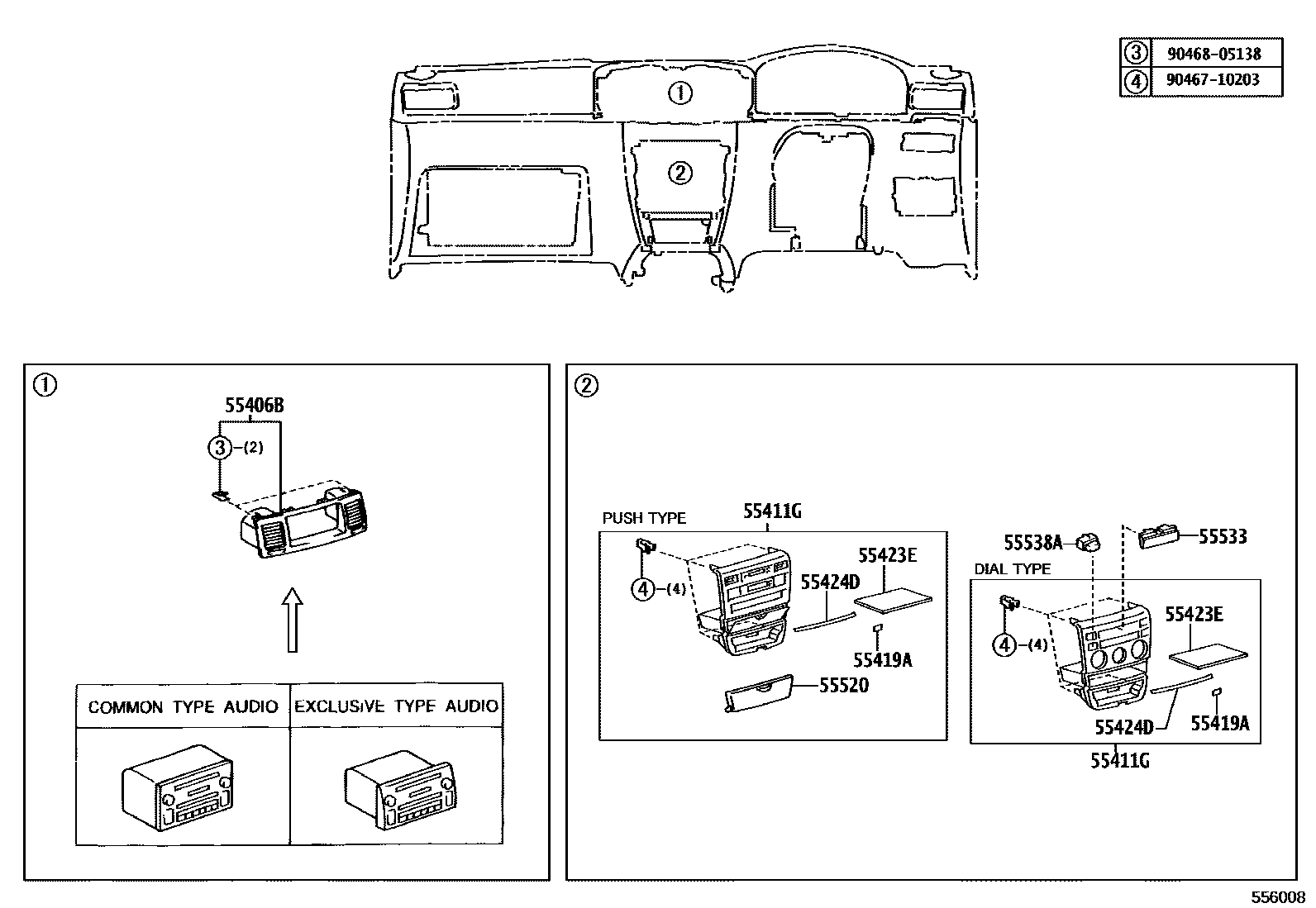

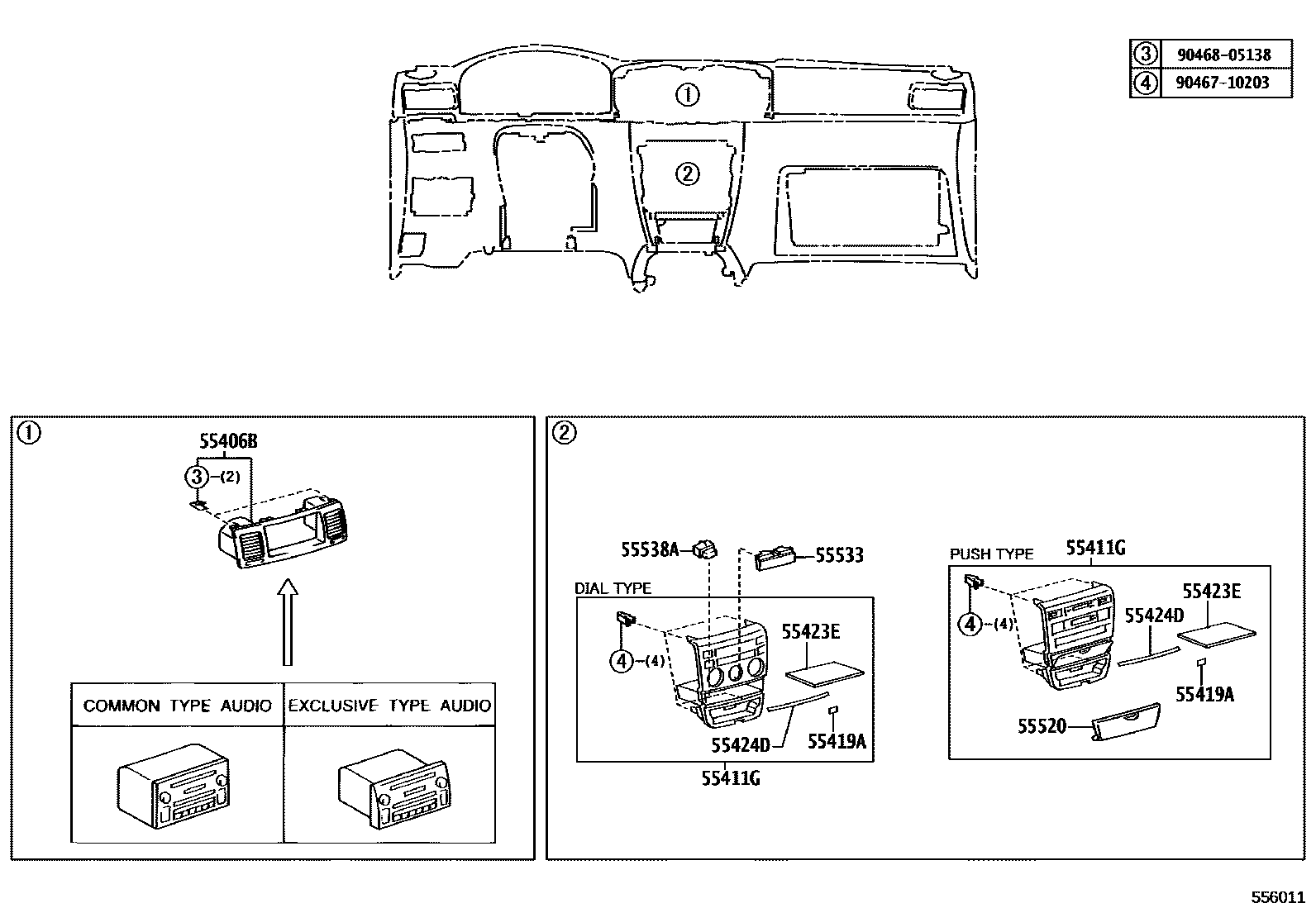

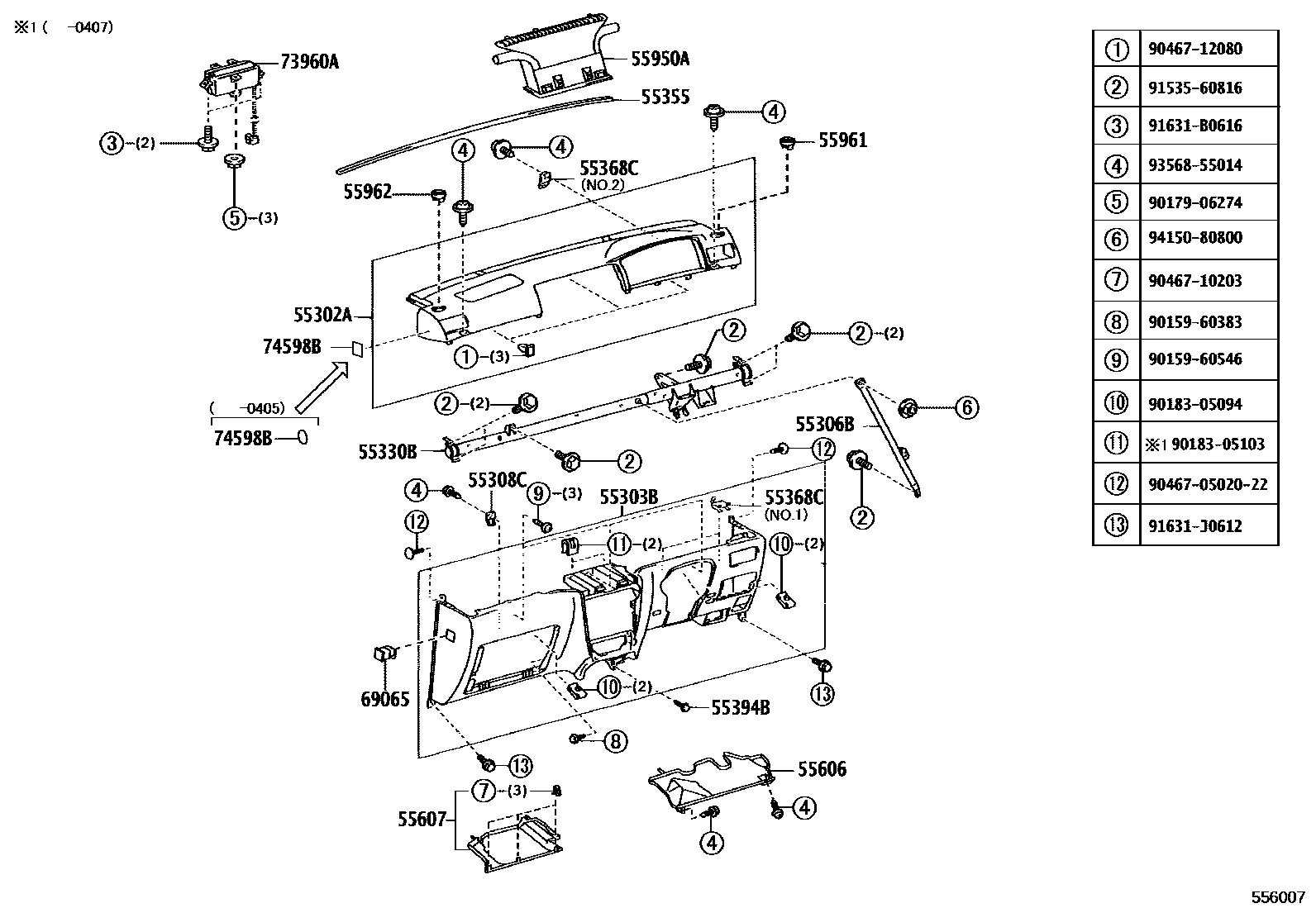

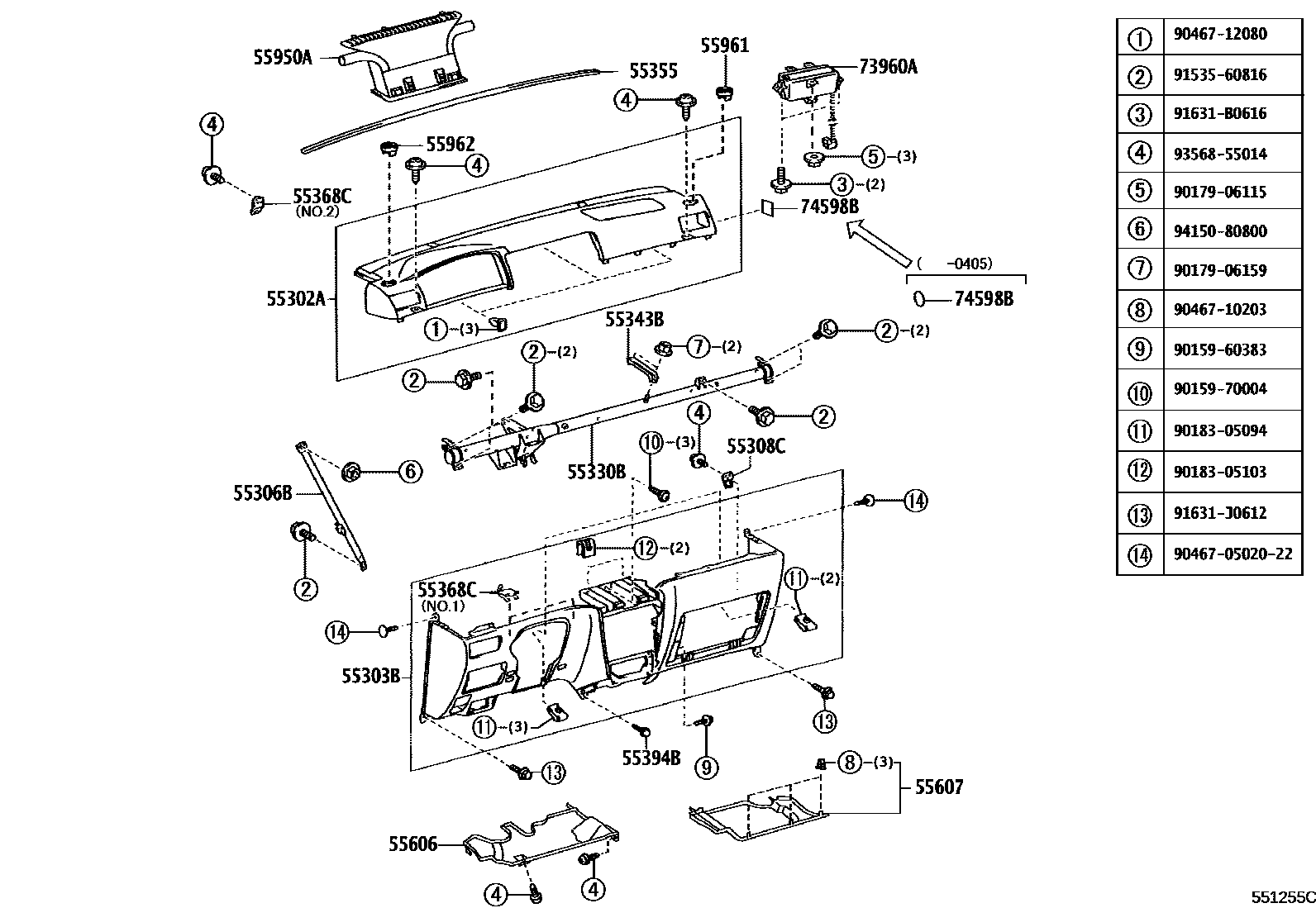

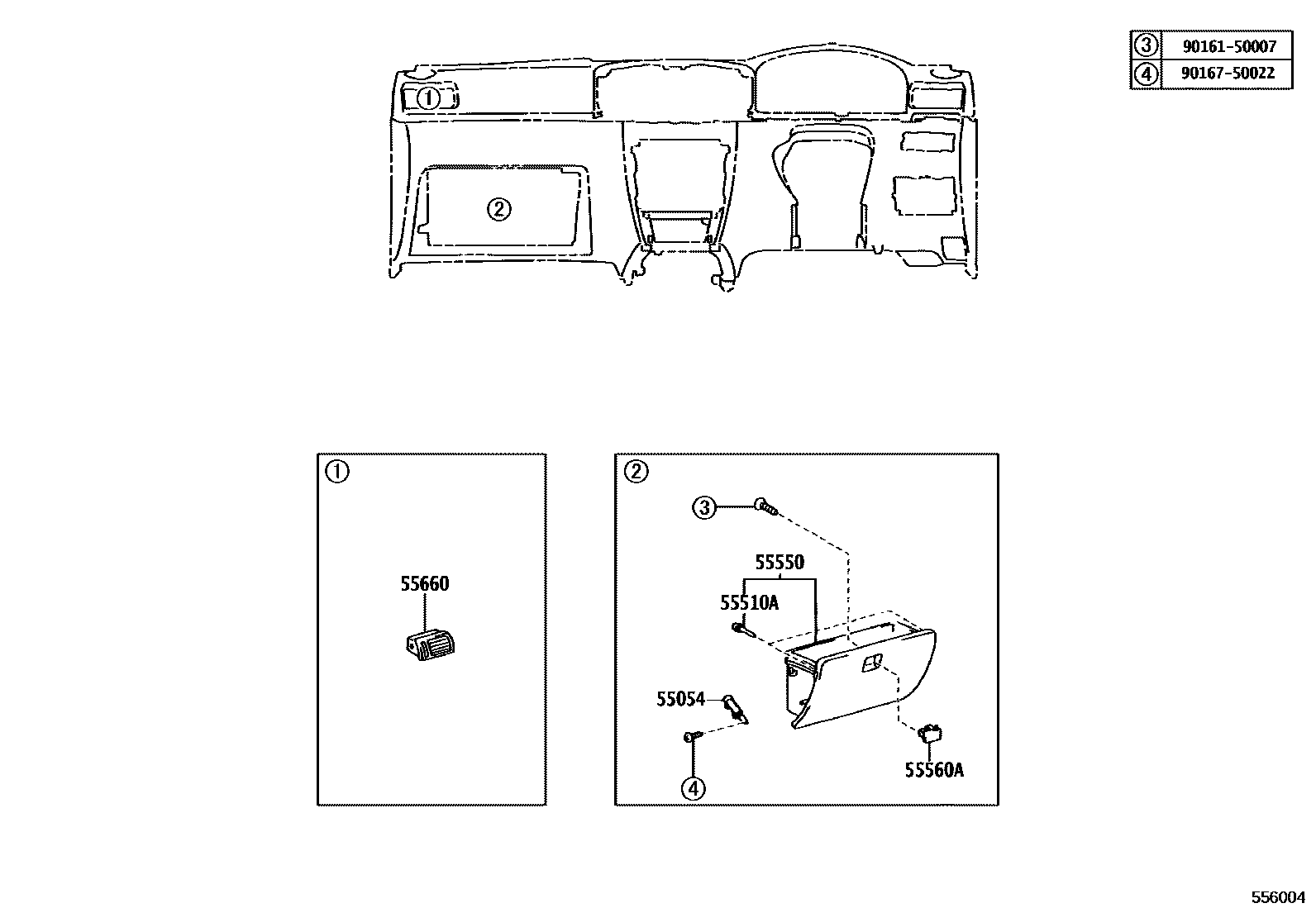

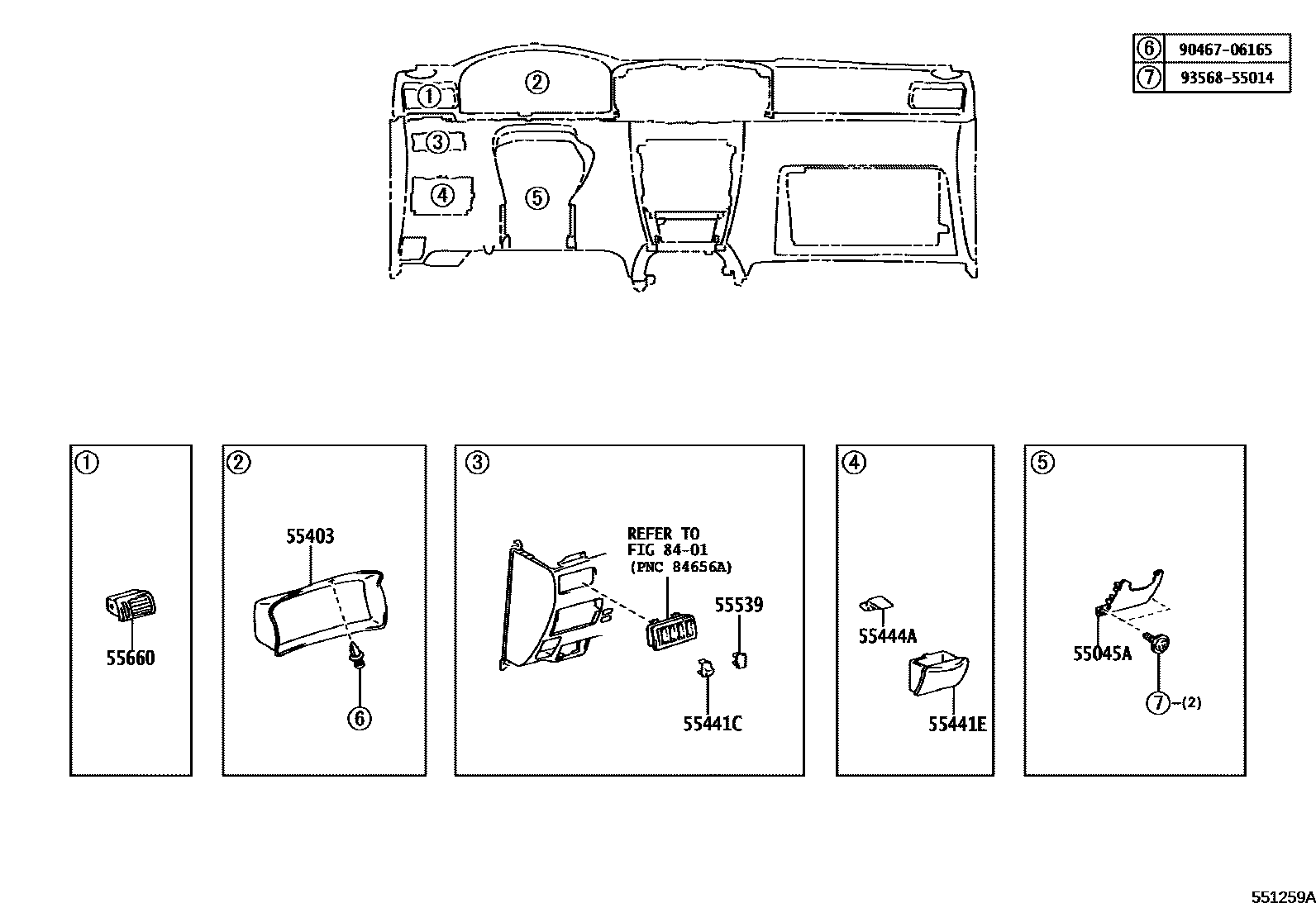

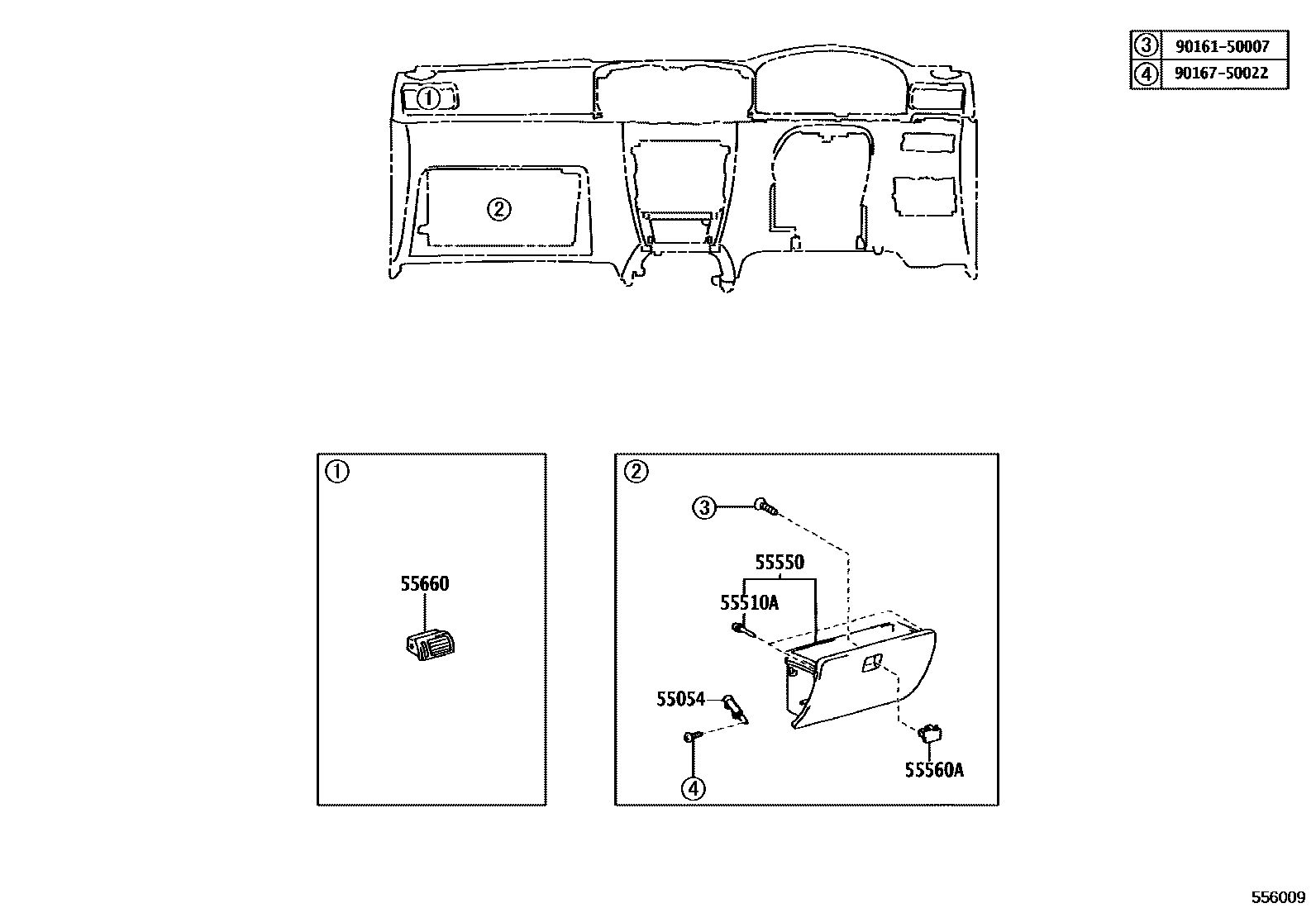

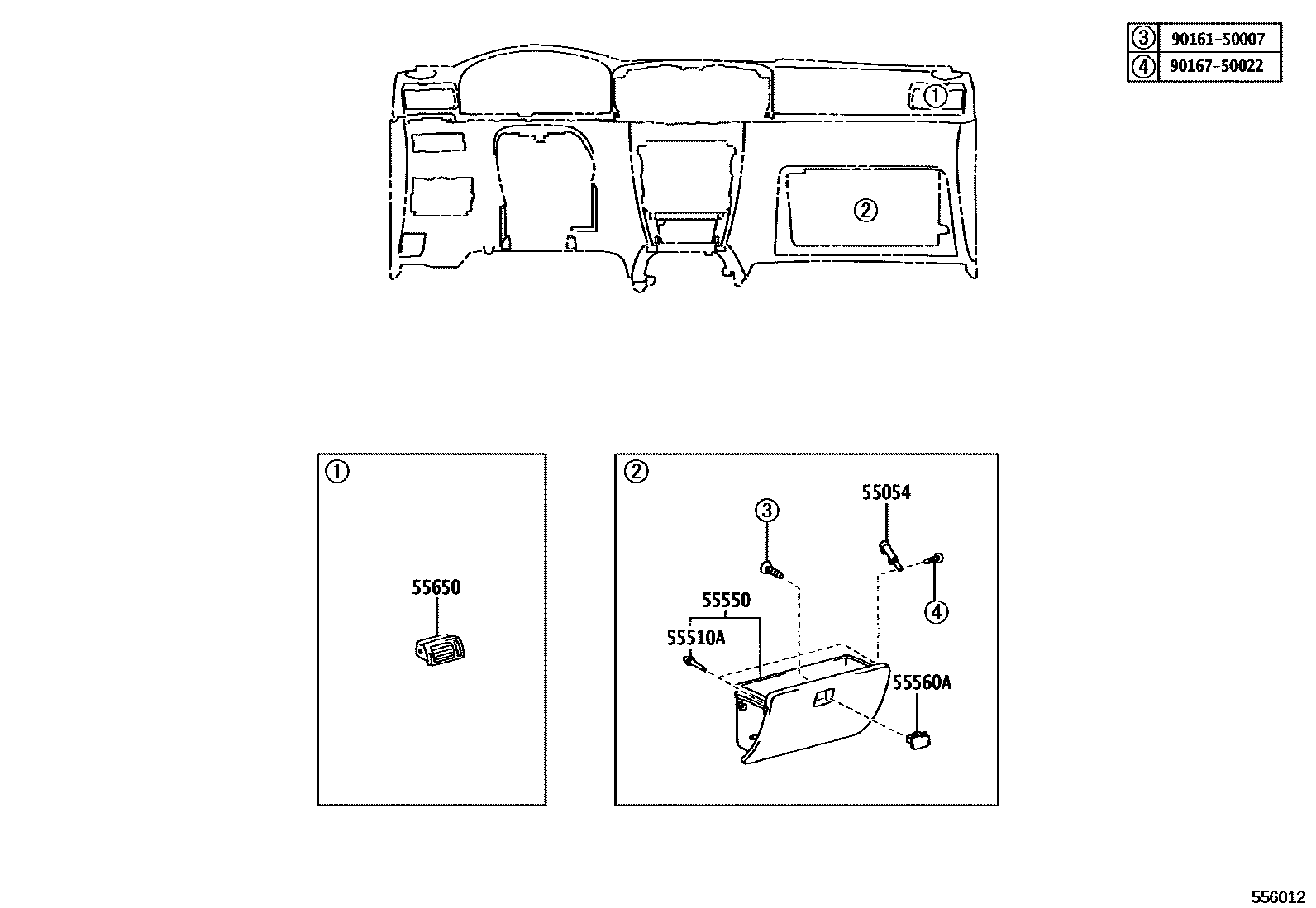

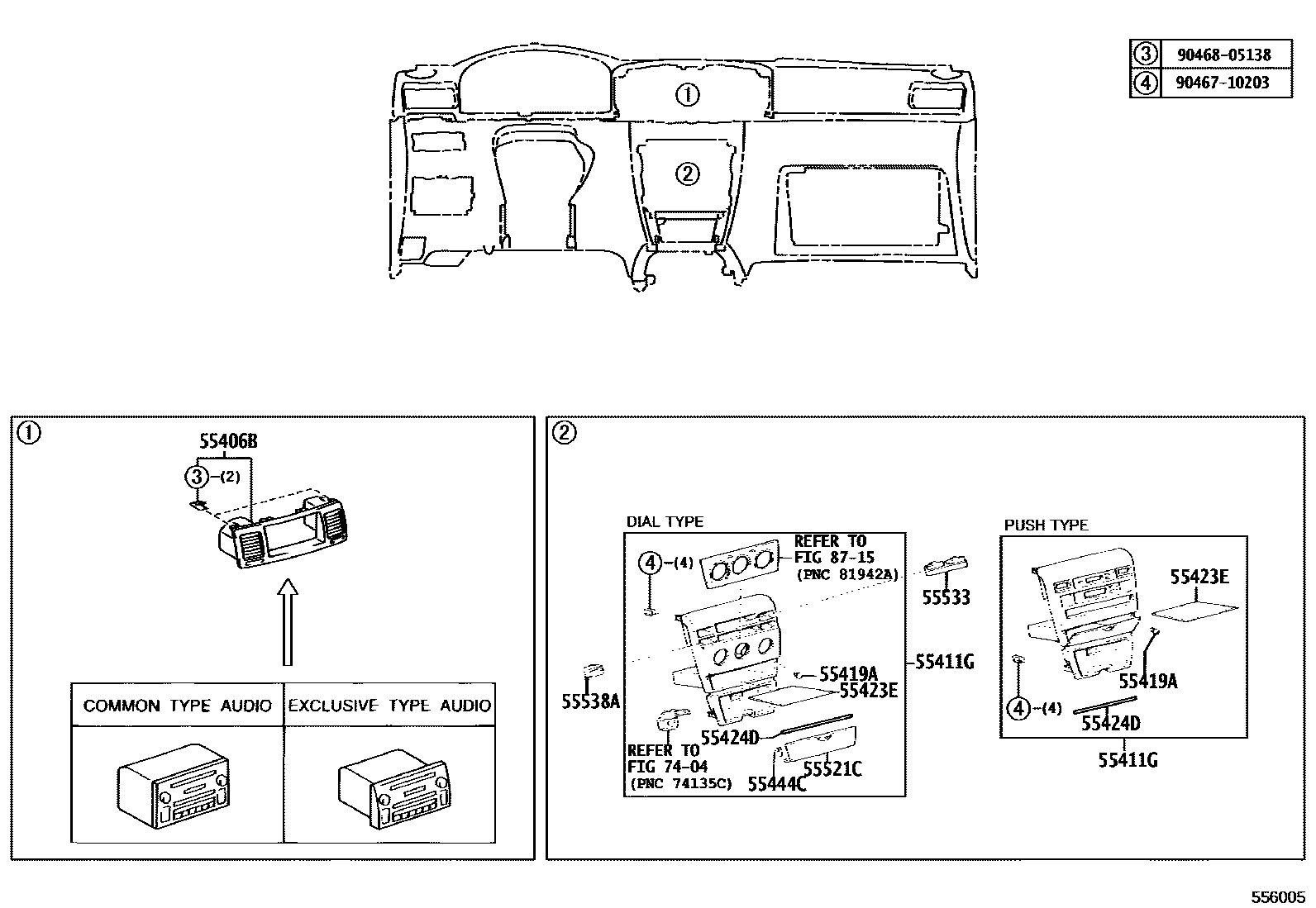

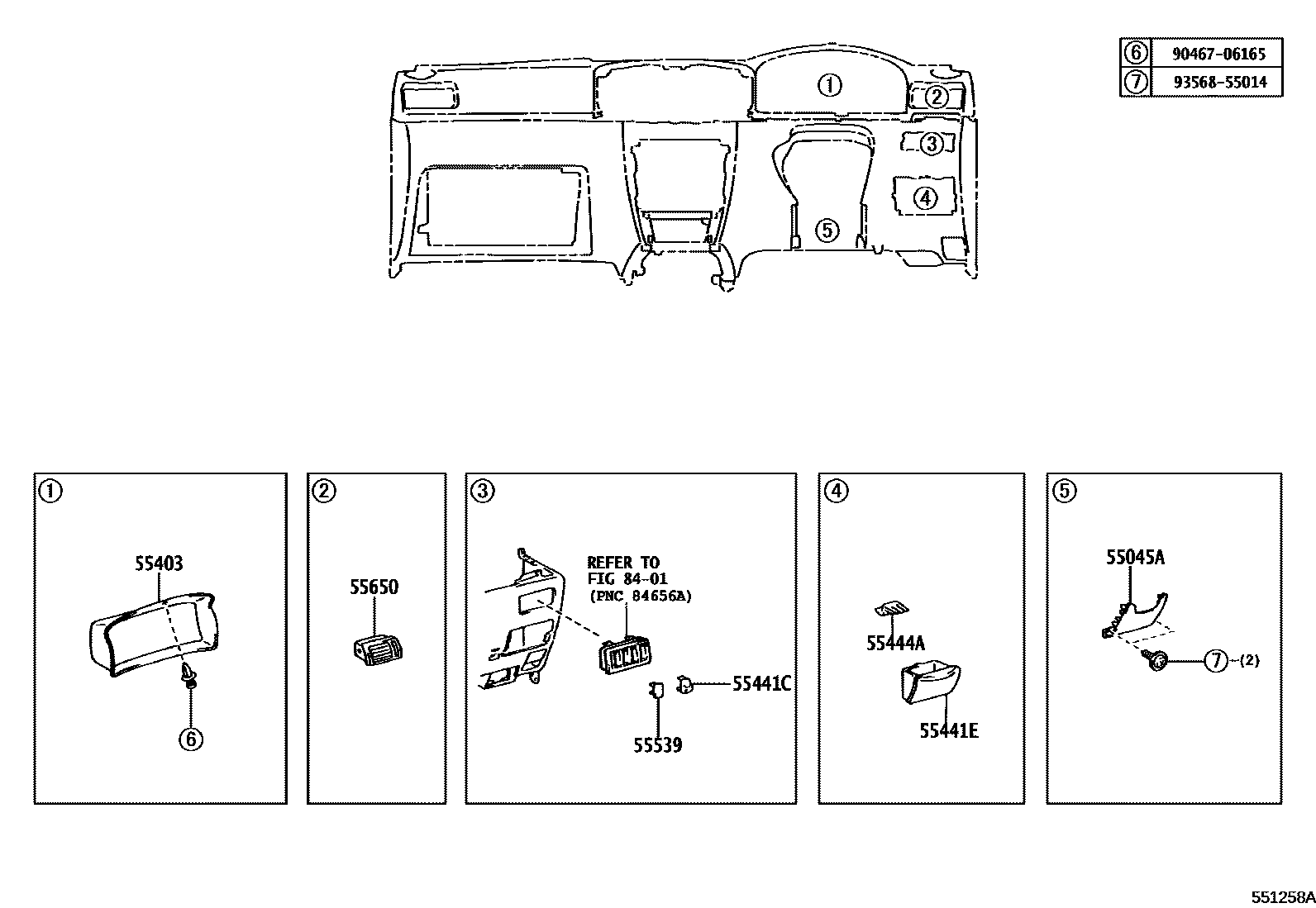

Toyota COROLLA 仪表板和手套箱 — Figure 5501
Toyota COROLLA EPC diagram 5501, 仪表板和手套箱, with 16 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55054 | Glove box cover stopper sub-assembly | 55054-12010 |
| 55306B | Dashboard to cowl bracket sub-assembly | 55306-02060 · 55306-02150 · 55306-12310 · 55306-12320 |
| 55308C | Center instrument panel bracket sub-assembly | 55308-12300 |
| 55330B | Instrument panel reinforcement assembly | 55330-12440 · 55330-12441 · 55330-12460 · 55330-12461 · 55330-12470 · 55330-12471 · 55330-12530 · 55330-12531 |
| 55343B | Center bracket (dashboard to cowl) | 55343-02040 |
| 55355 | Dashboard No. 1 Cushion Pad | 55355-52012 |
| 55368C | Instrument mounting bracket | 55362-12050 · 55368-12090 |
| 55394B | Dashboard bolts | 55394-12010 · 55394-12020 · 55394-12030 |
| 55403 | Instrument cover sub-assembly | 55403-12030 · 55403-12050 |
| 55416C | Instrument cluster decorative panel fixings | 55416-02010 |
| 55419A | Instrument cluster decorative panel cushion | 55419-02120 · 55419-32020 |
| 55423E | Center instrument cluster No. 1 cushion | 55423-02010 · 55423-12070 |
| 55424D | Center instrument cluster No. 2 cushion | 55424-02010 · 55424-12020 |
| 55444A | Dashboard storage box spring | 55444-13040 |
| 55444C | Dashboard storage box spring | 55445-02050 |
| 55474B | Instrument cluster decorative panel trim parts | 55470-02010 · 55470-02020 |
| 55510A | Cushion (for glovebox lid) | 90541-04002 |
| 55533 | automatic clock hole cover | 55533-13010 |
| 55538A | Cooler switch hole cover | 55538-12100 |
| 55606 | Instrument panel No. 1 bottom cover sub-assembly | 55606-02010 · 55606-02020 · 55606-12050 |
| 55607 | Instrument panel No. 2 bottom cover sub-assembly | 55607-02010 · 55607-02020 · 55607-02040 · 55607-02050 |
| 55950A | Defroster nozzle assembly | 55950-02080 · 55950-02090 |
| 69065 | Air bag cut-off switch lock cylinder sub-assembly | 69065-12370 |
| 73960A | Dashboard passenger air bag assembly without cover | 73960-12030 · 73960-12060 · 73960-12070 · 73960-12100 |
| 74598B | Passenger air bag warning label | 74598-12010 · 74598-30040 |
