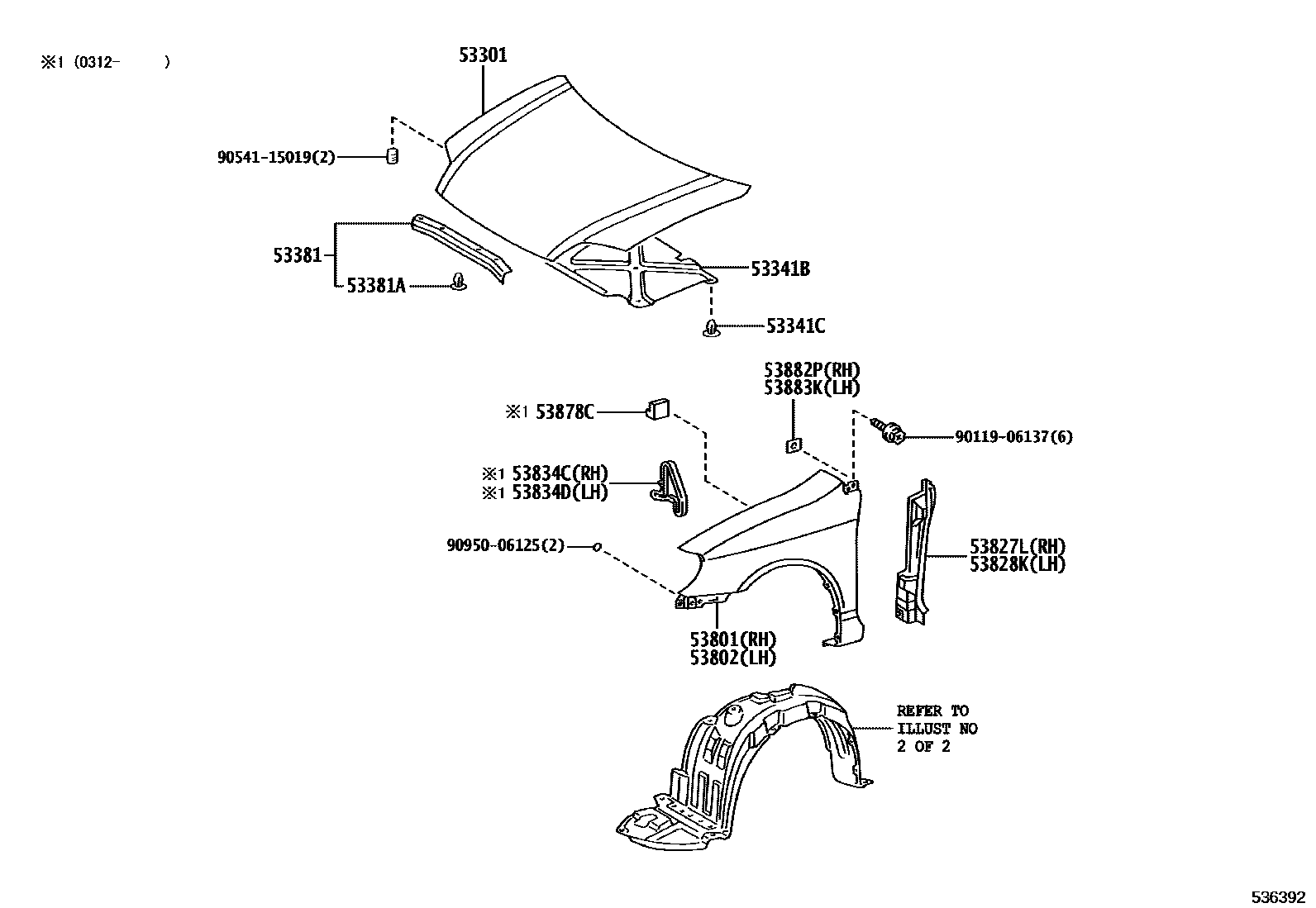

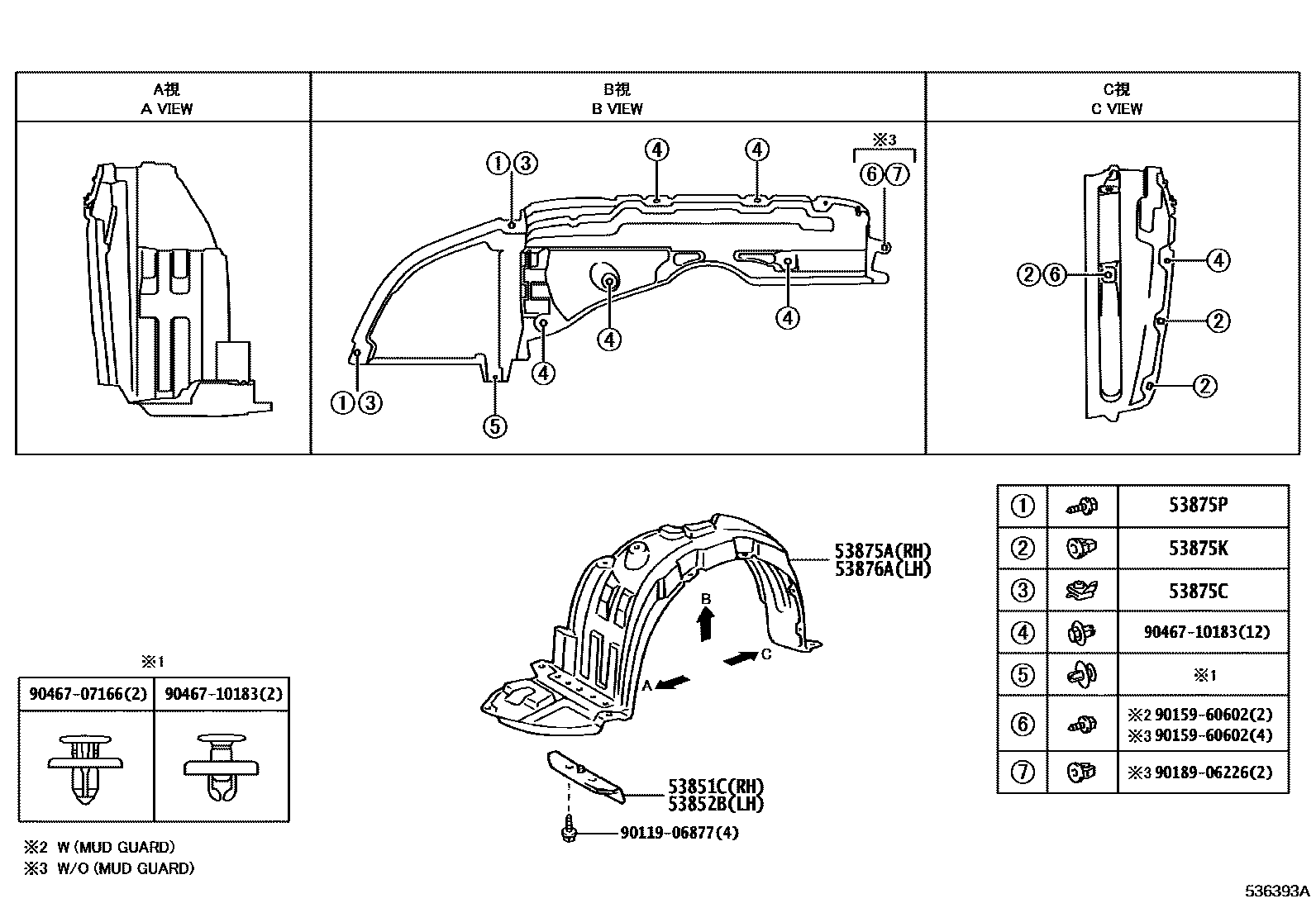

Toyota COROLLA 发动机盖和前翼子板 — Figure 5302
Toyota COROLLA EPC diagram 5302, 发动机盖和前翼子板, with 2 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53301 | Engine cover sub-assembly | 53301-13060 |
| 53341B | engine cover gasket | 53341-13040 · 53341-13041 |
| 53341C | Clip (for engine cover gasket) | 90467-08124 |
| 53381 | Engine cover to radiator bracket seal | 53381-13030 |
| 53381A | Clip (for engine cover to radiator bracket seal) | 90467-08011 |
| 53801 | Right front fender sub-assembly | 53811-13090 |
| 53802 | Left front fender sub-assembly | 53812-13080 |
| 53827L | Right front fender side panel protector | 53827-12050 |
| 53828K | Left front fender side panel protector | 53828-12050 |
| 53834C | Right front fender support plate | 53834-12120 |
| 53834D | Left front fender support plate | 53834-12120 |
| 53851C | No. 1 front fender outer panel pad | 53851-13040 |
| 53852B | Left front fender exterior panel pad | 53852-13010 |
| 53875A | Right front fender lining | 53875-13050 · 53875-13060 |
| 53875C | Front fender lining clip | 90467-05138 |
| 53875K | RONDELLE, VIS | 90189-06013 |
| 53875P | VIS, NO.1 | 90159-60488 |
| 53876A | Left front fender lining | 53876-13050 · 53876-13060 |
| 53878C | front fender spacer | 53878-12010 |
| 53882P | Right front fender seal | 53882-16030 |
| 53883K | Left front fender seal | 53882-16030 |
