Toyota COROLLA 后保险杠及附件 — Figure 5202

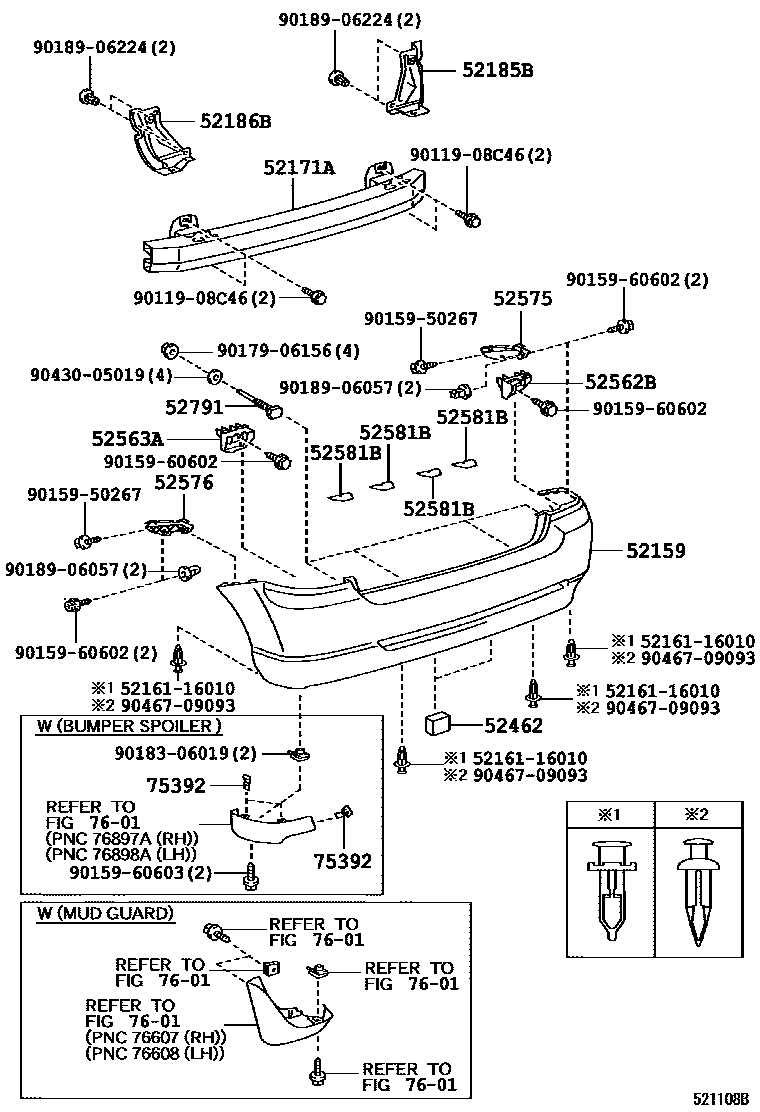

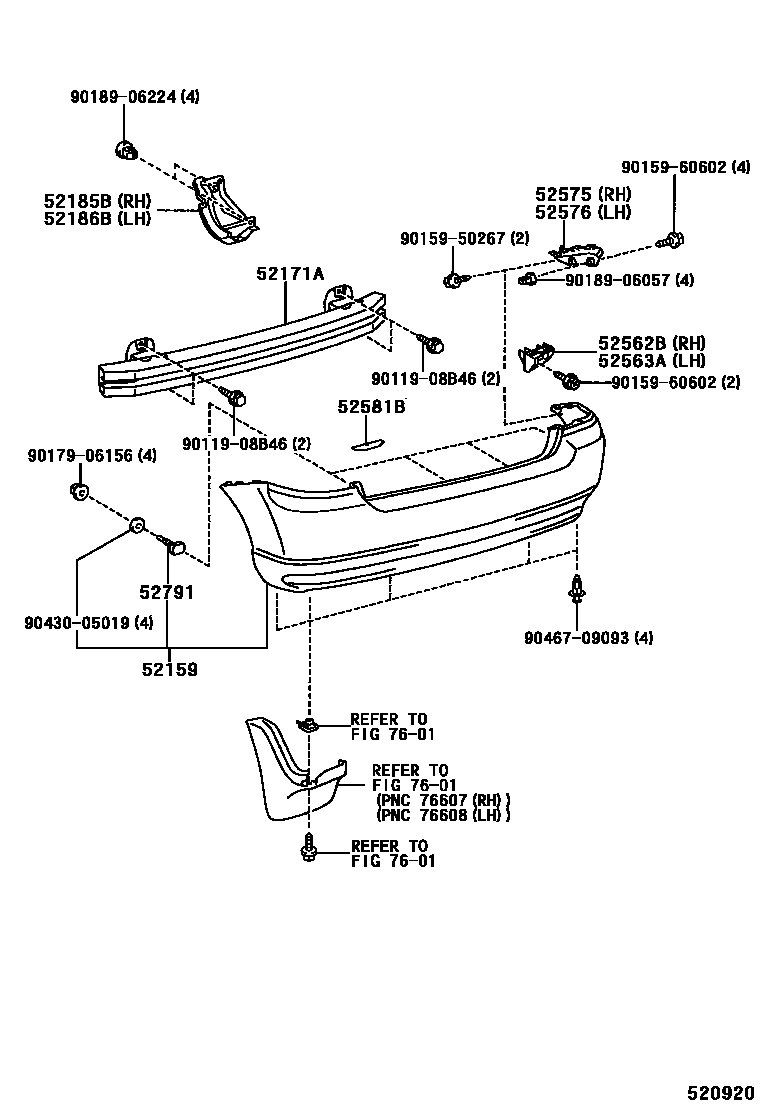

Toyota COROLLA EPC diagram 5202, 后保险杠及附件, with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52159 | rear bumper cover | 52159-13907 · 52159-13908 · 52159-13913 |
| 52171A | Rear bumper reinforcement No. 1 | 52023-02060 · 52023-12210 |
| 52185B | Installation support on the right side of the rear bumper | 52185-13080 |
| 52186B | Rear bumper left side mounting support | 52186-13040 |
| 52462 | Rear bumper right side lining | 52462-13020 |
| 52562B | Rear bumper upper right fixing bracket | 52562-13030 |
| 52563A | Rear bumper upper left fixing bracket | 52563-13020 |
| 52575 | Rear bumper right side fixing bracket | 52575-13030 · 52575-13050 |
| 52576 | Rear bumper left side fixing bracket | 52576-13030 · 52576-13050 |
| 52581B | rear bumper protector | 52581-13030 |
| 52791 | Bumper protection strip No. 1 fixing bolt | 52791-12040 |
| 75392 | External protective strip fixings | 75392-35200 |
