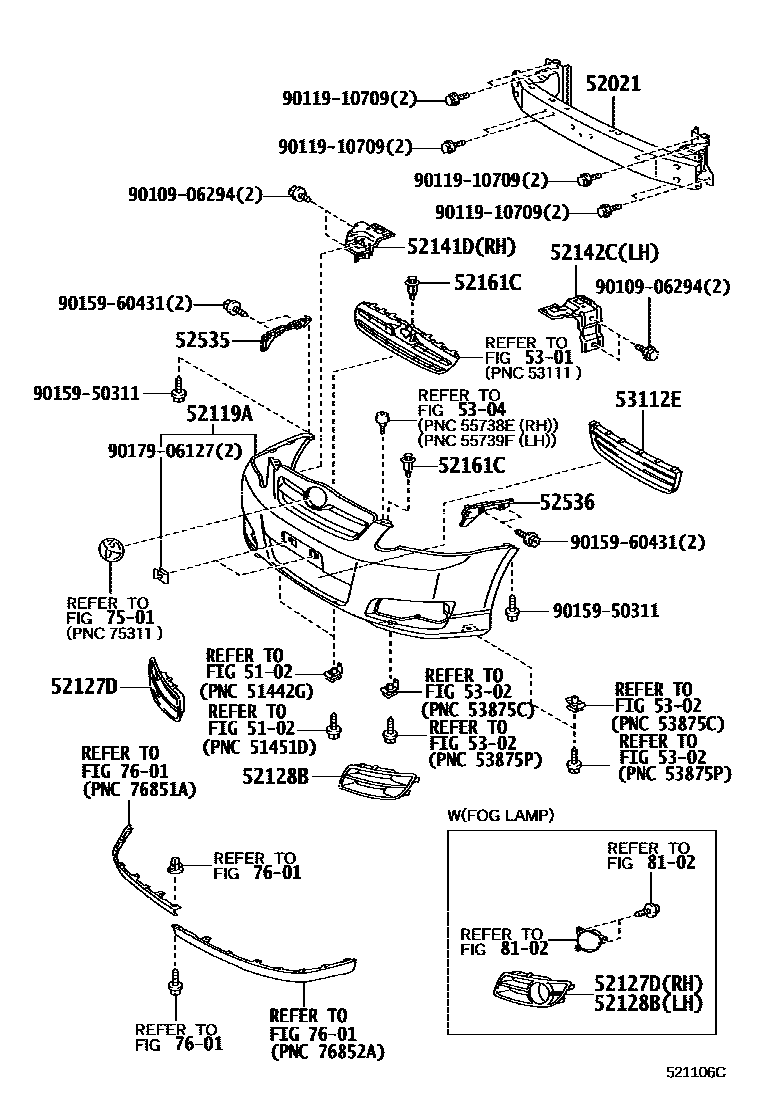

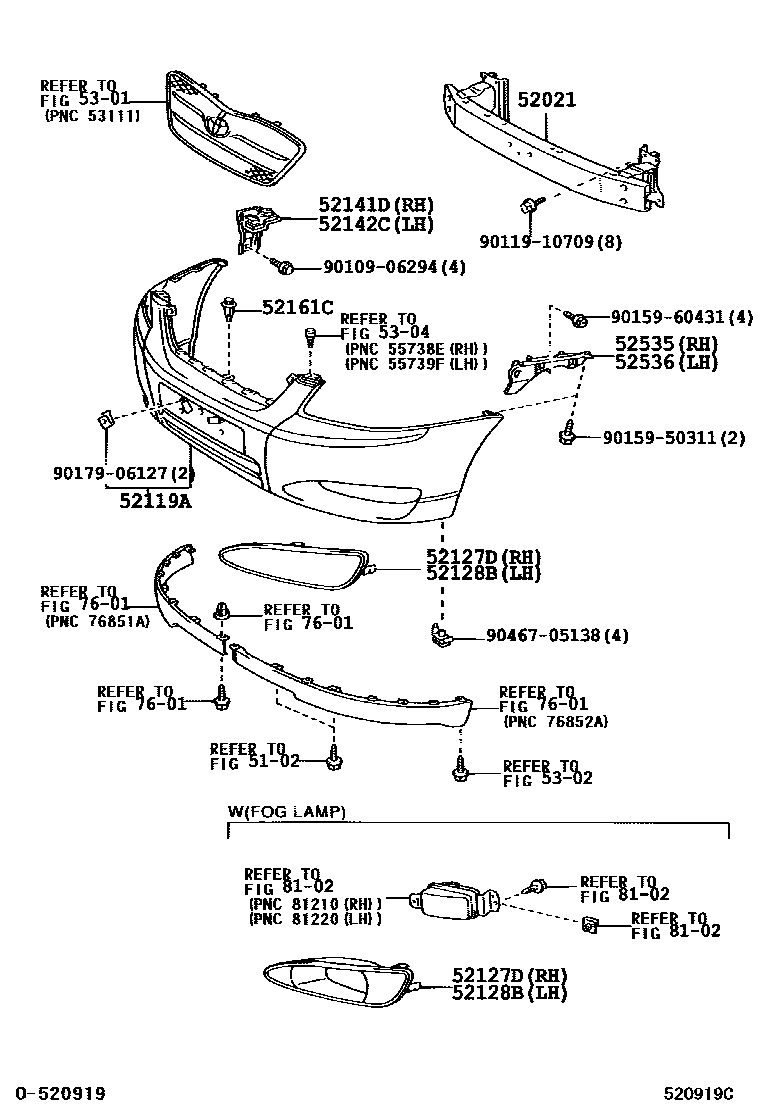

Toyota COROLLA 前保险杠及附件 — Figure 5201
Toyota COROLLA EPC diagram 5201, 前保险杠及附件, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52021 | Front bumper reinforcement sub-assembly | 52021-13030 |
| 52119A | front bumper cover | 52119-13911 · 52119-13912 · 52119-13914 · 52119-13922 |
| 52127D | Front bumper right hole cover | 52127-02120 · 52127-02130 · 52127-13070 · 52127-13080 |
| 52128B | Front bumper left hole cover | 52128-02110 · 52128-02120 · 52128-02130 · 52128-02140 · 52128-13070 · 52128-13080 |
| 52141D | Front bumper right side stay | 52081-13020 · 52081-13030 |
| 52142C | Front bumper left stay | 52082-13020 · 52082-13030 |
| 52161C | front bumper insert | 52161-16010 |
| 52535 | Front bumper right side fixing bracket | 52535-13040 |
| 52536 | Front bumper left fixed bracket | 52536-13020 |
| 53112E | No. 1 radiator lower grille | 53112-13010 |
