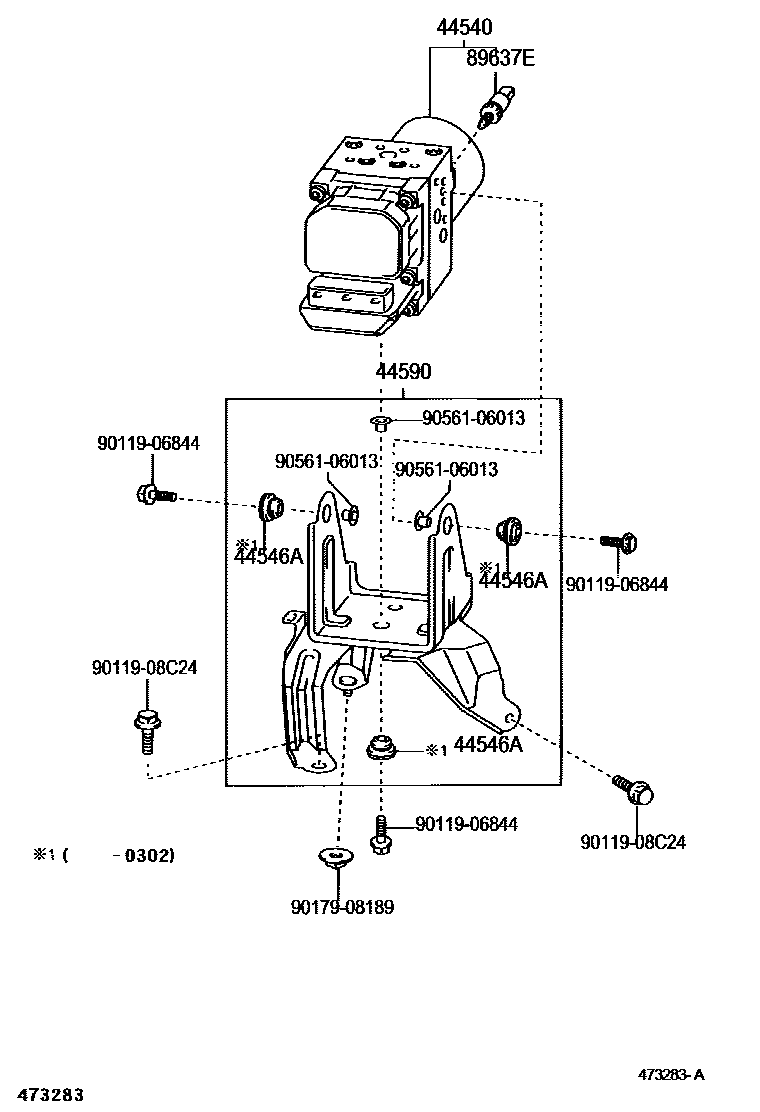

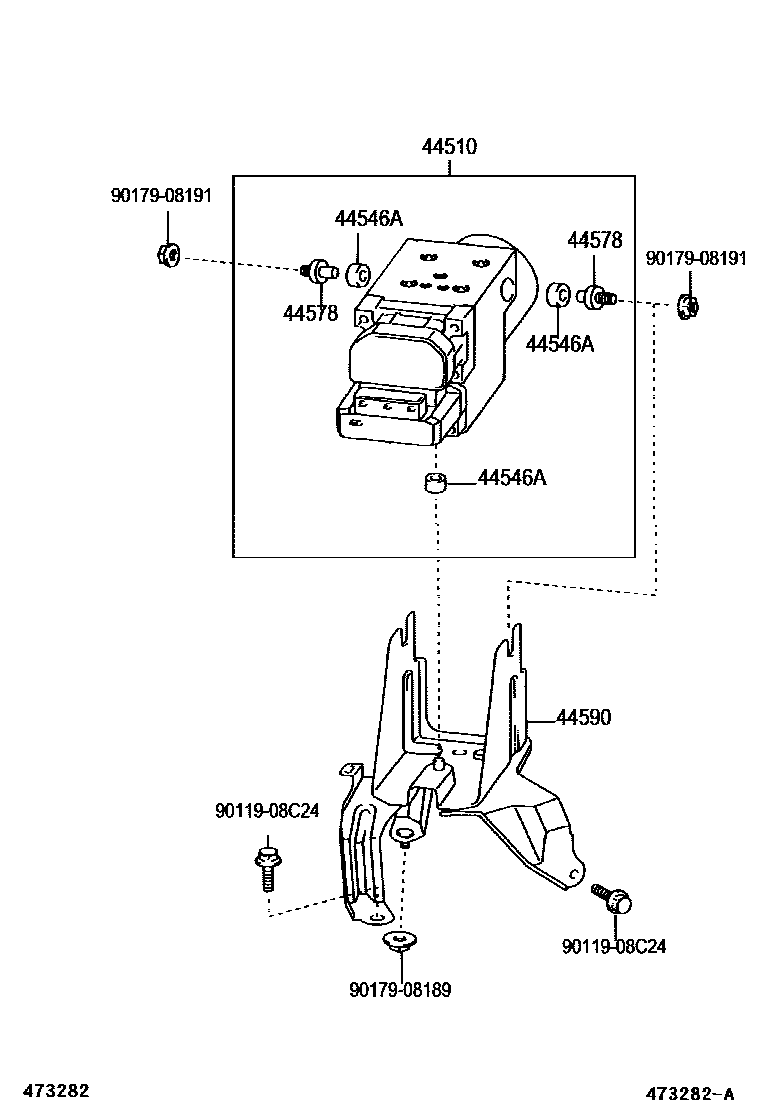

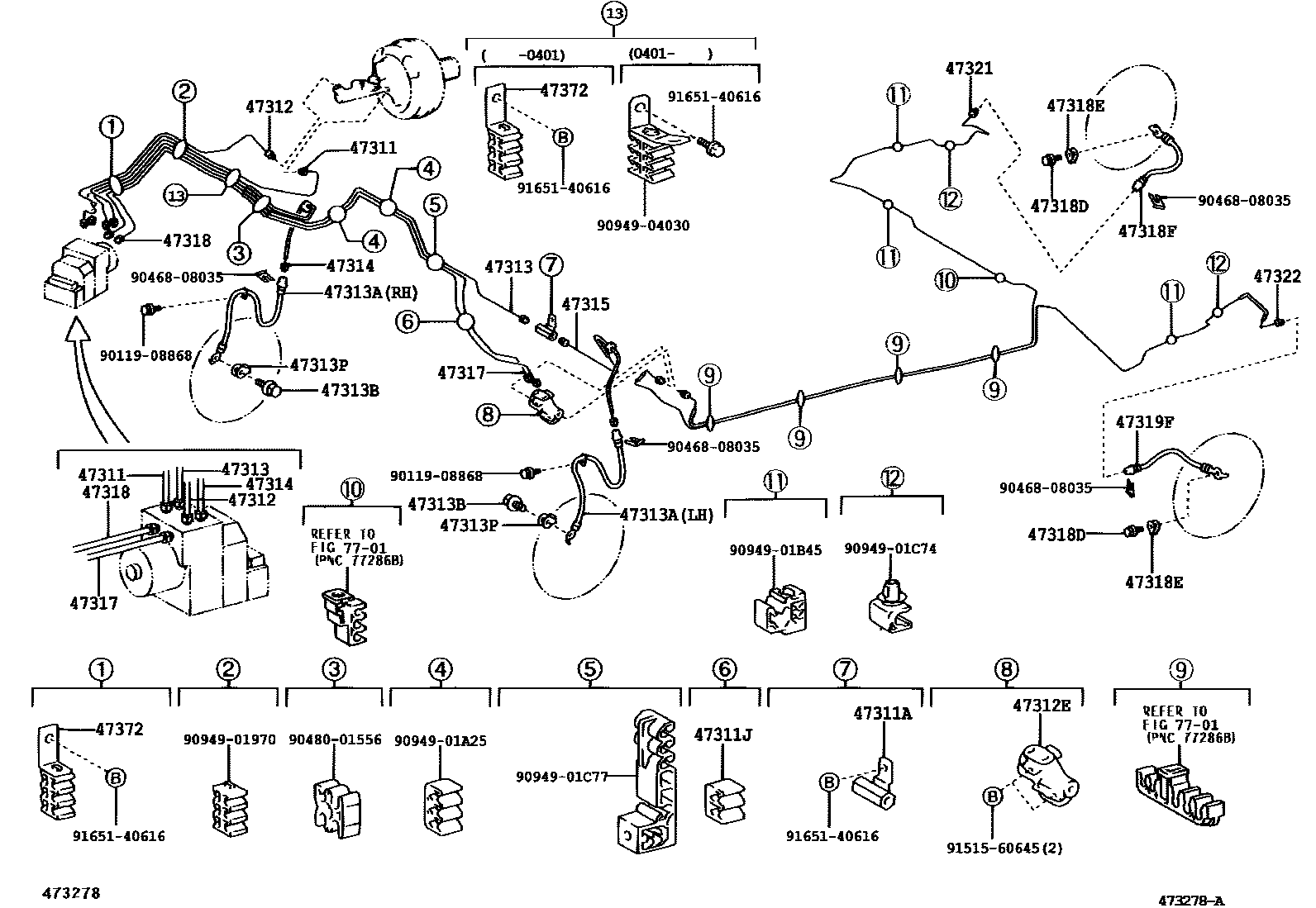

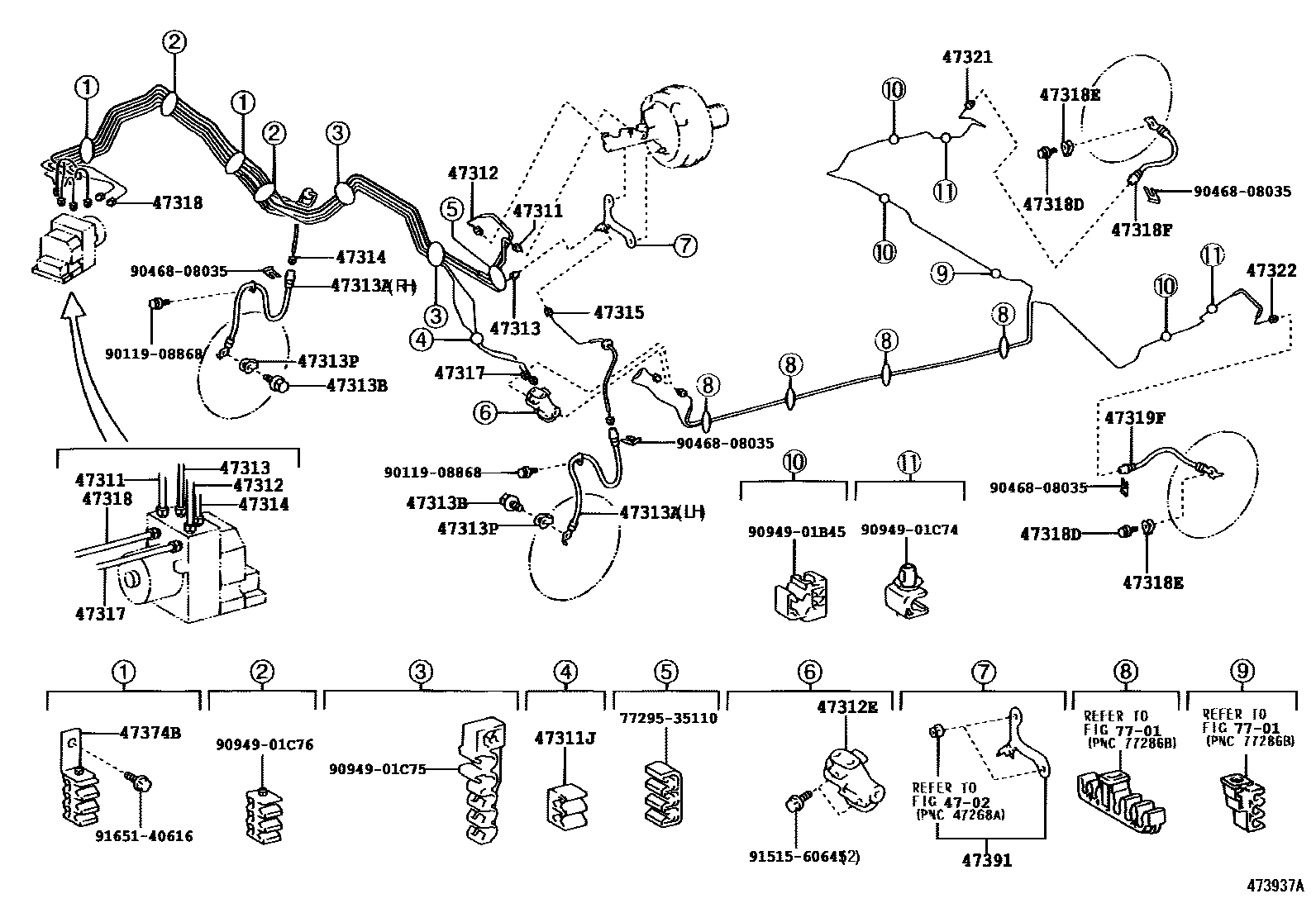

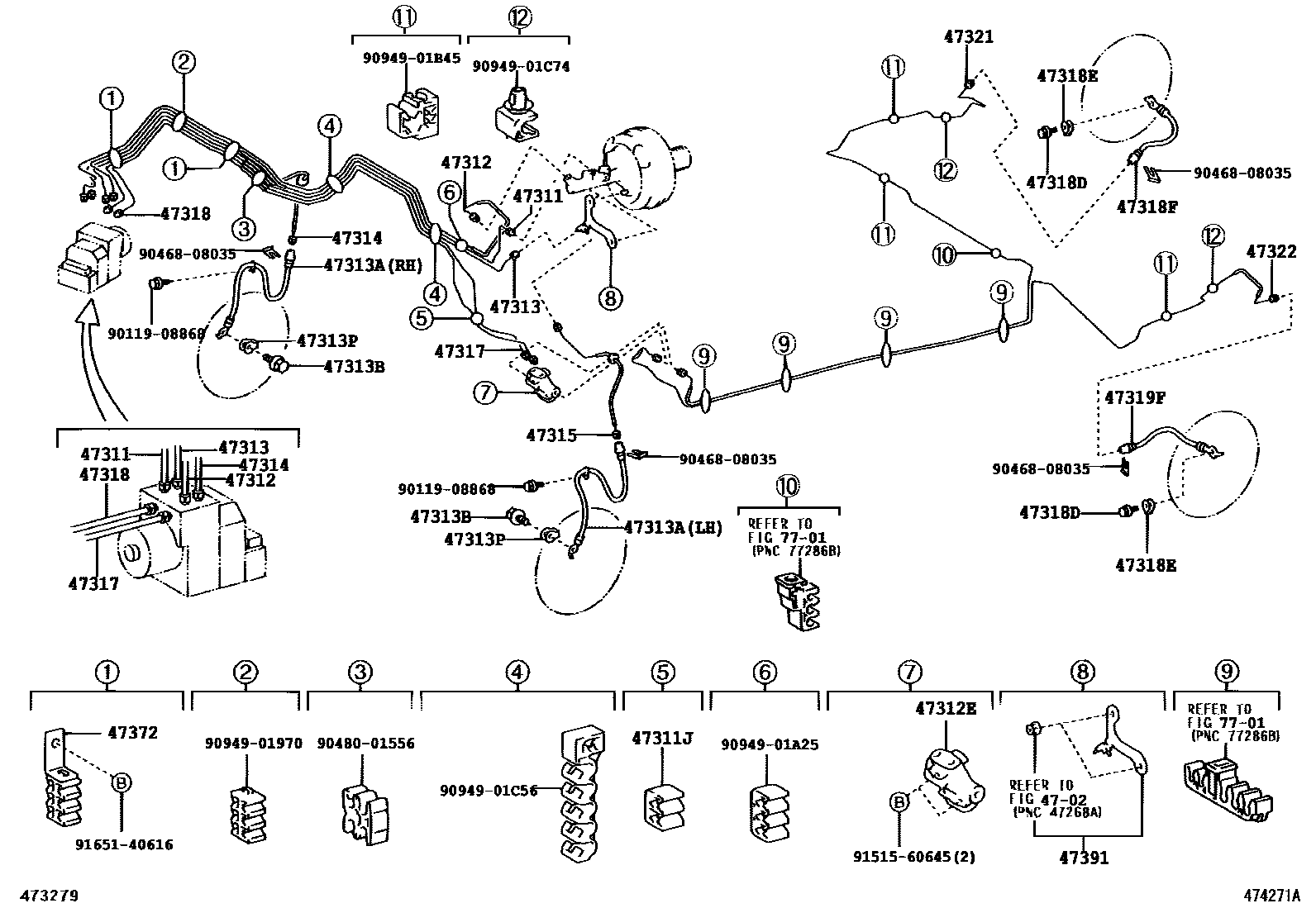

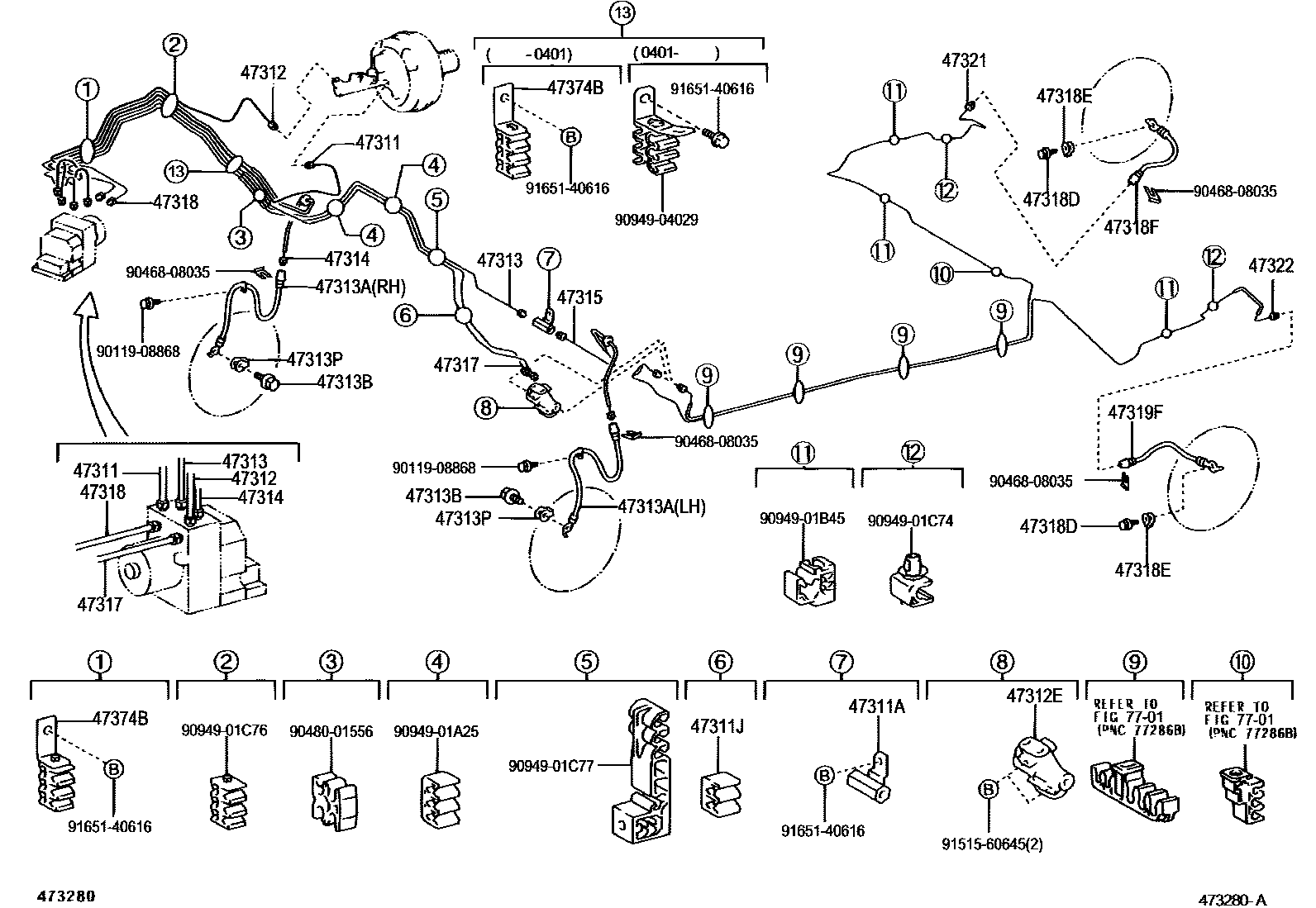

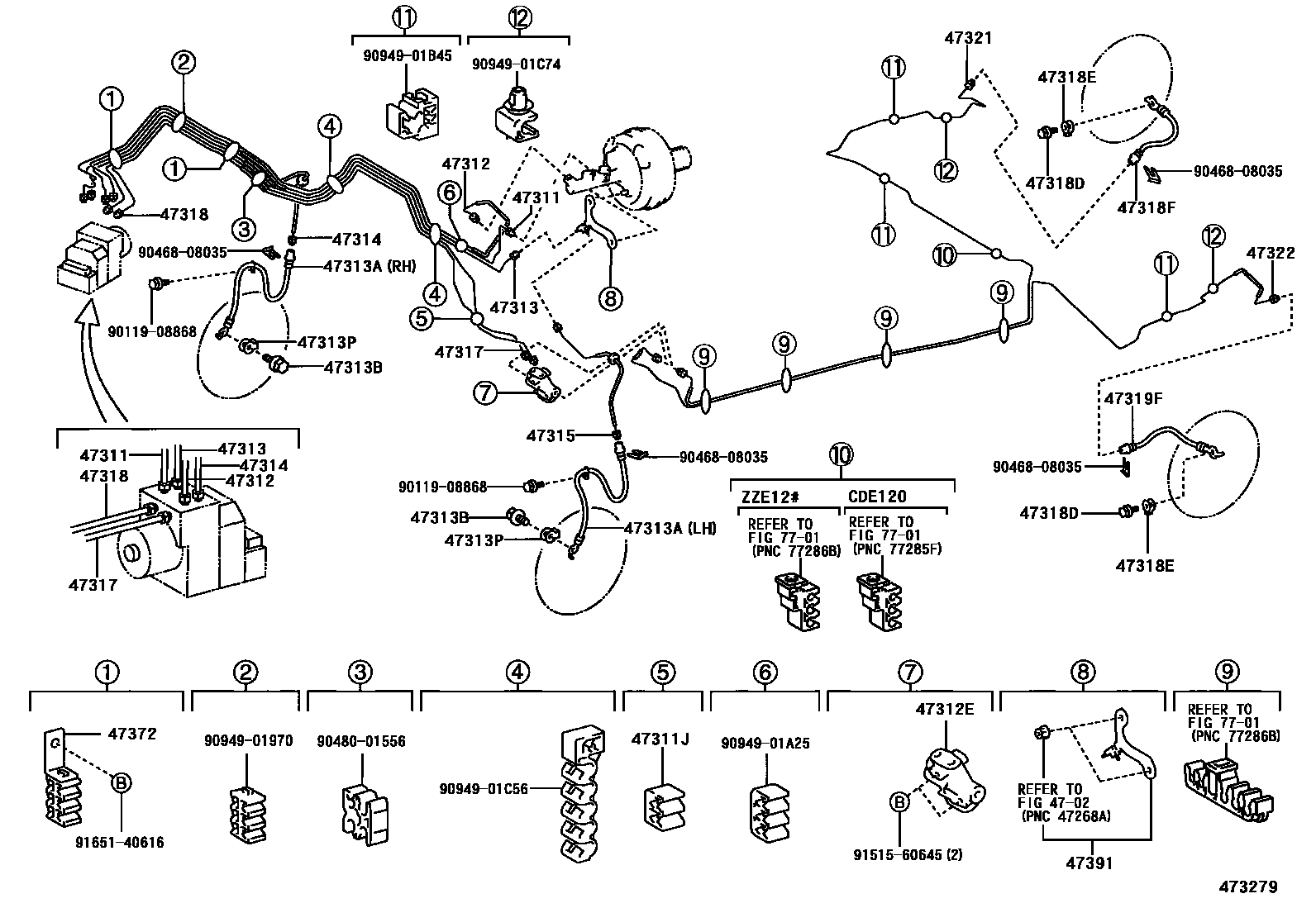

Toyota COROLLA 制动配管和卡箍 — Figure 4708
Toyota COROLLA EPC diagram 4708, 制动配管和卡箍, with 9 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44510 | brake actuator assembly | 44050-02030 |
| 44540 | ABS and traction actuator assembly | 44050-02050 · 44050-02051 · 44050-02100 · 44050-02110 · 44050-02120 |
| 44546A | Brake actuator bolt cushion | 44546-05020 · 44546-12100 |
| 44578 | Brake actuator cushion bolt | 44578-05020 |
| 44590 | Brake actuator bracket assembly | 44590-02020 · 44590-02030 · 44590-05030 |
| 47311 | No. 1 front brake pipe | 47311-13060 · 47311-13070 · 47311-13080 · 47311-13090 · 47311-13110 |
| 47311A | Pipe fitting (for front brake pipe) | 90412-10227 |
| 47311J | Seal No. 1 (for front brake pipe) | 90480-01620 |
| 47312 | No. 2 front brake pipe | 47312-13050 · 47312-13060 · 47312-13070 · 47312-13080 · 47312-13100 · 47312-13110 |
| 47312E | No. 2 pipe joint (for front brake pipe) | 90412-10640 |
| 47313 | No. 3 front brake pipe | 47313-13030 · 47313-13040 · 47313-13050 · 47313-13060 · 47313-13080 |
| 47313A | No. 1 front flexible hose | 90947-02D22 · 90947-02D23 |
| 47313B | Connector bolt (for front flex hose) | 90401-10058 |
| 47313P | Gasket (for front flex hose) | 47389-50020 |
| 47314 | No. 4 front brake pipe | 47314-13050 · 47314-13060 · 47314-13080 |
| 47315 | No. 5 front brake pipe | 47315-13080 · 47315-13090 · 47315-13100 |
| 47317 | No. 7 front brake pipe | 47317-13030 · 47317-13040 · 47317-13050 · 47317-13060 |
| 47318 | No. 8 front brake pipe | 47318-13070 · 47318-13080 · 47318-13090 · 47318-13100 |
| 47318D | Connector bolt (for rear flex hose) | 90401-10045 · 90401-10058 |
| 47318E | Gasket (for rear flex hose) | 47389-50020 |
| 47318F | Right rear flexible hose | 90947-02E88 |
| 47319F | Left rear flexible hose | 90947-02E88 |
| 47321 | No. 1 rear brake pipe | 47321-13170 |
| 47322 | No. 2 rear brake pipe | 47322-13210 |
| 47372 | No. 2 brake pipe clamp | 47374-12050 |
| 47374B | No. 4 brake pipe clamp | 47374-13020 |
| 47391 | Brake pipe joint | 47391-09010 · 47391-09020 |
| 89637E | oil pressure sensor | 89637-07010 |
