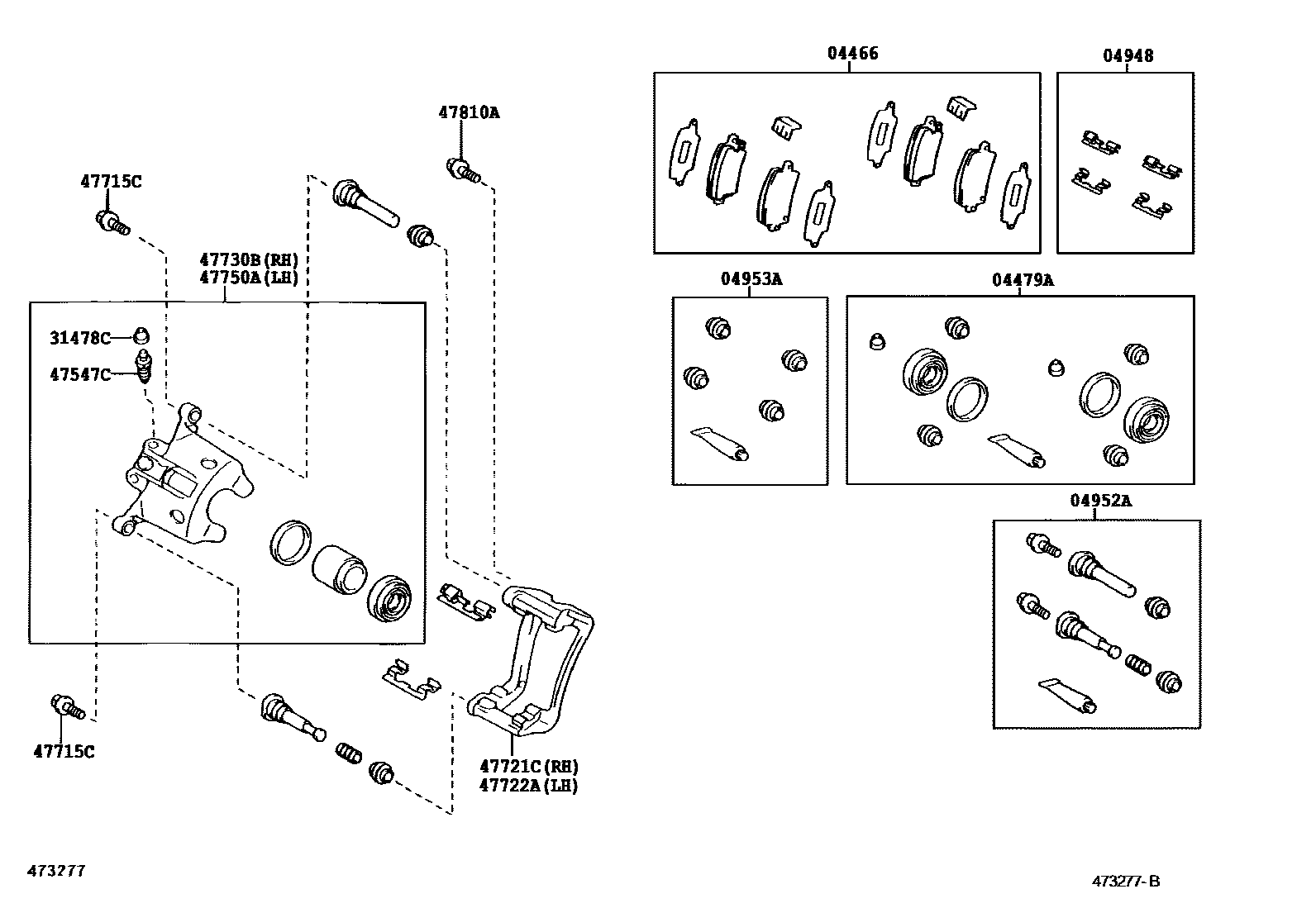

Toyota COROLLA 后盘式制动器卡钳和防尘罩 — Figure 4707
Toyota COROLLA EPC diagram 4707, 后盘式制动器卡钳和防尘罩, with 1 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04466 | Rear disc brake pad assembly | 04466-02070 |
| 04479A | Rear disc brake cylinder assembly | 04479-02090 |
| 04948 | Rear disc brake mounting assembly | 04948-02030 |
| 04952A | Rear disc brake cylinder sliding pin assembly | 04952-02040 · 04956-09020 |
| 04953A | Rear disc brake cylinder sliding pin dust boot assembly | 04953-02020 |
| 31478C | Bleed plug cap (for rear disc brake) | 47548-02010 |
| 47547C | Bleed plug (for rear disc brake) | 47547-05011 · 47547-05012 · 90080-93014 |
| 47715C | Brake cylinder slide pin (for rear disc brake) | 47715-02090 · 47715-02091 |
| 47721C | Right rear disc brake cylinder retainer | 47721-02110 · 47721-02111 |
| 47722A | Left rear disc brake cylinder retainer | 47722-02110 · 47722-02111 |
| 47730B | Right rear disc brake cylinder assembly | 47730-02110 · 47730-02111 |
| 47750A | Left rear disc brake cylinder assembly | 47750-02110 · 47750-02111 |
| 47810A | Hexagonal bolt (for rear brake caliper) | 90105-10263 |
