Toyota COROLLA 制动总泵 — Figure 4702

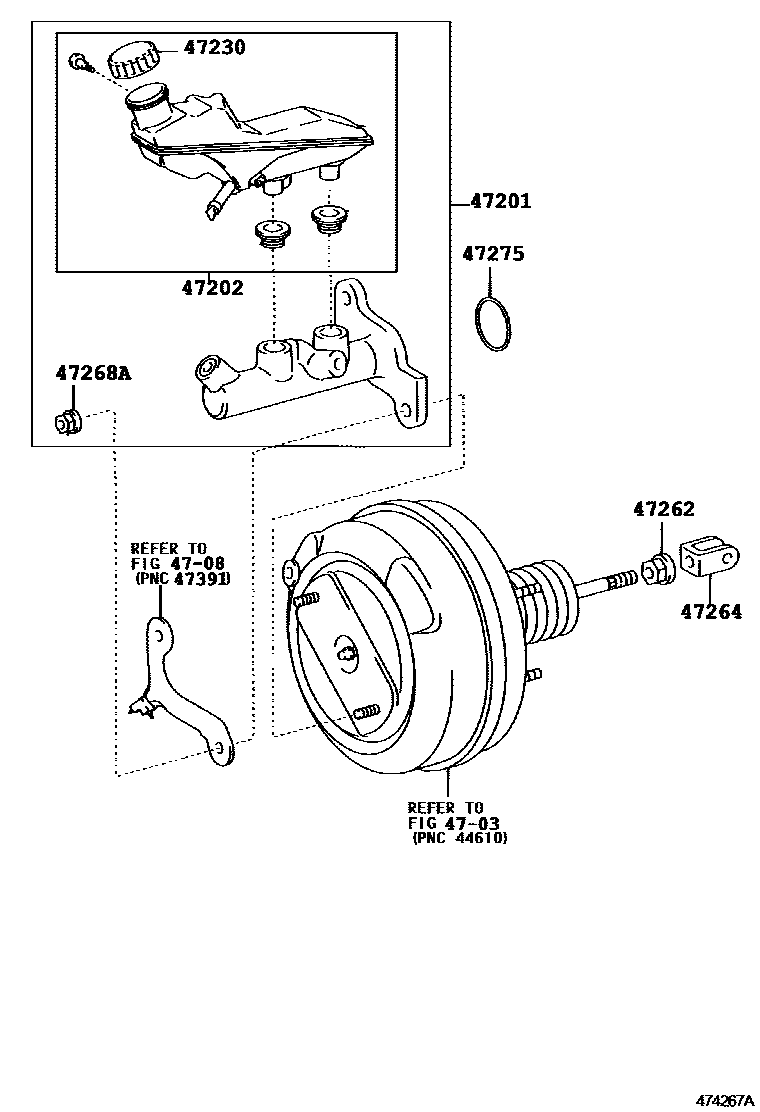

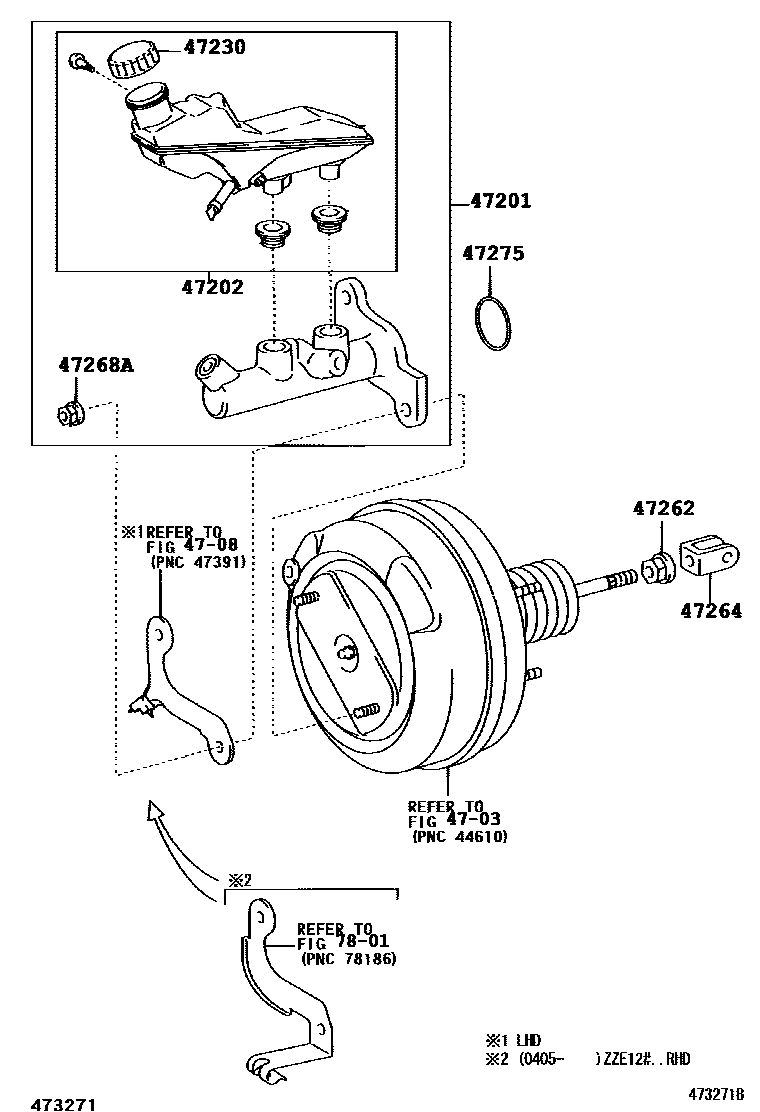

Toyota COROLLA EPC diagram 4702, 制动总泵, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47201 | Brake master cylinder sub-assembly | 47201-09040 · 47201-09050 · 47201-09060 · 47201-09070 · 47201-09250 · 47201-09260 · 47201-09270 |
| 47202 | Brake master cylinder reservoir sub-assembly | 47220-09010 · 47220-09020 |
| 47230 | Brake master cylinder fluid reservoir filler cap assembly | 47230-02100 |
| 47262 | master cylinder push rod nut | 47262-02010 · 47262-02011 |
| 47264 | Master cylinder push rod U-shaped clamp | 47264-02020 · 47264-02050 |
| 47268A | brake master cylinder nut | 47268-02010 · 47268-0K030 |
| 47275 | brake master cylinder gasket | 47275-02010 |
