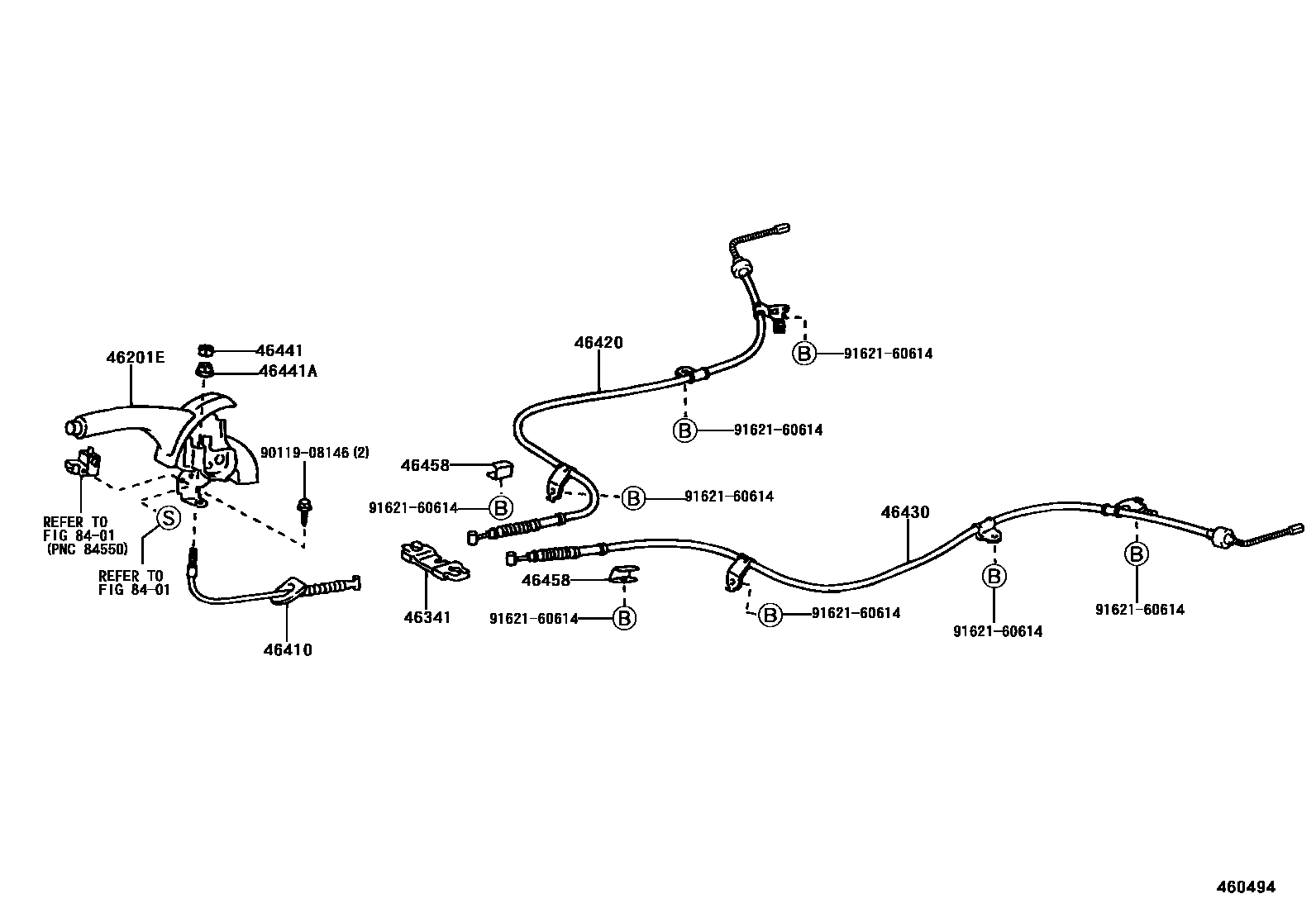

Toyota COROLLA Parking Brake & Cable — Figure 4601
Toyota COROLLA EPC diagram 4601, Parking Brake & Cable, with 2 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04495A | Parking brake shoe assembly | 04495-02120 |
| 04941A | Parking brake shoe limit spring assembly | 04941-02020 |
| 04942A | Parking brake spring assembly | 04942-02020 · 04942-02050 |
| 04943B | Parking brake adjuster assembly | 04943-02020 |
| 46341 | Parking brake balancer | 46341-20070 |
| 46410 | Parking brake cable assembly No. 1 | 46410-12270 |
| 46420 | Parking brake No. 2 cable assembly | 46420-12541 |
| 46430 | Parking brake No. 3 cable assembly | 46430-12441 |
| 46441 | No. 1 cable adjustment nut | 90179-06299 |
| 46441A | No. 2 cable adjustment nut | 46441-12010 |
| 46458 | Cable fixings | 46458-28010 |
| 46503 | Right parking brake pad sub-assembly | 46503-02020 · 46503-02030 |
| 46504 | Left parking brake pad sub-assembly | 46504-02020 · 46504-02030 |
| 47613E | Right parking brake shoe push rod | 47613-02050 |
| 47614 | Left parking brake shoe push rod | 47613-02050 |
