Toyota COROLLA 前转向齿轮和连杆 — Figure 4505

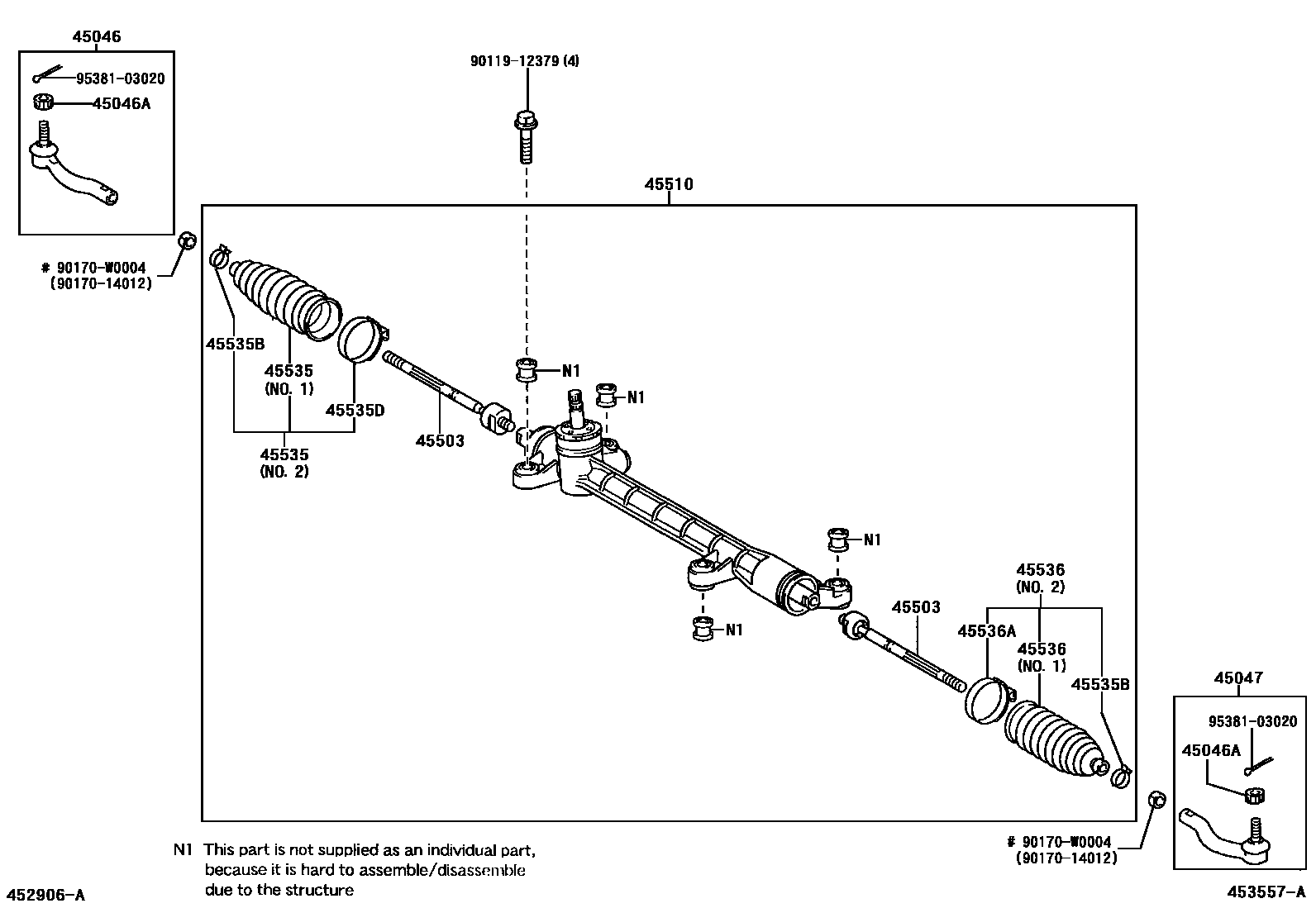

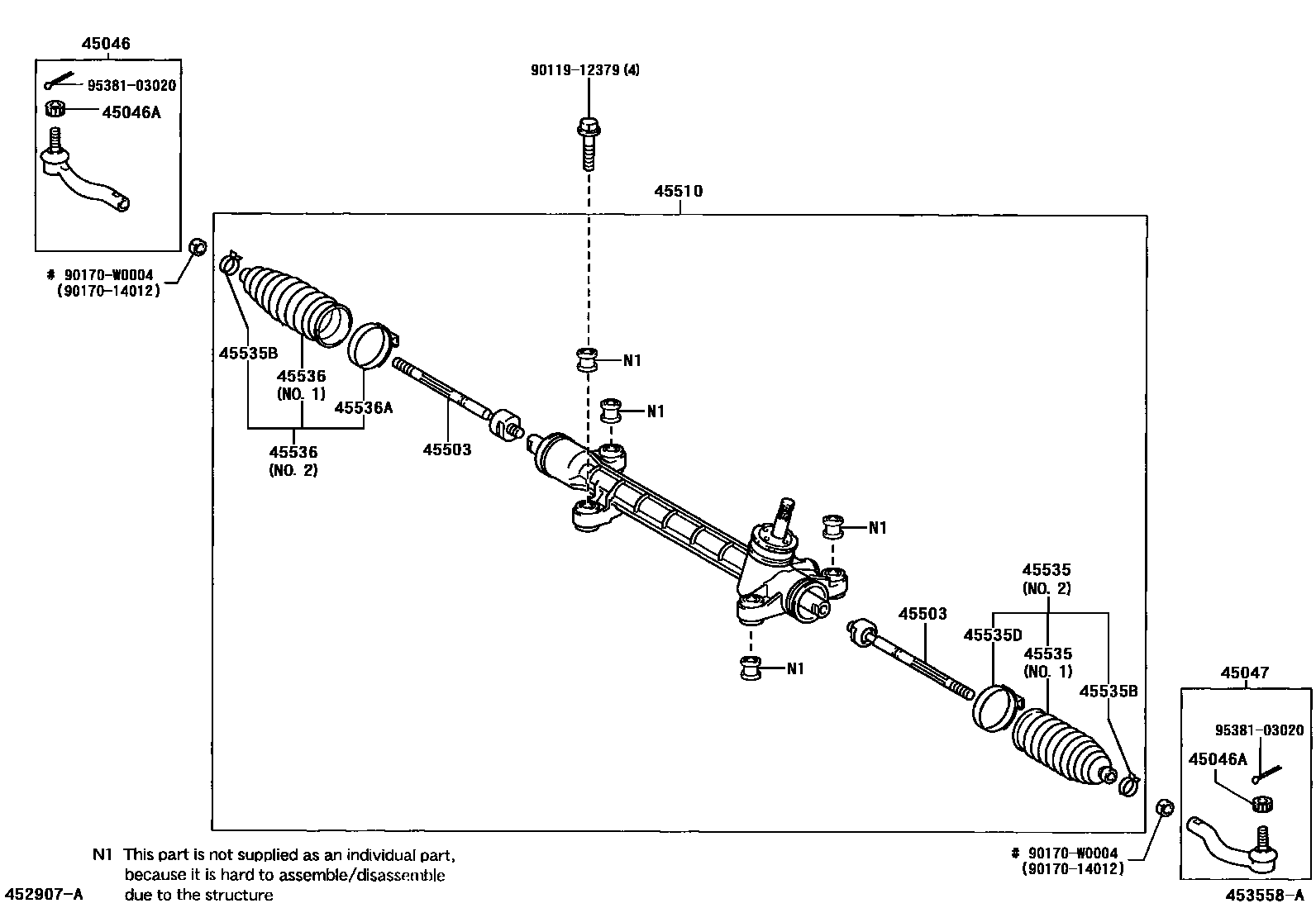

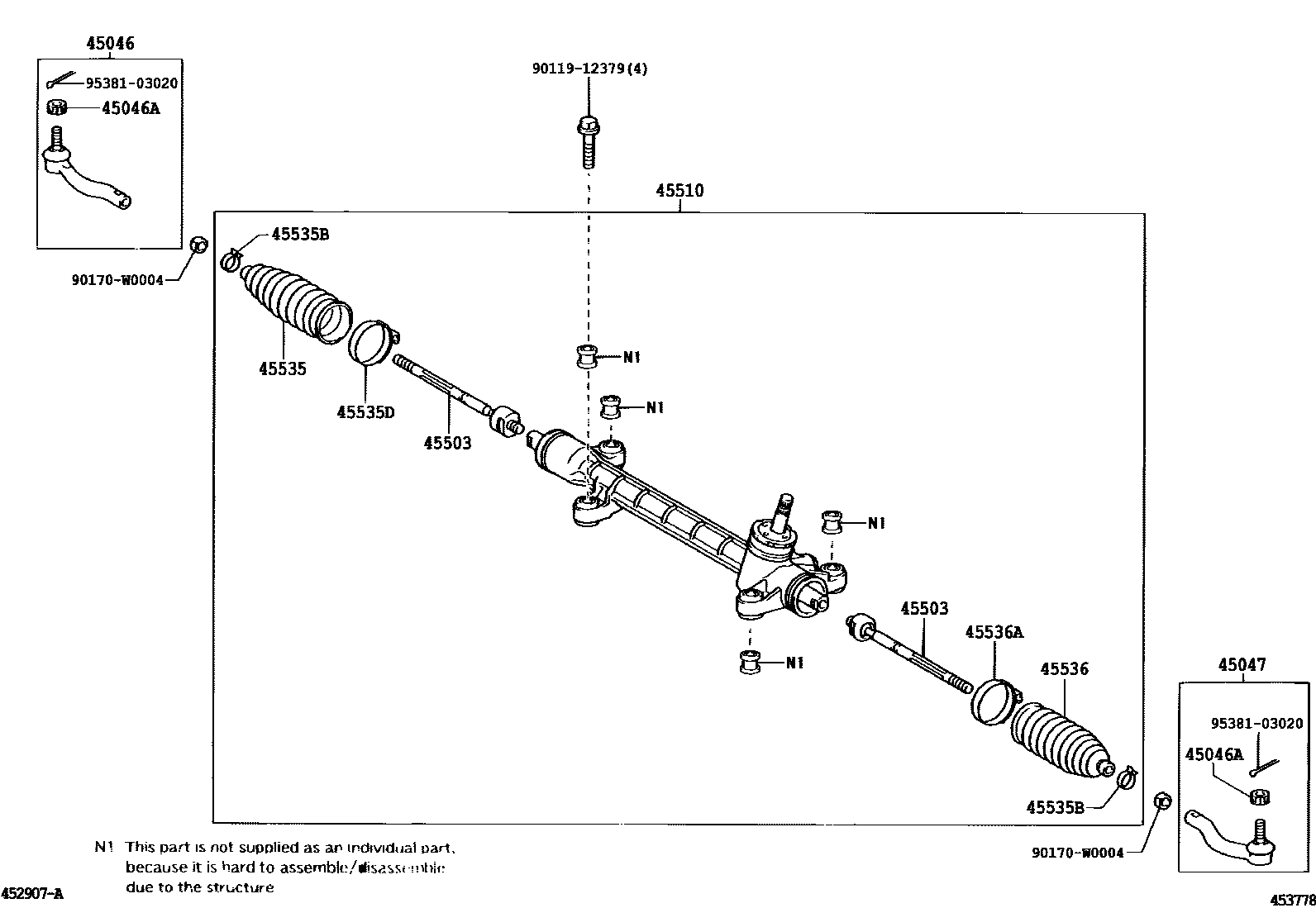

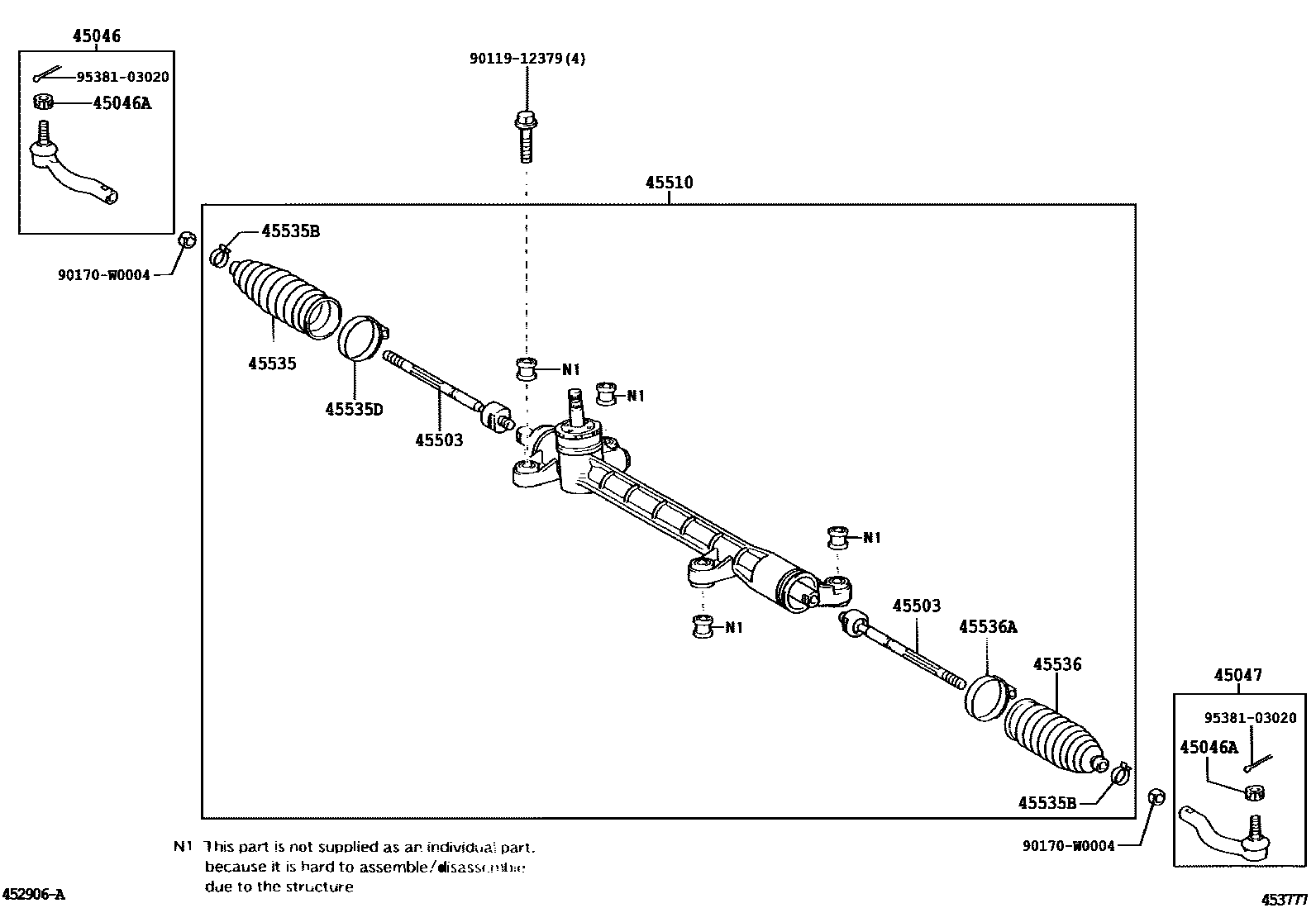

Toyota COROLLA EPC diagram 4505, 前转向齿轮和连杆, with 4 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45046 | Right tie rod end sub-assembly | 45046-09360 · 45046-19265 |
| 45046A | Castle nuts (for tie rod ends) | 90171-12028 |
| 45047 | Left tie rod end sub-assembly | 45047-09150 · 45047-19115 |
| 45503 | Steering rack end sub-assembly | 45503-02080 · 45503-12130 |
| 45510 | Steering gear assembly | 45510-02060 · 45510-02070 |
| 45535 | No. 1 steering rack dust cover | 45535-02050 · 45535-09040 |
| 45535B | Clamp (for steering rack dust boot) | 90466-22003 |
| 45535D | Clamp (for No. 1 steering rack dust boot) | 90460-57006 |
| 45536 | No. 2 steering rack dust cover | 45535-02050 · 45535-09040 |
| 45536A | Clamp (for No. 2 steering rack dust boot) | 90460-57006 |
