Toyota COROLLA Steering Wheel — Figure 4504

Toyota COROLLA EPC diagram 4504, Steering Wheel, with 3 images and 2 PNC and OE references.

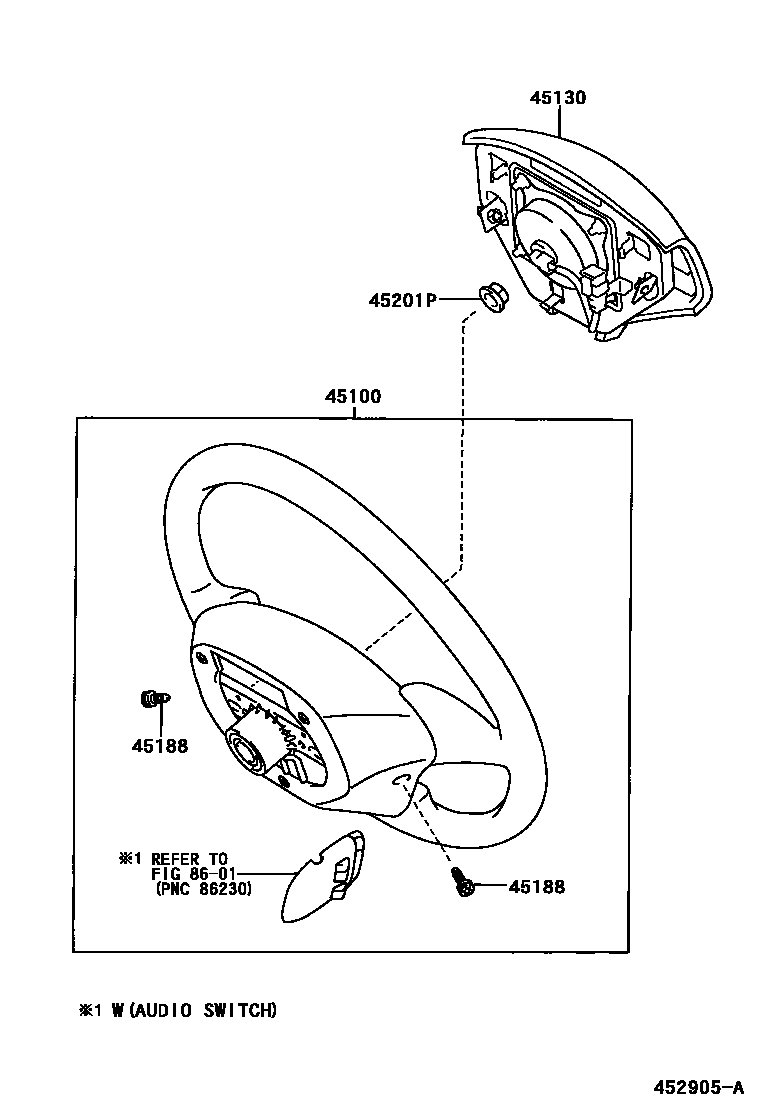

Toyota COROLLA Steering Wheel EPC diagram — 452905A — Steering Wheel — 452905A (200209 – 200405)

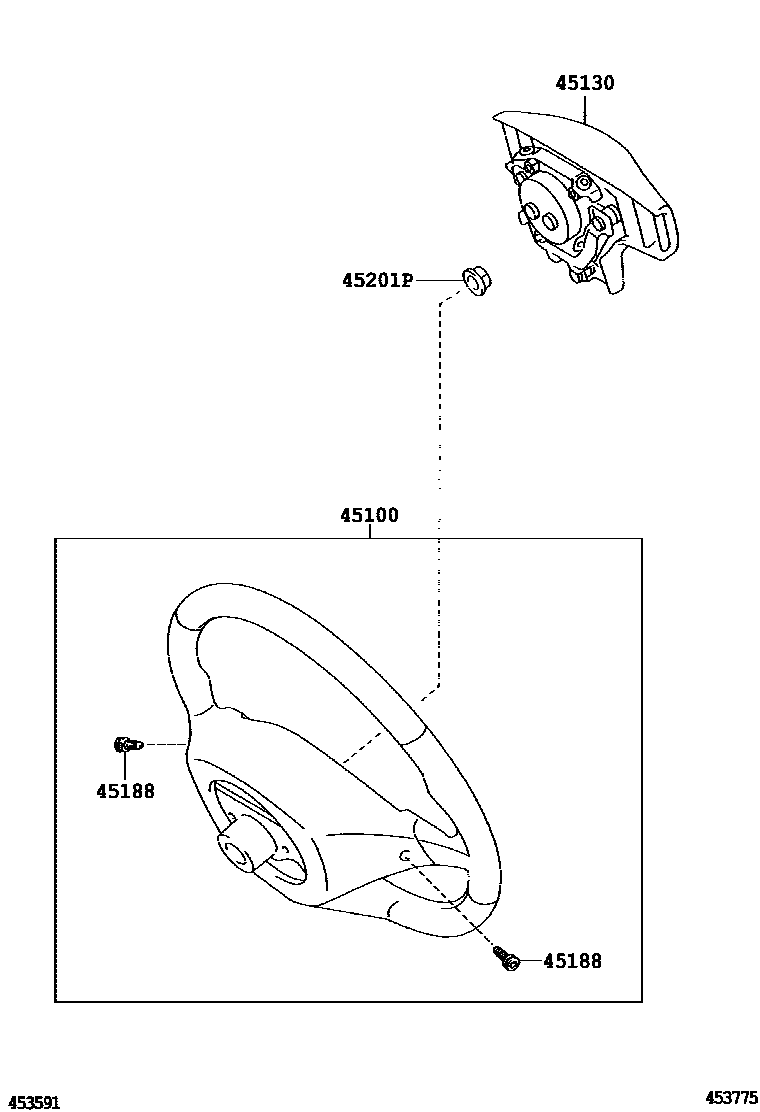

Toyota COROLLA Steering Wheel EPC diagram — 453775 — Steering Wheel — 453775 (200405 – 999999)

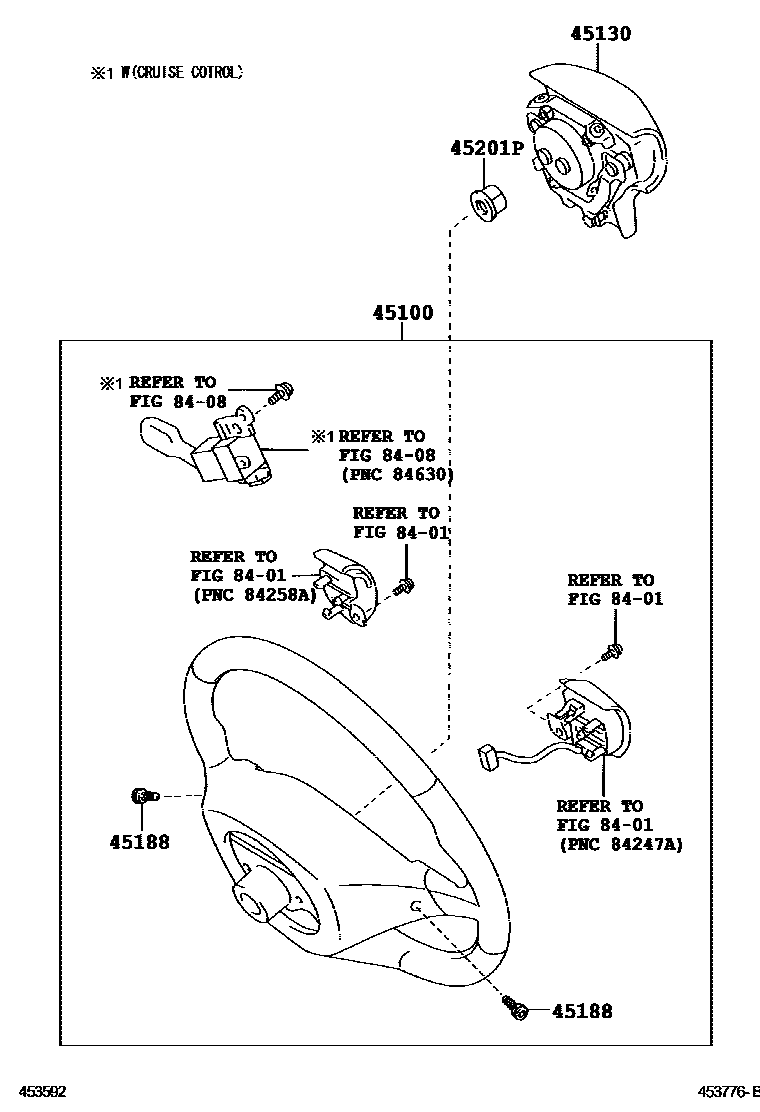

Toyota COROLLA Steering Wheel EPC diagram — 453776B — Steering Wheel — 453776B (200405 – 999999)

PNC and OE references

PNC	Part name	OE numbers
45188	Steering wheel trim cover fixing screws	45188-60010 · 90080-14018
45201P	Steering wheel fixing nut	90179-12071
