Toyota COROLLA Front Drive Shaft — Figure 4302

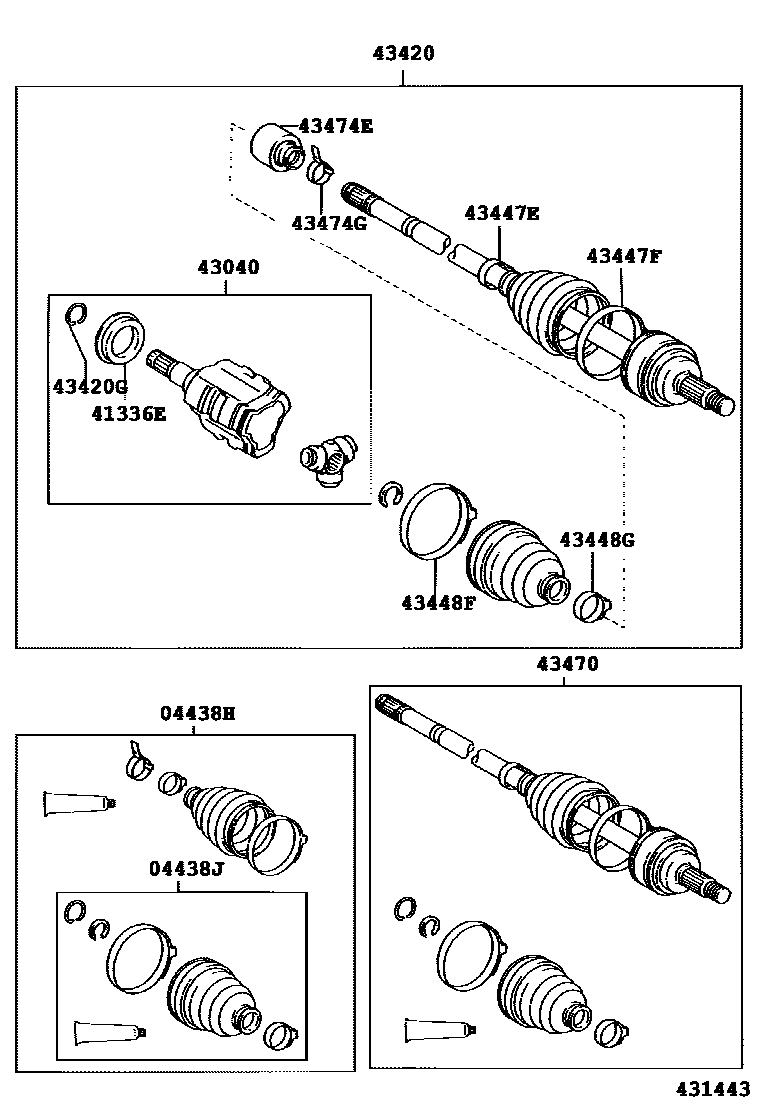

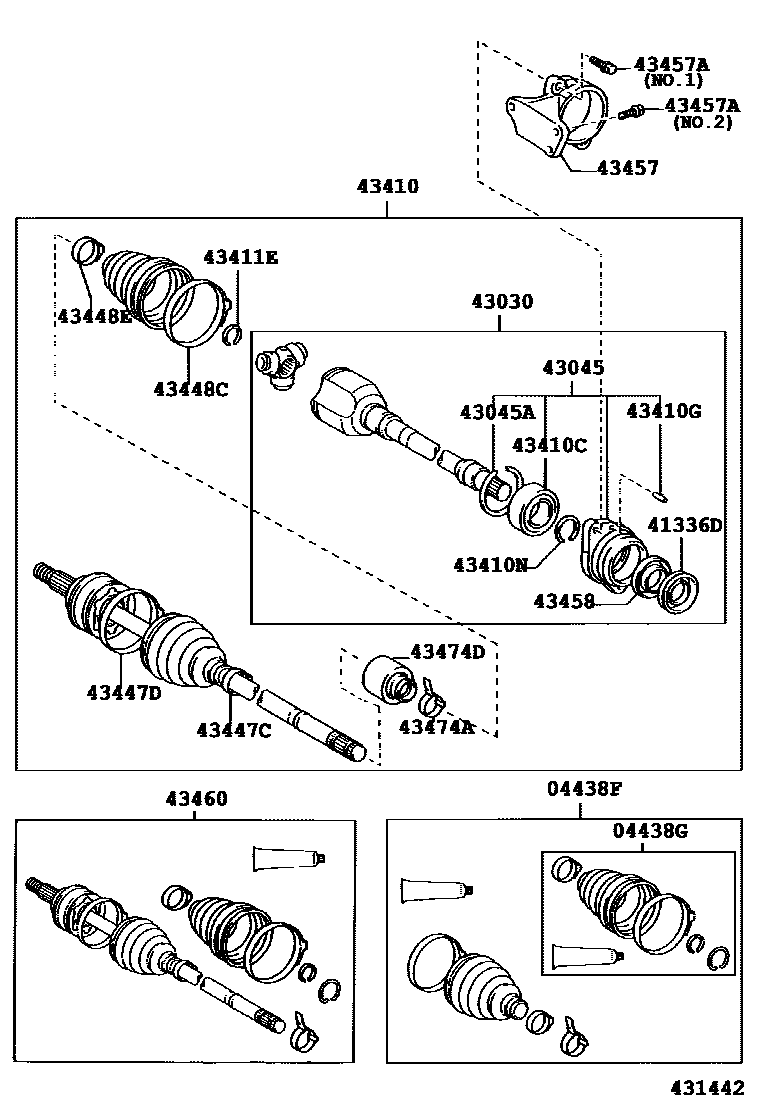

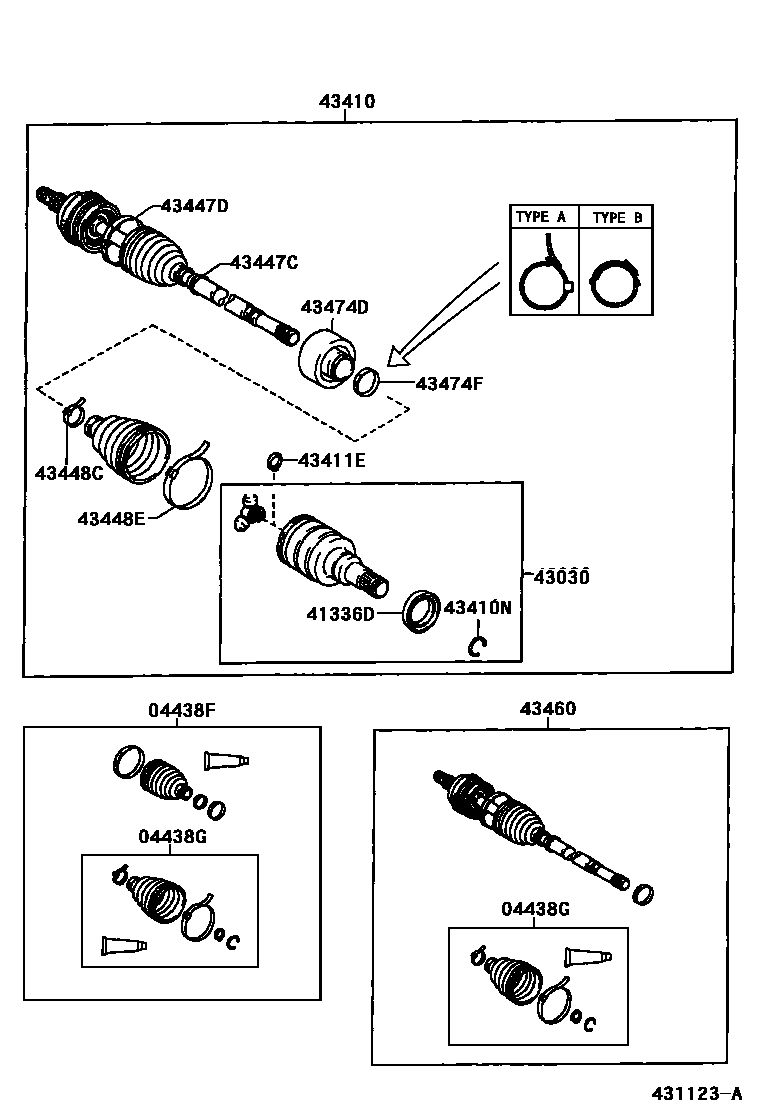

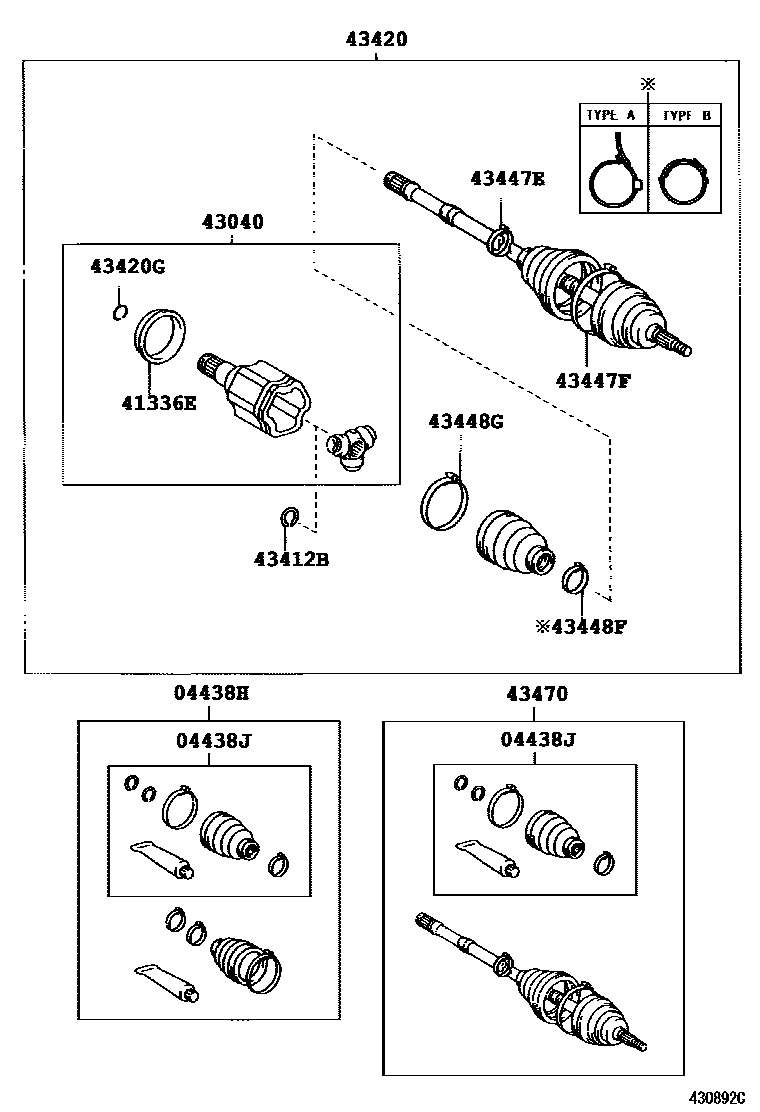

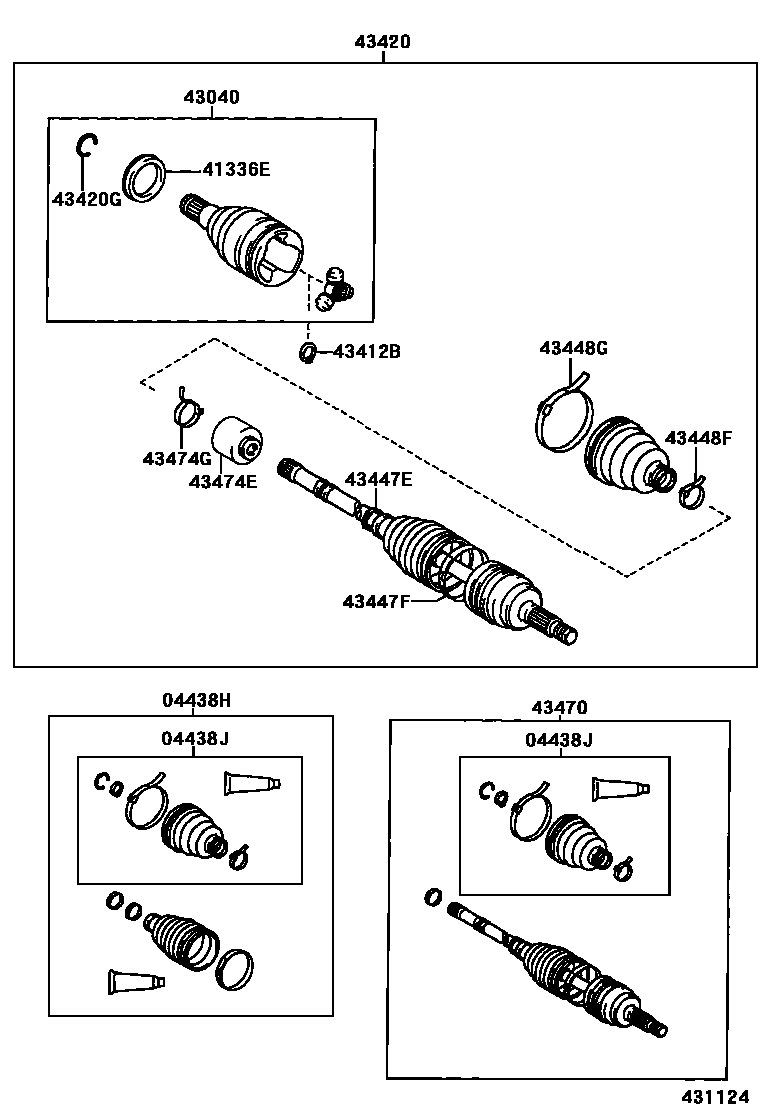

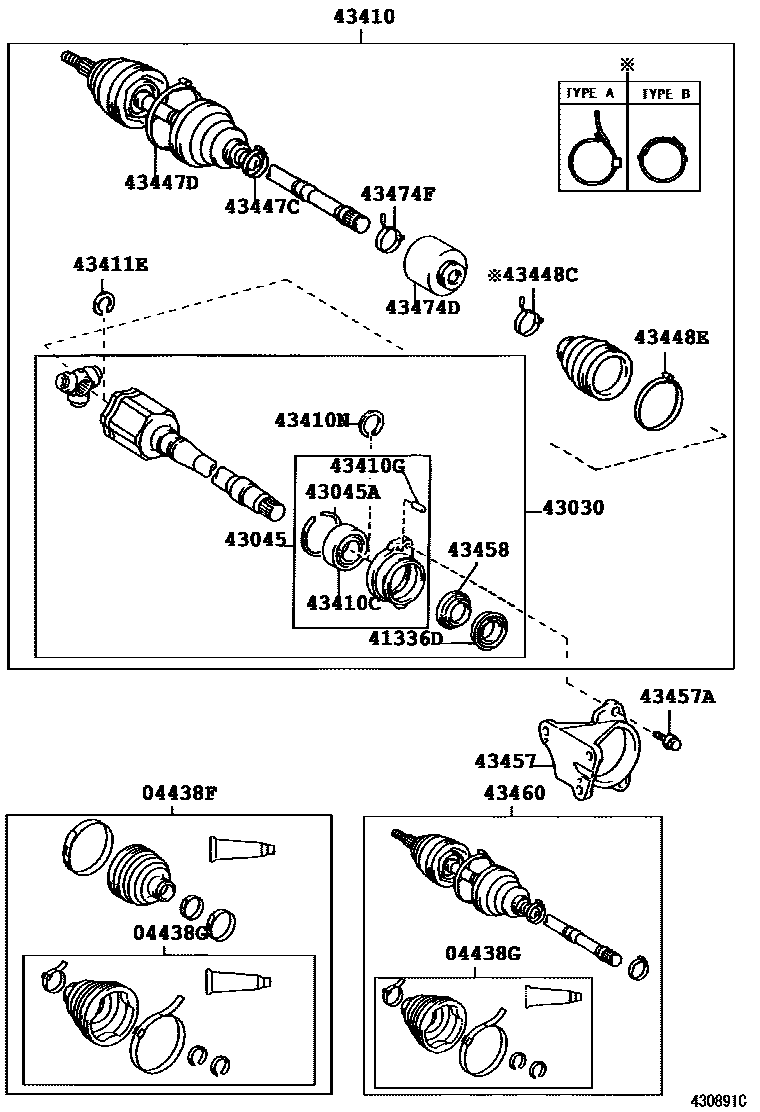

Toyota COROLLA EPC diagram 4302, Front Drive Shaft, with 6 images and 36 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04438F | Right front driveshaft inboard and outboard dust boot assembly | 04438-02091 · 04438-12610 · 04438-28052 |
| 04438G | Right front drive shaft inner universal joint dust boot assembly | 04438-02121 · 04438-28041 · 04438-32231 · 04438-52230 |
| 04438H | Left front driveshaft inboard and outboard dust boot assembly | 04428-02091 · 04438-12610 · 04438-12630 · 04438-28052 |
| 04438J | Left front drive shaft inner universal joint dust boot assembly | 04438-02121 · 04438-28041 · 04438-32231 · 04438-52230 |
| 41336D | Right front driveshaft dust cover | 41336-02040 · 41336-12010 · 41336-12020 |
| 41336E | Left front driveshaft dust cover | 41336-05030 · 41336-05140 · 41336-12010 · 41336-28020 |
| 43030 | Right front drive shaft inner universal joint assembly | 43030-02050 · 43030-28011 · 43403-12040 |
| 43040 | Left front drive shaft inner universal joint assembly | 43040-02040 · 43040-28011 · 43403-12040 |
| 43045 | Drive shaft bearing shell sub-assembly | 43045-20040 · 43045-20050 |
| 43045A | Snap ring (for drive shaft bearing housing sub-assembly) | 90520-69002 · 96153-00680 |
| 43410 | Right front driveshaft assembly | 43410-02250 · 43410-12660 · 43410-13050 |
| 43410C | Bearings (for front driveshaft) | 90363-36004 · 90363-41002 |
| 43410G | Direct sales (for front driveshaft) | 90250-06003 |
| 43410N | Hole snap ring (for right front driveshaft) | 90080-52054 · 90520-38015 · 90521-26004 |
| 43411E | Inner shaft snap ring (for right front axle inner drive shaft) | 43425-02010 · 43425-28010 · 90520-22005 |
| 43412B | Inner shaft snap ring (for left front axle inner drive shaft) | 43425-28010 · 90520-22005 |
| 43420 | Left front drive shaft assembly | 43420-02590 · 43420-13030 · 43420-13050 |
| 43420G | Hole snap ring (for left front driveshaft) | 90080-52055 · 90521-26004 · 90521-33002 |
| 43447C | Clamp (for the outer universal joint dust cover of the right front axle) | 42345-02110 · 42345-12150 · 42345-20040 |
| 43447D | No. 2 clip (for the universal joint dust cover on the outside of the right front axle) | 42345-02100 · 42345-12140 · 42345-28020 |
| 43447E | Clamp (for left front axle outer universal joint dust cover) | 42345-02110 · 42345-12150 · 42345-20040 |
| 43447F | No. 2 clip (for left front axle outer universal joint dust cover) | 42345-02100 · 42345-12140 · 42345-28020 |
| 43448C | Clamp (for the universal joint dust cover inside the right front axle) | 42345-02040 · 42345-42010 · 90949-01078 · 90949-01559 |
| 43448E | No. 2 clip (for the universal joint dust cover inside the right front axle) | 42345-05100 · 42345-12160 |
| 43448F | Clamp (for left front axle inner universal joint dust cover) | 42345-02040 · 42345-42010 · 90949-01078 · 90949-01559 |
| 43448G | Clamp No. 2 (for the universal joint dust cover inside the left front axle) | 42345-05100 · 42345-12160 |
| 43457 | drive shaft bearing bracket | 43457-12050 · 43457-20070 |
| 43457A | Bolts (for securing the No. 1 drive shaft bearing bracket) | 90105-10361 · 90105-10381 |
| 43458 | Front drive shaft dust cover | 43458-05010 · 43458-12010 |
| 43460 | Right front outer drive universal joint shaft assembly | 43460-09611 · 43460-49126 · 43460-80001 |
| 43470 | Left front outer drive universal joint shaft assembly | 43460-09611 · 43470-80020 · 43470-80029 |
| 43474A | Clamp (for securing driveshaft damper) | 42345-05220 |
| 43474D | Right front driveshaft shock absorber | 43474-02110 · 43474-12120 · 43474-44010 |
| 43474E | Left front driveshaft shock absorber | 43474-02110 · 43474-13020 |
| 43474F | Clamp (for right front driveshaft shock absorber) | 42345-14010 · 90949-01947 |
| 43474G | Clamp (for left front driveshaft shock absorber) | 42345-05220 · 42345-16140 |
