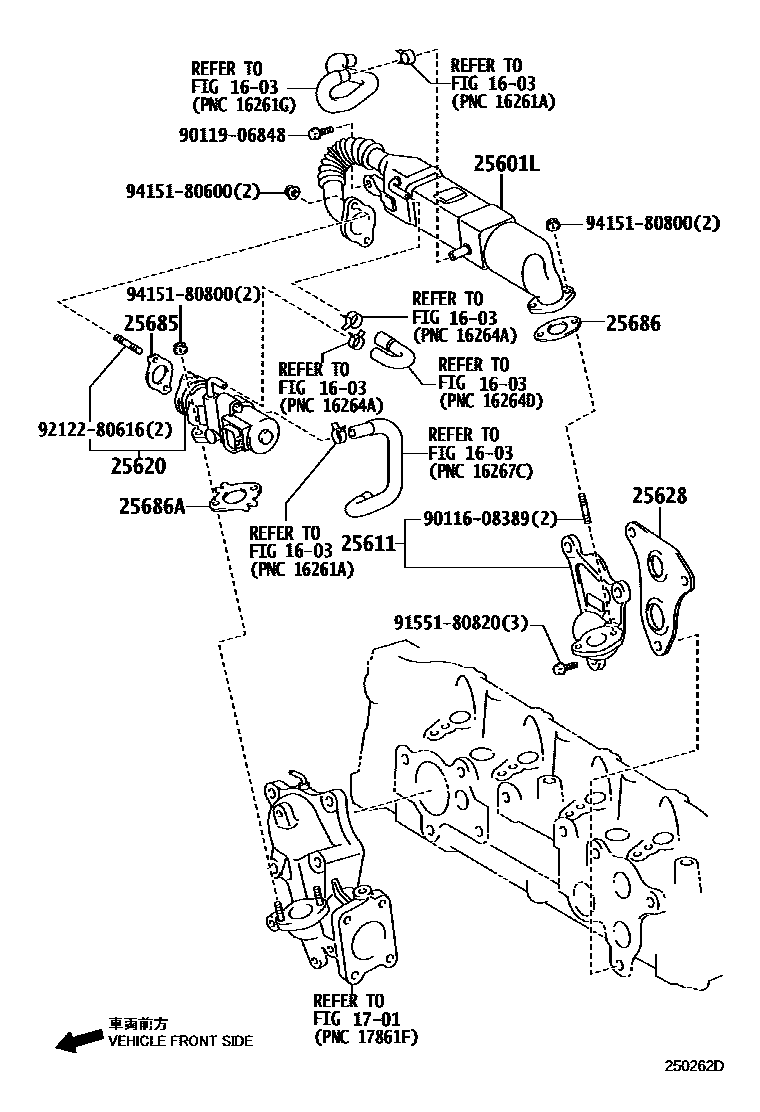

Toyota COROLLA 废气再循环系统 — Figure 2501
Toyota COROLLA EPC diagram 2501, 废气再循环系统, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 25601L | EGR pipe assembly with cooler | 25601-33020 |
| 25611 | EGR tube connector | 25611-33010 |
| 25620 | EGR valve assembly | 25620-33030 · 25800-27040 |
| 25628 | EGR air intake gasket | 25628-27010 · 25628-33020 |
| 25685 | No. 1 EGR Cooler Gasket | 25628-30010 |
| 25686 | No. 2 EGR Cooler Gasket | 25686-27010 |
| 25686A | No. 3 EGR Cooler Gasket | 25686-27020 |
| 25760G | Vacuum transfer hose assembly | 25760-27050 |
