Toyota COROLLA 真空泵 — Figure 1905

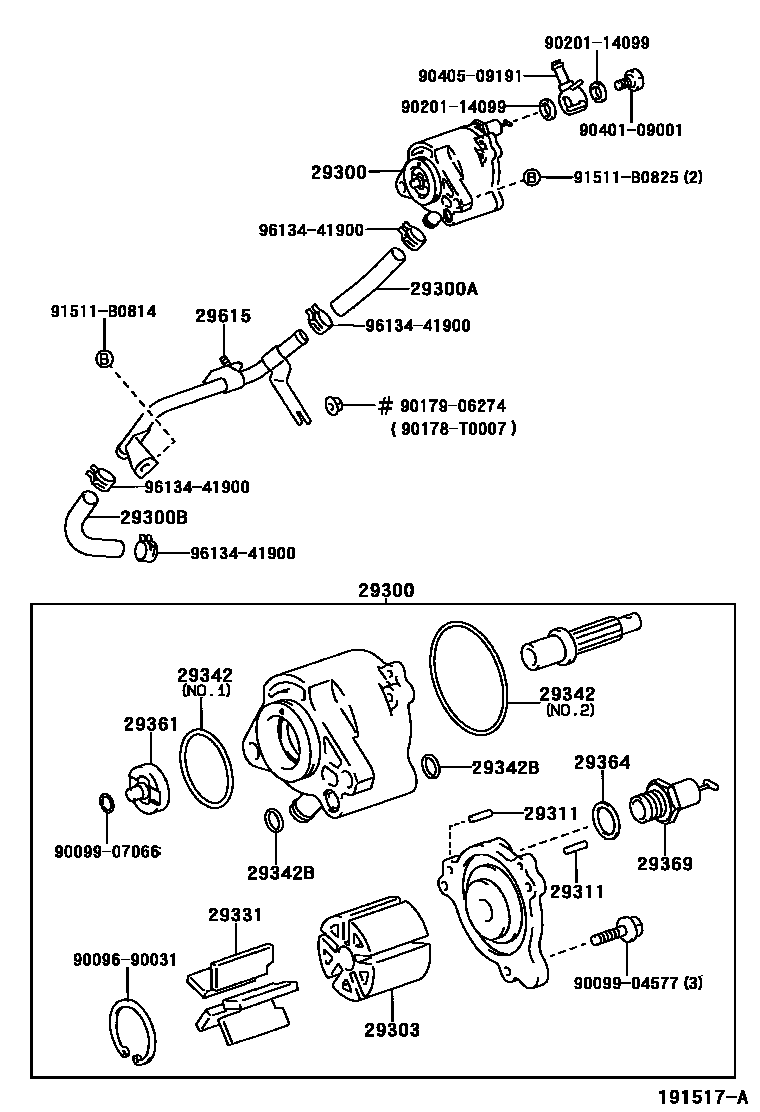

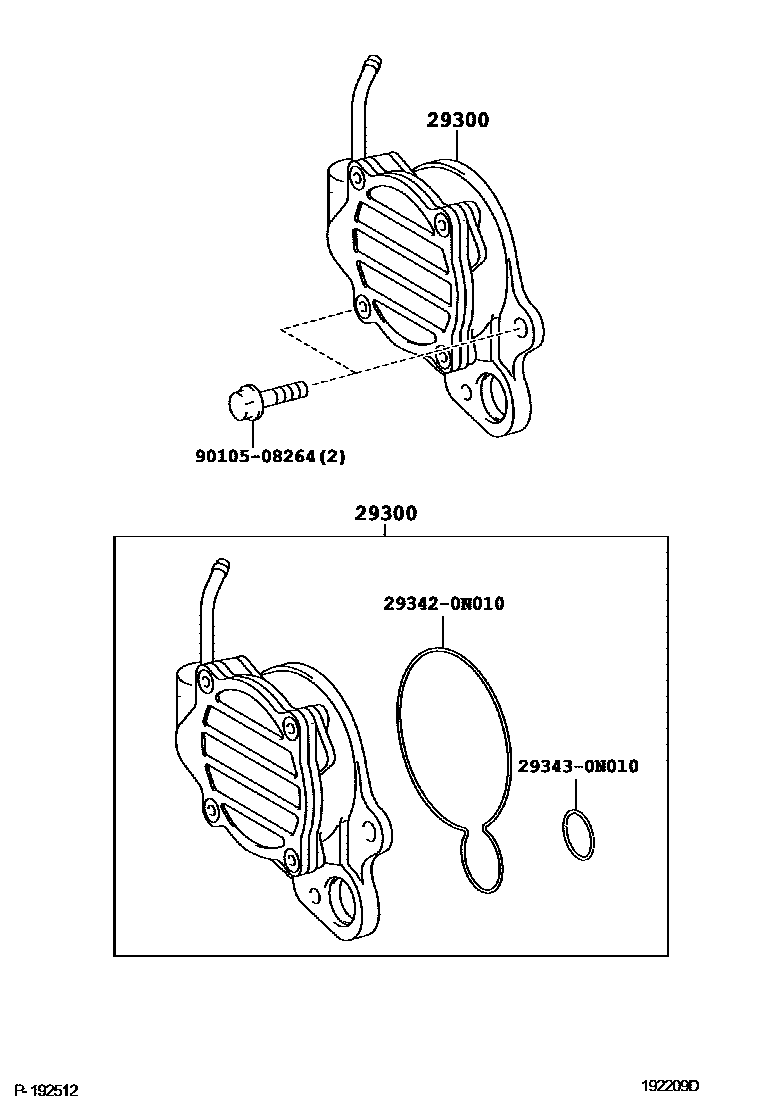

Toyota COROLLA EPC diagram 1905, 真空泵, with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 29300 | Vacuum pump assembly | 29300-0N010 · 29300-27010 |
| 29300A | Vacuum pump oil inlet hose | 29611-27010 |
| 29300B | Vacuum pump oil hose | 29613-27020 |
| 29303 | Vacuum pump rotor sub-assembly | 29337-27010 |
| 29311 | No. 1 vacuum pump positioning pin | 29311-76010 |
| 29331 | Vacuum pump A blade | 29331-27010 |
| 29342 | Vacuum pump seals | 29342-27010 · 29342-48010 |
| 29342B | O-ring | 29342-48020 |
| 29361 | Vacuum pump coupling | 29361-27010 |
| 29364 | vacuum pump gasket | 29364-66010 |
| 29369 | One-way valve sub-assembly | 29369-64030 |
| 29615 | Vacuum pump oil pipe | 29615-27040 |
