Toyota COROLLA Alternator — Figure 1903

Toyota COROLLA EPC diagram 1903, Alternator, with 3 images and 16 PNC and OE references.

Toyota COROLLA Alternator EPC diagram — 191532D

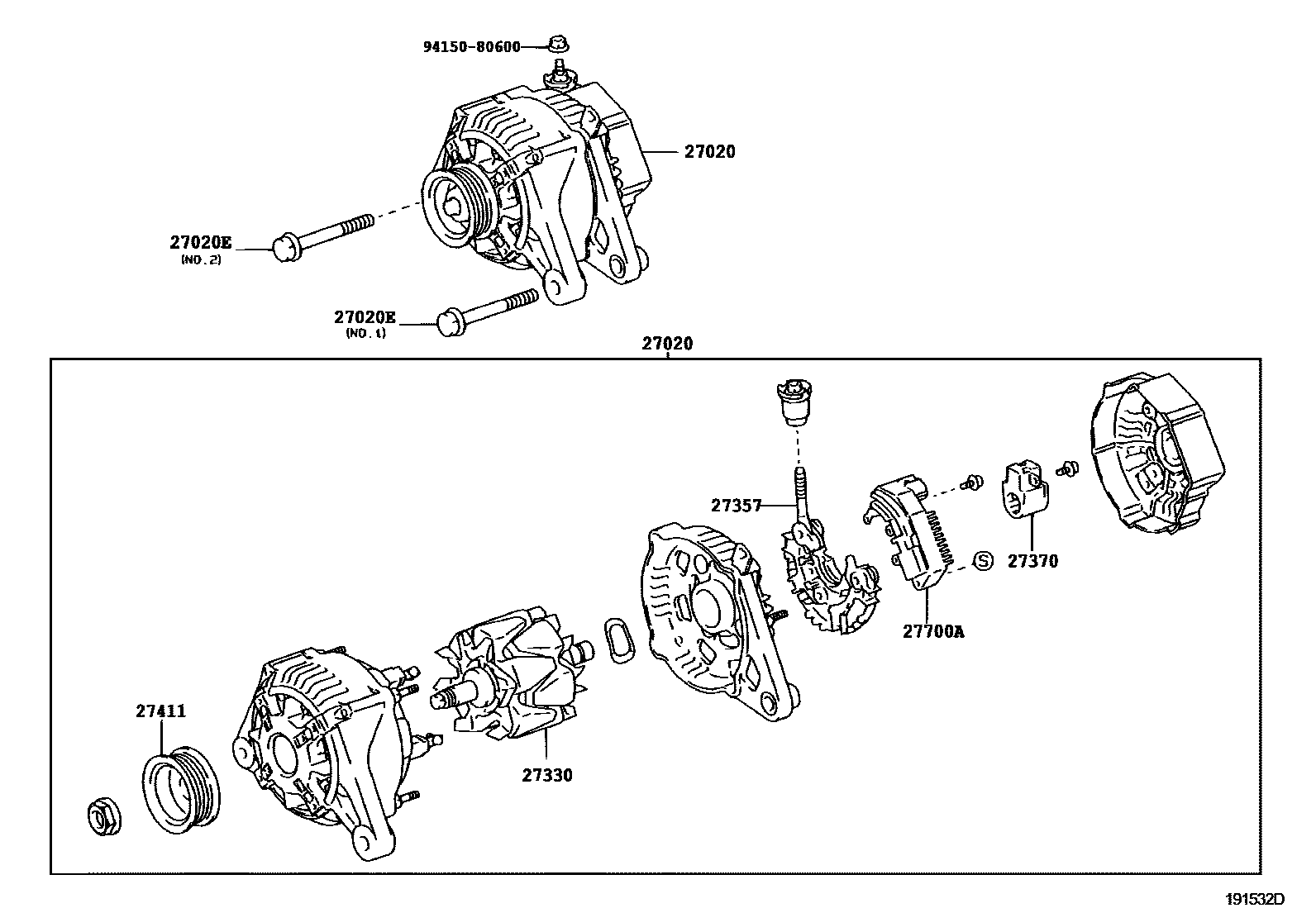

Alternator — 191532D (200209 – 999999)
Toyota COROLLA Alternator EPC diagram — 191533C

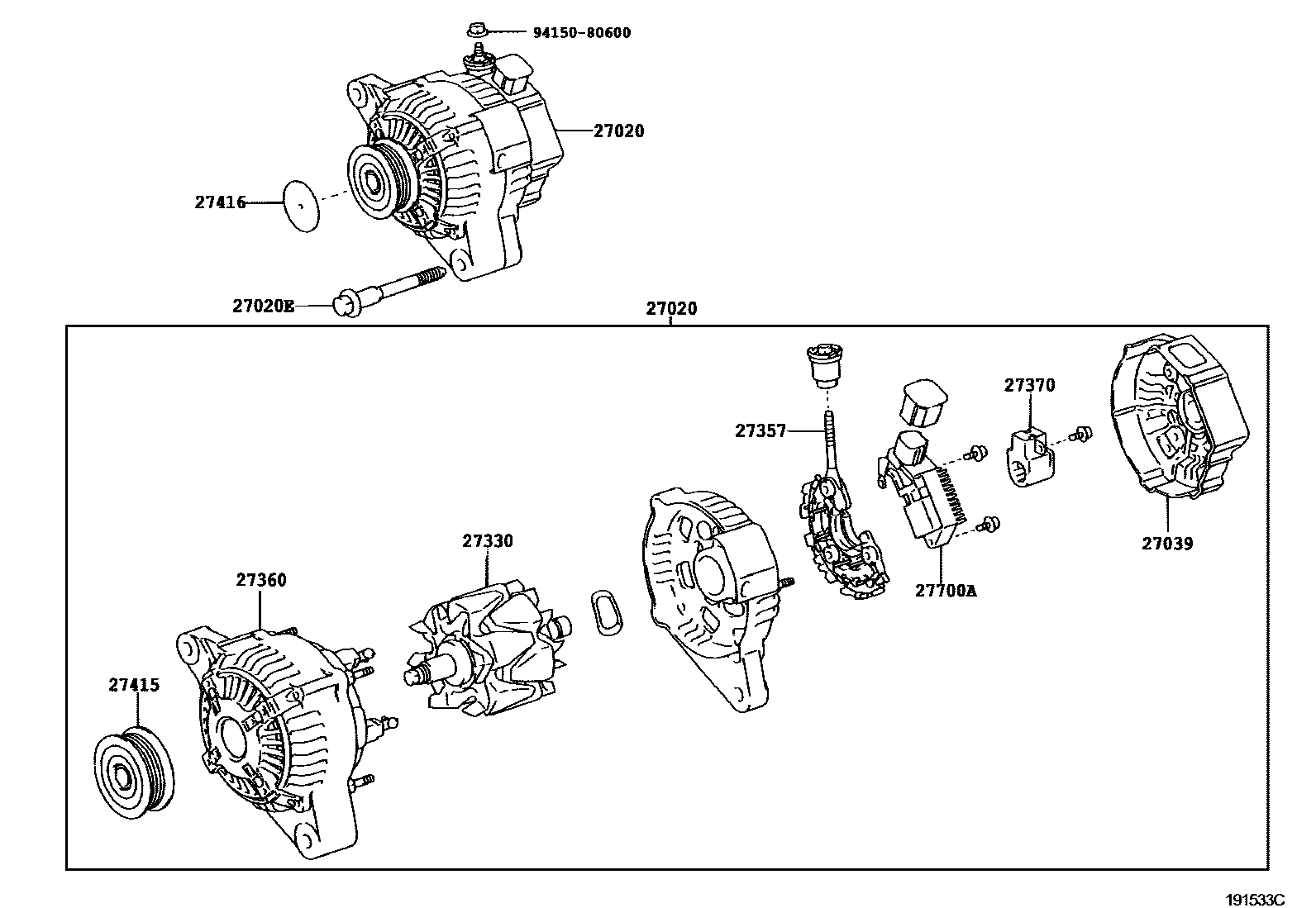

Alternator — 191533C (200209 – 200405)
Toyota COROLLA Alternator EPC diagram — 192207C

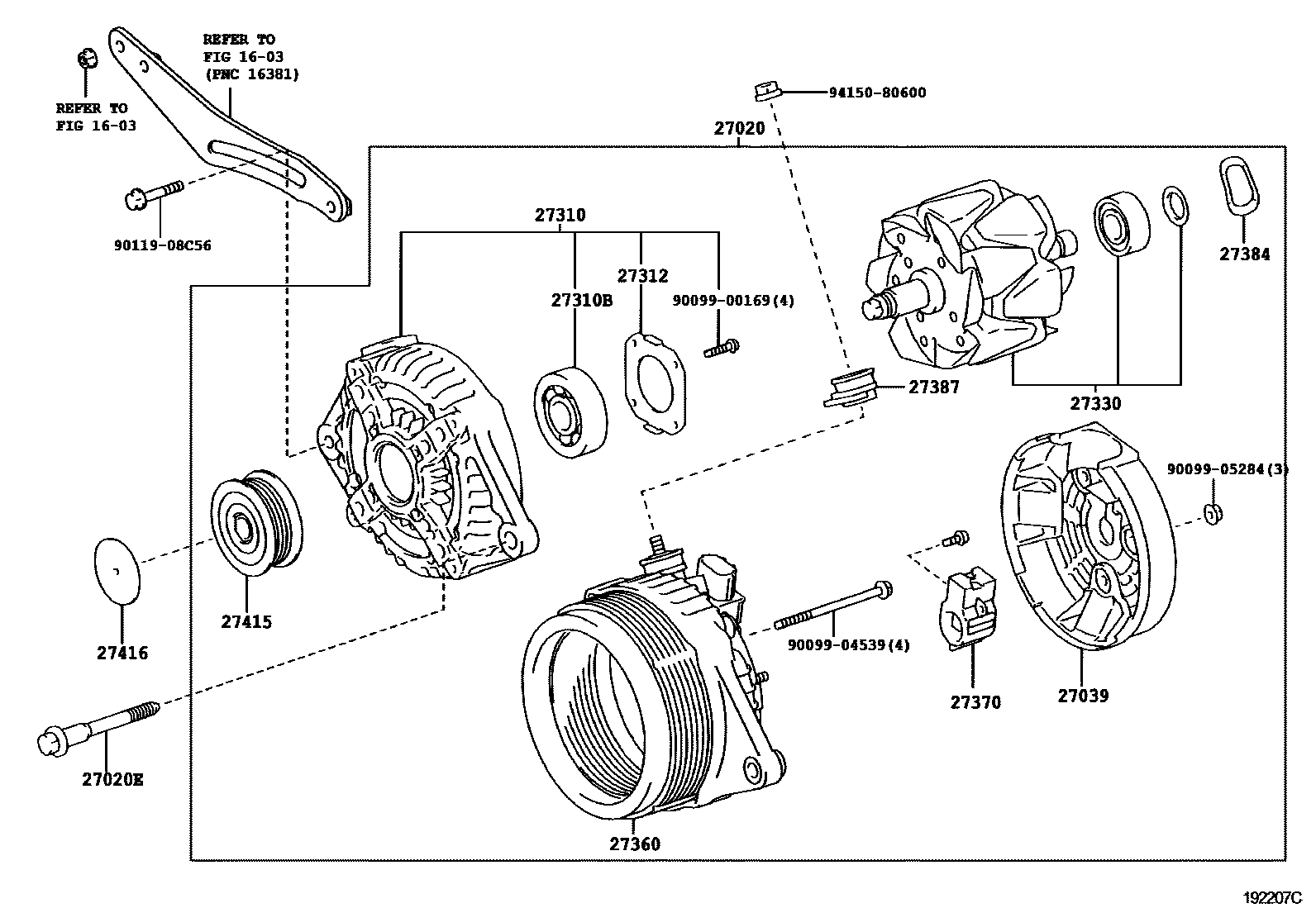

Alternator — 192207C (200408 – 999999)

PNC and OE references

PNCPart nameOE numbers
27020Alternator Assembly27060-22030 · 27060-22140 · 27060-27060 · 27060-27070 · 27060-33071
27020EBolts (for generator)90105-10075 · 90105-10520 · 90901-05004 · 91511-80830
27039Alternator Rear End Cover27039-27020 · 27039-27060
27310Alternator Drive End Frame Assembly27310-33110
27310BBearing (for Alternator Drive End Frame)90099-10142 · 90099-10223
27312Retainer Plate27312-72100
27330Alternator Rotor Assembly27330-16390 · 27330-20130 · 27330-30070 · 27330-67100 · 27330-74550
27357Generator rectifier frame27357-21060 · 27357-22050 · 27357-22070
27360Alternator Stator Coil Assembly27360-27050 · 27360-33110
27370Alternator Brush Holder Assembly27370-20130 · 27370-31220 · 27370-35060 · 27370-75060
27384Washer27384-50030
27387Terminal Insulator27387-20130
27411Alternator Pulley27411-22080 · 27411-50050
27415PULLEY, ALTERNATOR W/CLUTCH27415-27011 · 27415-33050
27416Generator pulley cover27416-27010
27700AGenerator voltage regulator assembly27700-46060 · 27700-64090
