Toyota COROLLA Exhaust Pipe — Figure 1702

Toyota COROLLA EPC diagram 1702, Exhaust Pipe, with 1 images and 6 PNC and OE references.

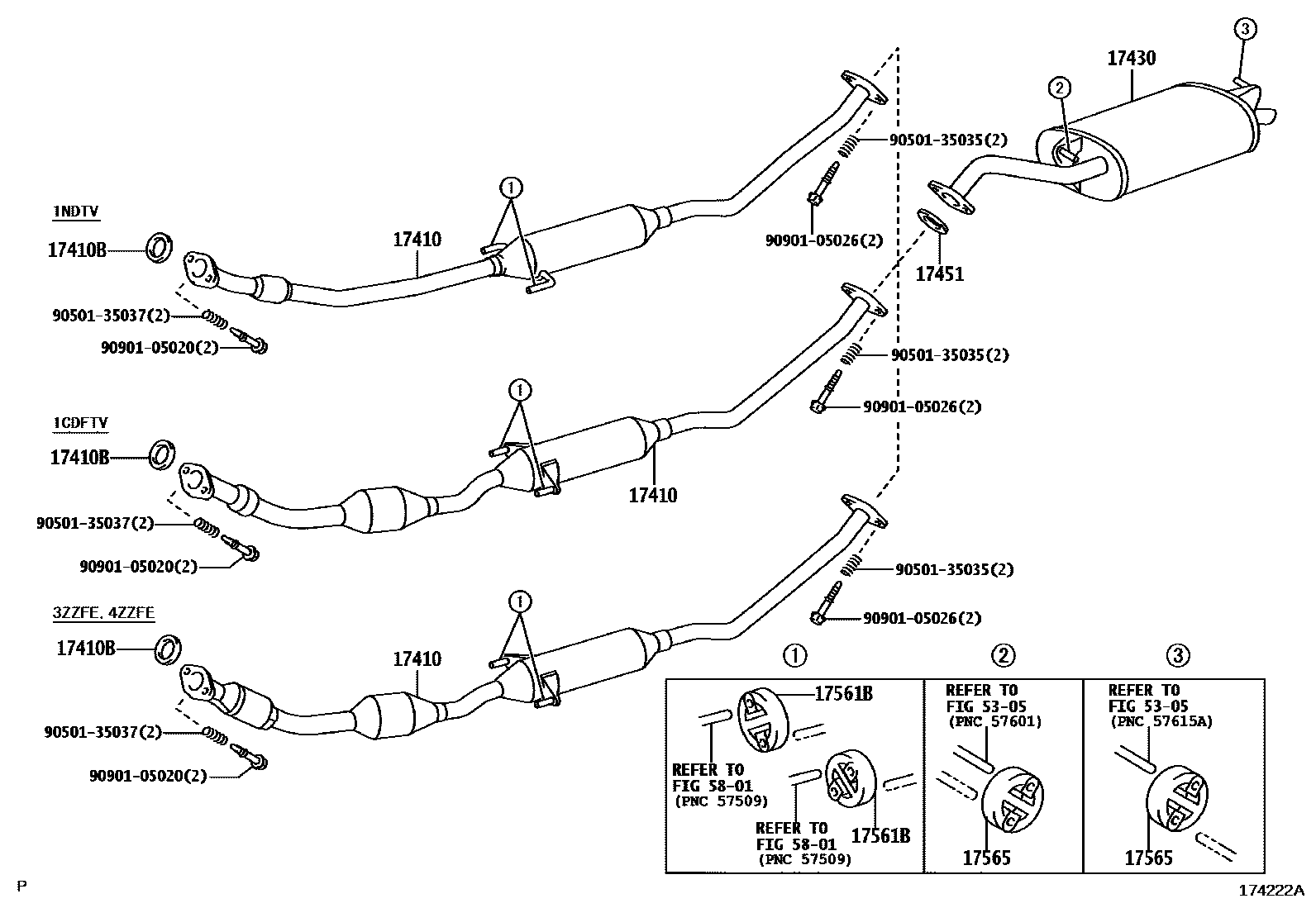

Toyota COROLLA Exhaust Pipe EPC diagram — 174222A
Exhaust Pipe — 174222A (200209 – 999999)

PNC and OE references

PNCPart nameOE numbers
17410Front exhaust pipe assembly17410-22440 · 17410-22490 · 17410-27150 · 17410-33130
17410BExhaust pipe gasket17451-22060 · 17451-22070
17430Exhaust tailpipe assembly17430-22420 · 17430-22460 · 17430-27140
17451Exhaust pipe gasket17451-16030 · 17451-64030
17561BNo. 1 exhaust pipe lifting lug17565-21030 · 17565-22030
17565No. 5 exhaust pipe lifting lug17565-21040
