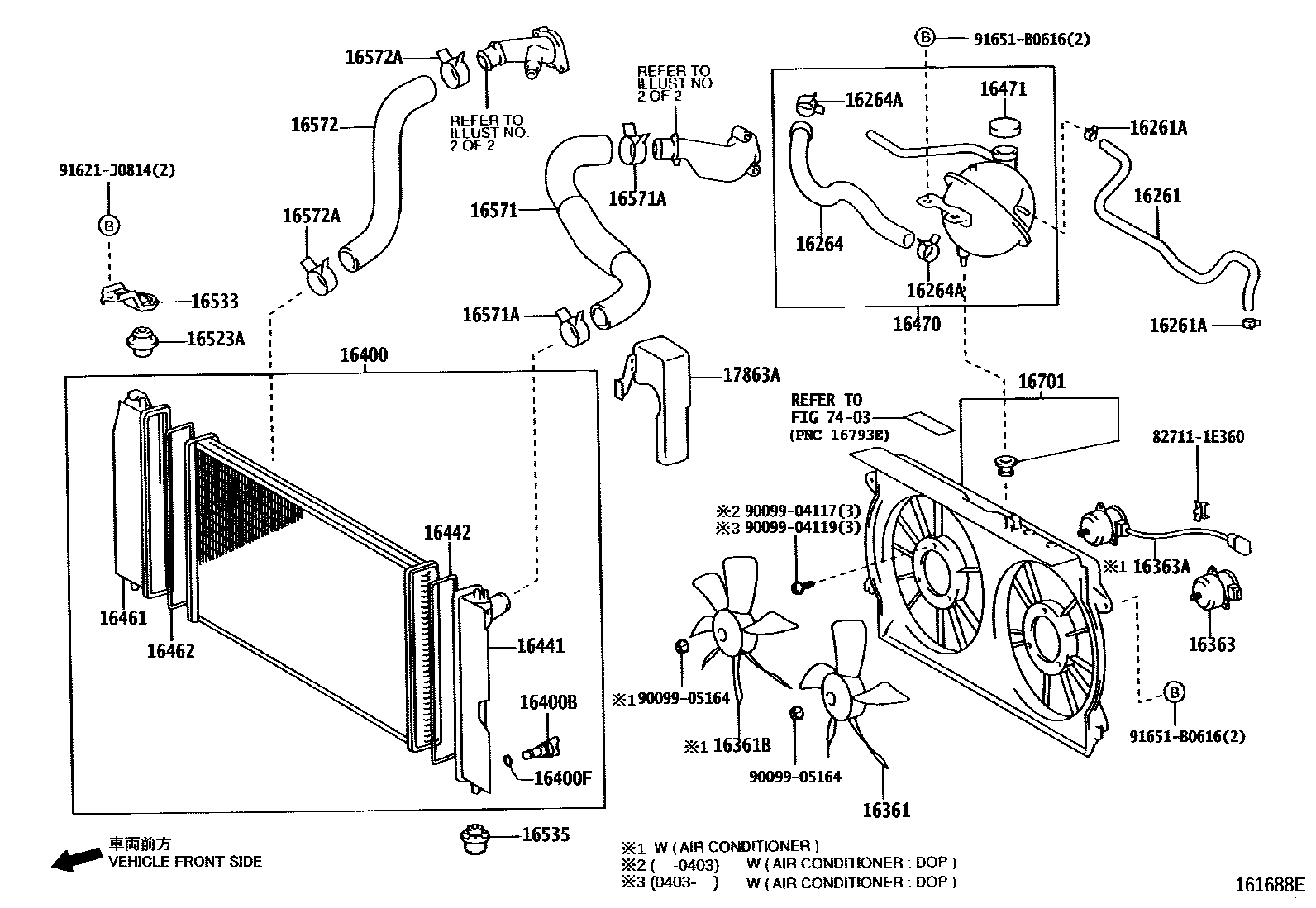

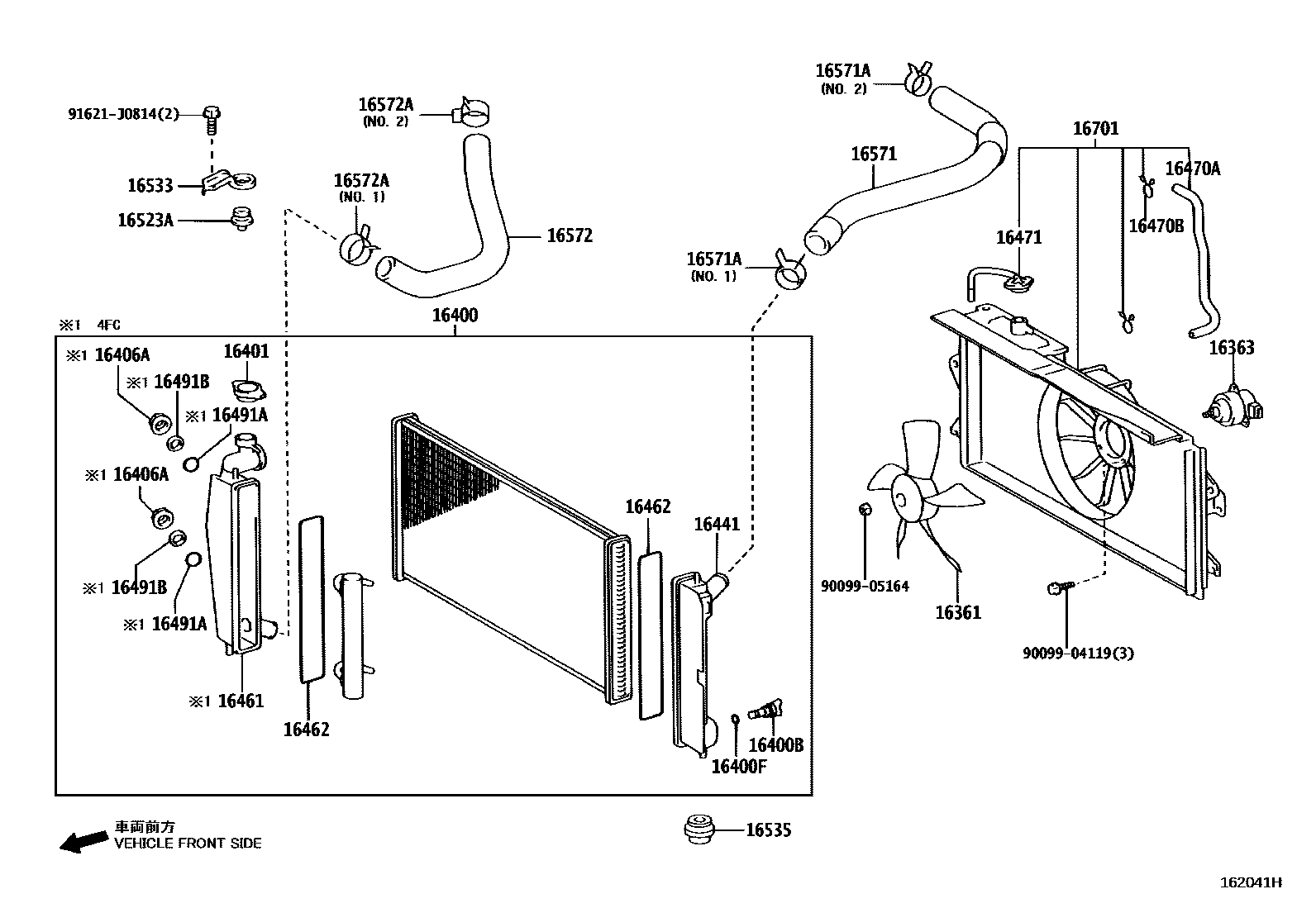

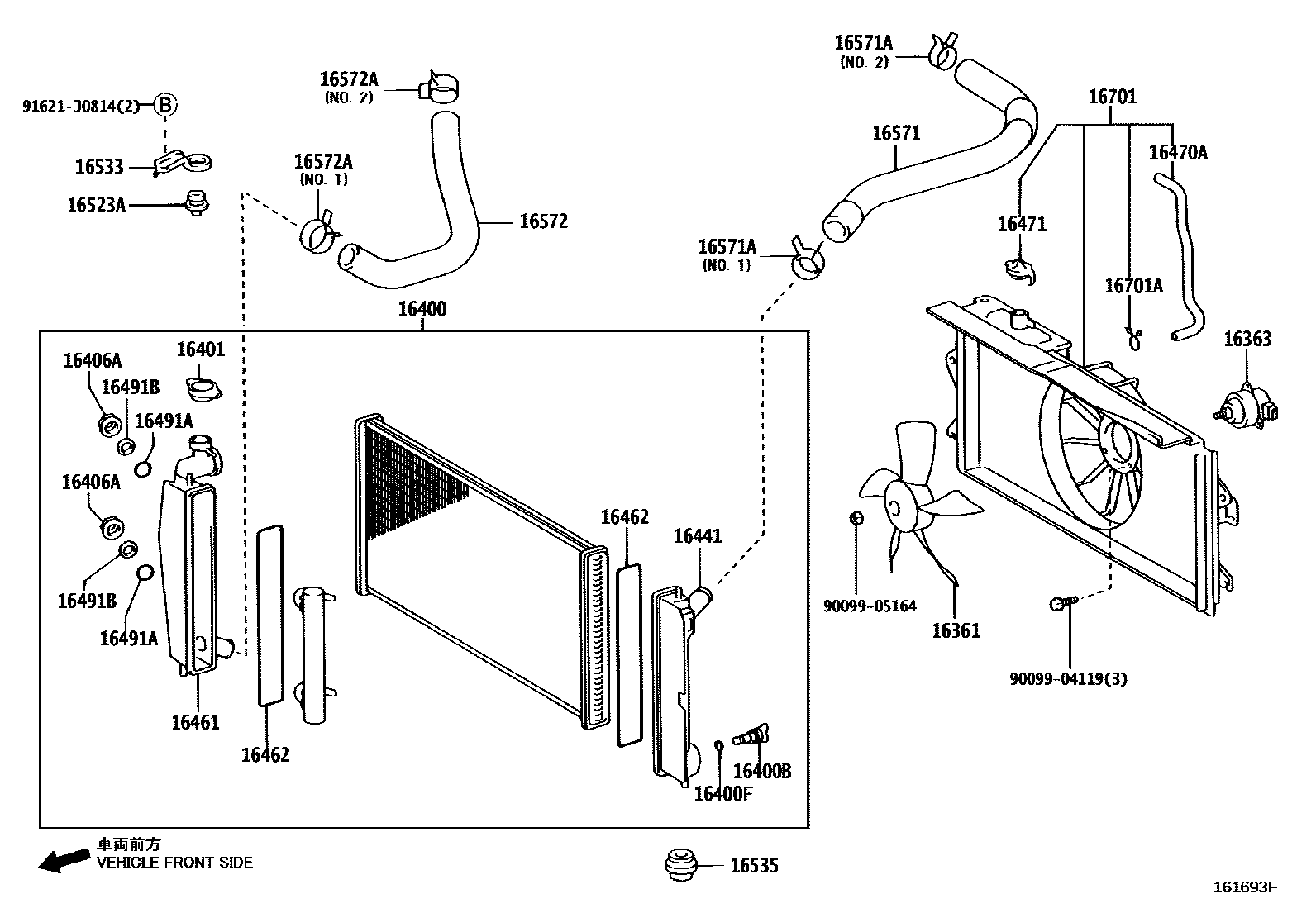

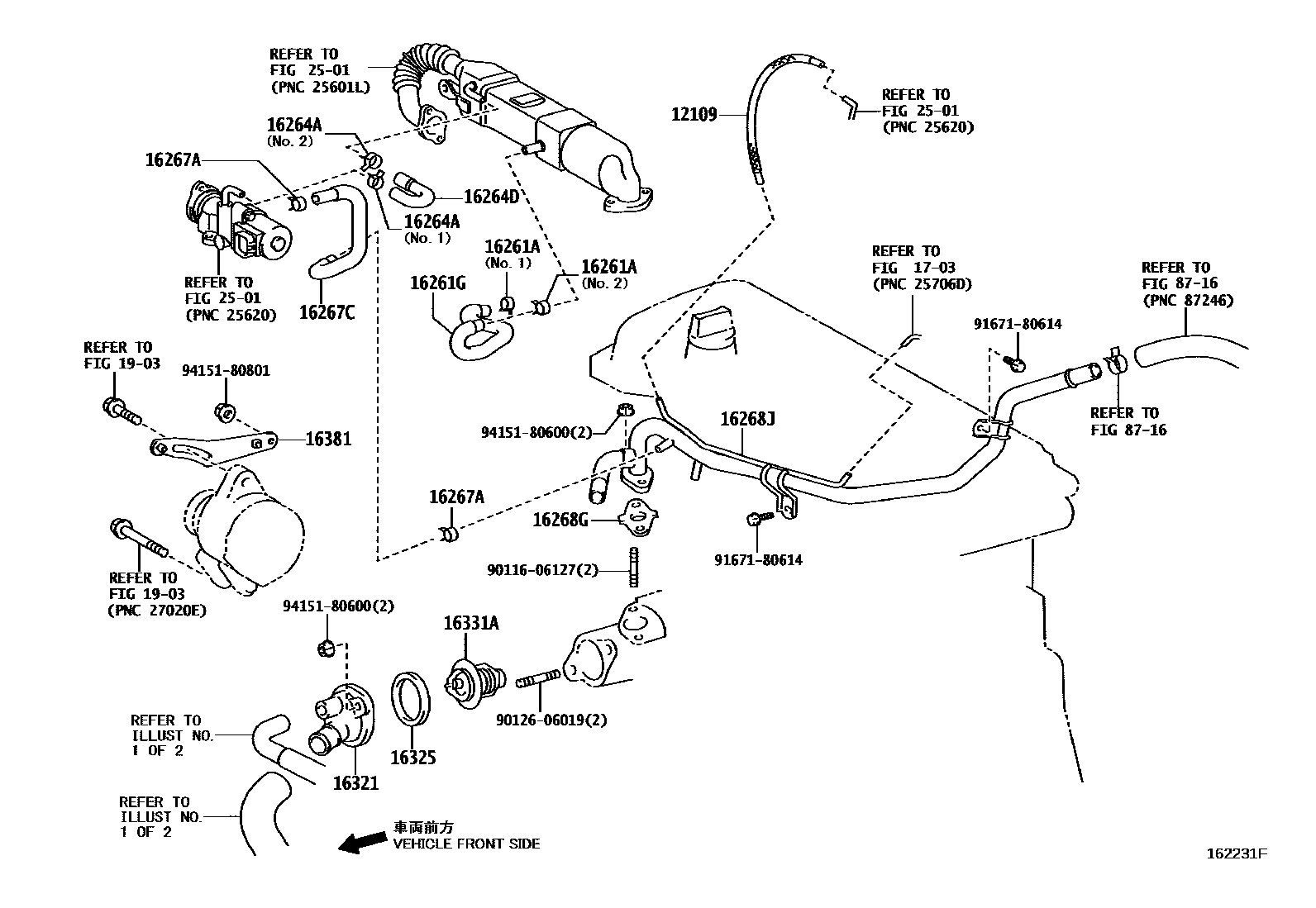

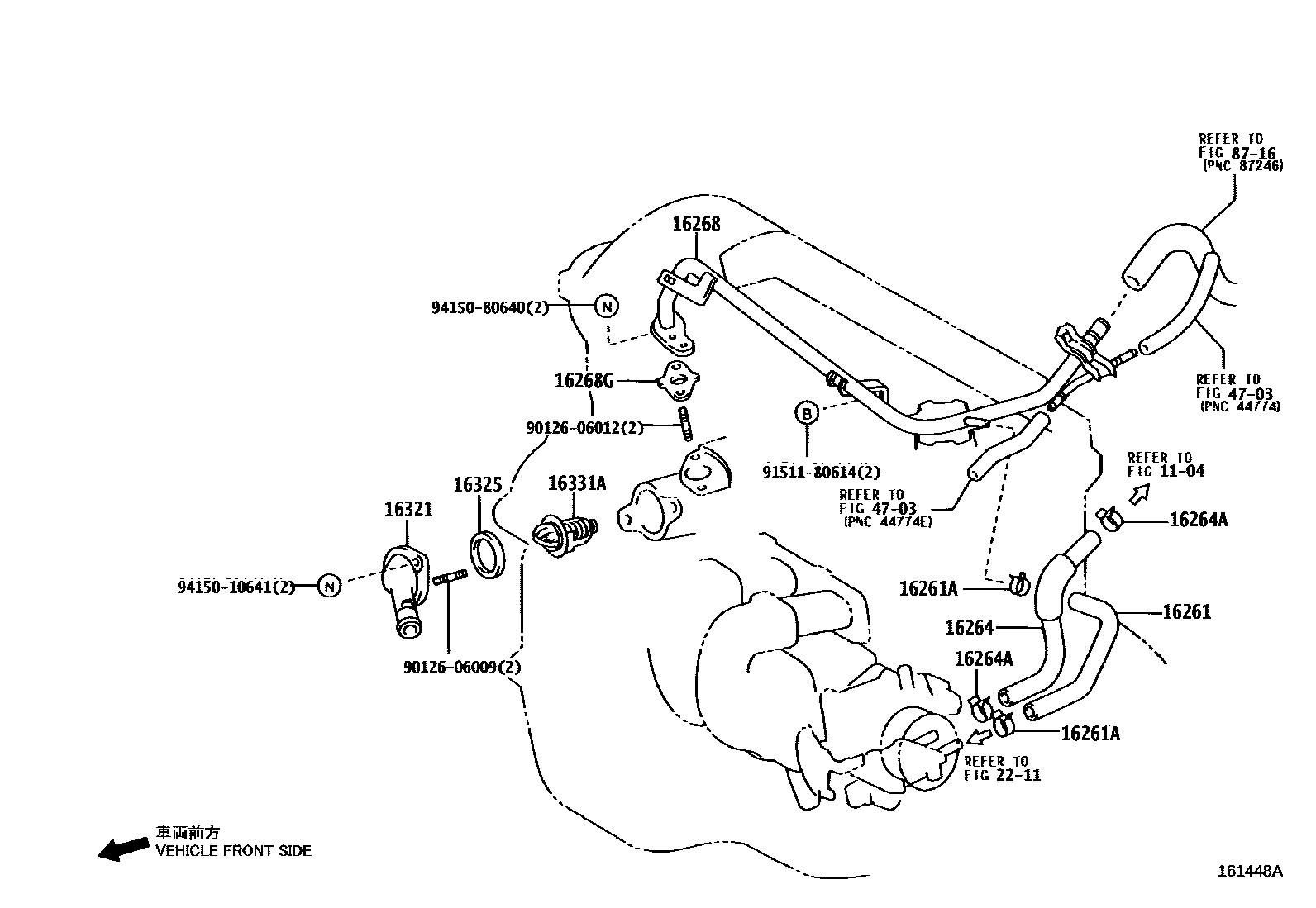

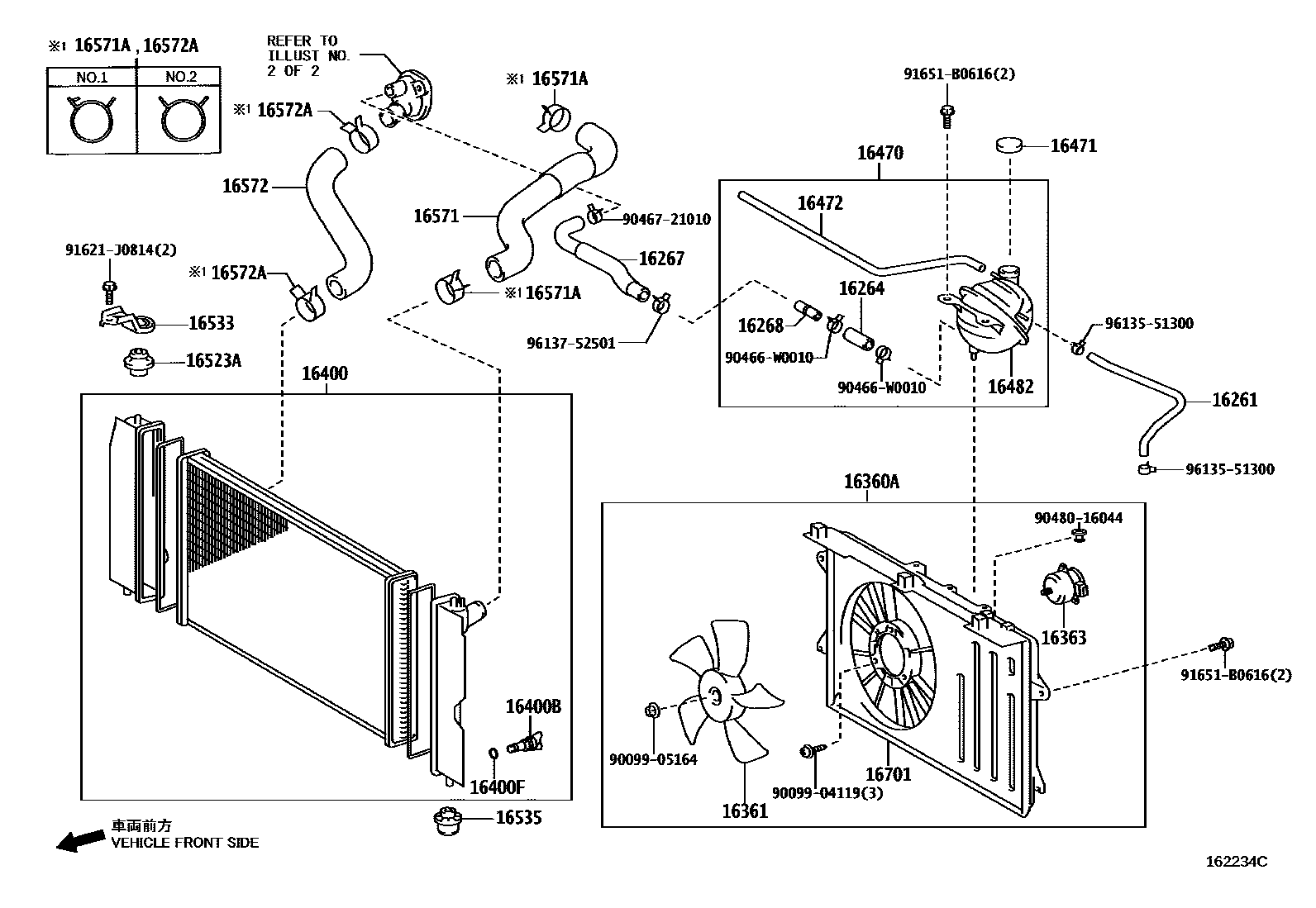

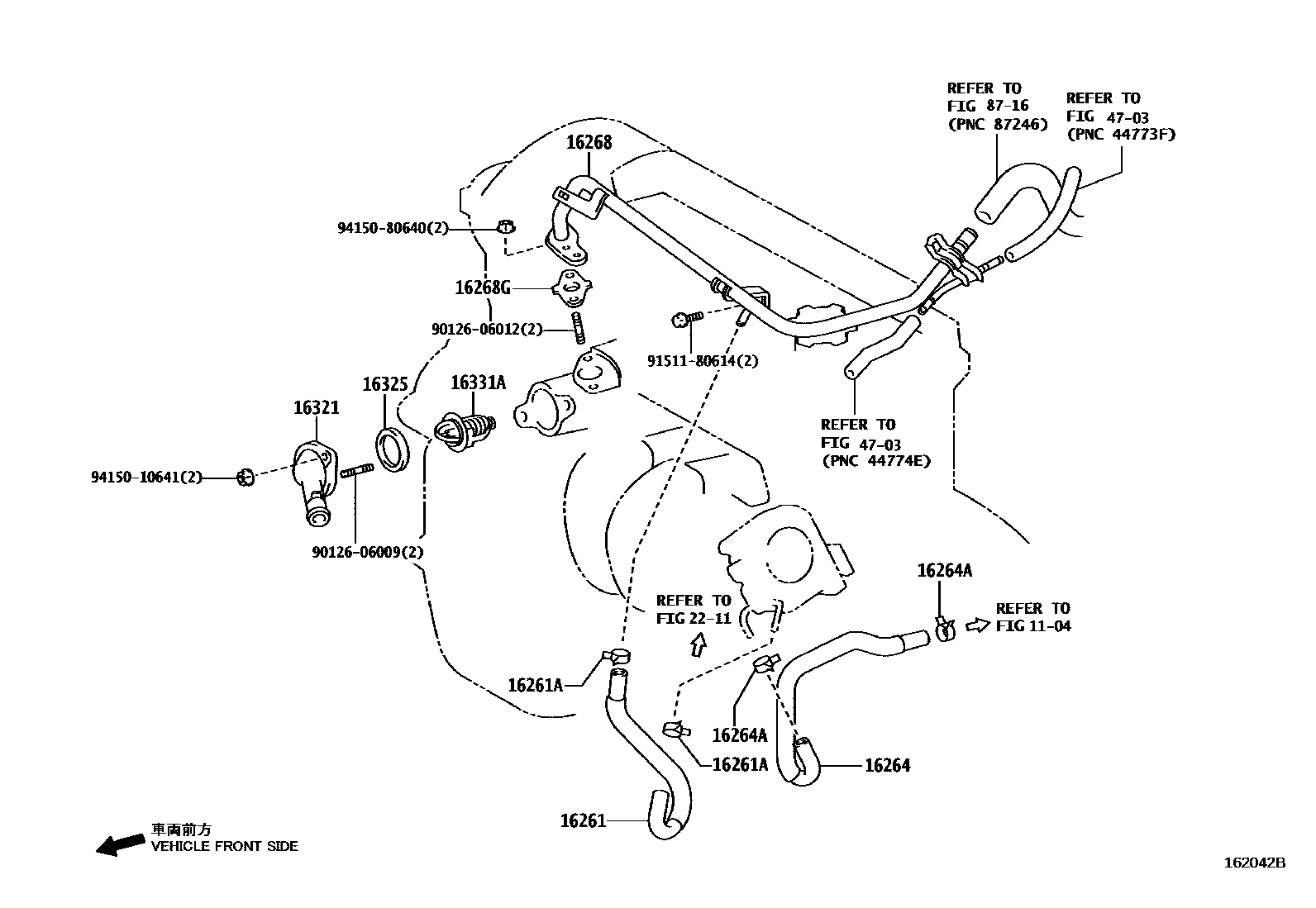

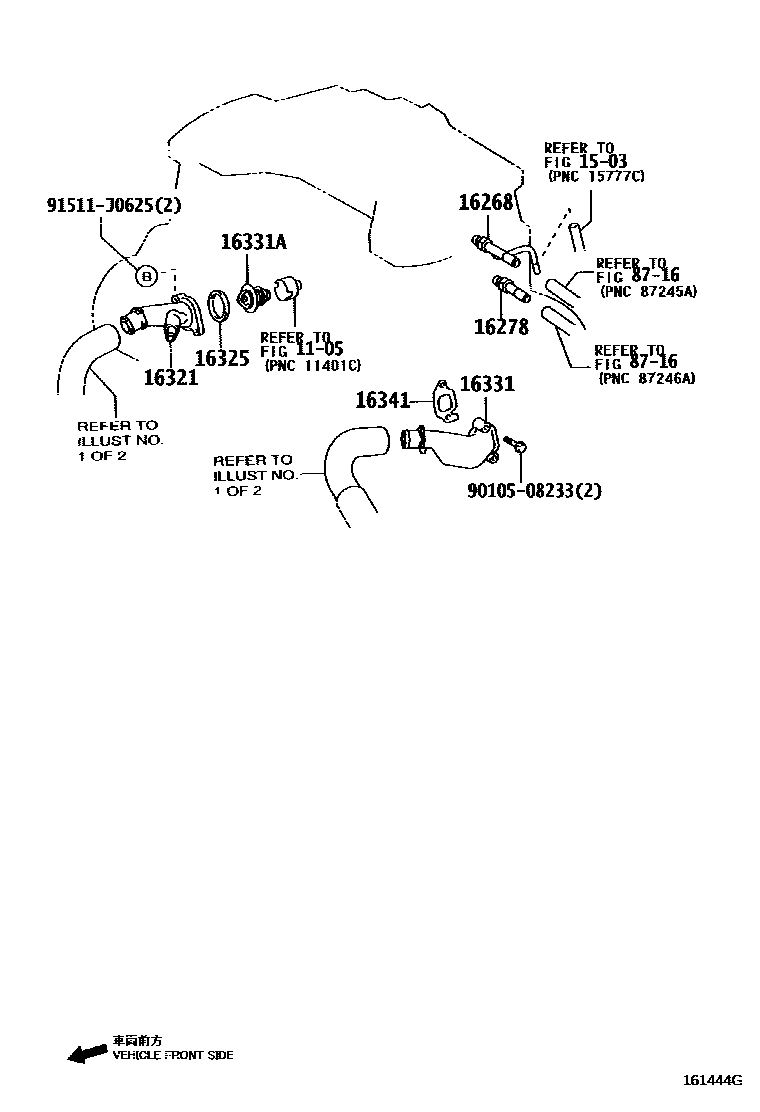

Toyota COROLLA RADIATOR & WATER OUTLET — Figure 1603
Toyota COROLLA EPC diagram 1603, RADIATOR & WATER OUTLET, with 8 images and 52 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12109 | drain hose | 12109-33010 |
| 16261 | HOSE, WATER BY-PASS | 16261-0N020 · 16261-22100 · 16261-22142 · 16261-27050 |
| 16261A | CLAMP OR CLIP, WATER BY-PASS HOSE | 90467-13054 · 90467-15022 · 96135-51300 · 96137-41501 |
| 16261G | HOSE, WATER BY-PASS, NO.1 | 16261-33030 |
| 16264 | HOSE, WATER BY-PASS, NO.2 | 16264-0N020 · 16264-22110 · 16264-22122 · 16264-22123 · 16264-27040 |
| 16264A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.2 | 90467-13054 · 90467-15022 · 90467-21010 · 96135-51300 · 96137-41501 |
| 16264D | HOSE, WATER BY-PASS, NO.2 | 16264-33020 |
| 16267 | HOSE, WATER BY-PASS, NO.3 | 16267-0N010 |
| 16267A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.3 | 90467-13054 |
| 16267C | HOSE, WATER BY-PASS, NO.4 | 16267-33010 |
| 16268 | PIPE, WATER BY-PASS, NO.1 | 16268-22100 · 16268-22160 · 16268-27040 · 16268-33040 |
| 16268G | Gasket (for water bypass pipe) | 16258-21020 · 16258-22010 |
| 16268J | No. 5 water bypass pipe | 16268-33030 |
| 16278 | PIPE, WATER BY-PASS, NO.2 | 16278-27040 |
| 16321 | water inlet | 16031-27020 · 16321-22070 · 16321-33010 |
| 16325 | GASKET, WATER INLET HOUSING, NO.1 | 16325-0H020 · 16325-27010 · 16325-62010 |
| 16331 | Water outlet | 16331-27030 |
| 16331A | thermostat | 90916-03093 · 90916-03123 · 90916-03129 |
| 16341 | GASKET, WATER OUTLET | 16341-27010 |
| 16360A | Fan assembly with motor | 16360-33070 |
| 16361 | Fan | 16361-0D080 · 16361-0G010 · 16361-21070 |
| 16361B | Fan No. 2 | 16361-0G020 |
| 16363 | cooling fan motor | 16363-0D070 · 16363-0D090 · 16363-0G050 · 16363-0H030 · 16363-0J020 · 16363-23030 · 16363-28160 |
| 16363A | Cooling fan motor No. 2 | 16363-0G020 · 16363-0G060 |
| 16381 | Fan belt adjustment lever | 16381-33040 |
| 16400 | Radiator assembly | 16400-0D200 · 16400-0D220 · 16400-0N030 · 16400-0N031 · 16400-22240 · 16400-27040 |
| 16400B | Radiator drain switch screw plug | 23322-54010 · 90080-34010 |
| 16400F | Seal (for radiator drain switch) | 16492-21050 |
| 16401 | Radiator cover sub-assembly | 16401-72090 |
| 16406A | Bracket (for transmission oil cooler) | 16406-74520 |
| 16441 | Radiator water tank | 16441-0D200 · 16441-27040 |
| 16442 | O-ring (for radiator tank) | 16462-6A300 |
| 16461 | Radiator lower tank | 16461-0D200 · 16461-0D220 · 16461-27040 |
| 16462 | O-ring (for radiator lower tank) | 16462-21180 · 16462-6A300 |
| 16470 | Radiator reservoir assembly | 16470-27040 · 16480-0N010 |
| 16470A | Hoses or tubes (for radiator reservoir) | 16377-0D080 · 16377-21040 |
| 16470B | Clip or clip (for radiator reservoir hose) | 90467-11085 |
| 16471 | Liquid storage tank cover sub-assembly | 16401-53010 · 16405-0D040 · 16405-0D080 · 16471-0J010 |
| 16472 | Breather hose | 16472-0N010 |
| 16482 | Radiator reservoir sub-assembly | 16482-0G020 |
| 16491A | O-ring (for automatic transmission oil cooler) | 16492-02030 |
| 16491B | Flat Washer (for automatic transmission oil cooler) | 16493-74520 |
| 16523A | Radiator bracket cushion | 16523-21020 |
| 16533 | Radiator upper bracket | 16533-21020 |
| 16535 | Radiator lower support | 16535-21040 · 16535-27010 |
| 16571 | Radiator water inlet hose | 16571-0N020 · 16571-22070 · 16571-22160 · 16571-27050 |
| 16571A | Hose clamp or clip (for radiator water inlet) | 90466-37002 · 90466-41008 · 90467-33006 · 90467-34004 · 90467-37005 · 96136-44301 |
| 16572 | Radiator outlet hose | 16572-0N020 · 16572-22070 · 16572-27040 |
| 16572A | Hose clamp or clip (for radiator outlet No. 1) | 90466-35001 · 90466-37002 · 90466-41008 · 90467-33006 · 90467-34004 · 90467-37005 · 96136-43901 · 96136-44301 |
| 16701 | Fan cover sub-assembly | 16711-0D060 · 16711-0G010 · 16711-0G040 · 16711-0N020 |
| 16701A | Clip (for fan cover) | 90068-35004 · 90467-11085 |
| 17863A | Intake air separator | 17863-27010 |
