Toyota COROLLA Engine Mounting — Figure 1107

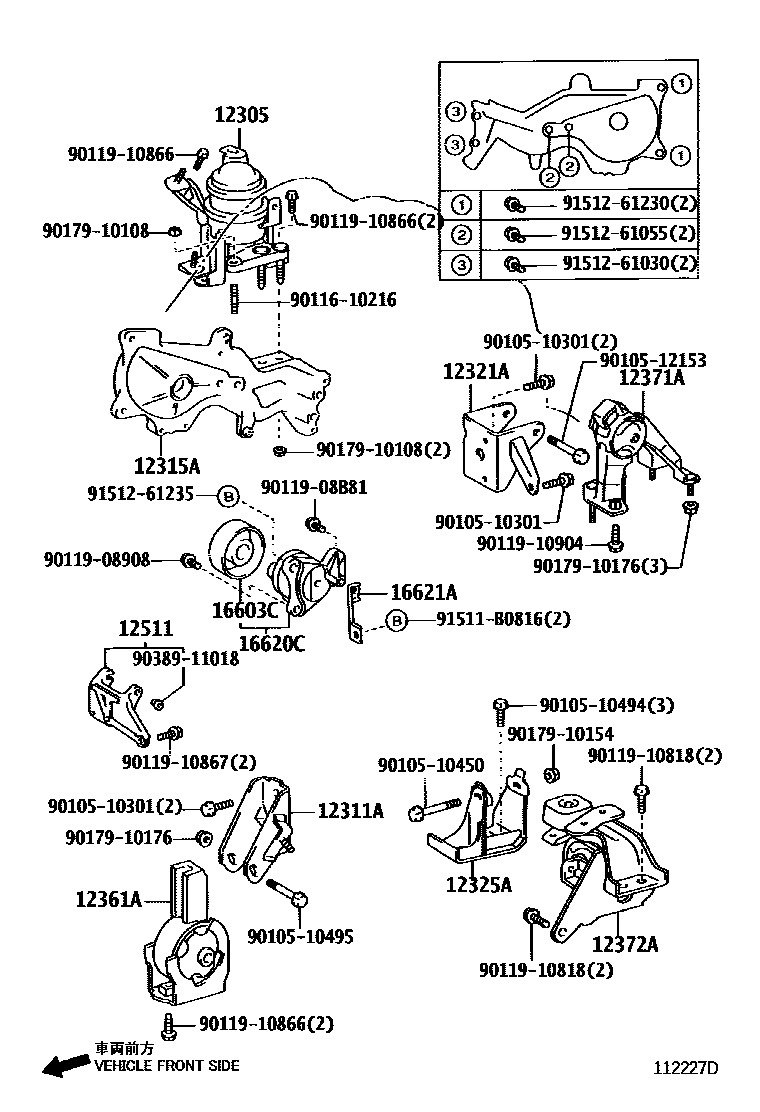

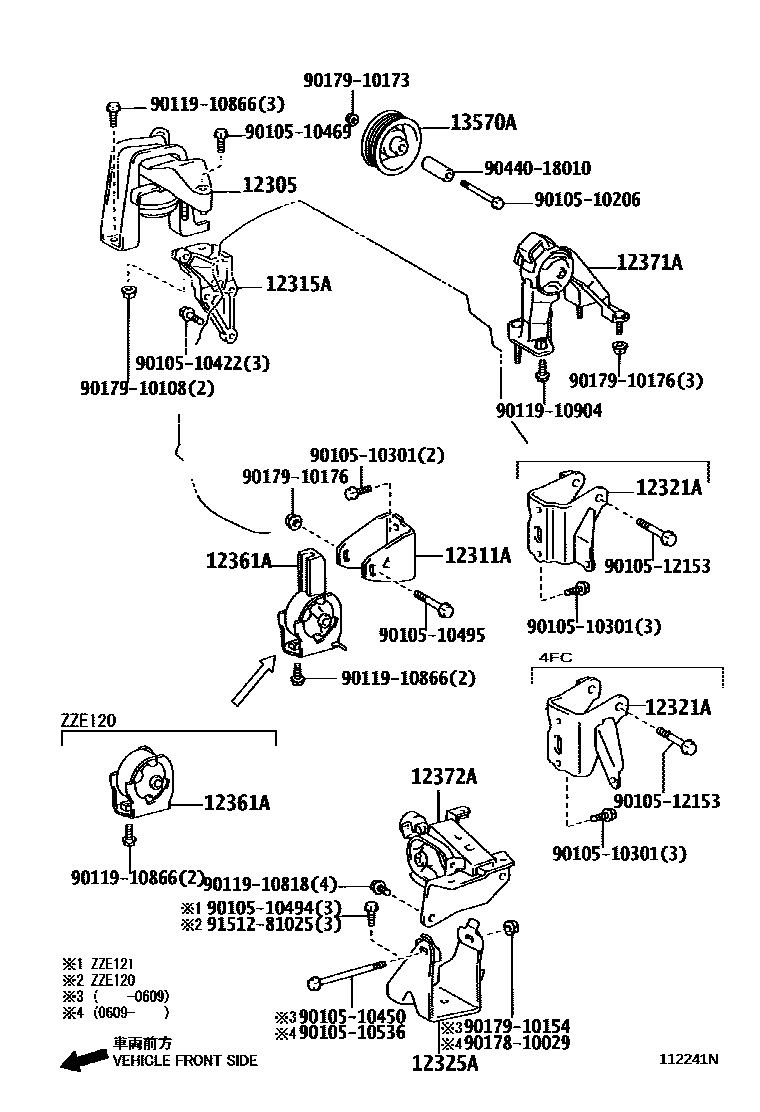

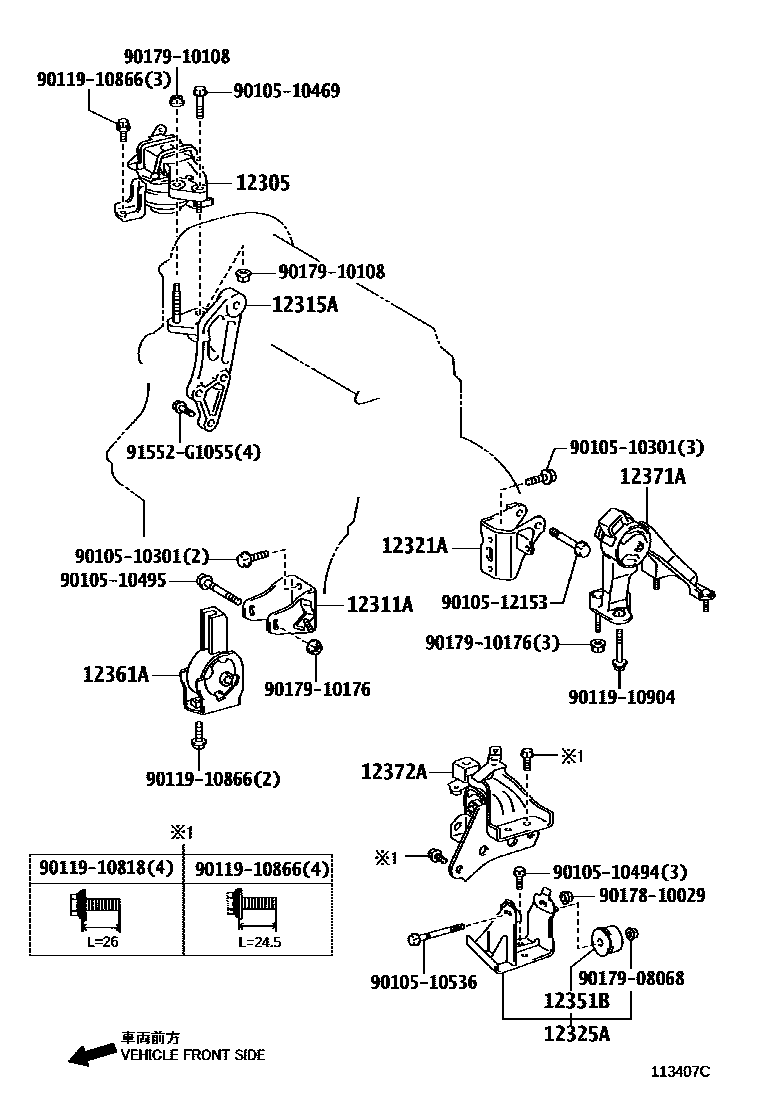

Toyota COROLLA EPC diagram 1107, Engine Mounting, with 3 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12305 | Engine right side mounting vibration isolation pad sub-assembly | 12305-22200 · 12305-22270 · 12305-27020 · 12305-33060 |
| 12311A | Engine front mounting bracket (for transverse engine) | 12311-0D120 · 12311-22110 · 12311-27020 |
| 12315A | Engine right side mounting bracket (for transversely mounted engine) | 12315-22050 · 12315-27030 · 12315-33040 |
| 12321A | Rear engine mounting bracket (for transverse engine) | 12321-0D150 · 12321-0D151 · 12321-22110 · 12321-22120 · 12321-22121 · 12321-27030 |
| 12325A | Engine left side mounting bracket (for transversely mounted engine) | 12304-33010 · 12325-22090 · 12325-22100 · 12325-22270 · 12325-27020 |
| 12351B | engine mount shock absorber | 12351-33010 |
| 12361A | Engine front mounting vibration isolation pad (for transversely mounted engine) | 12361-21010 · 12361-21040 · 12361-22080 · 12361-22090 · 12361-27030 |
| 12371A | Engine rear mount vibration isolation pad | 12371-22130 · 12371-22170 · 12371-27020 · 12371-33060 |
| 12372A | Engine left-side mounting vibration isolation pad (for transversely mounted engines) | 12372-21070 · 12372-22100 · 12372-27020 · 12372-33020 |
| 12511 | No. 1 generator bracket | 12511-27010 |
| 13570A | No. 1 poly-ribbed belt idler assembly | 13570-22010 |
| 16603C | Idler gear sub-assembly | 16603-27010 |
| 16620C | Poly V-belt tensioner assembly | 16620-27020 |
| 16621A | Poly V-belt tensioner bracket | 16621-27010 |
