Toyota COROLLA Engine Overhaul Gasket Kit — Figure 1103
Toyota COROLLA EPC diagram 1103, Engine Overhaul Gasket Kit, with 8 images and 2 PNC and OE references.

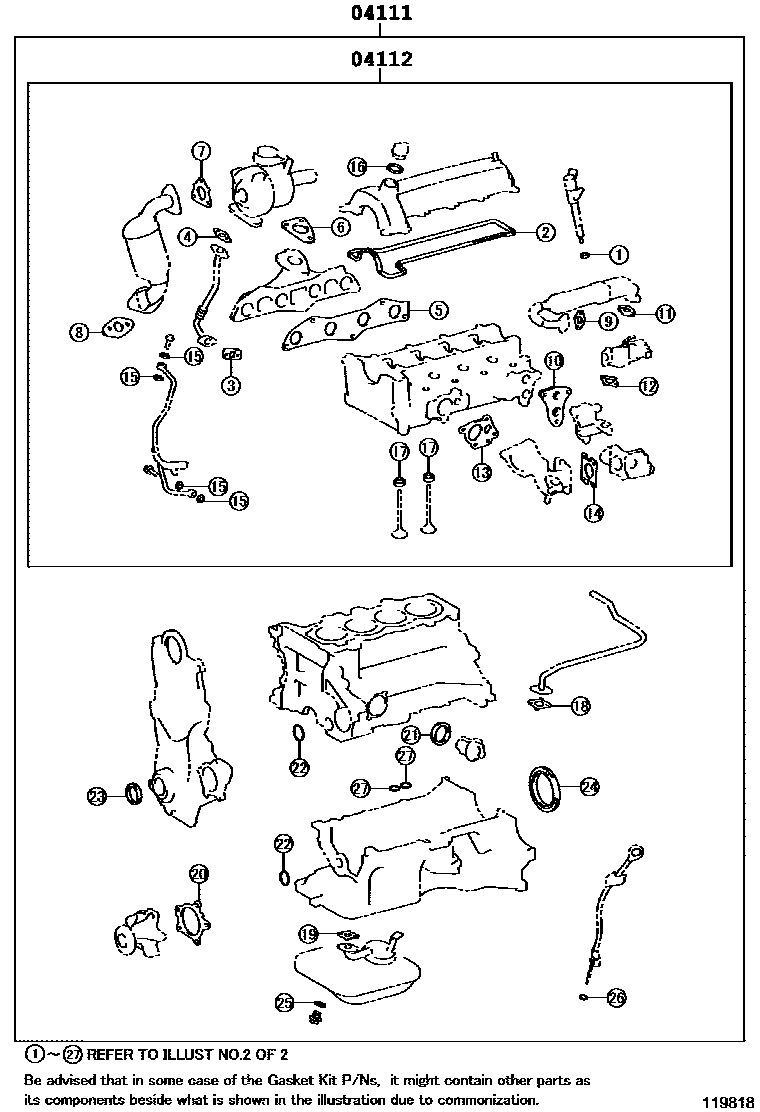

Engine Overhaul Gasket Kit — 119818 (200408 – 999999)

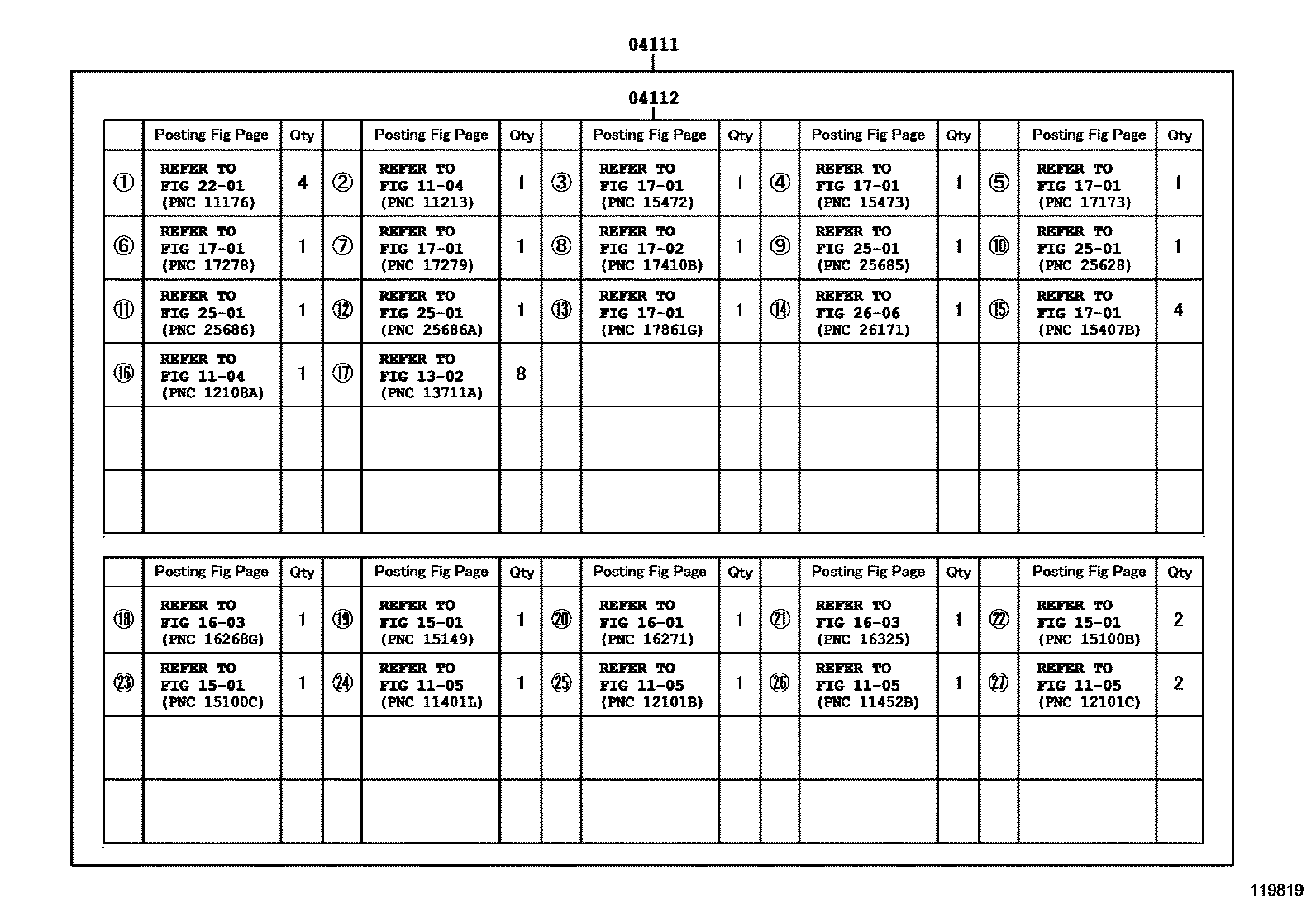

Engine Overhaul Gasket Kit — 119819 (200408 – 999999)

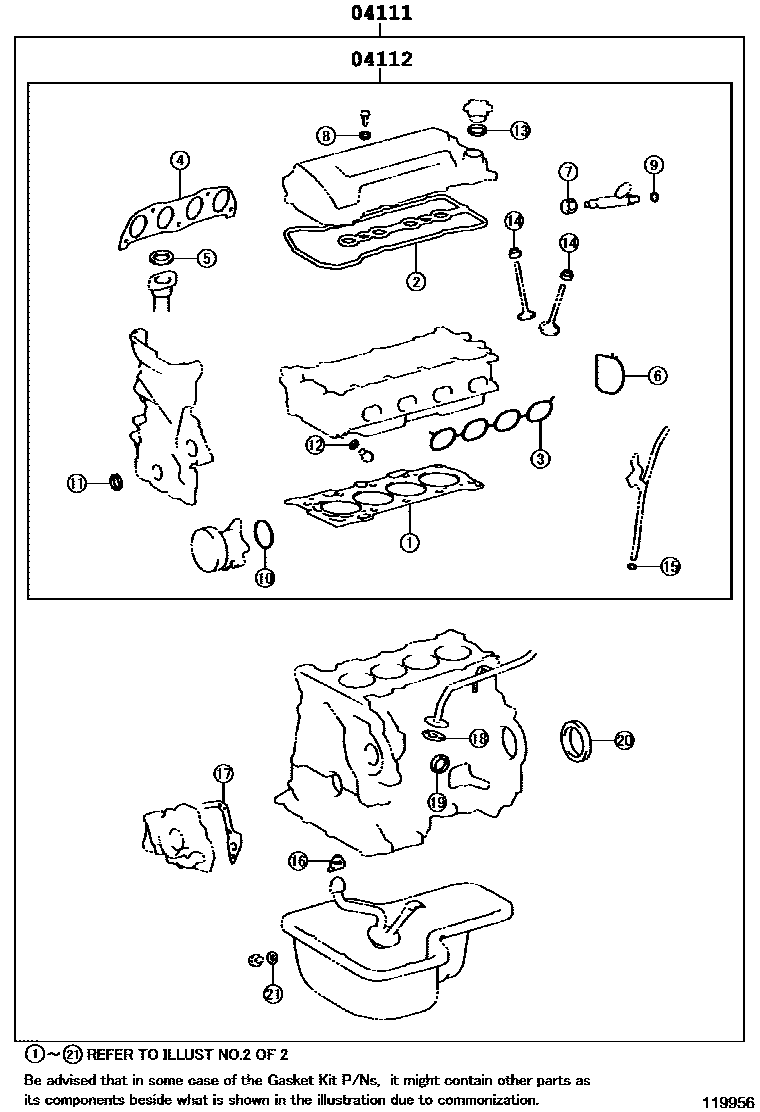

Engine Overhaul Gasket Kit — 119956 (200209 – 200405)

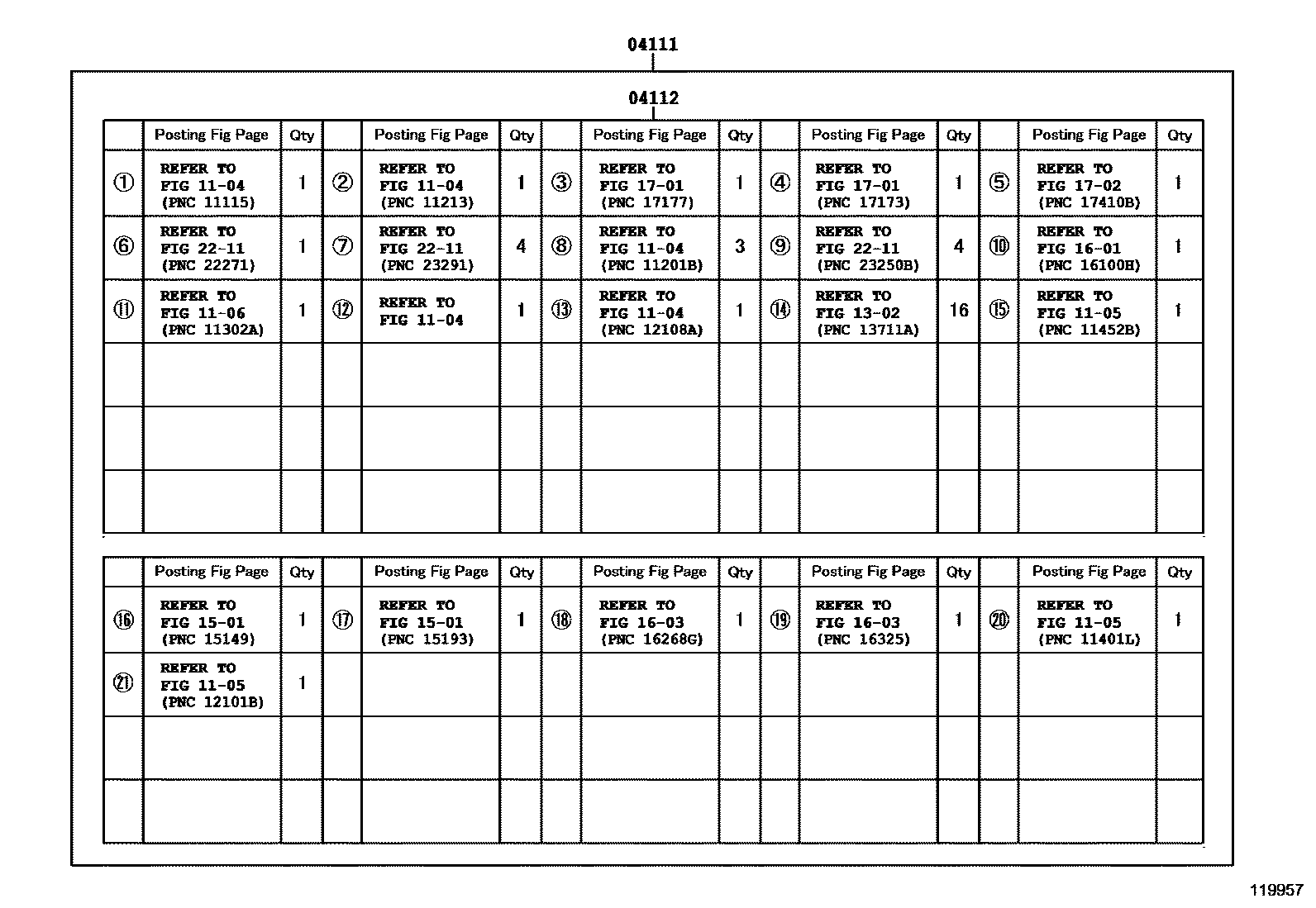

Engine Overhaul Gasket Kit — 119957 (200209 – 200405)

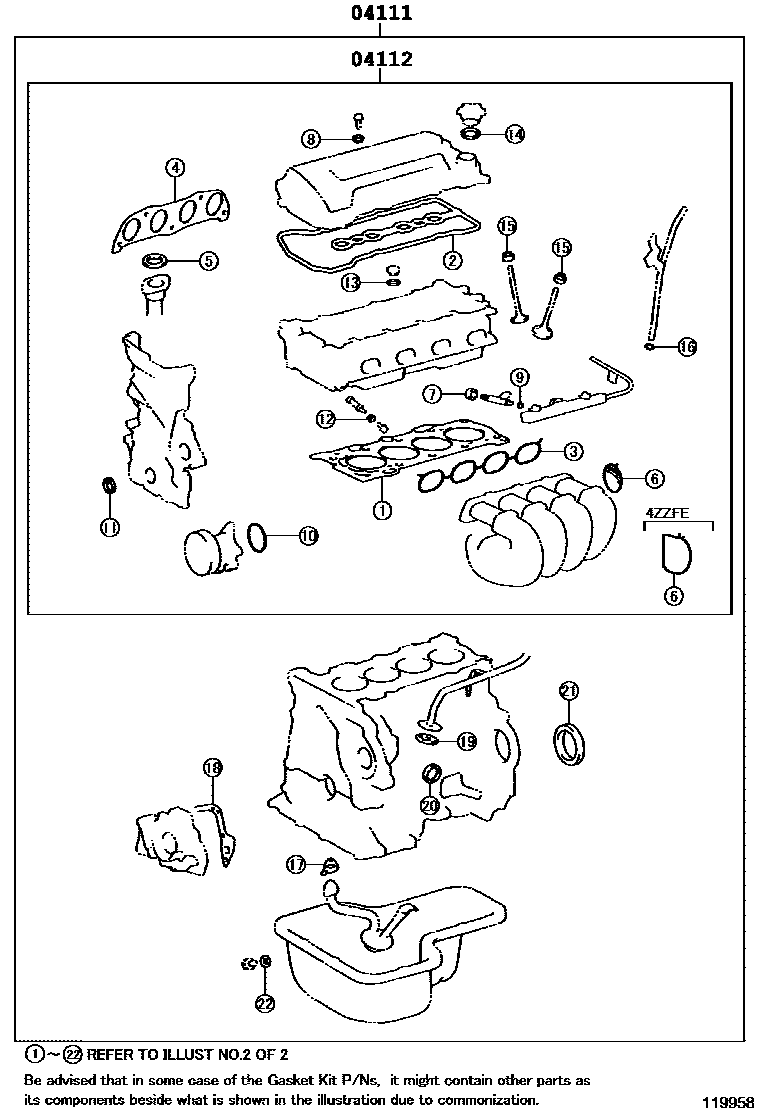

Engine Overhaul Gasket Kit — 119958 (200405 – 999999)

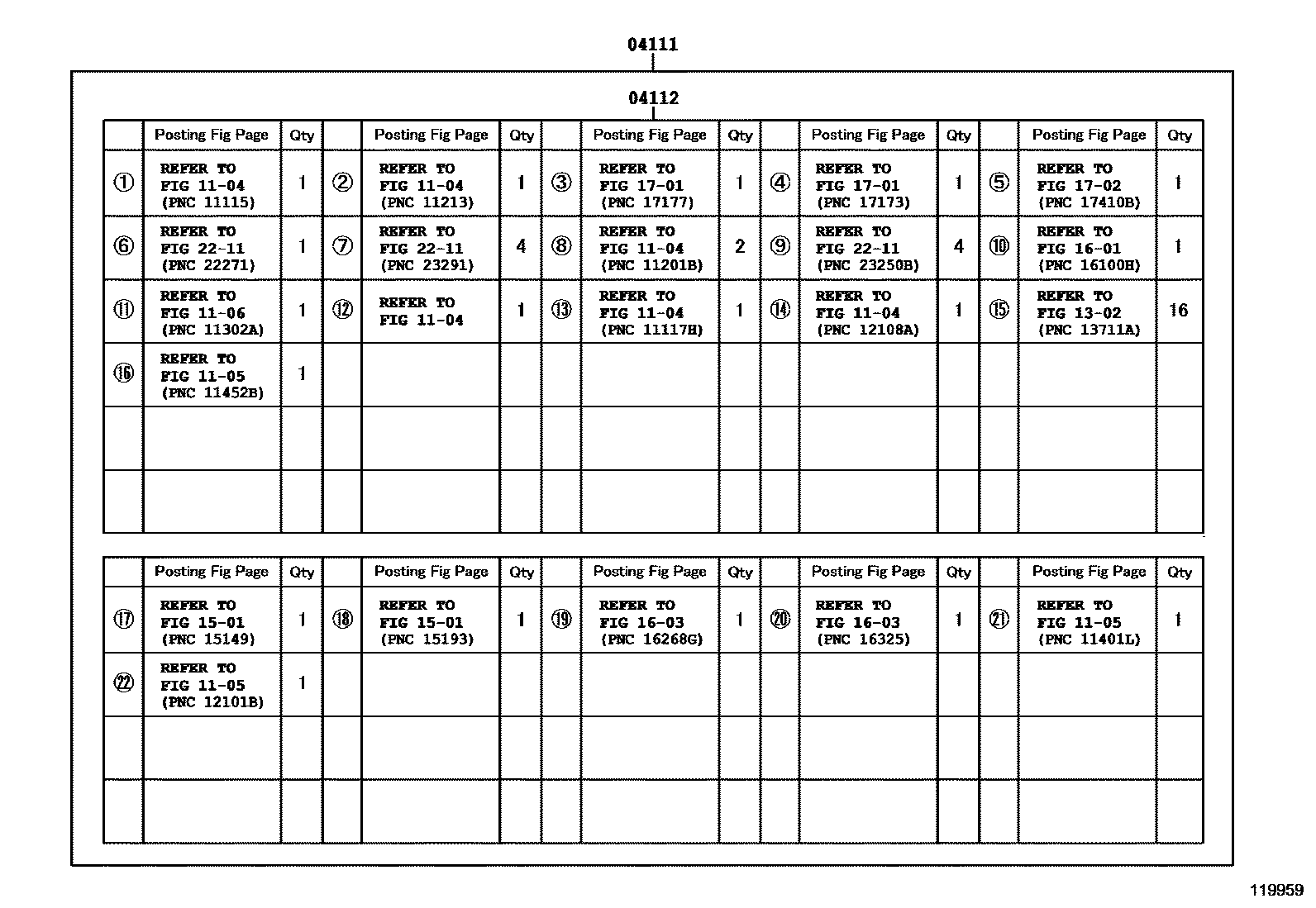

Engine Overhaul Gasket Kit — 119959 (200405 – 999999)

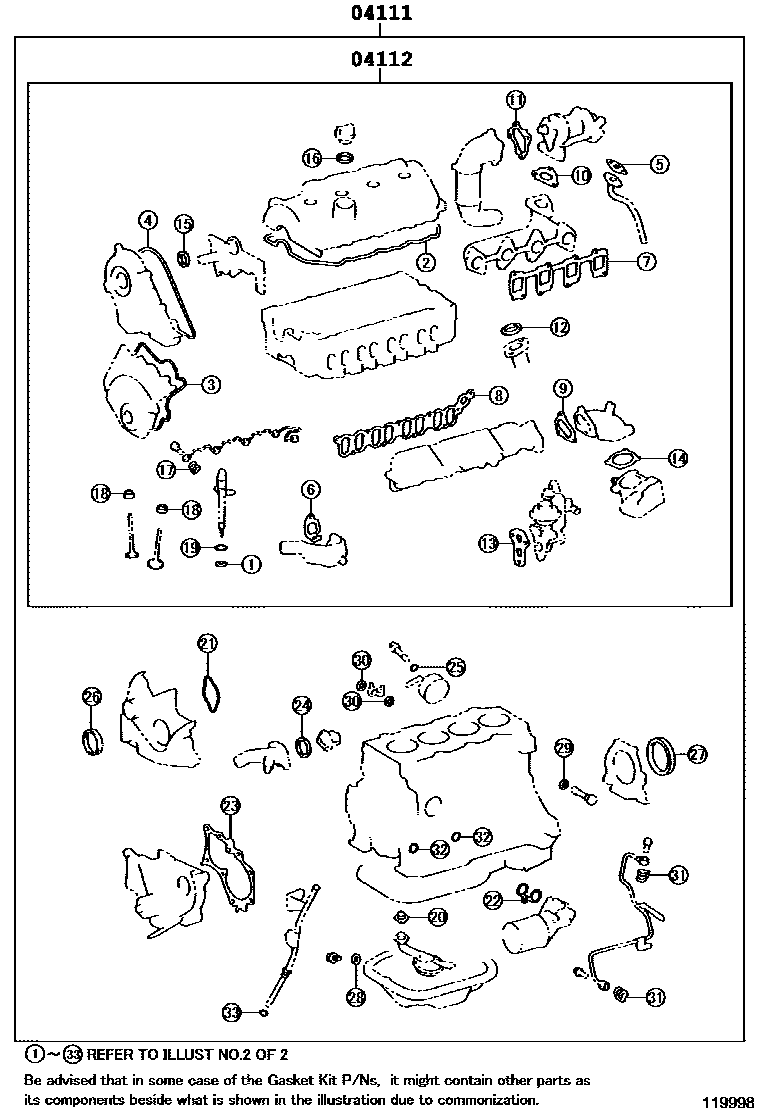

Engine Overhaul Gasket Kit — 119998 (200209 – 999999)

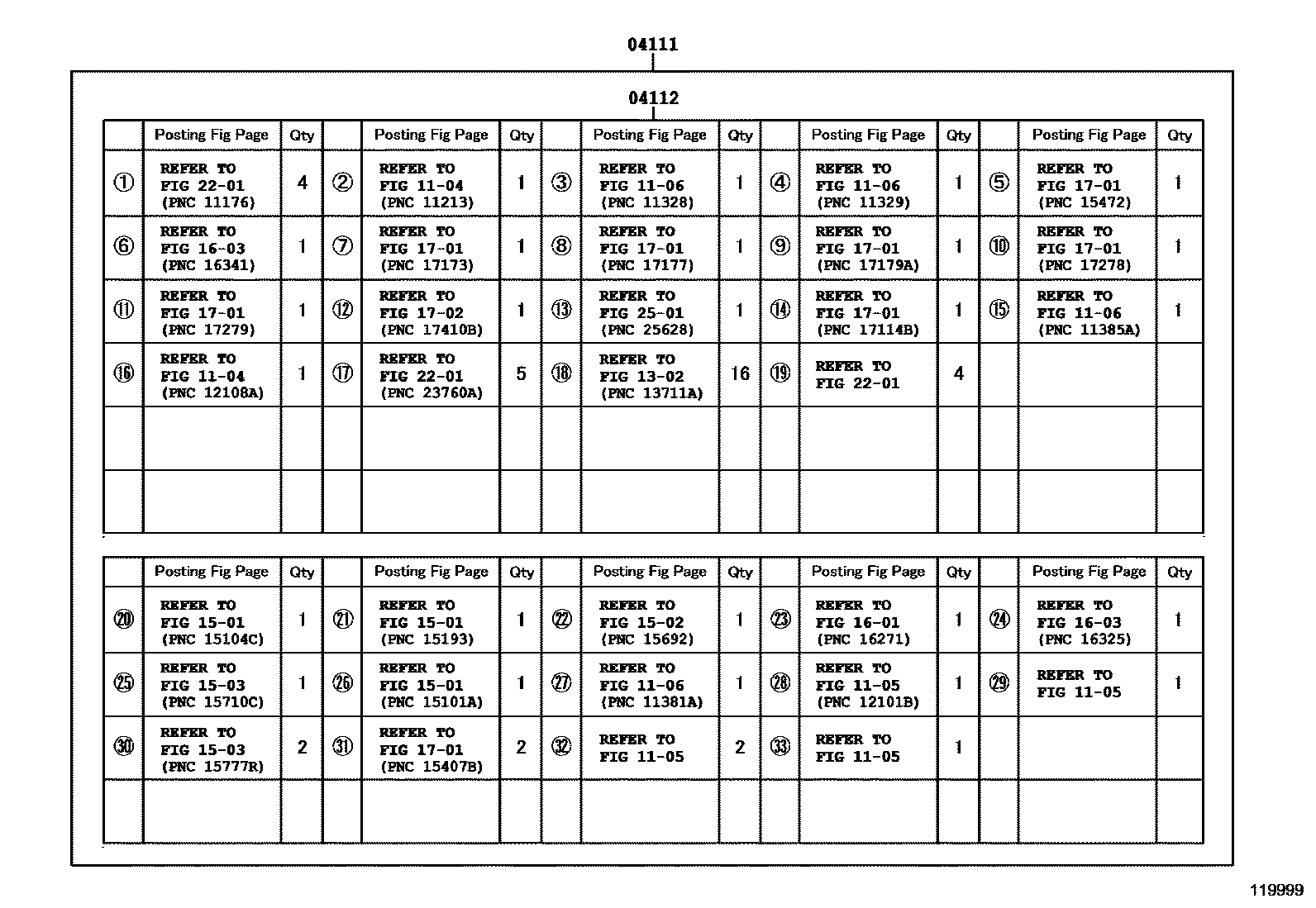

Engine Overhaul Gasket Kit — 119999 (200209 – 999999)PNC and OE references
| PNC | Part name | OE numbers |
|---|
| 04111 | Engine overhaul gasket assembly | 04111-22081 · 04111-22082 · 04111-22690 · 04111-22700 · 04111-27100 · 04111-33090 |
| 04112 | Engine valve grinding pad assembly | 04112-22081 · 04112-22082 · 04112-22610 · 04112-22620 · 04112-27090 · 04112-33090 |
