Toyota COROLLA Heating & Air Conditioning - Compressor — Figure 8719

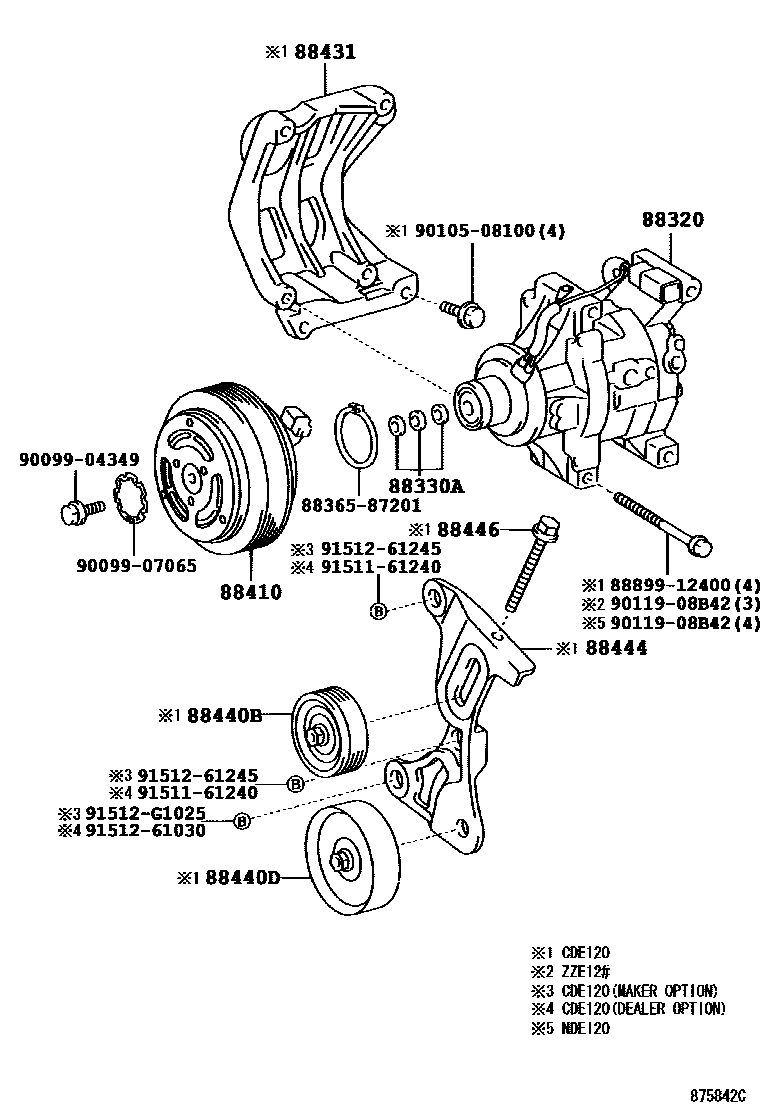

Toyota COROLLA EPC diagram 8719, Heating & Air Conditioning - Compressor, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88320 | Cooler Compressor Assembly | 88320-1A481 · 88320-1A550 · 88320-52420 |
| 88330A | Washer (for electromagnetic clutch) | 88335-14020 |
| 88410 | Magnetic Clutch Assembly | 88410-13010 · 88410-13020 · 88410-13030 · 88410-1A220 · 88410-1A260 · 88410-1A290 · 88410-1A330 |
| 88431 | Compressor No. 1 mounting bracket | 88431-13010 |
| 88440B | Idler gear assembly | 88440-12230 · 88440-12260 |
| 88440D | No. 2 idler gear assembly | 88440-12250 |
| 88444 | Idler gear bracket | 88444-12060 |
| 88446 | Idler gear bolt | 88446-12030 |
