Toyota COROLLA 暖风和空调系统 - 冷却器组件 — Figure 8714

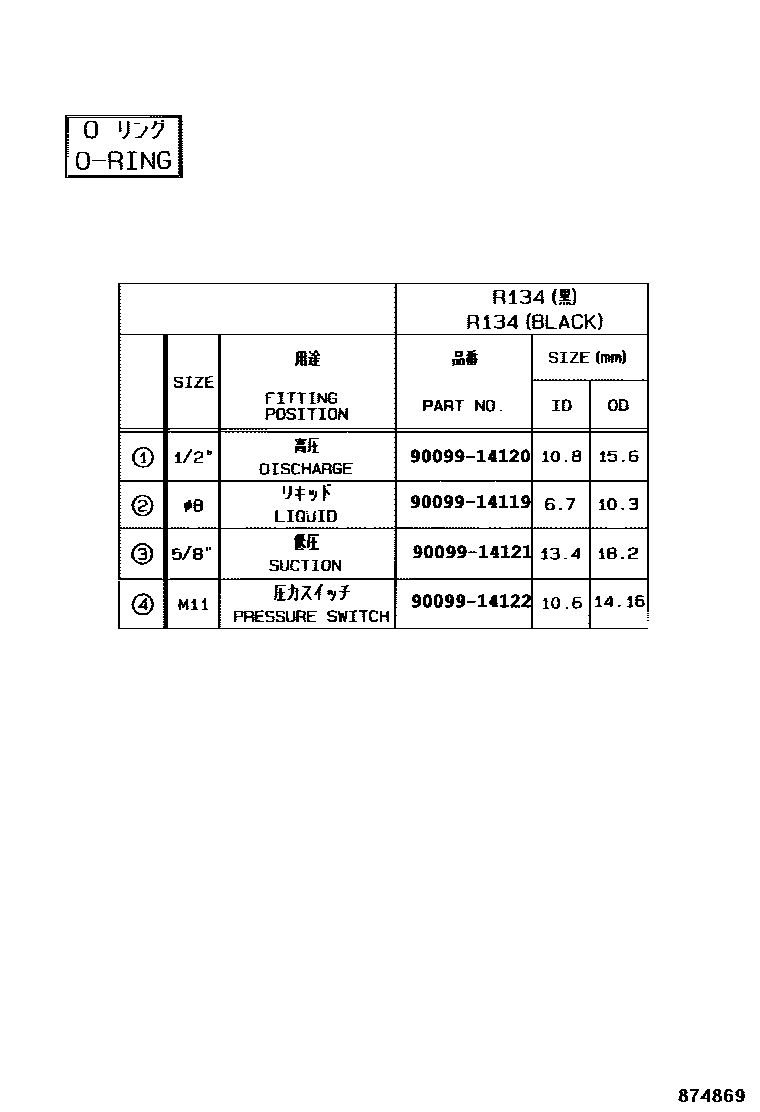

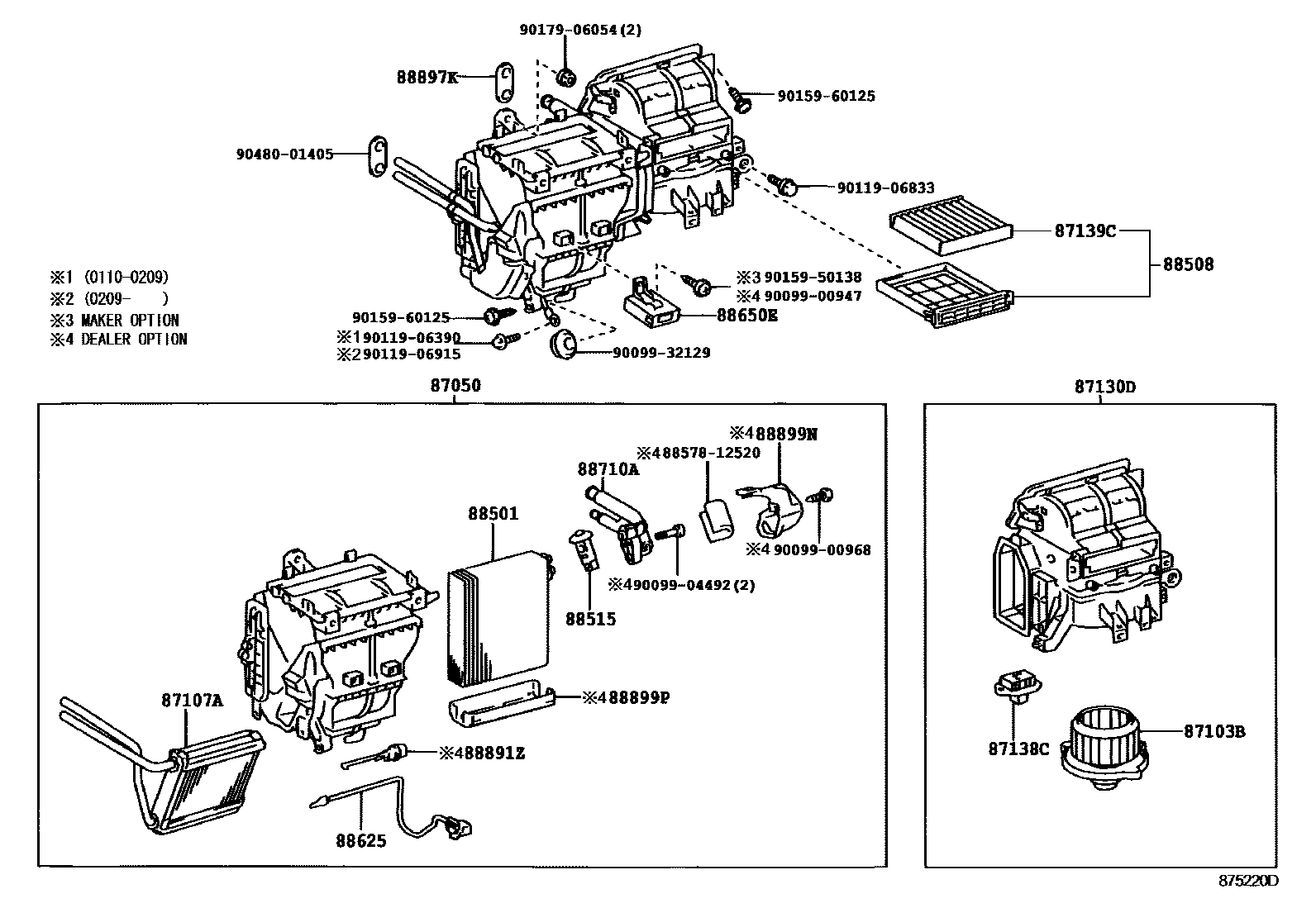

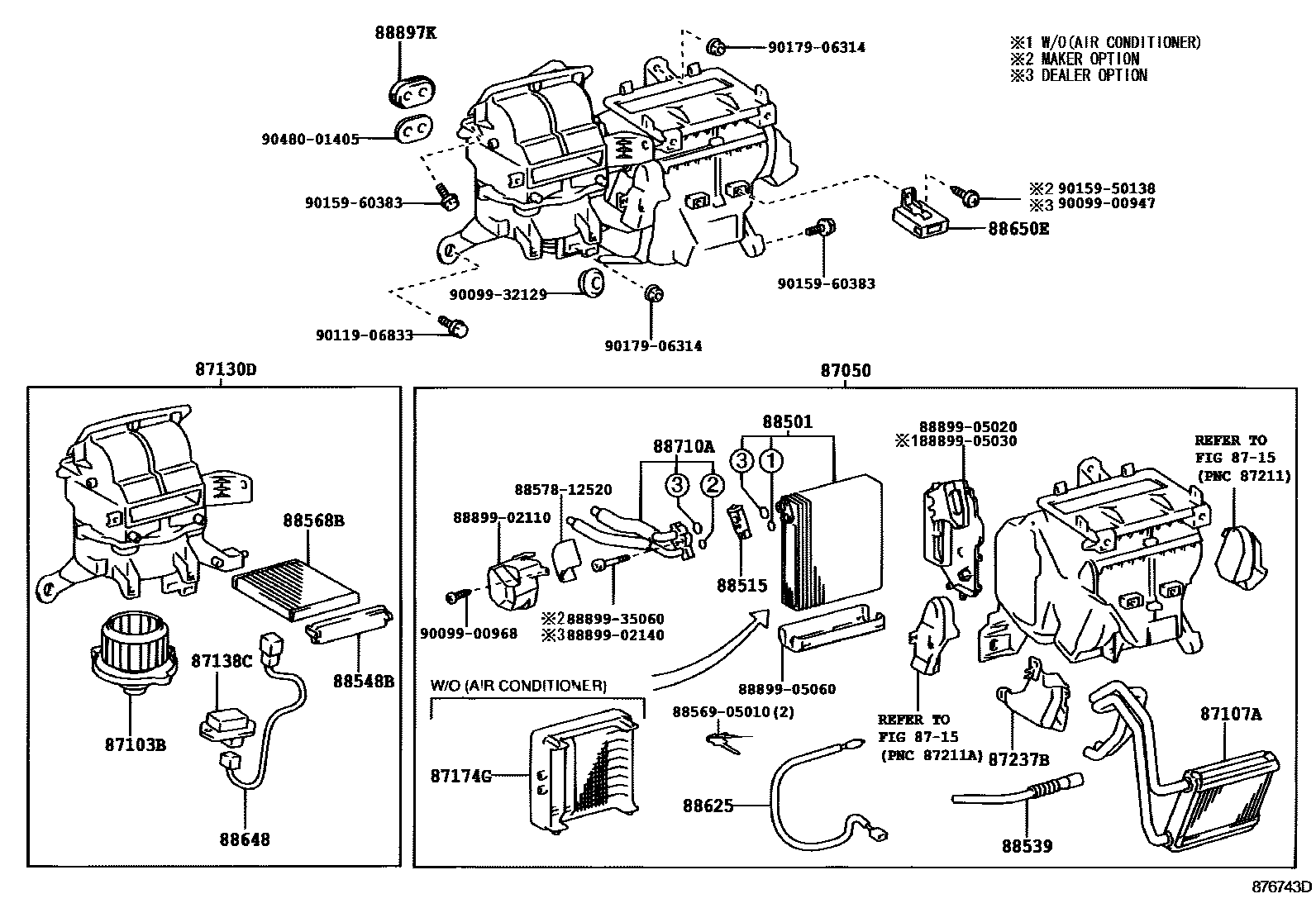

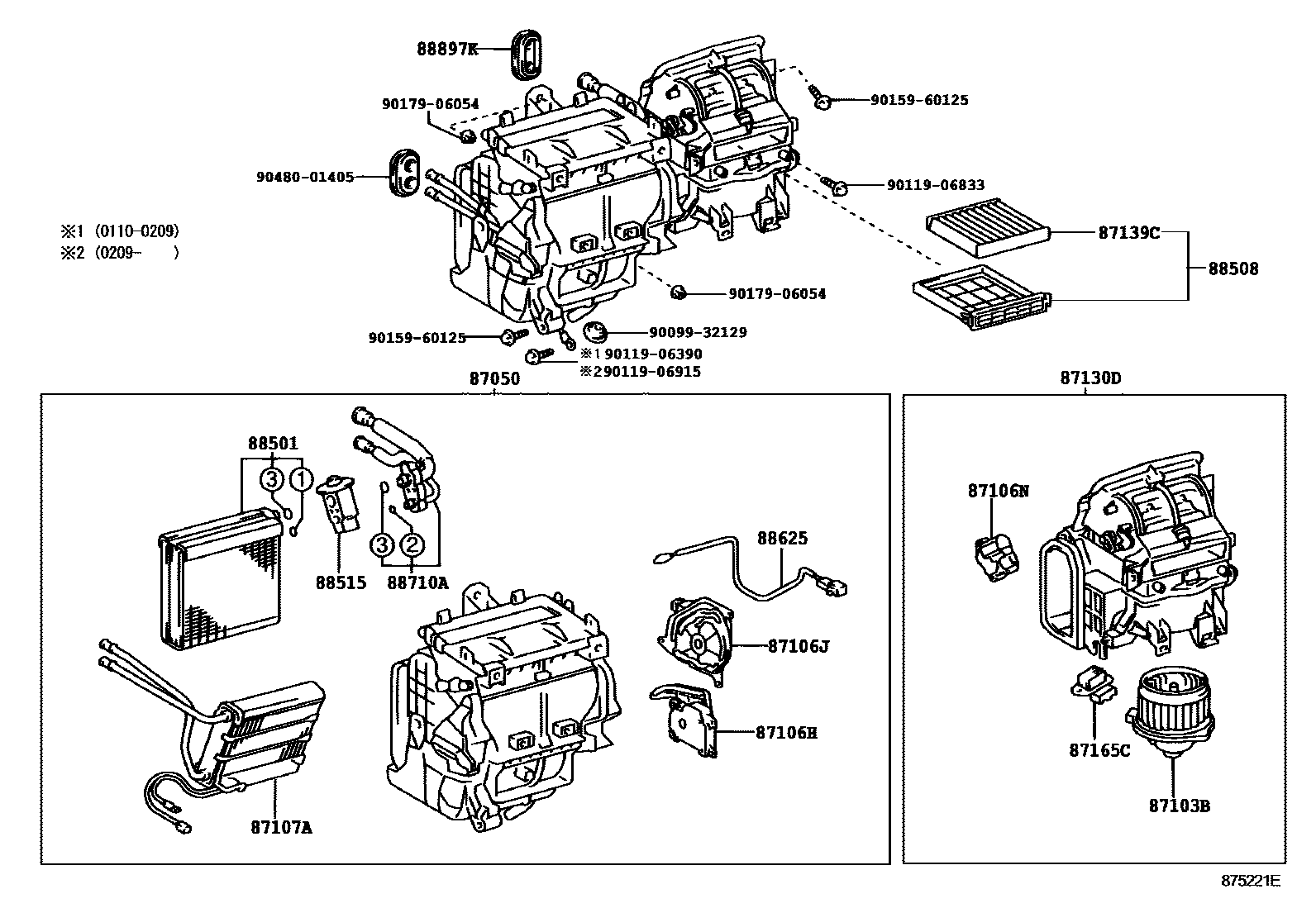

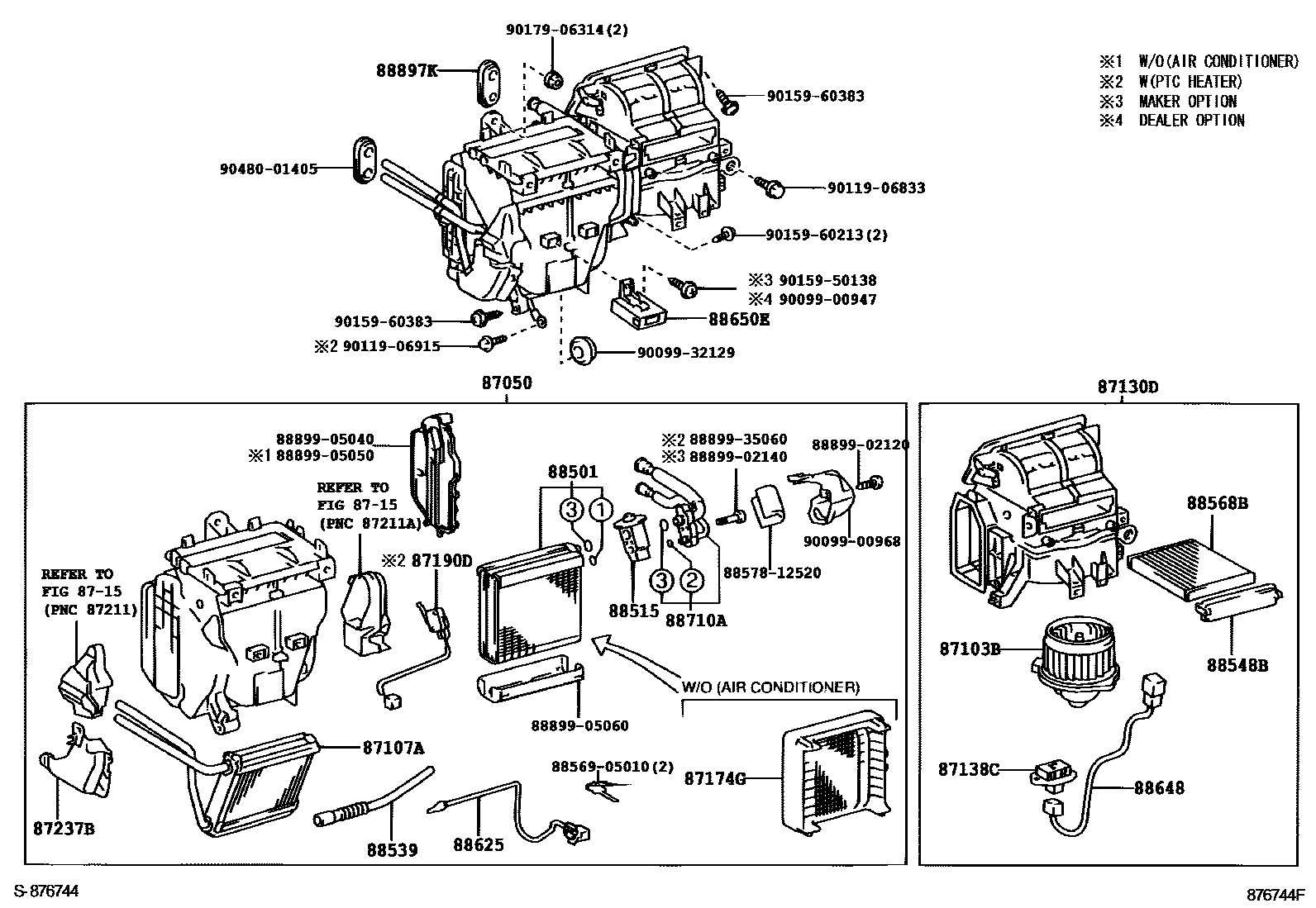

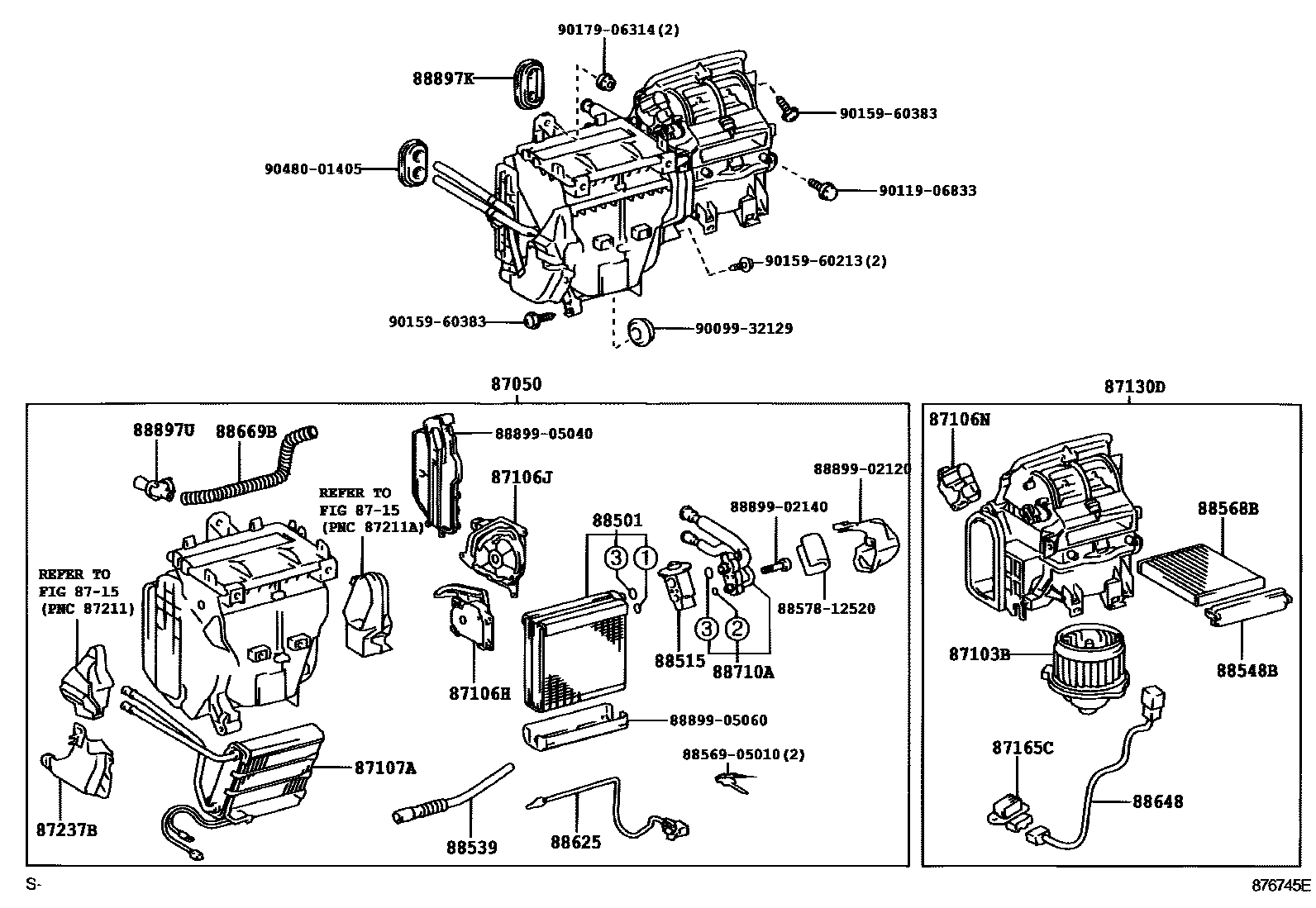

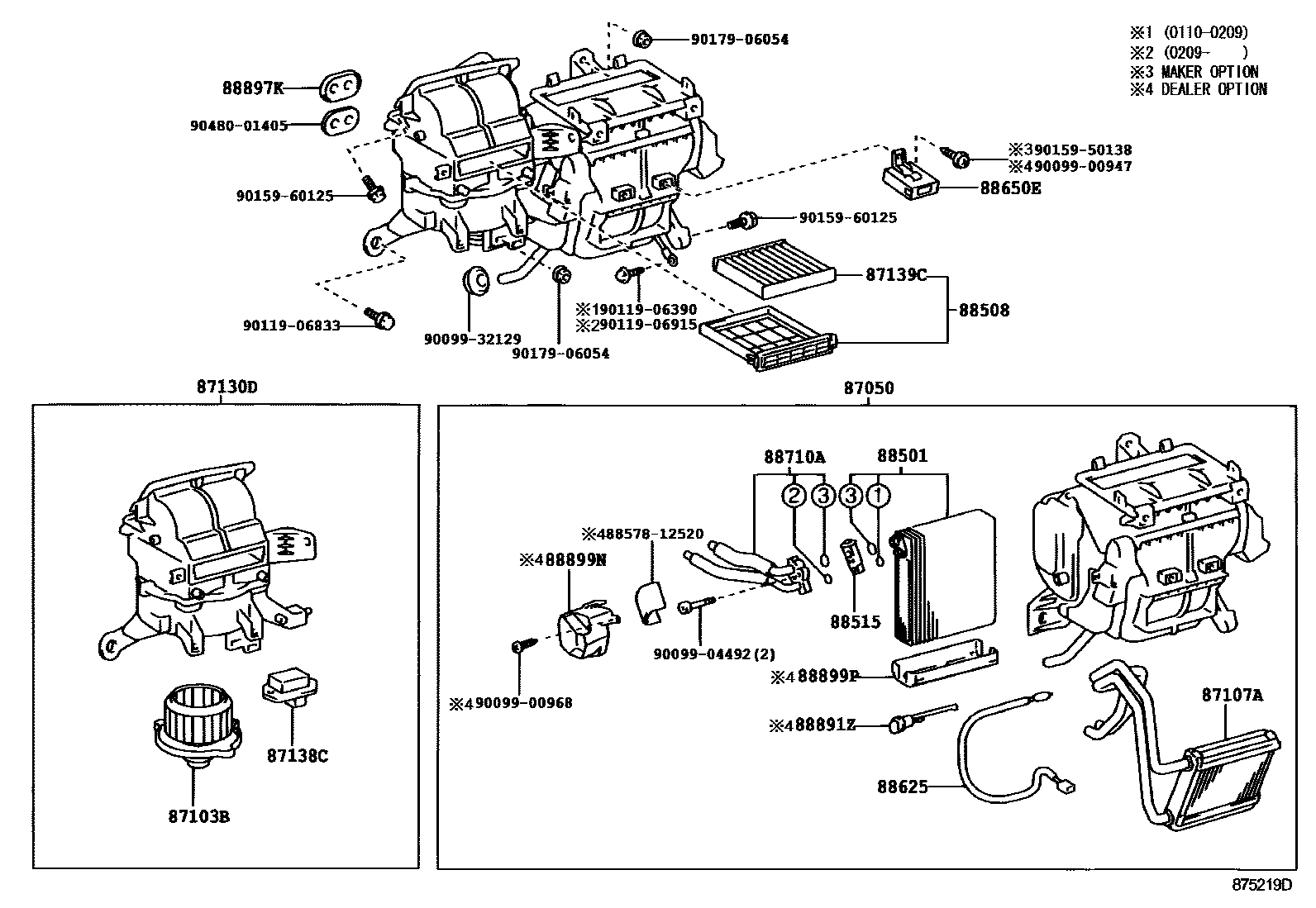

Toyota COROLLA EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 7 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87050 | Air conditioning radiator assembly | 87050-02520 · 87050-02540 · 87050-02580 · 87050-02590 · 87050-02600 · 87050-02610 · 87050-02620 · 87050-02640 · 87050-02650 · 87050-02660 · 87050-12200 · 87050-12220 · 87050-13010 · 87050-13020 · 87050-13060 · 87050-13070 · 87050-13080 · 87050-13090 · 87050-13100 · 87050-13110 · 87050-13120 · 87050-13130 · 87050-13140 |
| 87103B | Blower motor sub-assembly with fan | 87103-02070 · 87103-02080 · 87103-12050 · 87103-12070 |
| 87106H | Damper servo mechanism sub-assembly (for air mixing) | 87106-02030 · 87106-12130 · 87106-12131 |
| 87106J | Damper servo mechanism sub-assembly (for mode) | 87106-02040 · 87106-12140 |
| 87106N | Damper servo mechanism sub-assembly (for recirculation) | 87106-02070 · 87106-13010 |
| 87107A | Heater radiator device sub-assembly | 87107-02140 · 87107-05090 · 87107-05100 · 87107-12550 · 87107-12560 · 87107-13010 · 87107-13020 |
| 87130D | Blower assembly | 87130-02100 · 87130-02190 · 87130-02200 · 87130-12440 · 87130-12460 · 87130-13020 |
| 87138C | Blower resistor | 87138-02040 · 87138-20350 · 87138-20360 |
| 87139C | air purification filter | 88568-13010 |
| 87165C | Blower motor control device | 87165-13010 |
| 87174G | Air heater deflector | 87174-02020 |
| 87190D | Temperature control switch assembly | 87190-02020 |
| 87237B | Heater connection cover | 87237-02020 · 87237-05050 |
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-05070 · 88501-05080 · 88501-12440 · 88501-12450 |
| 88508 | Air purification filter sub-assembly | 88508-13010 |
| 88515 | Cooler expansion valve | 88515-02091 · 88515-27020 · 88515-28160 · 88515-48040 |
| 88539 | No. 1 Cooler Unit Drain Hose | 88539-02070 |
| 88548B | air filter housing | 88548-02040 |
| 88568B | Air Cleaner | 88568-02030 |
| 88625 | Cooler No. 1 Thermistor | 88625-02060 · 88625-52090 · 88625-60140 |
| 88648 | No. 1 cooler wiring harness | 88648-02120 · 88648-02240 · 88648-02260 |
| 88650E | No. 1 air conditioning amplifier assembly | 88650-02351 · 88650-0W010 · 88650-1E410 · 88650-1E630 |
| 88669B | Cooler air hose | 88669-02040 |
| 88710A | Air conditioning pipe assembly | 88710-05360 · 88710-05380 · 88710-12540 · 88710-12550 |
| 88891Z | Cooler thermistor bracket | 88891-32100 |
| 88897K | Seals (for cooler tubes) | 90480-01434 |
| 88897U | aspirator tube | 88897-02180 |
| 88899N | Cover plate | 88899-12430 · 88899-12440 |
| 88899P | Cover plate | 88899-12450 |
