Toyota COROLLA antenna — Figure 8604

Toyota COROLLA EPC diagram 8604, antenna, with 2 images and 6 PNC and OE references.

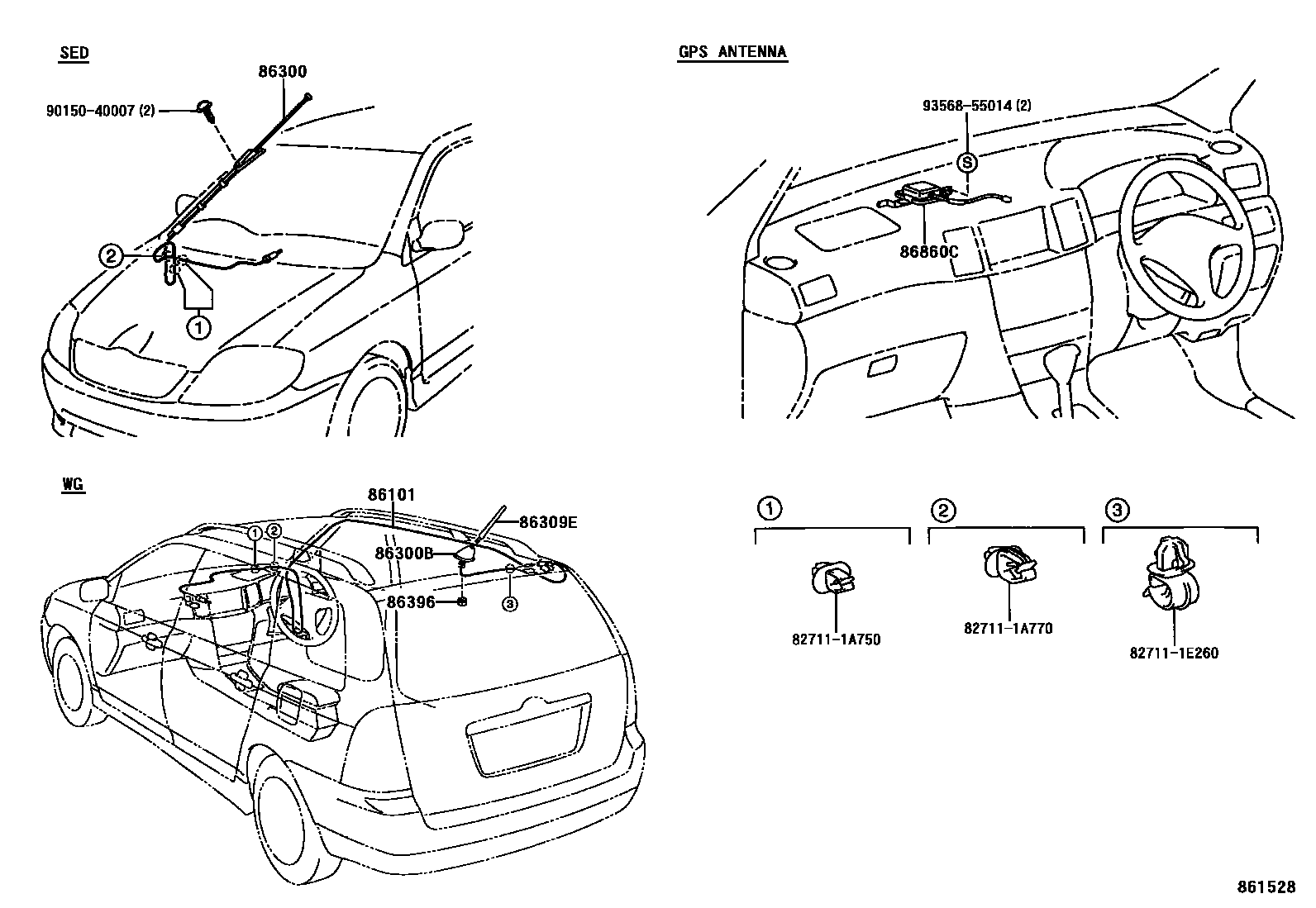

Toyota COROLLA antenna EPC diagram — 861528
antenna — 861528 (200110 – 200405)

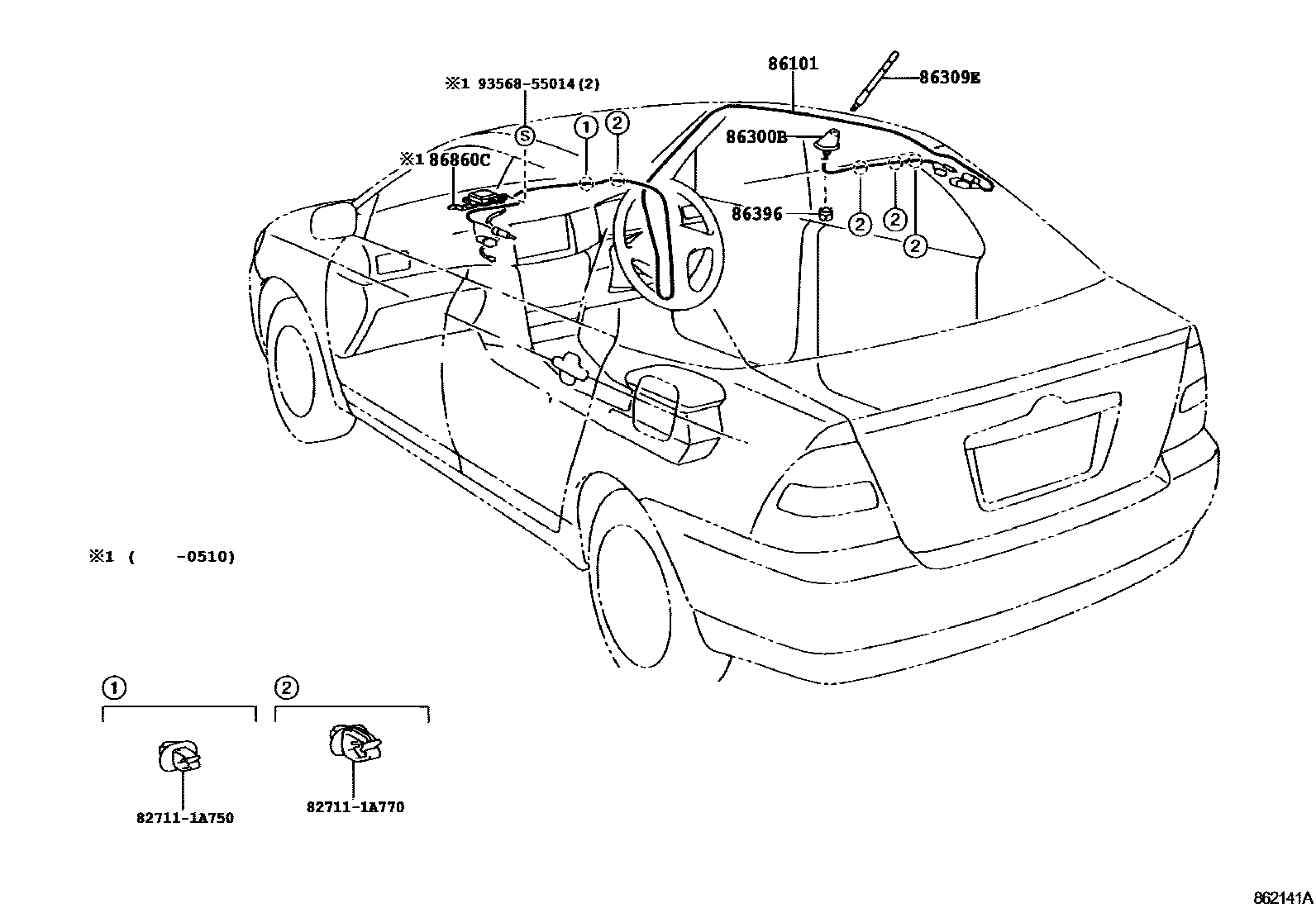

Toyota COROLLA antenna EPC diagram — 862141A
antenna — 862141A (200405 – 999999)

PNC and OE references

PNCPart nameOE numbers
86101Antenna wire sub-assembly86101-12330 · 86101-12390
86300Antenna assembly with fixing parts86300-12720
86300BAmplifier antenna assembly86300-12790 · 86300-12830
86309ERoof antenna sub-assembly86309-13010
86396Antenna nut86396-12030
86860CNavigation antenna assembly86860-12030 · 86860-13030
