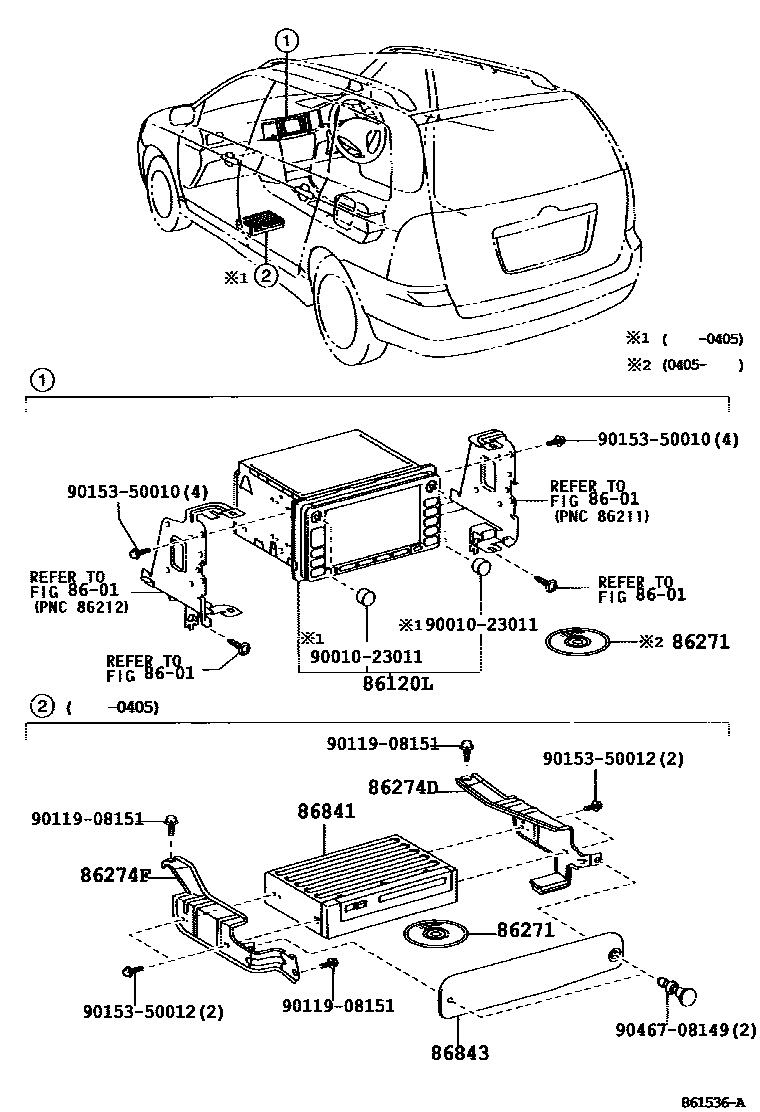

Toyota COROLLA 导航和前监视器显示屏 — Figure 8603
Toyota COROLLA EPC diagram 8603, 导航和前监视器显示屏, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86120L | Navigation receiver assembly | 86120-1A200 · 86120-33420 · 86120-33421 |
| 86271 | CD | 86271-24120 · 86271-24121 · 86271-24122 · 86271-24123 · 86271-64011 · 86271-64012 |
| 86274D | CD player stand | 86274-13050 |
| 86274F | No. 2 CD player stand | 86274-13060 |
| 86841 | Navigation ECU | 86841-13020 |
| 86843 | Navigation ECU cover | 86843-32010 |
