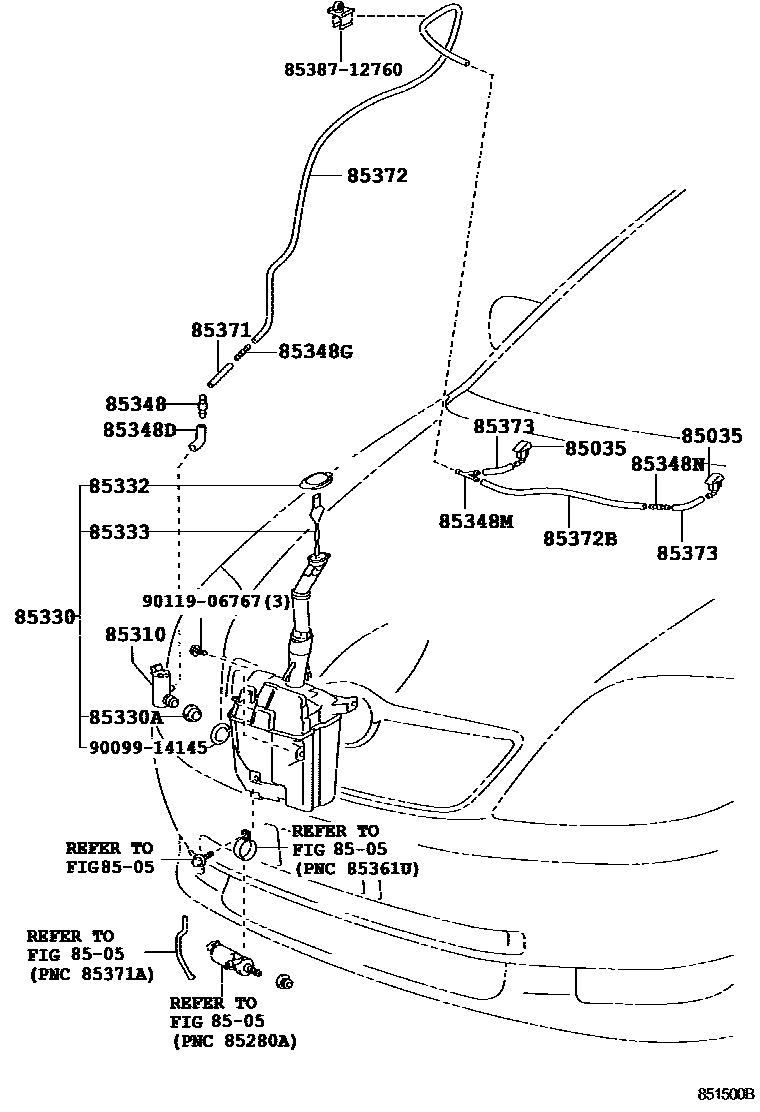

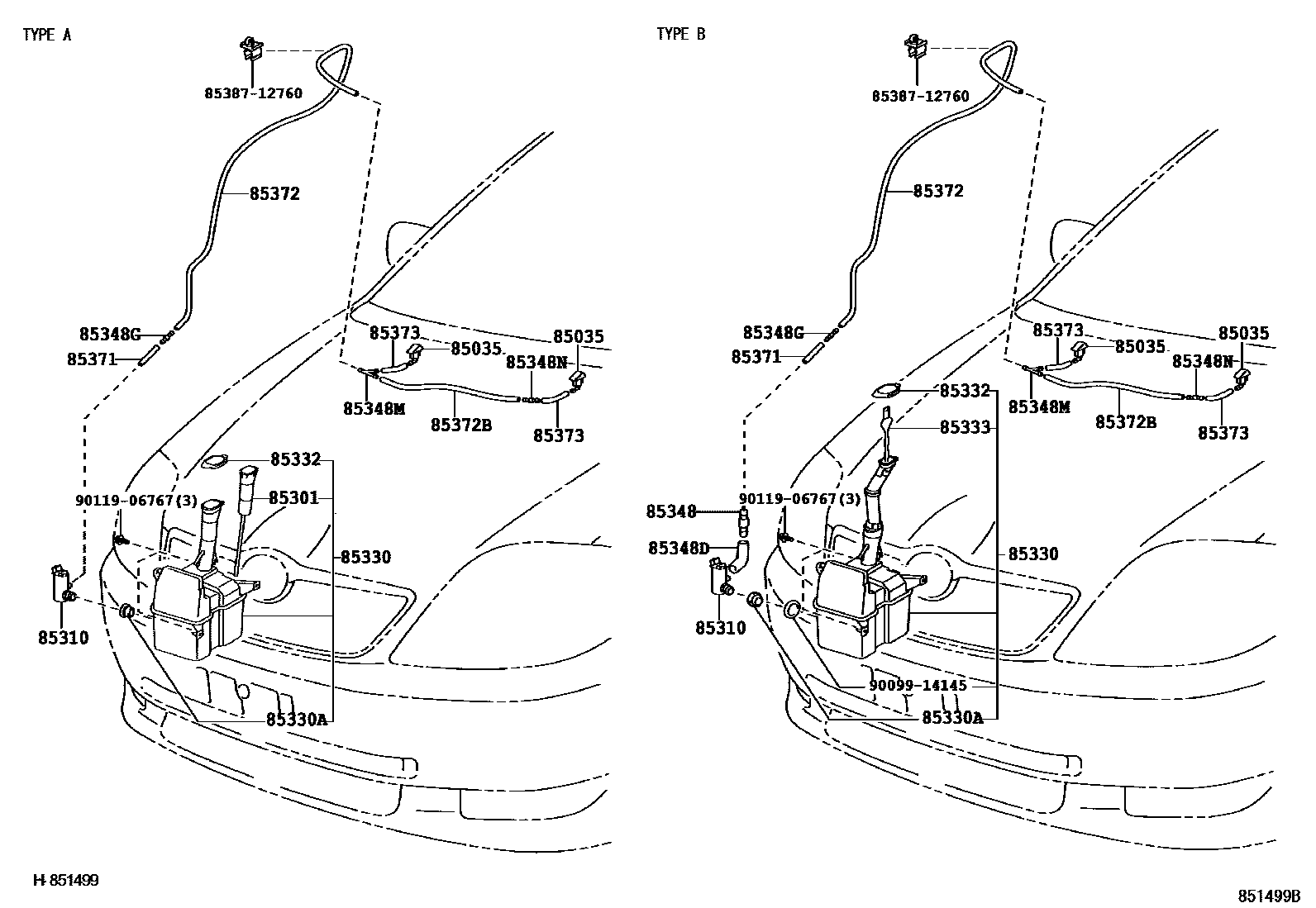

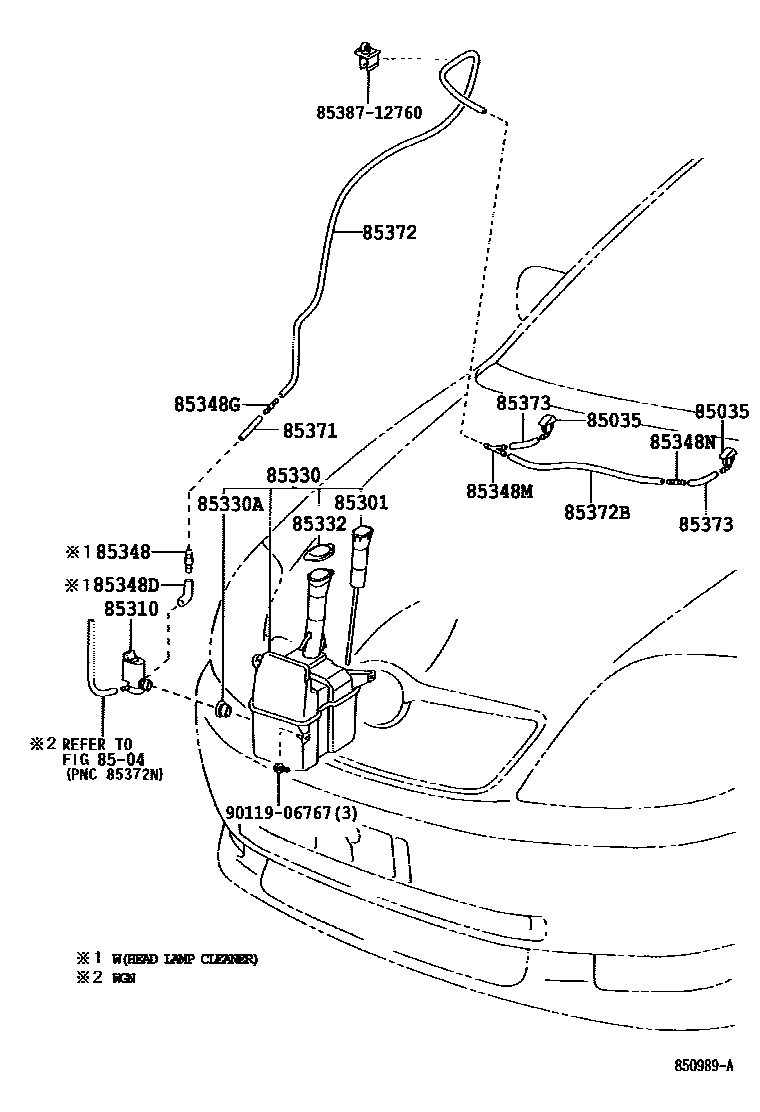

Toyota COROLLA 挡风玻璃清洗器 — Figure 8503
Toyota COROLLA EPC diagram 8503, 挡风玻璃清洗器, with 3 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85035 | Cleaner nozzle sub-assembly | 85381-12210 |
| 85301 | Cleaner water inlet sub-assembly | 85313-02010 · 85318-12450 · 85318-13020 |
| 85310 | Windshield washer motor and pump assembly | 85330-33020 · 85330-44010 |
| 85330 | Windshield washer fluid tank assembly | 85315-02070 · 85315-12500 · 85315-13020 · 85315-13030 · 85355-12100 |
| 85330A | Windshield washer fluid tank bushing | 90099-32089 |
| 85332 | Windshield washer fluid tank cap | 85316-02070 · 85316-42011 |
| 85333 | Windshield washer fluid tank filter | 85312-21020 · 85312-48010 |
| 85348 | Windshield washer hose connector No. 1 | 85375-10260 |
| 85348D | No. 1 windshield washer elbow joint | 85355-16192 |
| 85348G | Windshield washer hose connector No. 2 | 85349-89122 |
| 85348M | No. 3 windshield washer hose connector | 85348-14390 |
| 85348N | No. 4 windshield washer hose connector | 85349-89122 |
