Toyota COROLLA 挡风玻璃刮水器 — Figure 8501

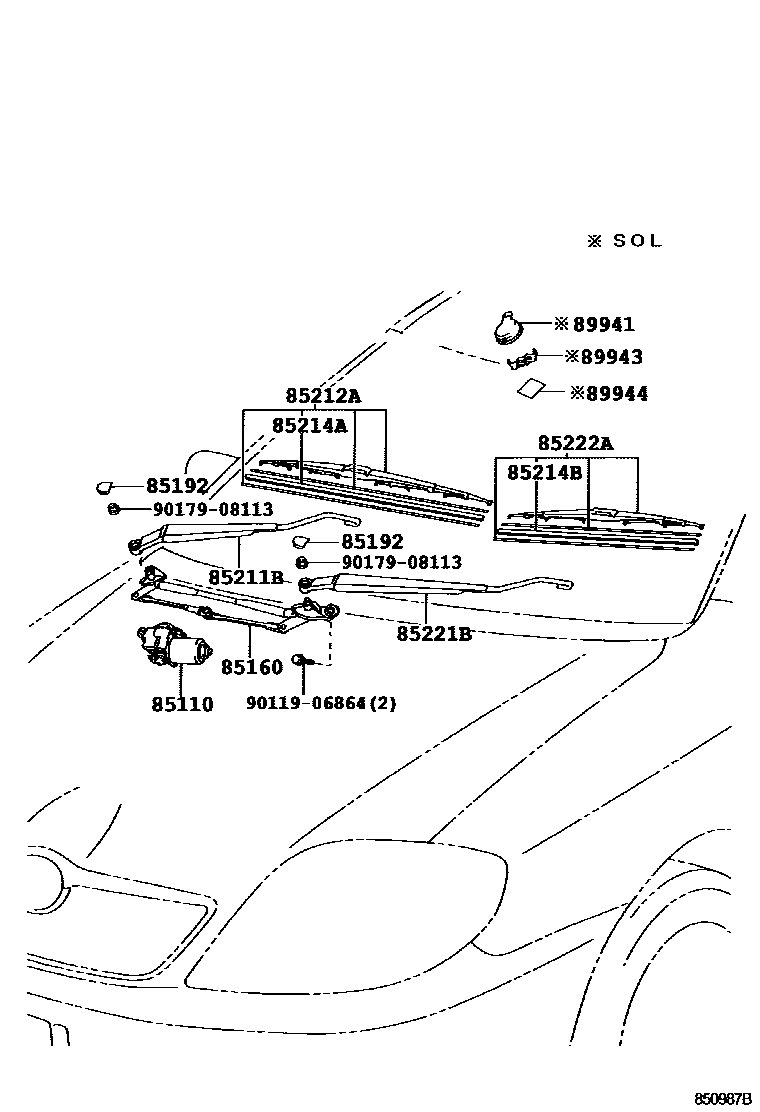

Toyota COROLLA EPC diagram 8501, 挡风玻璃刮水器, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85110 | Windshield wiper motor assembly | 85110-1A040 · 85110-1A050 |
| 85160 | Windshield wiper connecting rod assembly | 85150-1A020 · 85150-1A030 |
| 85192 | windshield wiper arm cover | 85292-12020 |
| 85211B | Right front wiper arm | 85211-12400 · 85211-12410 · 85211-12470 |
| 85212A | Right front wiper blade | 85212-12370 · 85212-12371 · 85212-12390 · 85212-33180 |
| 85214A | Right wiper rubber strip | 85214-50060 · 85214-50061 · 85214-50100 |
| 85214B | Left wiper rubber strip | 85214-50060 · 85214-50061 · 85214-50100 |
| 85221B | Left front wiper arm | 85221-12370 · 85221-12380 · 85221-12420 |
| 85222A | Left front wiper blade | 85222-12780 · 85222-12800 · 85222-12801 · 85222-33200 |
| 89941 | rain sensor | 89941-05010 |
| 89943 | Rain sensor cover | 89943-05010 |
| 89944 | Rain sensor tape | 89944-05010 |
