Toyota COROLLA 防盗装置 — Figure 8424

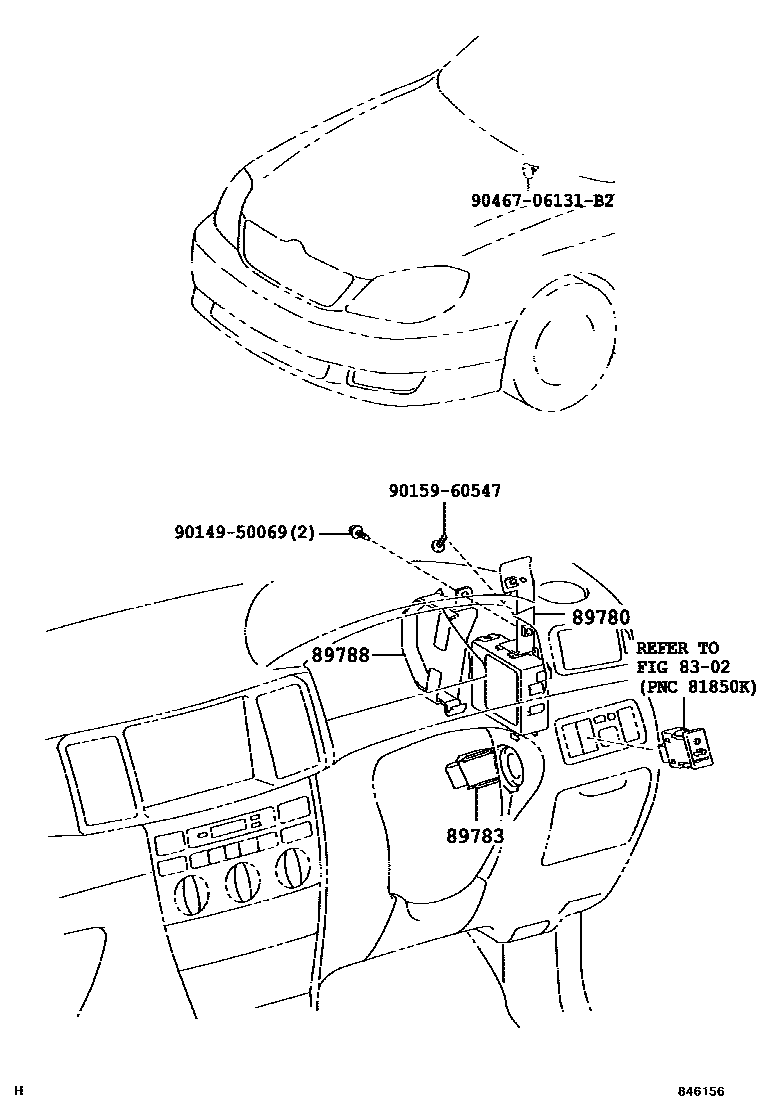

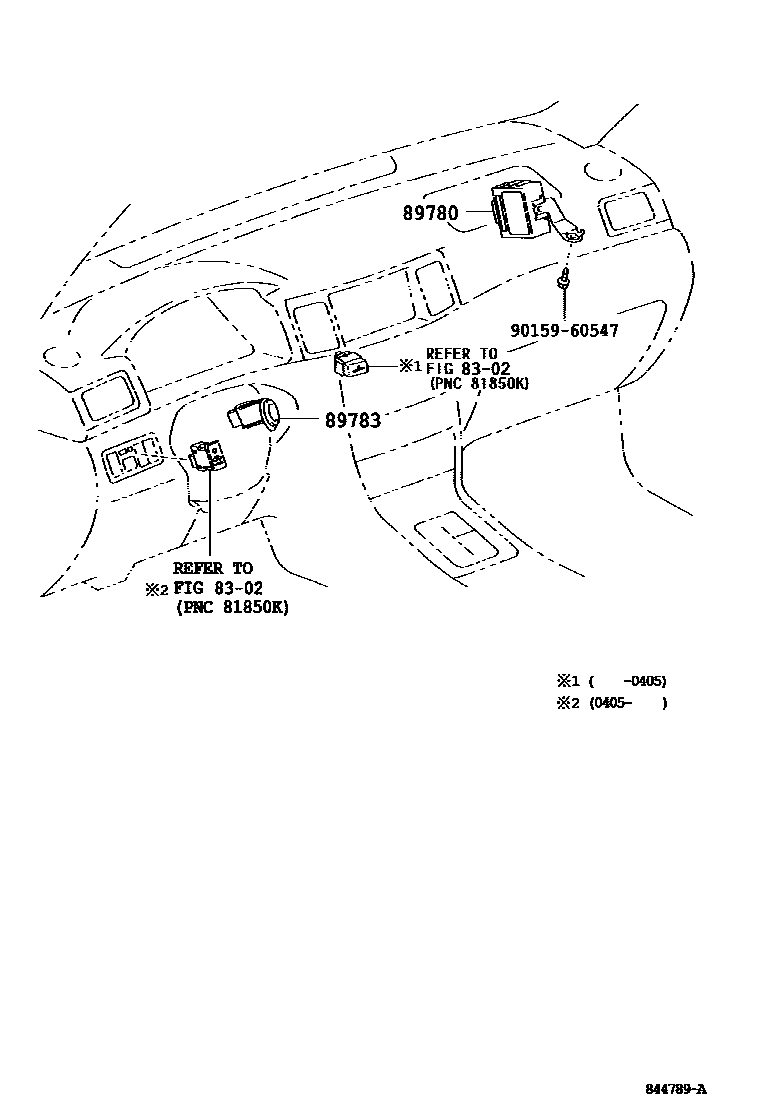

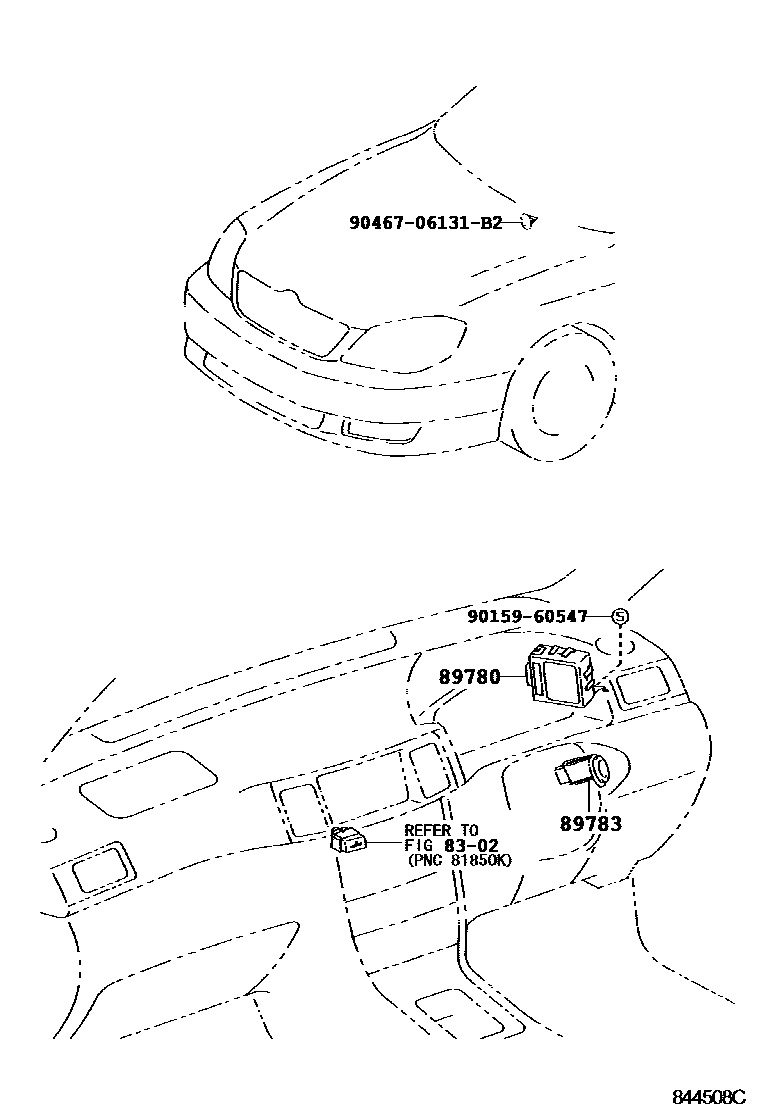

Toyota COROLLA EPC diagram 8424, 防盗装置, with 3 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89780 | Transceiver key ECU assembly | 89780-12130 · 89780-12140 · 89780-12160 |
| 89783 | transceiver key amplifier | 89783-02020 · 89783-52010 |
| 89788 | transceiver key holder | 89788-12010 |
