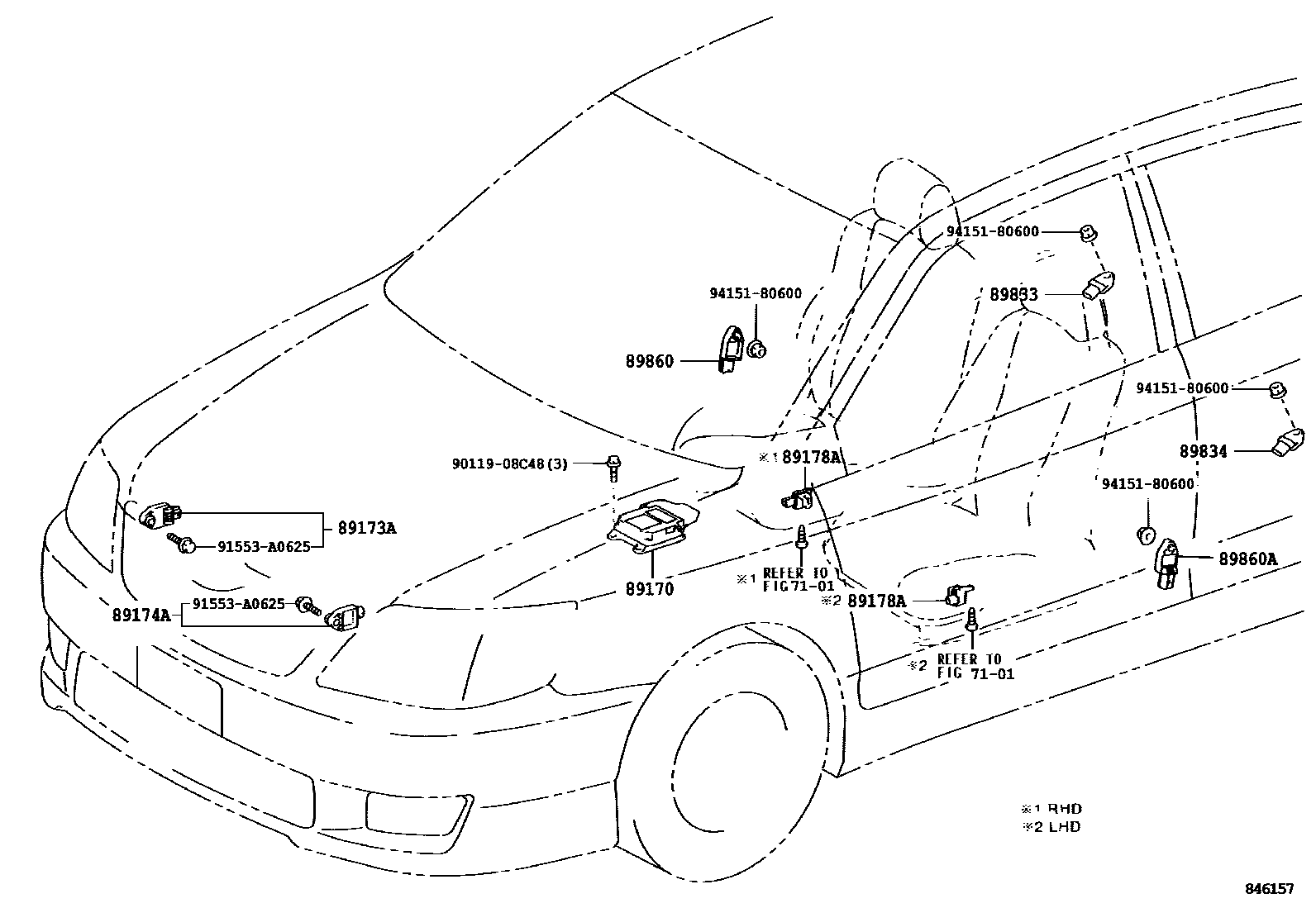

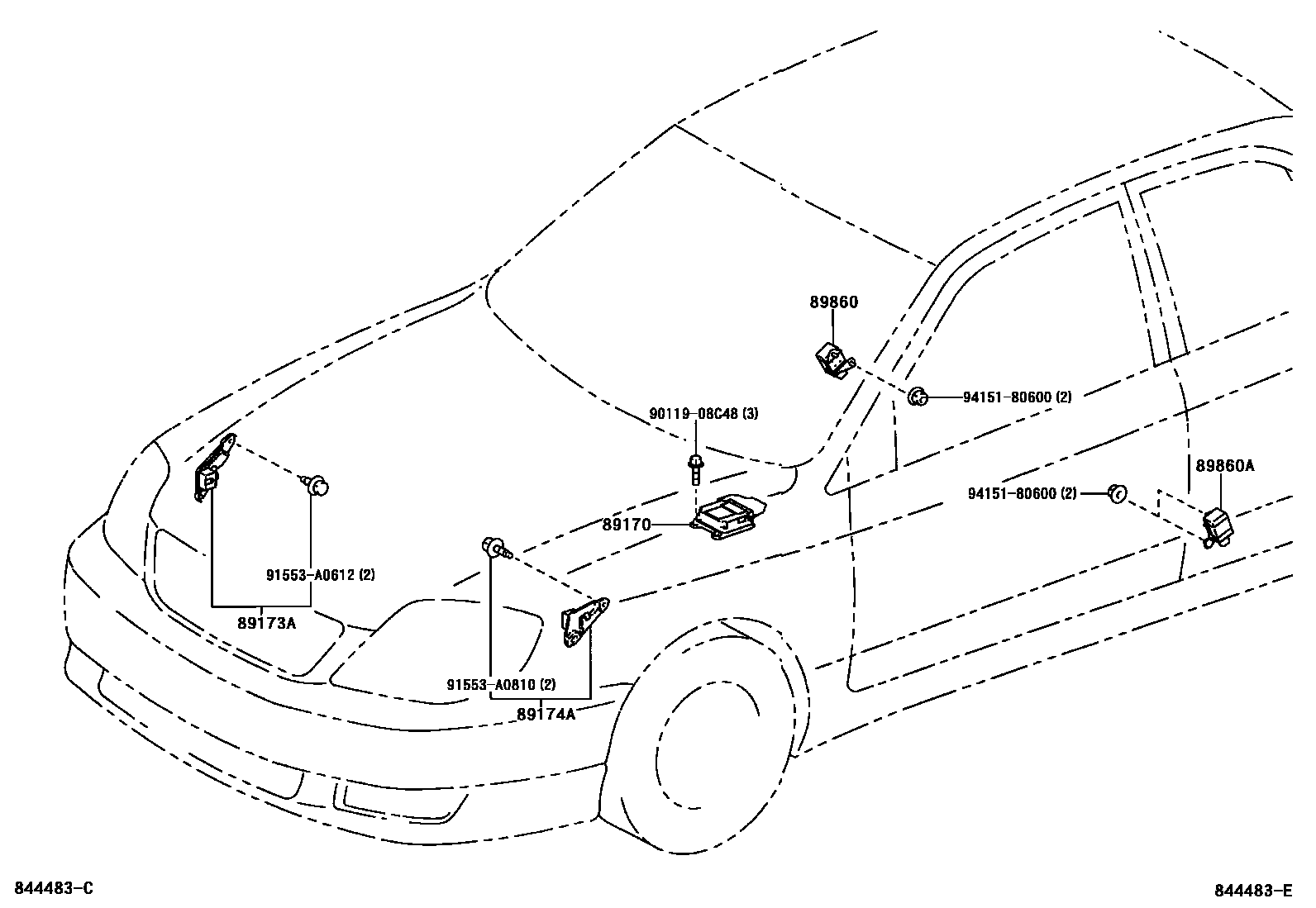

Toyota COROLLA 空气囊 — Figure 8421
Toyota COROLLA EPC diagram 8421, 空气囊, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89170 | air bag sensor assembly | 89170-02380 · 89170-02381 · 89170-02400 · 89170-02401 · 89170-02490 · 89170-02491 · 89170-02510 · 89170-02511 · 89170-12430 · 89170-13030 · 89170-13040 · 89170-13080 |
| 89173A | Right front air bag sensor | 89173-09150 · 89173-19235 · 89173-19275 |
| 89174A | Left front air bag sensor | 89173-09160 · 89174-19045 · 89174-19075 |
| 89178A | Seat position air bag sensor | 89178-06020 · 89178-0W010 |
| 89833 | Right rear air bag sensor | 89831-02050 |
| 89834 | Left rear air bag sensor | 89831-02050 |
| 89860 | Right side airbag sensor assembly | 89831-02020 · 89860-13020 |
| 89860A | Left side air bag sensor assembly | 89830-13020 · 89831-02020 |
