Toyota COROLLA 后牌照灯 — Figure 8113

Toyota COROLLA EPC diagram 8113, 后牌照灯, with 3 images and 5 PNC and OE references.

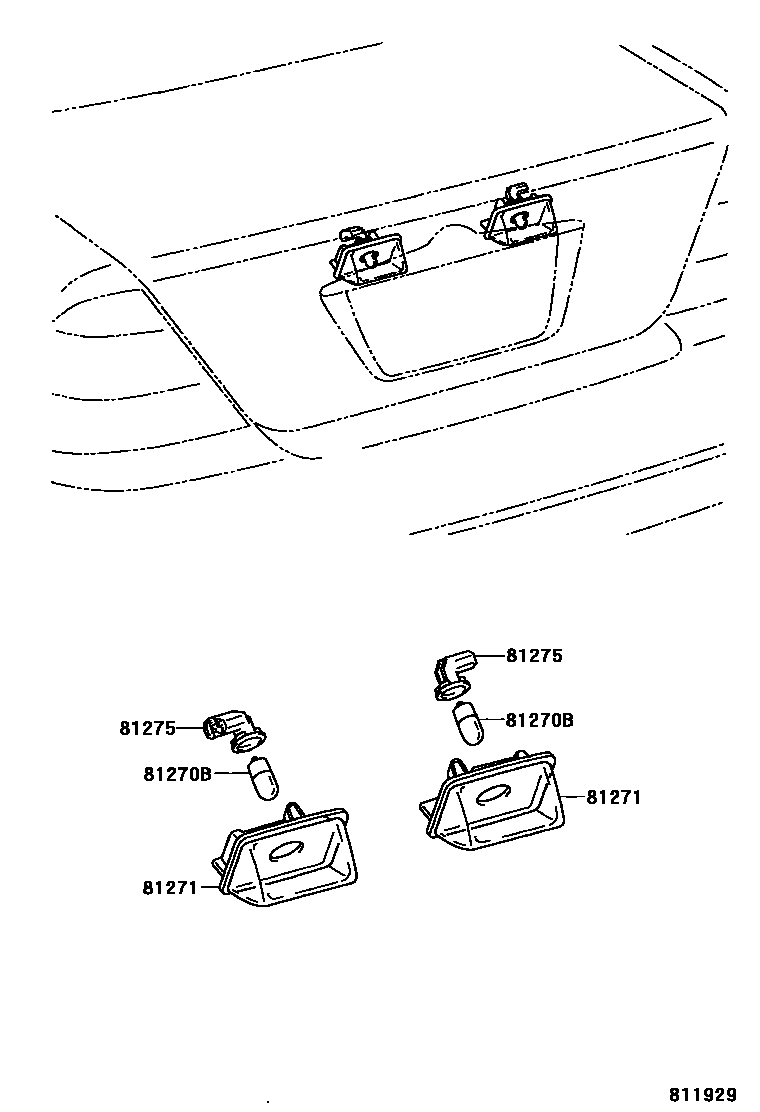

Toyota COROLLA 后牌照灯 EPC diagram — 811929
后牌照灯 — 811929 (200110 – 200405)

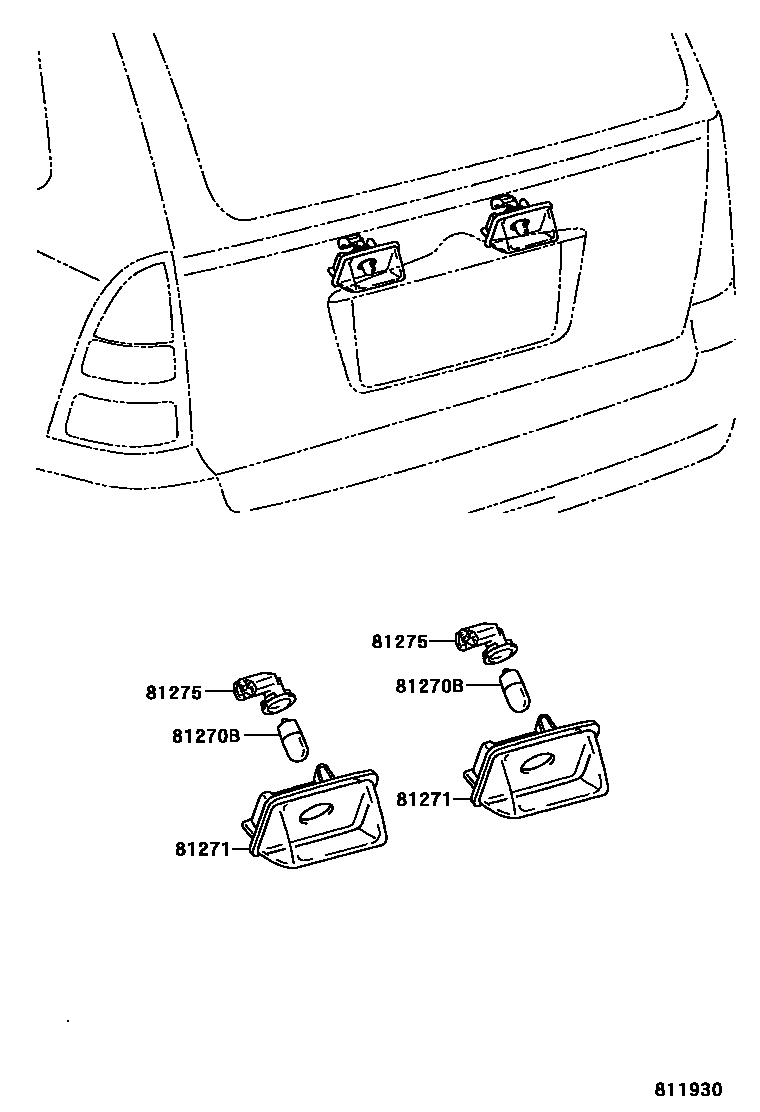

Toyota COROLLA 后牌照灯 EPC diagram — 811930
后牌照灯 — 811930 (200110 – 200405)

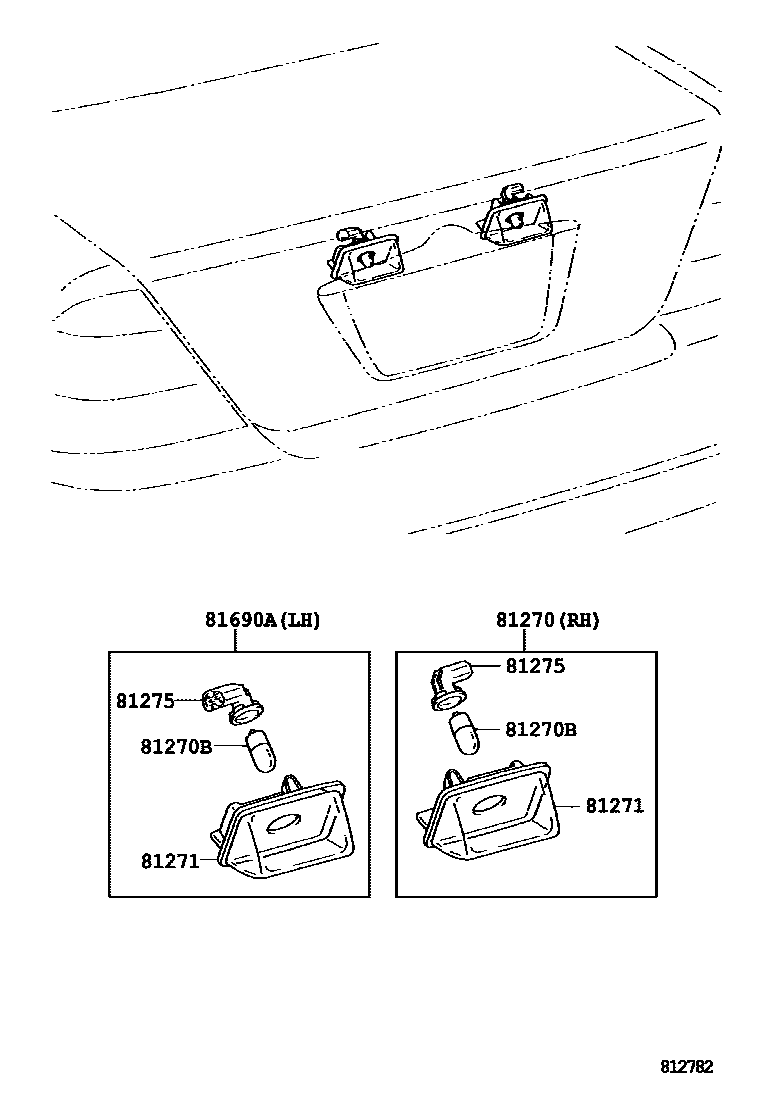

Toyota COROLLA 后牌照灯 EPC diagram — 812782
后牌照灯 — 812782 (200405 – 999999)

PNC and OE references

PNCPart nameOE numbers
81270License plate light assembly81270-12501
81270BBulb (for license plate light)99132-12050
81271license plate lamp shade81271-12501 · 81691-12131
81275License plate lamp holder and wiring harness81275-12501
81690ALeft license plate light assembly81690-12131
