Toyota COROLLA 燃油箱和燃油管 — Figure 7701

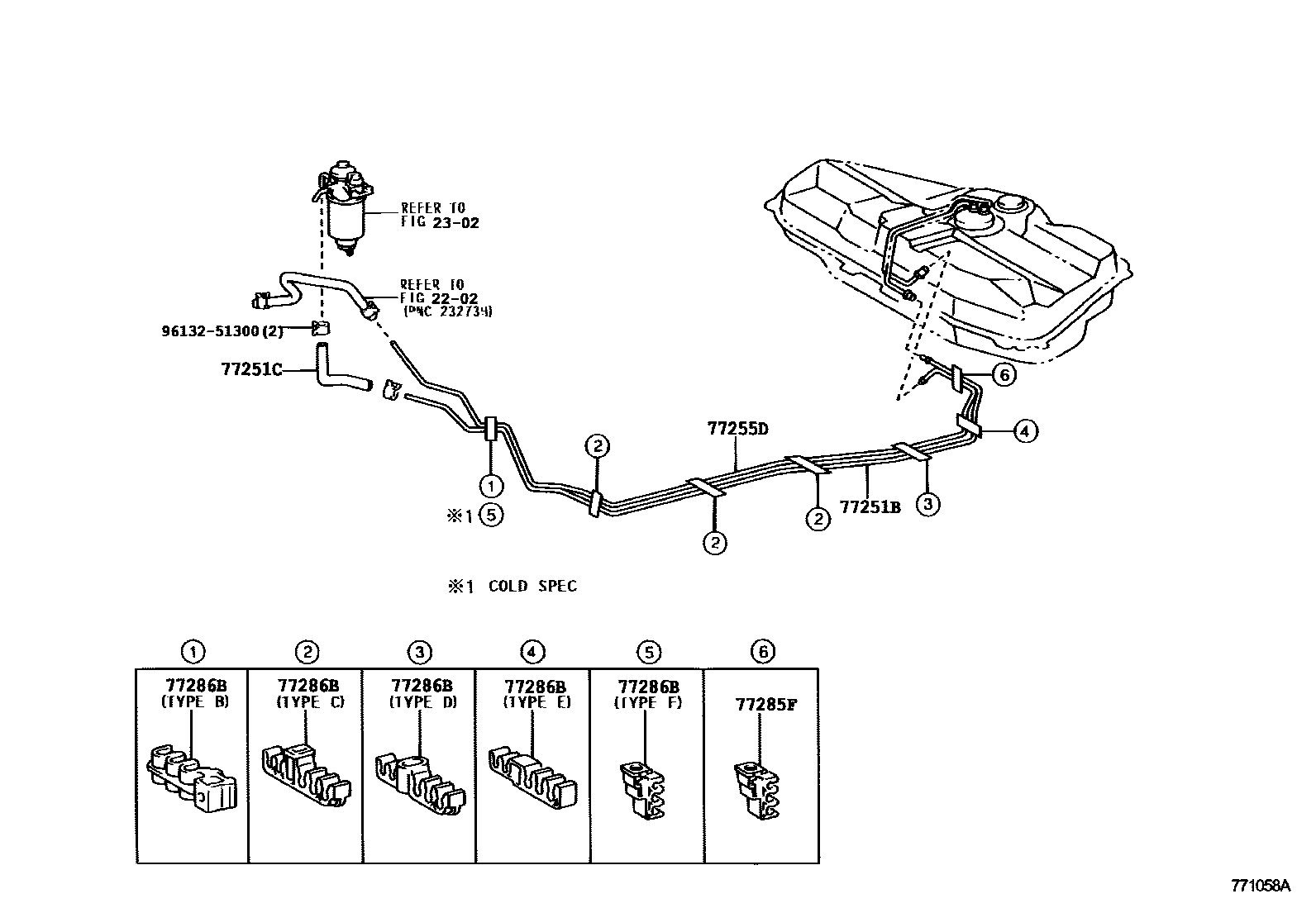

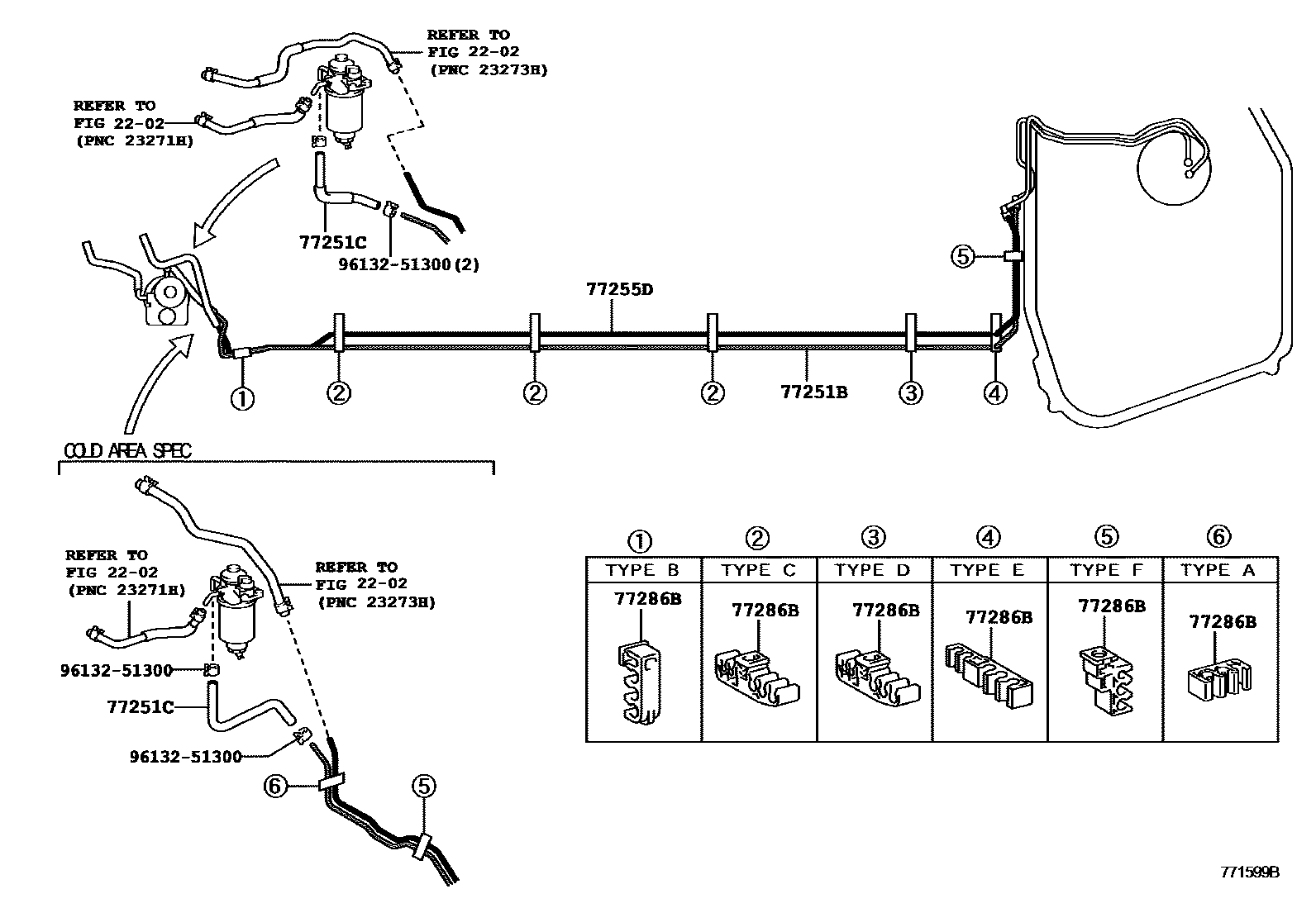

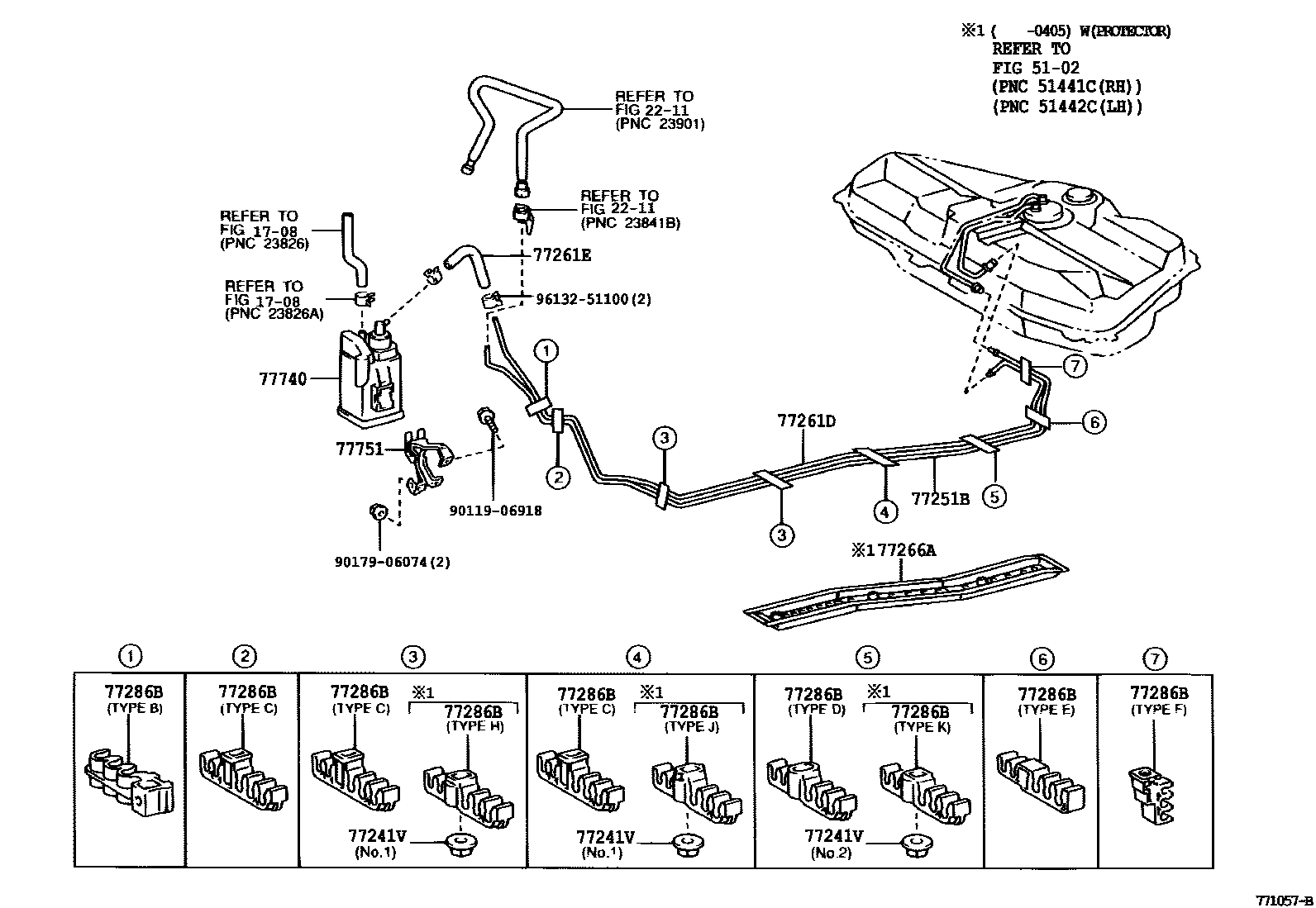

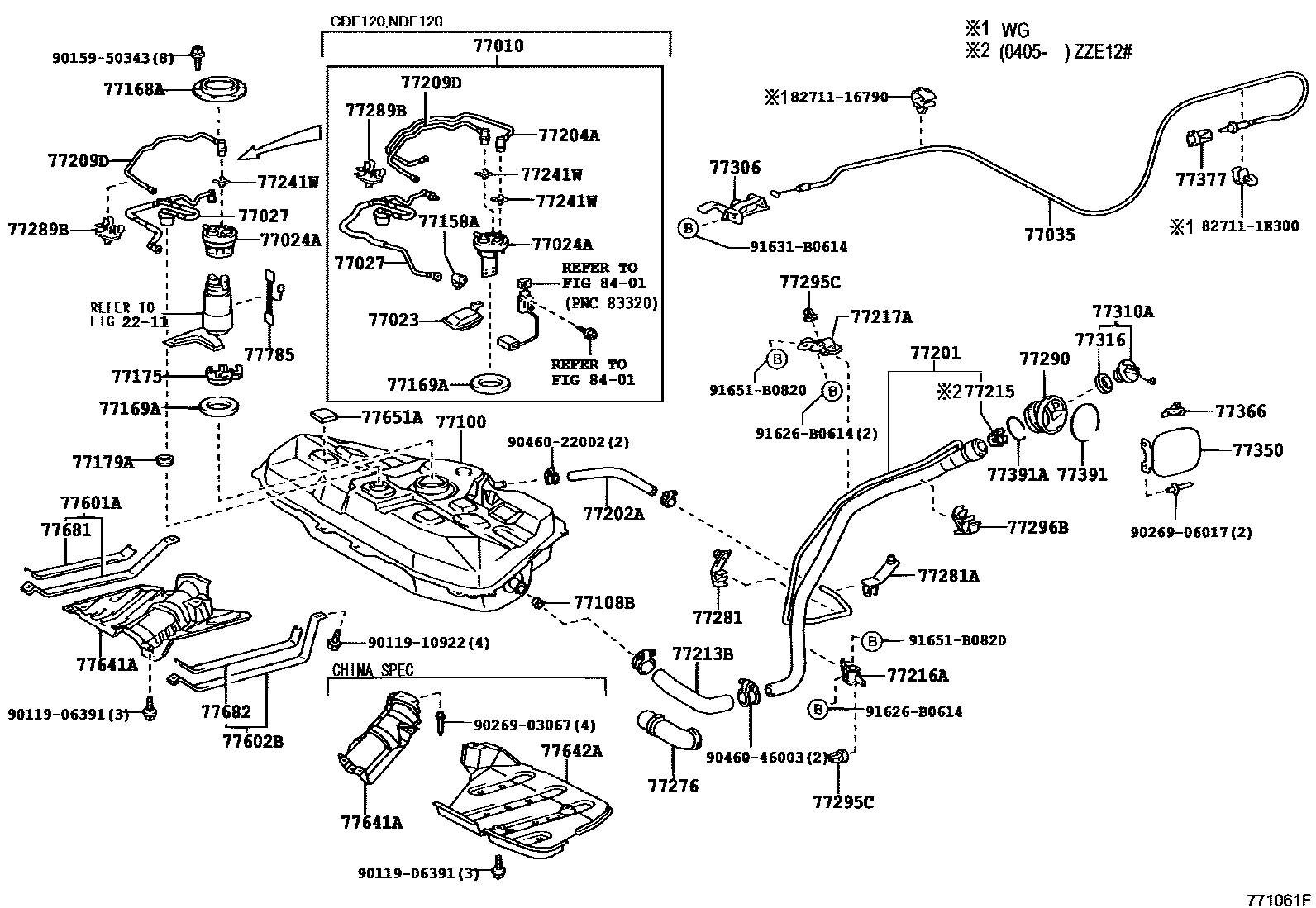

Toyota COROLLA EPC diagram 7701, 燃油箱和燃油管, with 4 images and 55 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 77010 | Fuel tank vent pipe assembly | 77010-12340 · 77010-12360 |
| 77023 | Fuel suction pipe filter sub-assembly | 77023-32040 |
| 77024A | Fuel absorber sub-assembly | 77024-12010 · 77024-12020 |
| 77027 | No. 2 fuel evaporation pipe sub-assembly | 77027-12040 · 77027-12050 |
| 77035 | Fuel filler cap lock control cable sub-assembly | 77035-12400 · 77035-12410 · 77035-13090 · 77035-13100 |
| 77100 | fuel tank assembly | 77001-12860 · 77001-12870 · 77001-1A010 |
| 77108B | Fuel tank refueling check valve sub-assembly | 77108-12040 |
| 77158A | Fuel tank suction pipe bracket | 77158-12030 |
| 77168A | Fuel tank vent pipe fixing plate | 77168-52010 |
| 77169A | Fuel suction pipe fixed gasket | 77169-33020 |
| 77175 | No. 2 oil suction pipe bracket | 77175-47010 |
| 77179A | fuel tank breather gasket | 77179-33010 |
| 77201 | Fuel tank inlet pipe sub-assembly | 77201-12580 · 77201-12590 · 77201-12591 |
| 77202A | No. 1 fuel hose (for breather pipe) | 95313-13034 |
| 77204A | fuel tank return pipe | 77204-12100 · 77204-12120 |
| 77209D | Fuel tank main pipe sub-assembly | 77209-12160 |
| 77213B | Fuel tank to filler pipe hose | 77213-12250 · 77213-32090 |
| 77215 | Fuel tank filler pipe flange piece | 77215-51010 |
| 77216A | No. 1 fuel tank filler pipe bracket | 77216-32060 |
| 77217A | No. 2 fuel tank filler pipe bracket | 77217-32050 |
| 77241V | Pipe joint clip | 77241-12240 · 77241-12250 |
| 77241W | Pipe joint clip | 77241-33011 · 77241-60320 |
| 77251B | main fuel pipe | 77251-12660 · 77251-13180 · 77251-13190 · 77251-13200 · 77251-13210 · 77251-13230 |
| 77251C | No. 1 fuel hose (for main fuel line) | 77259-12260 · 77259-12280 · 77259-12290 |
| 77255D | fuel return pipe | 77255-13150 · 77255-13160 · 77255-13190 · 77255-13200 |
| 77261D | Fuel tank to charcoal canister pipe | 77261-12460 · 77261-13120 |
| 77261E | No. 1 fuel hose (for fuel tank to canister pipe) | 95337-06013 |
| 77266A | No. 1 fuel line protection device | 77266-12120 |
| 77276 | Fuel hose protector | 77276-12050 |
| 77281 | No. 1 main fuel pipe bracket | 77281-32040 |
| 77281A | Fuel filler pipe clamp | 77281-12070 |
| 77285F | No. 1 fuel pipe clamp | 77286-12060 |
| 77286B | No. 2 fuel pipe clamp with retaining ring | 77286-12060 · 77286-47020 · 77289-20060 · 77298-12060 · 77298-12070 · 77298-12080 · 77298-12090 · 77298-12100 · 77298-20080 |
| 77289B | No. 3 fuel pipe clamp | 77289-12030 |
| 77290 | Fuel tank filler pipe cover assembly | 77291-12150 |
| 77295C | Fuel pipe retaining ring | 77295-12070 |
| 77296B | No. 1 fuel line protector bracket | 77296-12030 |
| 77306 | Fuel filler cap lock opening lever sub-assembly | 64606-12050 · 64606-12060 · 77306-13020 · 77306-13030 |
| 77310A | Fuel tank cap assembly | 77300-28010 · 77300-60010 |
| 77316 | fuel tank cap gasket | 77316-16010 |
| 77350 | Fuel filler cap assembly | 77350-12440 · 77350-13070 |
| 77366 | Fuel filler cap hinge spring | 77360-30080 |
| 77377 | Fuel filler cap lock retainer | 77377-12050 |
| 77391 | fuel inlet ring | 77391-12040 |
| 77391A | fuel inlet ring | 77391-12020 |
| 77601A | No. 1 fuel tank strap sub-assembly | 77601-12250 |
| 77602B | No. 1 fuel tank left side band sub-assembly | 77602-12180 · 77602-12190 |
| 77641A | No. 1 fuel tank protective shell | 77641-12160 · 77641-12170 |
| 77642A | No. 2 fuel tank protective shell | 77642-12040 |
| 77651A | No. 1 fuel tank liner | 77651-20090 |
| 77681 | Fuel tank right side strap seat | 77681-34030 |
| 77682 | Fuel tank left side strap seat | 77681-32060 |
| 77740 | Carbon canister assembly | 77740-12690 · 77740-12710 |
| 77751 | Carbon canister base bracket | 77705-12110 · 77750-12170 |
| 77785 | fuel pump wiring harness | 77785-52020 |
