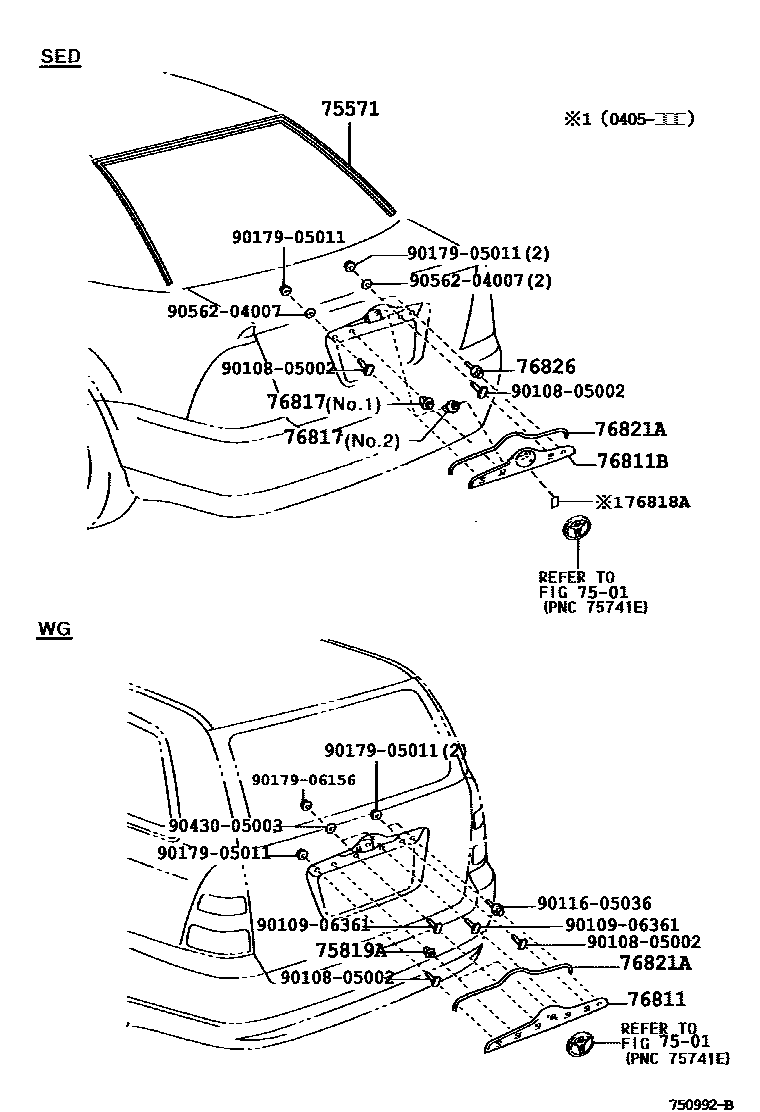

Toyota COROLLA 后防护条 — Figure 7504
Toyota COROLLA EPC diagram 7504, 后防护条, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75571 | Protective strips on the outside of the rear window | 75571-12850 |
| 75819A | Back door protective strip clip | 75819-12040 |
| 76817 | Rear door exterior decorative strip clip | 76817-12050 · 76817-12060 |
| 76818A | Luggage trim strip lining No. 1 | 76818-12160 |
| 76821A | Luggage door outer decorative strip protective cover | 76821-12180 · 76821-13030 |
| 76826 | No. 1 rear door trim strip fixing | 76826-12030 |
