Toyota COROLLA 侧防护条 — Figure 7503

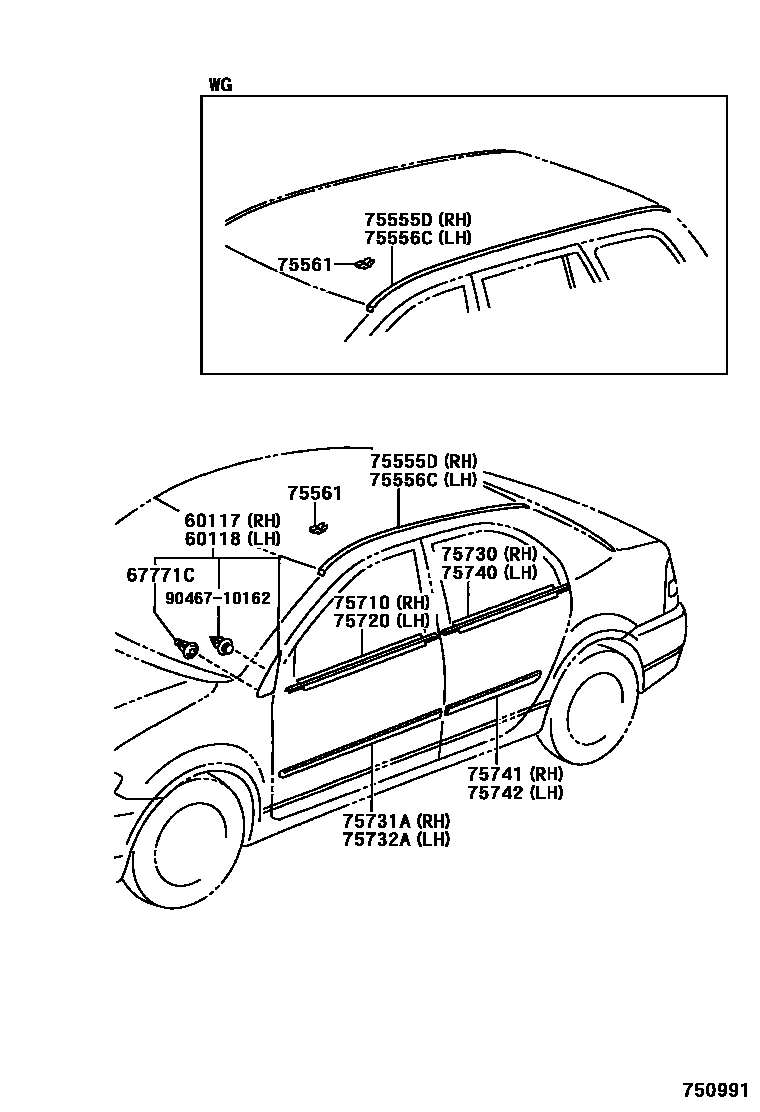

Toyota COROLLA EPC diagram 7503, 侧防护条, with 1 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 60117 | Right front pillar upper cover sub-assembly | 60117-12010 |
| 60118 | Left front pillar upper cover sub-assembly | 60118-12010 |
| 67771C | Front pillar cover fixing parts | 67772-95J03 |
| 75555D | Drainage channel side decorative strip in the middle section on the right side of the roof | 75555-12100 · 75555-12120 · 75555-13010 · 75555-13011 |
| 75556C | Drainage channel side decorative strip in the middle section on the left side of the roof | 75556-12100 · 75556-12120 · 75556-13010 · 75556-13011 |
| 75561 | No. 1 roof drain channel side decorative strip clip | 75561-52020 |
| 75710 | Right front door waistline protection strip assembly | 75710-12740 · 75710-12741 · 75710-12742 |
| 75720 | Left front door waistline protection strip assembly | 75720-12740 · 75720-12741 · 75720-12742 |
| 75730 | Right rear door waistline protection strip assembly | 75730-12260 · 75730-12261 · 75730-12262 |
| 75731A | Right front door outer protective strip | 75731-13170 |
| 75732A | Left front door outer protective strip | 75732-13170 |
| 75740 | Left rear door waistline protection strip assembly | 75740-12350 · 75740-12351 · 75740-12352 |
| 75741 | Right rear door outer protective strip | 75741-13180 |
| 75742 | Left rear door outer protective strip | 75742-13170 |
